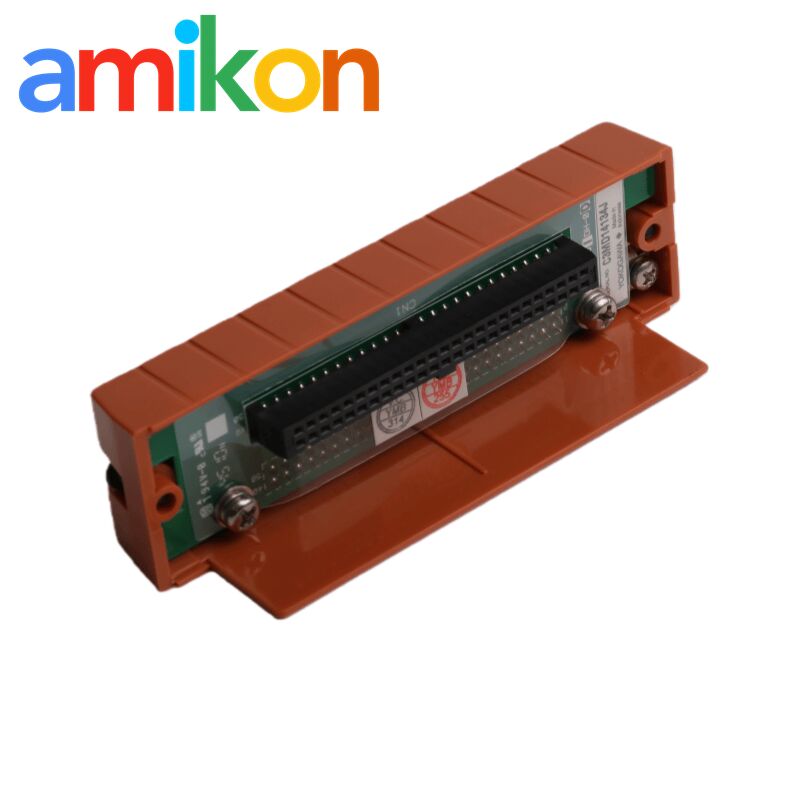

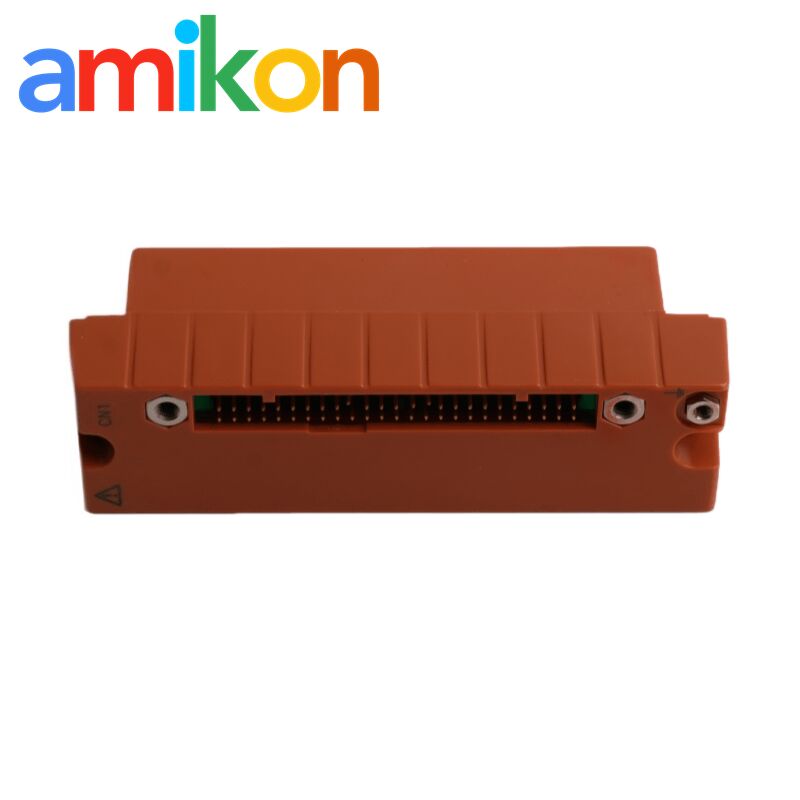

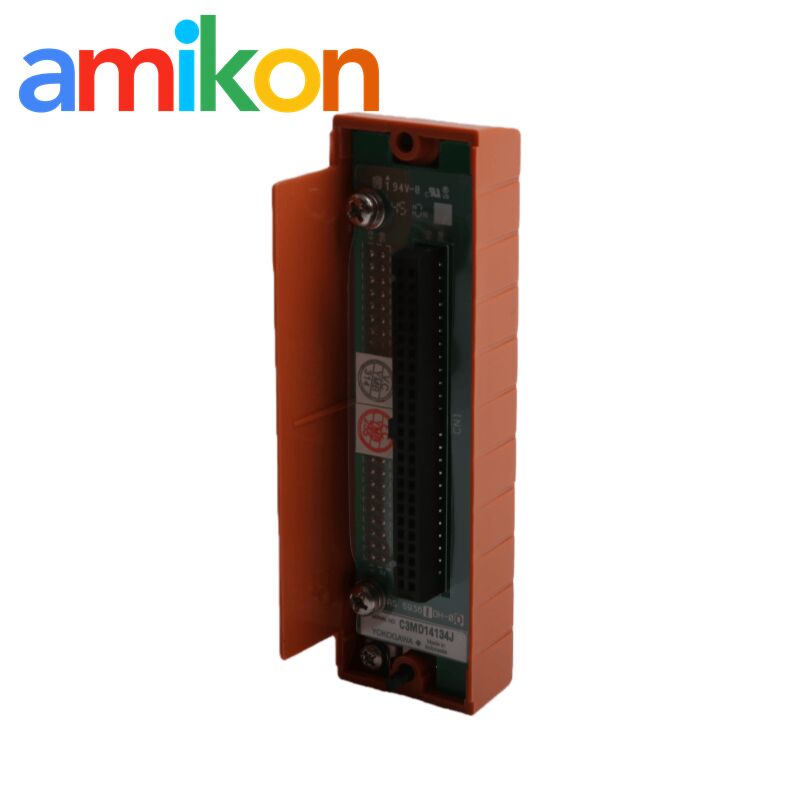

Yokogawa S9361DH-00 Terminal Board Module with 16 Channels, 24-14 AWG Wire Capacity

Yokogawa S9361DH-00 Terminal Board Module with 16 Channels, 24-14 AWG Wire Capacity

16 Channels Terminal Board Module

24-14 AWG Wire Capacity Signal Distribution Board

40-Pin MIL-Spec Connector Yokogawa Module

Place of Origin:

JAPAN

Brand Name:

Yokogawa

Model Number:

S9361DH-00

Contact Us
Request A Quote
Product Details
Nominal:
930V DC
Frequency:
50/60 Hz
Voltage:
380–690V AC (±10%), 3-phase
Control Circuit Voltage:
24V DC (±15%)
Analog Inputs:
0–10V, 4–20mA
Temperature:
-10°C To +50°C (derate 2% Per °C Above 40°C)
Estimated Shipping Size:
3.2x10.6x13cm
Humidity:
<95% Non-condensing
Highlight:

16 Channels Terminal Board Module

,

24-14 AWG Wire Capacity Signal Distribution Board

,

40-Pin MIL-Spec Connector Yokogawa Module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
Yokogawa S9361DH-00 Terminal Board Module with 16 Channels, 24-14 AWG Wire Capacity 0
The Yokogawa S9361DH-00 is a passive signal distribution terminal board designed for reliable field interface connectivity in industrial control systems.
Technical Specifications & Features
Hardware Role: What is the core function of the S9361DH-00?
It is a passive signal distribution board that bridges field-side screw terminals to a high-density connector for Yokogawa KS-cables. This board contains no logic or active components—it serves as a physical junction for FIO (Field Interface I/O) modules.
Wire Capacity: What is the gauge limit for field connections?
The board accepts solid or stranded wire from 24 to 14 AWG. For optimal performance and project consistency, use bootlace ferrules. Over-stuffing terminals can cause mechanical stress on PCB solder joints, potentially leading to intermittent signal loss under cabinet vibration.
Signal Density: How many I/O loops per board?
Standard pin-out supports 16 channels, matching the density of most Yokogawa AAI/AAV/AADV modules. Always cross-reference the KS-cable pin map before termination to ensure field loops match software channel assignments in the DCS.
Grounding Protocol: How to handle the cable shields?
Terminate drain wires at the board's dedicated ground bus using a single-point ground strategy. Standard practice involves floating the shield at the field instrument and grounding it at the S9361DH-00 to prevent 50/60Hz noise from corrupting analog PV (Process Variable) data.
Cable Matching: Which KS-cable header is used?
The board uses a standard 40-pin or 50-pin MIL-spec style connector (depending on variant) and requires Yokogawa KS1 or KS9 series cables. Ensure locking latches click securely to prevent cable back-out, which can cause "Bad PV" or open-loop alarms in the controller.
Field Testing: Can I perform loop checks directly on the board?
Yes. Use a multimeter probe on the screw heads for voltage/current verification. Note that this board lacks internal disconnect switches. To break the loop for isolation testing, you must physically lift the wire from the terminal.
Mounting & Heat: Any specific orientation requirements?
Standard 35mm DIN rail mount. While the board generates zero heat, it is typically installed in high-density marshaling racks. Maintain adequate vertical clearance for the KS-cable's minimum bend radius to avoid putting leverage on the board's connector header.
Redundancy: Does this board support redundant I/O?
The S9361DH-00 is a single-path board. For redundant I/O configurations (dual AAI143, etc.), you typically use a different terminal board model or a "Y-cable" assembly that splits the signal from this board to two separate I/O module slots.
