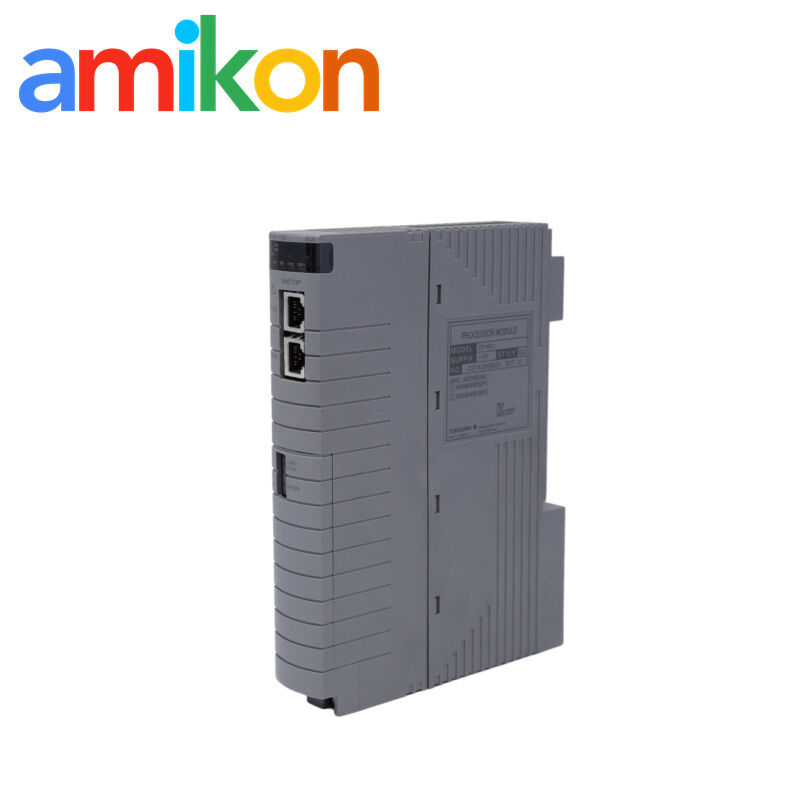

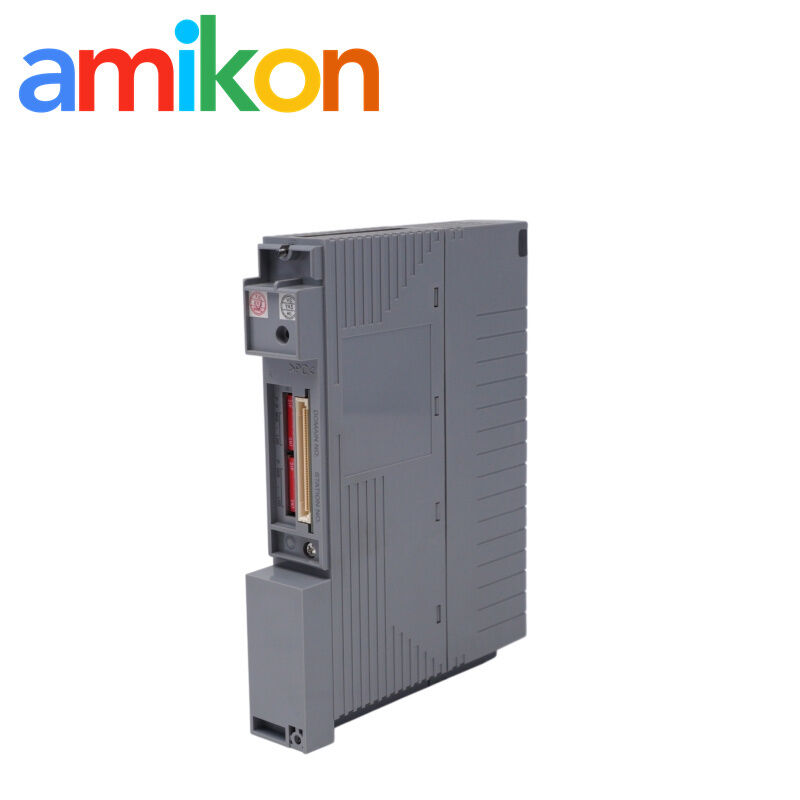

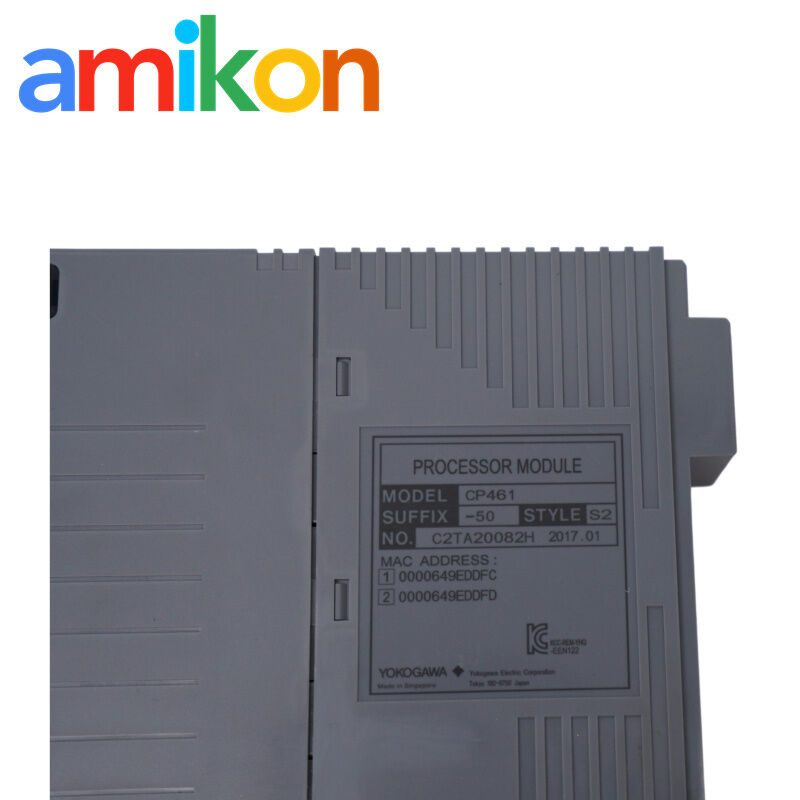

Yokogawa CP461-50 Processor Module
Processor module for Yokogawa Field Control Unit configurations within CENTUM VP control system architectures. The CP461-50 is the standard type without explosion protection.
Technical Specifications
Data sources: Yokogawa Electric Corporation GS 33J60E10-01EN and related CENTUM VP documentation for the AFV30 Field Control Unit configuration.
| Manufacturer | Yokogawa Electric Corporation |
|---|---|
| Part Number | CP461-50 |
| Model | CP461 |
| Product Type | Processor Module |
| Suffix | -50 |
| Suffix meaning | Standard type with no explosion protection; basic type |
| Application | Field Control Unit / Field Control Station |
| Redundant configuration | 2 identical CP461 modules for dual-redundant processor configuration |
Show system-level specifications for the CP461 host FCU
| Applicable FCU family | AFV30S / AFV30D and compatible CENTUM VP Field Control Unit configurations |
|---|---|
| Vnet/IP | Dual-redundant Vnet/IP interface on the AFV30 FCU |
| ESB node capacity | Maximum 13 ESB Bus Node Units and Optical ESB Bus Node Units per FCU |
| I/O module capacity | Maximum 8 I/O modules in the AFV30 FCU configuration |
| Processor redundancy rule | Dual redundancy requires two identical processor modules with the same model code |
| READY contact | 2 terminals, NC/C; contact opens during FCU failure; 30 V DC maximum, 0.3 A maximum |
| Main memory backup | Battery backup maximum 72 hours; minimum recharge time 48 hours |
| Host mounting | 19-inch rack mounting for AFV30S / AFV30D |
Compatibility & Replacement
Yokogawa Field Control Unit
CP461 is documented for compatible CENTUM Field Control Unit configurations, including AFV30S and AFV30D. AFV30S-S and AFV30D-S are the CP461 configurations.
CP461-10 → CP461-50
CP461-50 is identified as a replacement for CP461-10 in available product documentation.
CP471 migration: Yokogawa documents CP471 as the replacement path for existing CP461 installations. This replacement requires a Yokogawa-authorized service engineer.
Application & Fault Scenarios
Processor layer of the Field Control Station
The module operates within the Field Control Unit control layer and works with the CENTUM VP FCU, Vnet/IP, ESB bus and connected I/O or node units.
Common replacement needs
Existing CP461 replacement, redundant-pair spares and planned maintenance are typical reasons to source this processor.
Maintenance impact: A processor fault can affect the control layer. Actual plant impact depends on the available redundant processor and the configured control strategy.
Redundancy, Bus & Installation
Processor redundancy
A duplexed FCU uses two identical CP461 processor modules with the same model code.
ESB bus coupling
- EC401 or EC402 for ESB Bus Node Units.
- Both designated positions are used for processor redundancy.
- Single ESB configurations use the designated single position.
Optical ESB
ANT401 or ANT411 is used for optical ESB remote connections where required.
FCU connections
- M4 screw terminals for power, grounding and READY contact.
- CAT5e or better UTP for the network connection.
System Configuration Notes
AFV30 is a 19-inch rack-mountable Field Control Unit for FIO.
Up to 13 ESB Bus Node Units and Optical ESB Bus Node Units can be connected per FCU.
The host FCU provides battery-backed main-memory protection for up to 72 hours.
Delivery, Warranty & RFQ
Testing: Functional inspection before shipment.
Packaging: Protective industrial packaging.
Warranty: 12 months under agreed warranty terms.
DOA: Arrival damage or initial failure can be reported with supporting evidence.
Returns: Handled according to the agreed order and warranty conditions.
Part Number · Quantity · Destination · Required Date · Machine/System Model
Need the right processor for your cabinet?
FAQ
Is CP461-50 a standard or explosion-protected processor module?
Can two CP461-50 modules be installed for processor redundancy?
Which Field Control Units should be checked before ordering CP461-50?
What is the difference between CP461-50 and CP461-10?
Can CP461-50 be upgraded to CP471 by the plant maintenance team?
