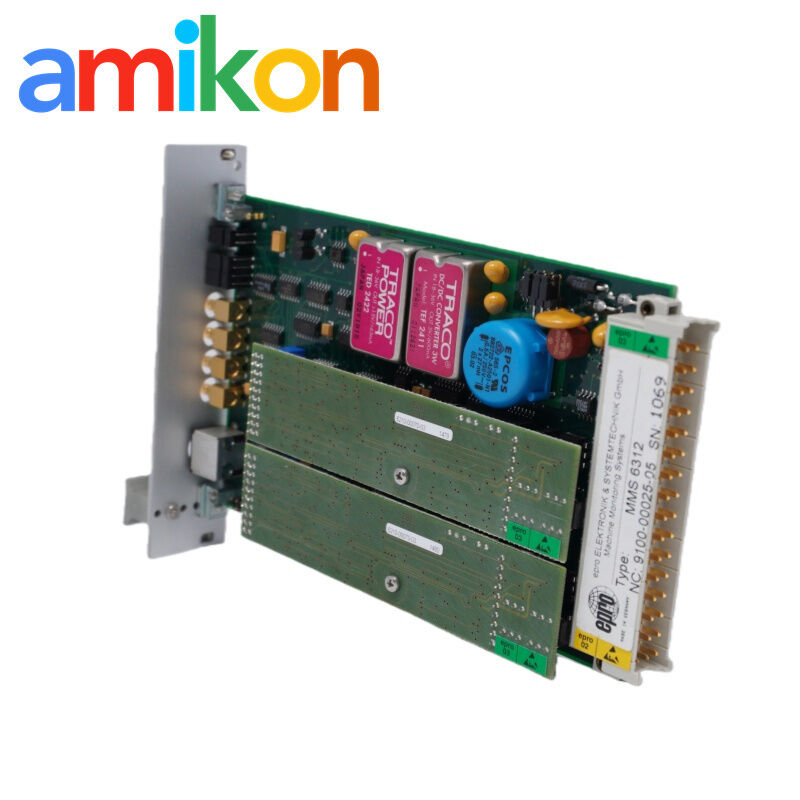

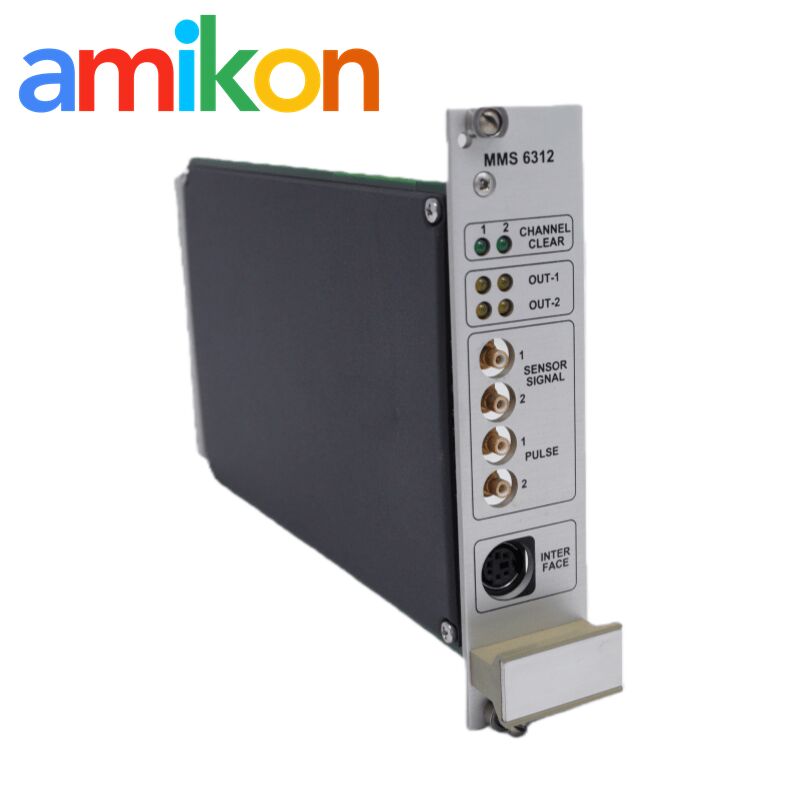

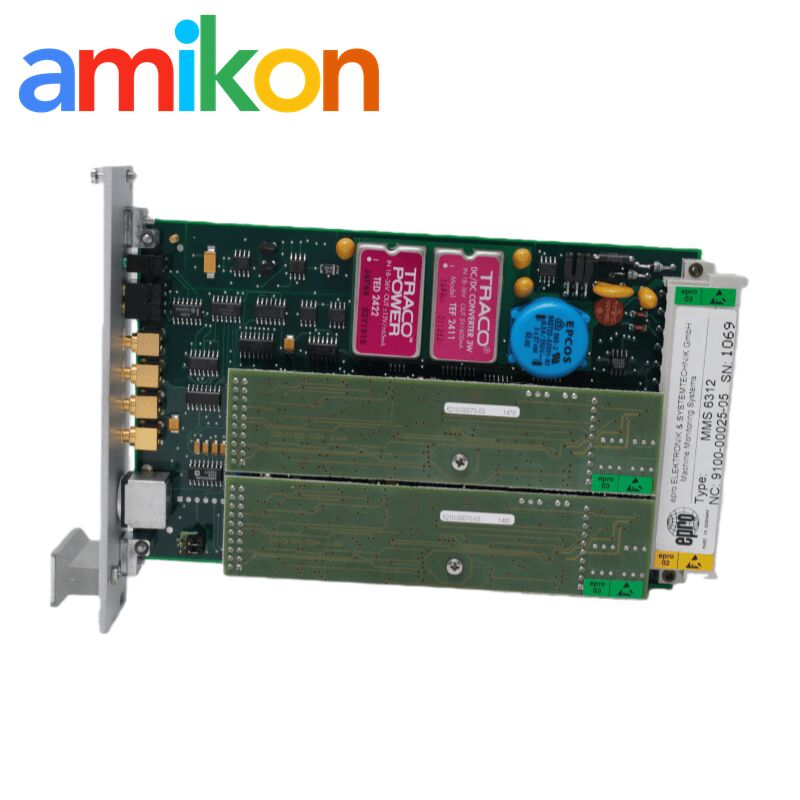

Emerson MMS6312 Dual Channel Rotational Speed Monitor with 24 V DC Supply
Emerson MMS6312 Dual Channel Rotational Speed Monitor with 24 V DC Supply
24 V DC Rotational Speed Monitor
4–20 mA Analog Output Dual Channel Speed Module
High Precision ±0.5% MMS6312 Module
Place of Origin:
USA
Brand Name:
Emerson
Model Number:
MMS6312
Contact Us
Request A Quote
Product Details
Supply Voltage:
24 V DC
Analog Output:
4–20 MA
Relay Outputs:
4 Changeover Relays
Response Time:
<100 Ms
Accuracy:
High Precision, Typically ±0.5% Of Full Scale
Input Resistance:
> 100 KOhm
Input Voltage Range:
0..+. Or-27.3 V Dc
Input Frequency Range:
0...20000 Hz
Highlight:
24 V DC Rotational Speed Monitor
,4–20 mA Analog Output Dual Channel Speed Module
,High Precision ±0.5% MMS6312 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Part of the MMS 6000 System featuring replaceable during operation capability and standalone use possibility with redundant supply inputs.
Key Features
- Extended self-checking facilities with built-in sensor-self-test capabilities
- Compatible with eddy-current type transducer systems: PR 6422/.. to PR 6425/.. with CON 0.. or with PR 9376/.. and PR 6453/.. pulse sensors
- Galvanically separated current outputs for enhanced safety
- RS 232 interface for local configuration and readout
- RS 485 interface for communication with epro's Analysis and Diagnostic System MMS 6850
Measurement Capabilities
Individual Channel Applications:
- Two speeds from two separate shafts
- Two standstills from two shafts
- Two key-pulses from two shafts with phase relation detection
Combined Channel Applications:
- Direction of rotation detection for single shafts
- Speed difference detection between two shafts
- Integration into multichannel or redundant systems
System Integration
Compatible with Analysis and Diagnostic Systems, Field Bus Systems, Distributed Control Systems, plant/host computers and networks including WAN/LAN, Ethernet. Enhances performance, efficiency, operational safety, and extends machine lifetime for turbines, compressors, fans, centrifuges, and other turbomachinery.
Configuration & Operating Modes
Each channel is individually configurable via RS 232 connector (front panel) or RS 485 communication bus. Configuration changes can be made during operation.
Speed Measurement:
- Forward/backward speed measurement with 1-255 trigger marks (max 20 kHz)
- Multiple measurement methods including pulse counting and automatic tracking
- Output options: analog proportional, split range, enlarged range, and TTL pulses
- Redundant transducer support (1 out of 2) with both channels
Key-Pulse Detection:
- Single key mark or multiple marks (max 255 per revolution)
- Standard negative/positive rectangular key pulse output (1 ms duration)
Standstill Detection:
- Detects standstill with 1-255 trigger marks
- Configurable time measurement range: 1-1700 seconds
- Backwards/forwards rotation detection
Combined Channel Functions:
- Direction detection using phase-shifted trigger marks
- Speed difference detection between two trigger wheels
