Product Description
Emerson · DeltaV
KJ4001X1-CH1

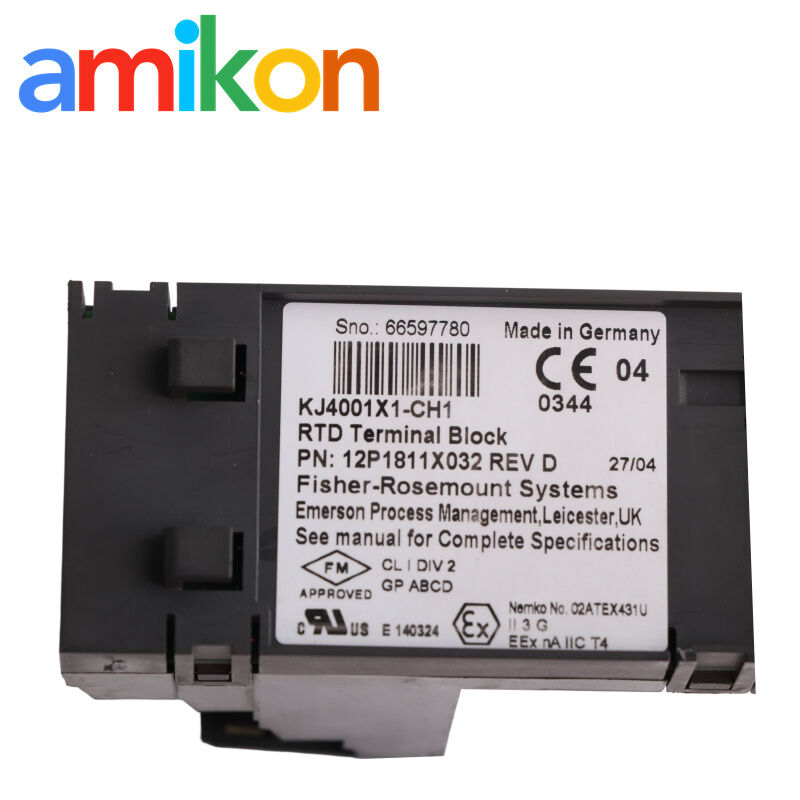

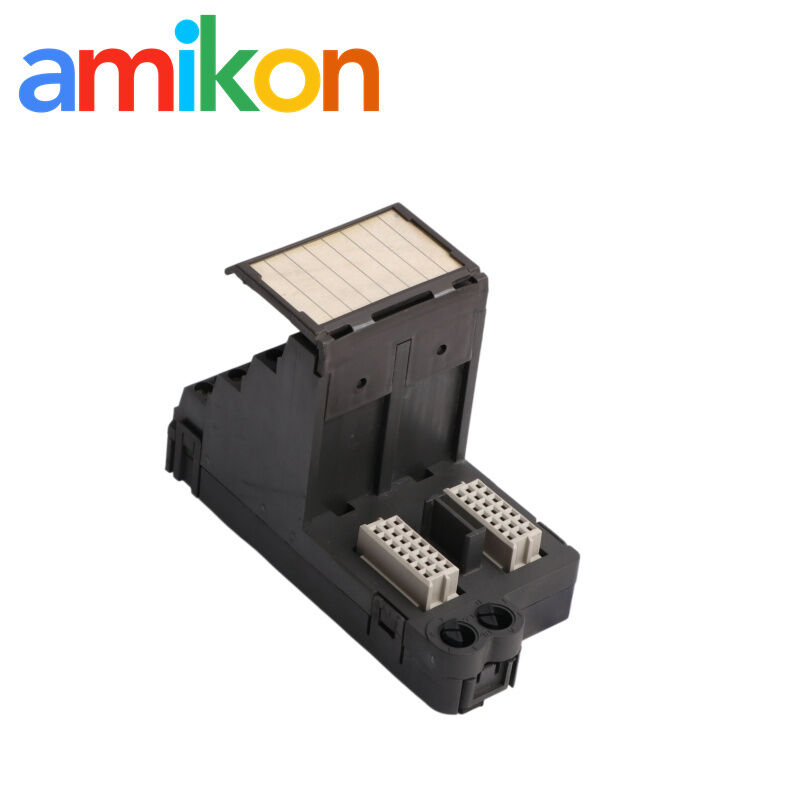

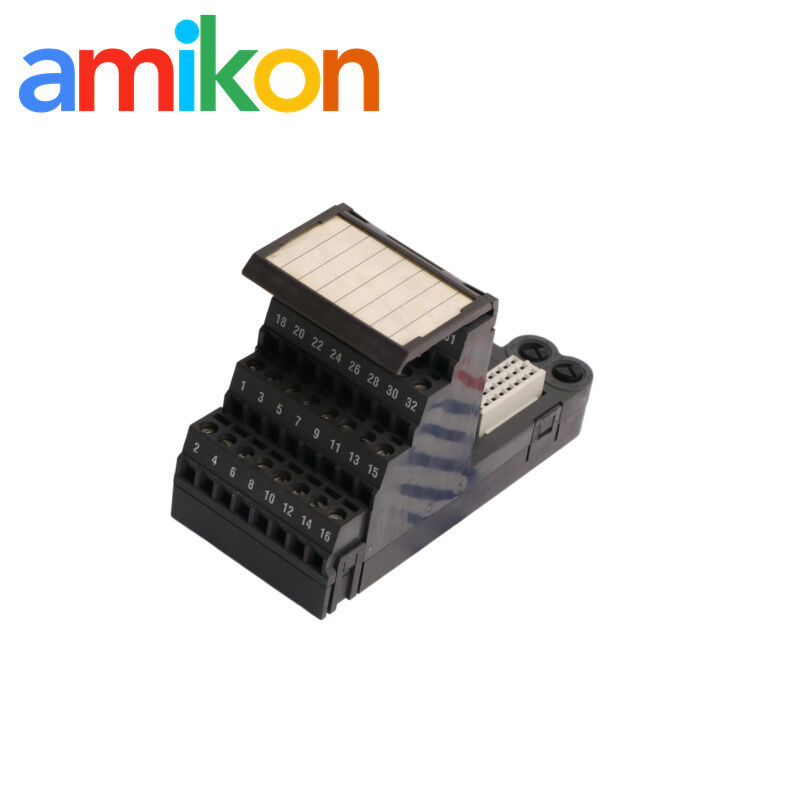

Emerson KJ4001X1-CH1 is an RTD / ohms terminal block designed for RTD and resistance input termination within DeltaV I/O installations.
01 · Product Function
RTD / Ohms Terminal Interface
Product type
RTD / ohms terminal block.
Application
Terminal interface for RTD and resistance input wiring in DeltaV I/O installations.
System documentation
Installation documentation identifies the product in the DeltaV Electronic Marshalling Digital Automation System / CHARM I/O Subsystem environment.
02 · Technical Specifications
Product Specifications
Electrical & Environmental Specifications
Manufacturer Emerson
Model KJ4001X1-CH1
Product Type RTD / ohms terminal block
Associated MPN 12P1811X
Input Power Rating 5 VDC @ 100 mA
Ambient Temperature −40 °C to +70 °C
Relative Humidity 5% to 95%, non-condensing
Airborne Contaminants ISA-S71.04–1985 Class G3
Shock 10 g half-sine wave for 11 ms
Vibration, 2–13.2 Hz 1 mm peak-to-peak
Vibration, 13.2–150 Hz 0.7 g
Safety & Hazardous-Area Data
Hazardous-Area Marking II 3G Ex ec IIC Gc
ATEX Certificate FM18ATEX0076U
IECEx Certificate IECEx FMG 18.0030U
UKEX Certificate FM21UKEX0199U
US Hazardous Location CL. I Div. 2 GP. A, B, C, D
US / Zone 2 Marking CL. I Zone 2 AEx/Ex ec IIC T4 Gc
US Approval FM18US0277U
Canada Approval FM19CA0005U
Removal, Maintenance & Installation Reference
Removal / Insertion System power must be de-energized before removal or insertion.
Calibration Not required.
Field Serviceability No user-serviceable parts; do not disassemble.
Installation Document 12P2046 — DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions.
Additional Installation Manual DeltaV S-Series and CHARMs Hardware Installation manual.
Product labeling includes information for the serial number and location/date of manufacture.
03 · Installation
Removal & Maintenance
Before replacement
De-energize the relevant system before removing or inserting the terminal block. The product safety information specifies that the unit cannot be removed or inserted while system power is energized.
Maintenance
The unit contains no user-serviceable parts and should not be disassembled. Calibration is not required.
04 · Application & Fault Scenarios
Where This Part Matters
System application
- RTD / resistance input termination in DeltaV I/O installations.
- Field wiring interface associated with RTD measurement signals.
- Replacement of an installed KJ4001X1-CH1 during maintenance or spare-parts planning.
Why it may be searched
- Suspected terminal-block or field-connection problems.
- RTD signal troubleshooting where the termination path is being inspected.
- Planned replacement to restore an existing temperature measurement path.
Downtime consideration: when the terminal interface is part of a required RTD measurement path, an unavailable or faulty unit can interrupt the associated temperature signal and extend troubleshooting or maintenance time.
05 · Identification
Part Number & Technical Documents
The product marking can be compared with KJ4001X1-CH1 and the associated 12P1811X identification before ordering. Technical-document searches can use KJ4001X1-CH1 PDF, KJ4001X1-CH1 manual, or KJ4001X1-CH1 datasheet.
06 · Contact AMIKON
Confirm Part Number & Availability
Send the exact part number and quantity to AMIKON for quotation and availability information.
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
OUR WAREHOUSE
Delivery & warranty: products are checked before shipment and packaged for delivery. DOA cases should be reported promptly with order information and supporting photos or video. The standard AMIKON warranty is 12 months; warranty handling is subject to the confirmed order terms.
07 · FAQ
KJ4001X1-CH1 Questions
What is the associated part number for KJ4001X1-CH1?
The associated MPN is listed as 12P1811X. The complete product marking should be checked before ordering.
What power rating is specified for KJ4001X1-CH1?
The specified input power rating is 5 VDC at 100 mA.
What temperature range is specified?
The specified ambient temperature range is −40 °C to +70 °C.
Can KJ4001X1-CH1 be removed while the system is powered?
No. System power must be de-energized before the unit is removed or inserted.
Does KJ4001X1-CH1 require calibration?
No. The product documentation states that calibration is not required.
08 · Related Models
Additional Automation Spare Parts
Show Related Models
Product information is based on Emerson Automation Solutions product and installation documentation for KJ4001X1-CH1. Product labeling and applicable installation requirements should be checked before replacement, particularly for hazardous-area applications.
