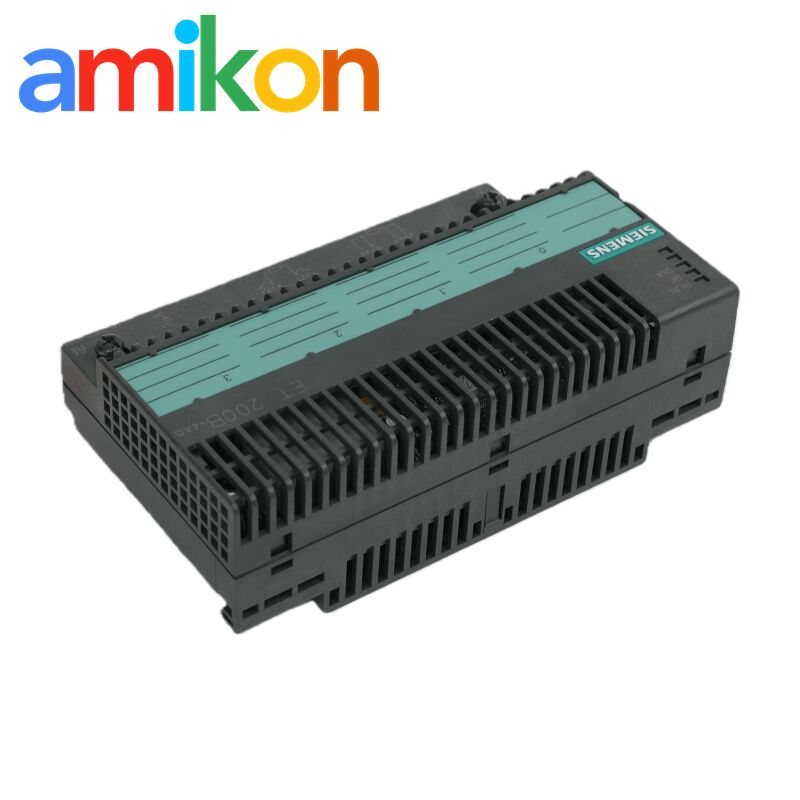

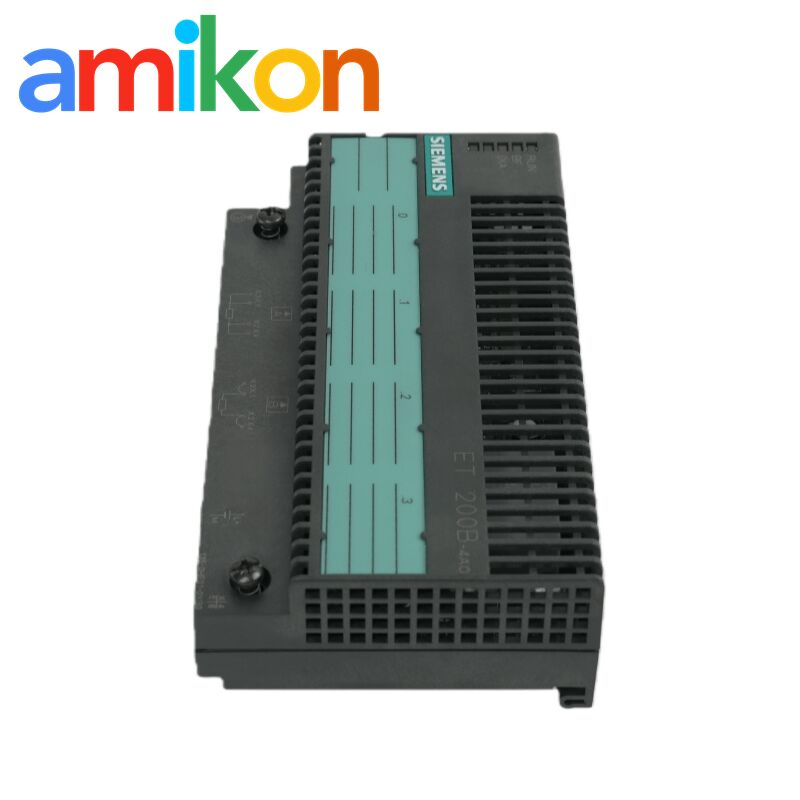

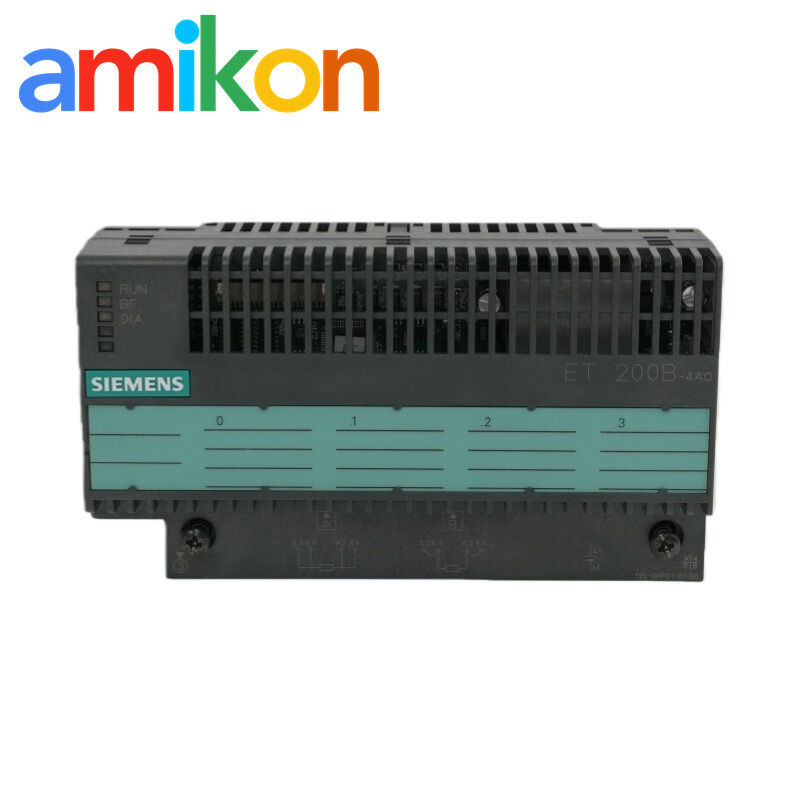

Siemens 6ES7135-0HF01-0XB0 Analog Output Module with 4 Analog Outputs 11 Bit Resolution
Siemens 6ES7135-0HF01-0XB0 Analog Output Module with 4 Analog Outputs 11 Bit Resolution
4 Analog Outputs Analog Output Module
11 Bit Resolution PLC Module
1 ms Conversion Time Siemens Simatic Module
Place of Origin:
Germany
Brand Name:
Siemens
Model Number:
6ES7135-0HF01-0XB0
Contact Us
Request A Quote
Product Details
Rated Value (DC):
24 V; Value At T < 0.5 S: 35 V
Permissible Range, Lower Limit (DC):
18.5 V
Permissible Range, Upper Limit (DC):
30.2 V
Current Consumption, Max.:
200 MA; Logic
Power Loss, Typ.:
2.4 W
Required Terminal Block:
TB8
Number Of Analog Outputs:
4
Voltage Output, Short-circuit Current, Max:
25 MA
Highlight:
4 Analog Outputs Analog Output Module
,11 Bit Resolution PLC Module
,1 ms Conversion Time Siemens Simatic Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Siemens 6ES7522-1BH00-0AB0 Digital Output Module with 16 Outputs 24V DC and 0.5A per Channel
Get Best Price
Video
Siemens 6ES7151-1AA03-0AB0 IM 151-1 Standard Interface Module with RS 485 Interface 20ms Holdup Time
Get Best Price
CONTACT US
Contact Now
Product Description
The Siemens 6ES7135-0HF01-0XB0 is an analog output module designed for use in standard automation systems. It operates with a 24 V DC rated supply and tolerates short-term values up to 35 V (t < 0.5 s). The permissible operating range is 18.5-30.2 V DC. The module provides four analog outputs, each with electronic short-circuit protection, allowing one output in parallel and supporting a maximum short-circuit current of 25 mA.
| Parameter Category | Specification | Value |
|---|---|---|
| Analog value generation | Integration and conversion time/resolution per channel | |
| Resolution with overrange (bit including sign), max. | 11 bit ; Two's complement | |
| Conversion time (per channel) | 1 ms | |
| Settling time | for resistive load | 0.1 ms |
| for capacitive load | 3.3 ms | |
| for inductive load | 0.5 ms | |
| Errors/accuracies | Output ripple (based on output area, bandwidth 0 to 50 kHz), (+/-) | 0.05 % |
| Linearity error (relative to output range), (+/-) | 0.05 % | |
| Temperature error (relative to output range), (+/-) | 0.02 %/K | |
| Crosstalk between the outputs, min. | 40 dB | |
| Repeat accuracy in steady state at 25 °C (relative to output area), (+/-) | 0.05 % | |
| Operational error limit (in overall temperature range) | ||
| Voltage, relative to output area, (+/-) | 0.5 % | |
| Current, relative to output area, (+/-) | 1 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to output area, (+/-) | 0.2 % | |
| Current, relative to output area, (+/-) | 0.3 % | |
| Interfaces | PROFIBUS DP | |
| Transmission rate, max. | 12 Mbit/s | |
| Communication functions | Bus protocol/transmission protocol | PROFIBUS DP |
| Interrupts/diagnostics | Alarms | |
| Diagnostic alarm | Yes ; Parameterizable | |
| Diagnostics indication LED | Bus fault BF (red) | Yes |
| Run mode RUN (green) | Yes | |
| Galvanic Isolation | between electronic block and PROFIBUS DP | Yes |
| Galvanic isolation analog outputs | No | |
Integration Context
Component: 6ES7135-0HF01-0XB0 (Analog Output Module)
Function: Distributed I/O extension within the SIMATIC S7 ecosystem. Facilitates signal processing between field devices and central processing units.
Function: Distributed I/O extension within the SIMATIC S7 ecosystem. Facilitates signal processing between field devices and central processing units.
Controller Hierarchy & Compatibility
Tier 1: S7-200 (Micro-PLC)
Classification: Micro-Automation.
Application Domain: Stand-alone machines; micro-systems.
Core Function: Basic logic control execution.
Application Domain: Stand-alone machines; micro-systems.
Core Function: Basic logic control execution.
Tier 2: S7-300 (Mid-Range Modular)
Classification: Standard Manufacturing Automation.
System Capacity: Supports max. 32 centralized modules per rack.
Core Function: Modular industrial control for standard production environments.
System Capacity: Supports max. 32 centralized modules per rack.
Core Function: Modular industrial control for standard production environments.
Tier 3: S7-400 (High-Performance)
Classification: Process Industry & Data-Intensive Systems.
System Capacity: Extended rack configuration supporting >300 modules.
Core Function: Complex algorithm processing, high data throughput, and system redundancy management.
System Capacity: Extended rack configuration supporting >300 modules.
Core Function: Complex algorithm processing, high data throughput, and system redundancy management.
Service & Support
System Status: Operational
- Professional Service: Backed by a professional Technology team. We provide premier sales, maintenance, and long-term warranty assurance.
- Enough Inventory: Extensive Stockholding. Storing diverse items, specializing in discontinued or rare components for all customers.
- Superior Marketing Foresight: Global Marketing Analysis. Following network development, we integrate Real Store and Online Shop channels to offer the best products and competitive prices in the shortest time.
- Win-Win Business Theory: Core Philosophy. Fast accessories supply. Most competitive in price. Most convenient in Tech Consultation.
Related Products
Video
Video
Video
