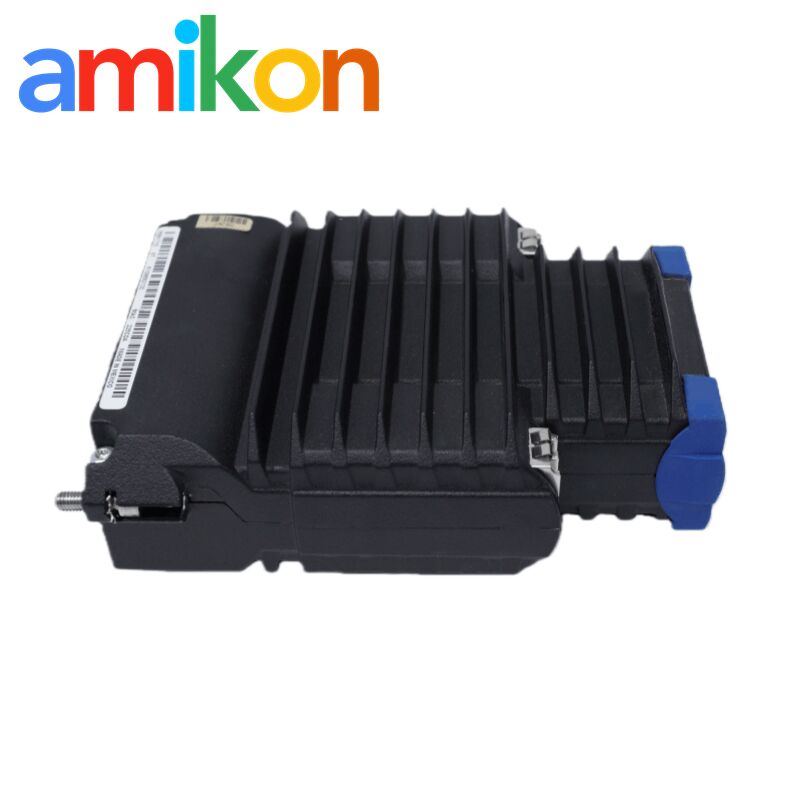

Foxboro FCP270 P0917YZ Field Control Processor for Class G3 Harsh Environments

Distributed, optionally fault-tolerant, field-mounted controller module.

Regulatory, logic, timing, and sequential control with connected Fieldbus Modules.

Supports data acquisition, alarm detection, and notification.

Connects to Foxboro Evo control network via fiber optic 100 Mbps Ethernet.

Two processor modules installed in adjacent FCP270 slots in a supported baseplate for high-speed inter-module communication.

Modules must be installed in adjacent slots for proper high-speed communication.

• Performs regulatory, logic, timing, and sequential control together with connected Fieldbus Modules (FBMs)
• Uses versatile control algorithms and a wide variety of FBMs to provide control capabilities for a broad range of process applications

• Performs data acquisition and alarm detection and notification

• Supports up to 32 200 Series FBMs (Compact or standard)
• Supports up to 128 200 Series FBMs with a Fieldbus Expansion Module 100 (FEM100)
• Supports up to 64 100 Series FBMs
• No Fieldbus Communication Module required
• Supports both 2 Mbps or 268 Kbps HDLC fieldbuses simultaneously with the FBI200
• Supports extension of the 268 Kbps HDLC fieldbus with the FBI100 to the 100 Series FBMs

• Connects to the Foxboro Evo control network via standard fiber optic 100 Mbps Ethernet
• Supports time synchronization using optional external time from GPS satellites

• Rugged, die-cast aluminum housing for mounting in a non-vented field enclosure
• Can operate in Class G3 harsh environments
• CE certified for field mounting in enclosures

• Offers unique, patented, fault-tolerant operation using two control modules to greatly improve reliability relative to other process controllers
• On-line image update of a fault-tolerant FCP270 without shutting down the process

• Uses soft letterbugs configurable via the I/A Series® system Letterbug Configurator running on a Pocket PC
• Supports self-hosting mode with I/A Series software v8.4-v8.8 or Foxboro Evo™ Control Core Services v9.0 or later

• All 200 Series FBMs (FBM201, FBM202, etc.) -- Compact and standard types
• Field Device Systems Integrator (FDSI) modules
• Intrinsically Safe I/O Subsystem (ISCM)
• DCS Fieldbus Modules for Siemens APACS+™ Systems
• DCS Fieldbus Modules for Westinghouse WDPF® Systems
• DCS Fieldbus Modules for Fisher PROVOX® Series 20 Migration with HART
• DCS Fieldbus Modules for Honeywell® TDC 2000 Systems with HART

• 100 Series FBMs (FBM01, FBM02, etc.)
• Fieldbus Cluster I/O via FBP10 fieldbus processor module
• Foxboro® Hydrostatic Interface Unit (HIU)
• Foxboro Mass Flowmeter
• Foxboro Panel Display Stations
• SPECTRUM™ Migration Integrators
• SPEC 200™ Control Integrators
• SPEC 200 MICRO™ Control Integrators
• SPEC 200 CCM Control Integrators
• DCS Fieldbus Modules for Honeywell® TDC 2000 and TDC 3000 Systems
• DCS Fieldbus Modules for Bailey® Net90 and Infi90 Systems
• DCS Fieldbus Modules for Fisher PROVOX® Series 10, Series 20, and Controller Series Systems

• Foxboro Gas Chromatograph
