Foxboro P0926JMA 8-Position I/A Series Baseplate with DIN Rail Installation
Foxboro P0926JMA 8-Position I/A Series Baseplate with DIN Rail Installation
8-position Baseplate
DIN rail installation I/A Series Baseplate
dual-redundant 24V DC power Fieldbus Module Baseplate
Place of Origin:
USA
Brand Name:
FOXBORO
Model Number:
P0926JMA
Contact Us
Request A Quote
Product Details
Part Number:
P0926JMA
Description:
I/A Series Baseplate
Brand:
FOXBORO
Shipping:
TNT, DHL, FedEx, EMS, UPS
Country Of Origin:
USA
MOQ:
1 Piece
Operating Temperature:
0°C To +60°C
Humidity:
5–95% RH (non-condensing)
Highlight:
8-position Baseplate
,DIN rail installation I/A Series Baseplate
,dual-redundant 24V DC power Fieldbus Module Baseplate
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Foxboro FCM10EF P0916CP Fieldbus Communication Module with 10 Mbps Fiber Optic Ethernet
Get Best Price
Video
Foxboro P0916NG FBM242 Termination Assembly with 16 Discrete Output Channels for Galvanic Isolation
Get Best Price
Video
Foxboro FBM3 P0400YD RTD Input Module with 8 RTD Input Channels 0 to 320 Ohm Range
Get Best Price
CONTACT US
Contact Now
Product Description

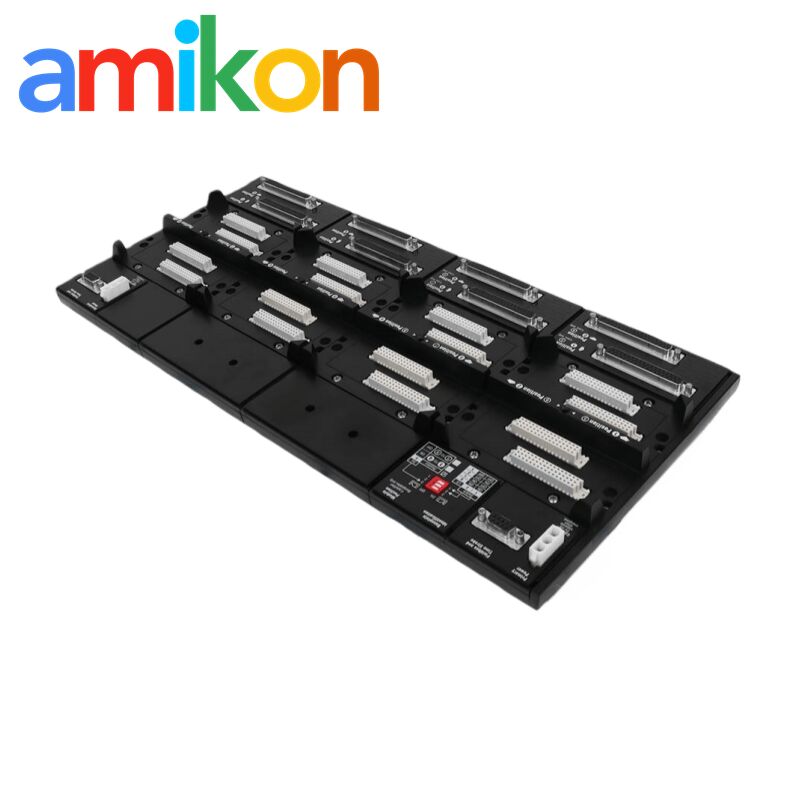

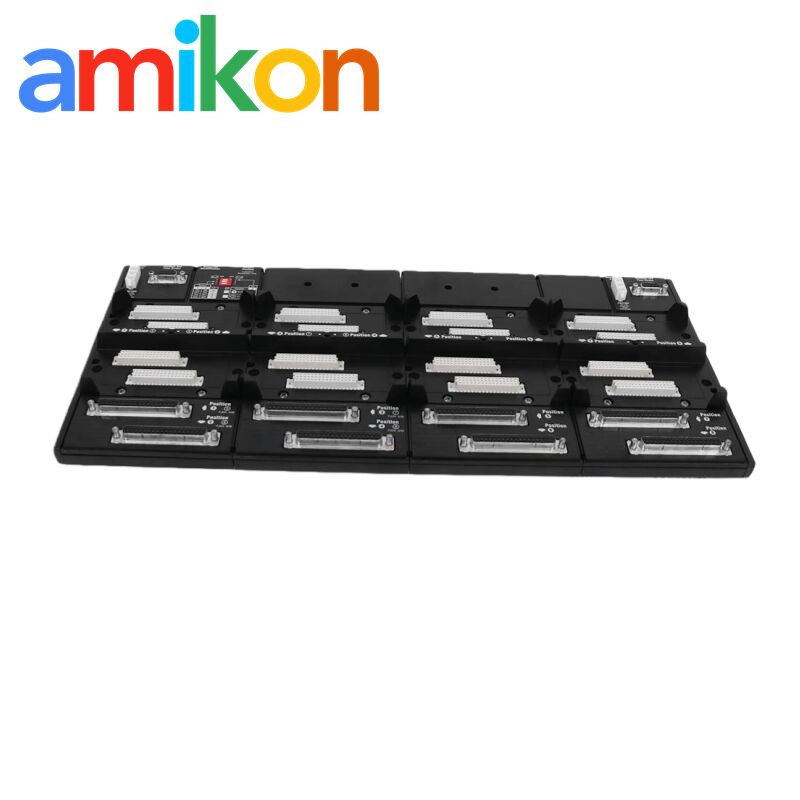

The Foxboro P0926JMA is a specialized 8-position baseplate designed for the I/A Series Fieldbus Module (FBM) subsystem. It provides the physical mounting plane and backplane connectivity for up to eight FBMs, functioning as a passive interface between the modules and the Fieldbus Communications Processor (FCP). The unit is built for DIN rail installation, supporting both horizontal and vertical mounting orientations to maximize cabinet density. It serves as the primary conduit for the Module Fieldbus, enabling high-speed data exchange across the FBM-to-FCP link.
Electrical reliability is managed through dual-redundant 24V DC power input terminals. This dual-feed architecture ensures that a single power supply failure does not compromise the entire 8-slot assembly. Internal power bus traces distribute both logic-level and field-side excitation to each FBM slot, utilizing isolated signal paths to prevent cross-channel interference. The baseplate is engineered with a high-integrity grounding scheme and EMI shielding to maintain deterministic communication performance in high-interference process control environments.
Field-side integration is facilitated via dedicated connectors on the baseplate, allowing for direct link-ups with external termination assemblies. As a passive hardware component, the P0926JMA minimizes internal thermal load within the enclosure, as it contains no active switching electronics that generate heat. The ruggedized construction is designed for long-term deployment in unconditioned industrial racks, focusing on high MTBF (Mean Time Between Failure) by eliminating the common failure points found in active backplane systems.
