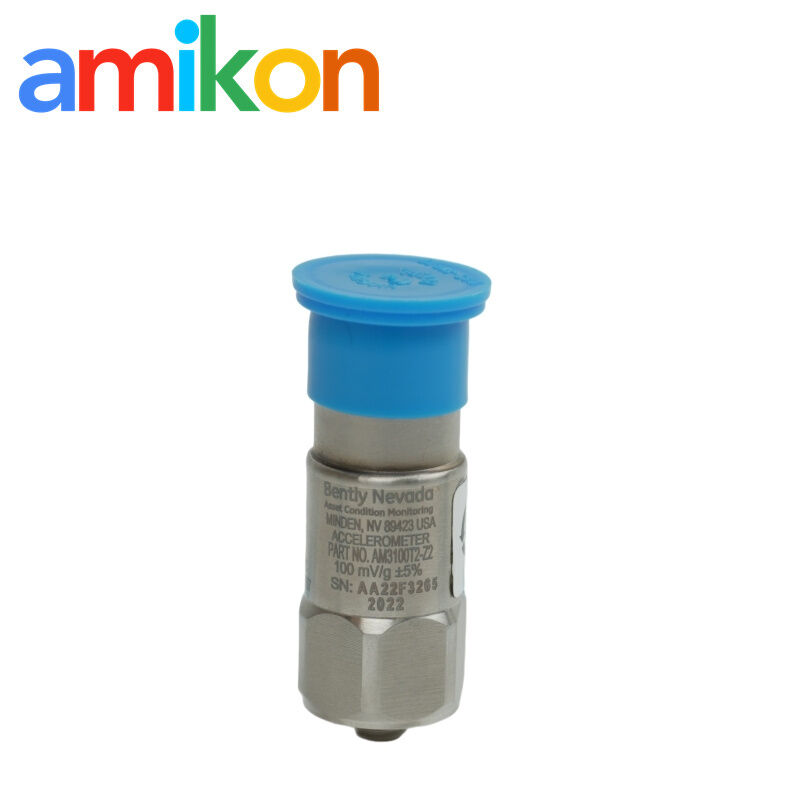

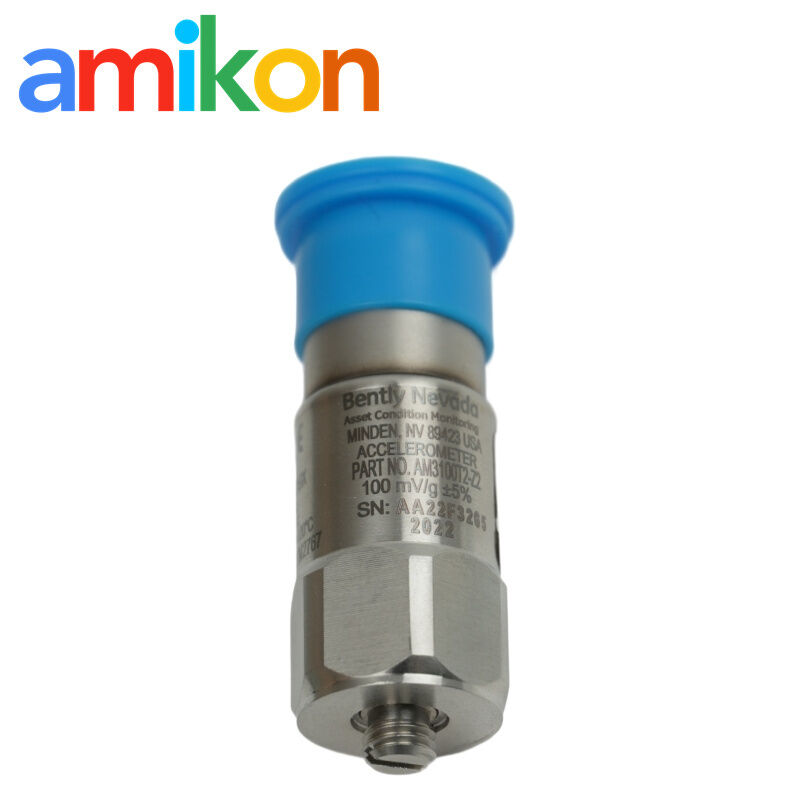

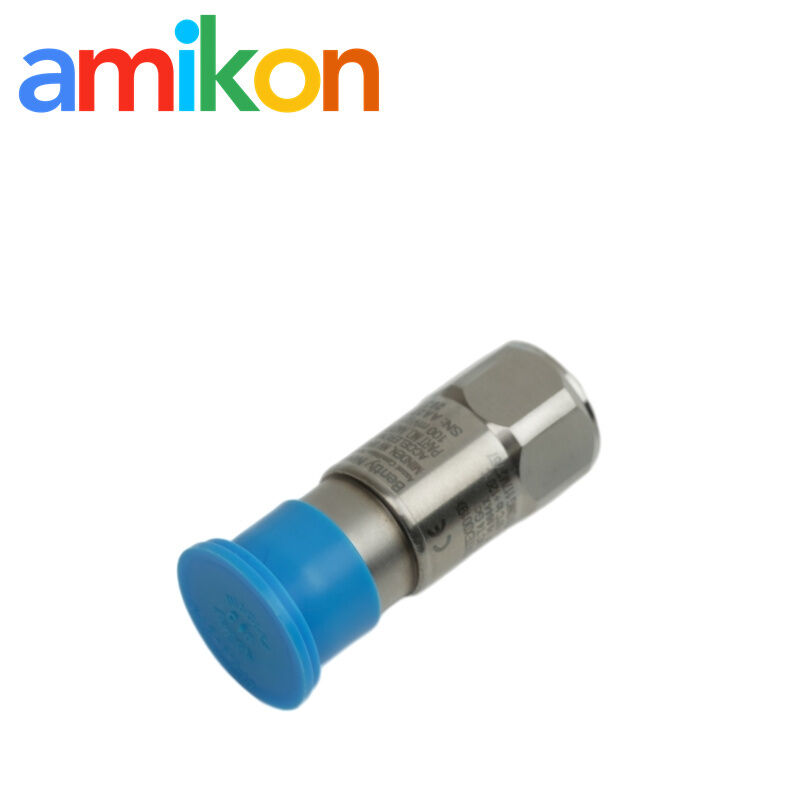

Bently Nevada AM3100T2-Z2 Case-Mounted Accelerometer
100 mV/g Sensitivity
80 g Peak Acceleration
Top-Exit Connector
Brand Name:
Bently Nevada
100 mV/g Sensitivity
,80 g Peak Acceleration
,Top-Exit Connector
CASE-MOUNTED ACCELEROMETER
Product Overview
The Bently Nevada AM3100T2-Z2 is a case-mounted accelerometer designed to provide an acceleration signal for machinery vibration monitoring. Before choosing it for a replacement or new installation, check the mounting interface, connector arrangement, monitor compatibility and site installation requirements.
Technical Specifications
Key values are highlighted below, with selected mechanical, electrical and environmental details available in the expandable data section.
View Selected Technical Data — Mechanical, Dynamic, Electrical and Environmental
Mechanical and Connection
| Sensing Element | PZT ceramic, shear design |
|---|---|
| Weight | 62 g |
| Case Material | 316L stainless steel |
| Mounting | 1/4-28 UNF tapped hole |
| Connector | 2-pin, MIL-C-5015 style |
| Recommended Cable | Shielded twisted pair; cable length no greater than 100 ft |
Dynamic Performance
| Amplitude Nonlinearity | 1% |
|---|---|
| Frequency Response, ±10% | 0.7–9,000 Hz |
| Transverse Sensitivity | Maximum ±5% of axial sensitivity |
| Temperature Response | −20% at −55°C; +10% at +120°C |
Electrical Characteristics
| Current-Regulating Diode | 2–10 mA |
|---|---|
| Broadband Electrical Noise | 500 µg, 2.5 Hz to 25 kHz |
| Spectral Electrical Noise at 10 Hz | 7 µg/√Hz |
| Spectral Electrical Noise at 100 Hz | 4 µg/√Hz |
| Spectral Electrical Noise at 1,000 Hz | 2 µg/√Hz |
| Output Impedance | Maximum 100 Ω |
| Bias Output Voltage | 12 Vdc |
| Grounding and Shielding | Case isolated; internally shielded |
| Shell | Ground |
| Pin A | Power / signal |
| Pin B | Common |
Environmental Limits
| Vibration Limit | 500 g peak |
|---|---|
| Shock Limit | 5,000 g peak |
| Electromagnetic Sensitivity | Maximum 70 µg/gauss |
| Sealing / Base Strain Sensitivity | Maximum 0.0002 g/µstrain |
Confirm the applicable product revision, installation conditions and any required site approvals before installation.
Application & Failure Scenarios
The sensor provides an acceleration signal for machinery vibration measurement. When a channel behaves unexpectedly, check the complete measurement path rather than replacing the sensor based on symptoms alone.
| Abnormal vibration readingCompare the signal with operating conditions and verify the sensor mounting and cable connection. | No signalInspect the sensor connection, cable continuity, supply and monitoring input. |
| Unstable measurementCheck cable shielding, connector condition, mounting security and electrical interference. | Replacement selectionMatch sensitivity, frequency response, mounting thread, connector and electrical requirements. |
Installation & Selection Checks
Confirm mechanical fit, signal compatibility and installation requirements before commissioning.
Check the 1/4-28 UNF tapped mounting hole and the actual mounting surface.
Verify the mating connector, shielded twisted-pair cable and available cable clearance.
Confirm the monitor's sensor supply, current requirements, sensitivity and input range.
Check the exact unit's required hazardous-area approval and installation conditions.
Frequently Asked Questions
The nominal sensitivity is 100 mV/g, ±5% at 25°C. Frequency response is 0.7–9,000 Hz at ±10% and 0.4–14,000 Hz at ±3 dB.
Allow for an 18–30 Vdc supply, 2–10 mA current regulation, a maximum 100 Ω output impedance and a shielded twisted-pair cable no longer than 100 ft. Verify the mating connector and monitor interface.
Provide the part number, quantity, destination, required date and machine/system model. AMIKON can then confirm availability and applicable commercial terms.
Inspection details and protective shipping arrangements can be confirmed with the quotation. Report transit damage, missing items or initial failure promptly; return authorization is required.
Warranty duration, coverage, exclusions and return arrangements are confirmed in the sales quotation. Manufacturer warranty coverage is not implied.
