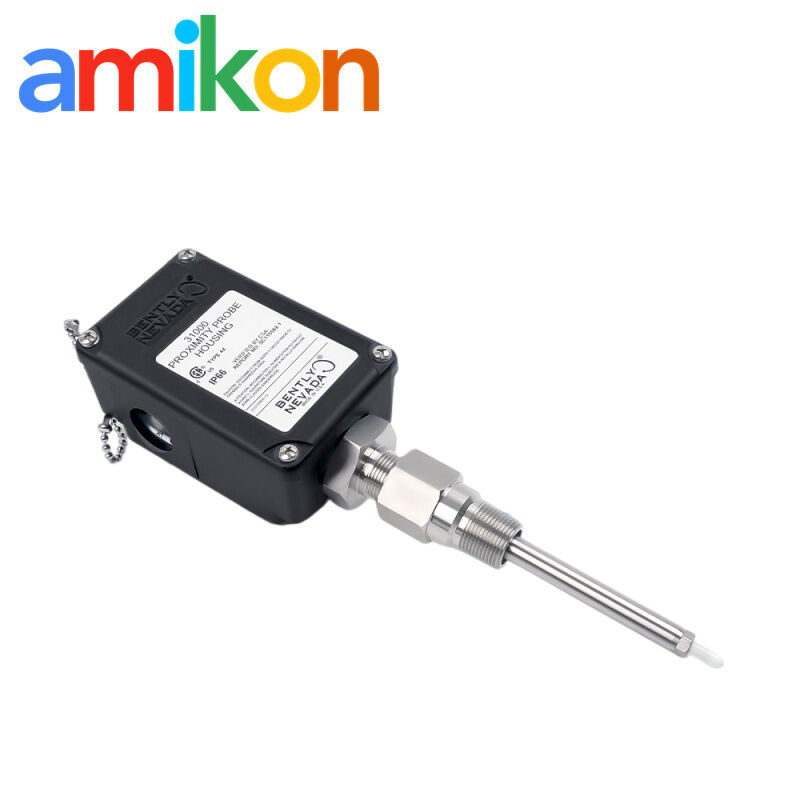

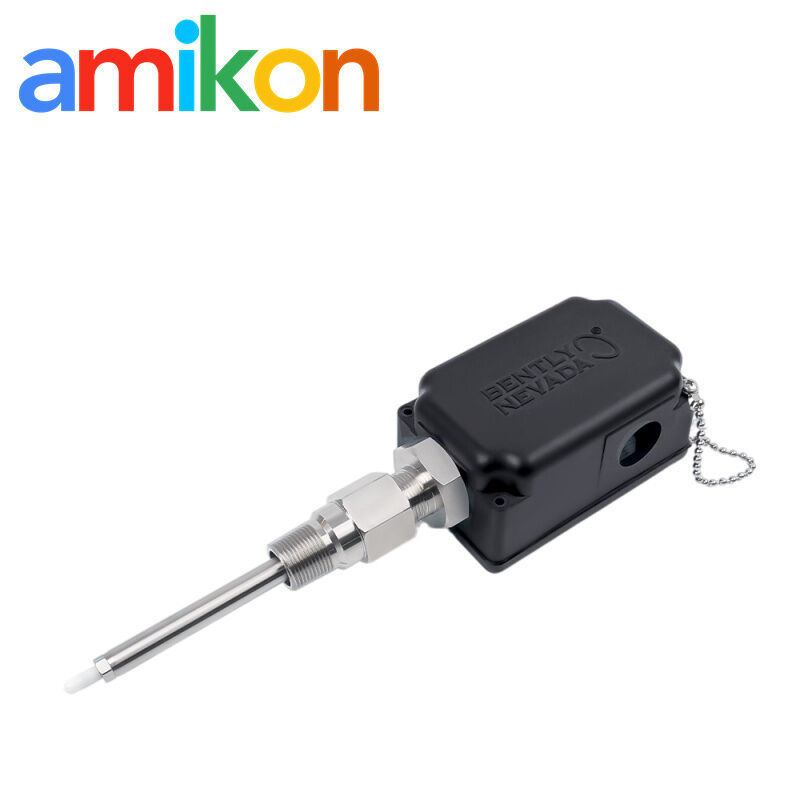

Bently Nevada 31000-26-05-20-041-01-02 Proximity Probe Housing Assembly
Bently Nevada 31000-26-05-20-041-01-02 Proximity Probe Housing Assembly
3300 XL NSv Proximity Probe Compatibility
0.5 m (20 in) Probe Cable
2.0 in Standoff Adapter
Brand Name:
Bently Nevada
Contact Us
Request A Quote
Product Details
Highlight:
3300 XL NSv Proximity Probe Compatibility
,0.5 m (20 in) Probe Cable
,2.0 in Standoff Adapter
Payment & Shipping Terms
Minimum Order Quantity
1
Delivery Time
2-3 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
PRODUCT OVERVIEW
External Probe Access for Machinery Monitoring
The 31000/32000 housing family provides a mounting arrangement for proximity probes passing through machine casings. It is commonly used for radial vibration and Keyphasor measurements. The external-access design allows probe-gap adjustment and probe replacement without disassembling the machine.
PRODUCT DETAILS
Technical Specifications
Materials & Mechanical Data
HOUSING
Glass-reinforced PPS thermoplastic containing conductive fibers
SLEEVE & RETAINING CHAIN
AISI 304 stainless steel
OUTER SLEEVE & EXTERIOR SCREWS
AISI 303 stainless steel
O-RING
Neoprene
RETAINING-NUT TORQUE
29.4 N·m (260 in·lb), recommended value
TYPICAL FAMILY WEIGHT
1.2 kg (2.6 lb)
Environmental Ratings & Limitations
OPERATING TEMPERATURE
-34°C to +177°C
-30°F to +351°F · 3300 XL NSv
STORAGE TEMPERATURE
-51°C to +177°C
-60°F to +351°F · 3300 XL NSv

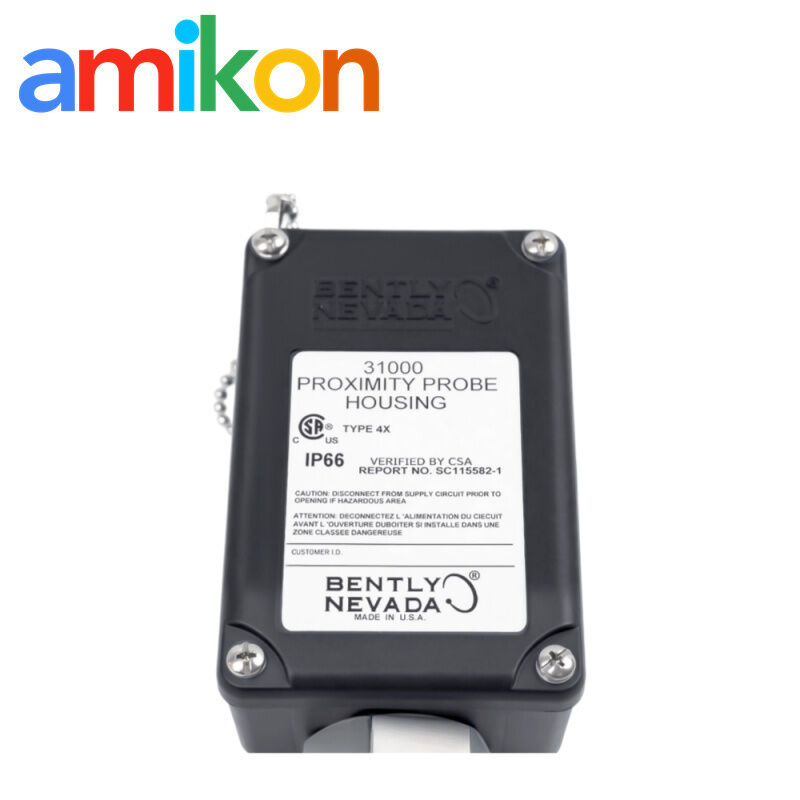

HOUSING PROTECTION
Type 4X / IP66
Ratings stated for the housing family
DESIGN LIMITATION
Not pressure-resistant
Not designed to resist internal or external pressure
The 31000/32000 housing family is stated by the manufacturer to comply with API 670 for externally mounted proximity probe housings. The housing is not explosion-proof. Intrinsically safe hazardous-area use requires an approved transducer system and appropriate barriers.
INSTALLATION GUIDANCE
Installation & Compatibility Notes
01
Verify the complete part number and all six ordering options before selecting a replacement assembly.
02
For radial vibration measurements, the machine casing should be affixed to the bearing to obtain an accurate relative vibration signal.
03
For dual-probe shaft axial-position measurement, housing 21022 is the specified alternative.
04
For intrinsically safe hazardous-area use, verify the approved transducer system and appropriate intrinsic-safety barriers. The housing alone is not explosion-proof.
ORDER SUPPORT
Delivery & Warranty
Packaging — Protective packaging and shipment arrangements are confirmed for the supplied item.
Returns / DOA — Report damage, shortages or suspected DOA promptly with photos and order details; return authorization is required.
Warranty — Enjoy a One-Year Warranty for Added Peace of Mind.
SUPPORT
Frequently Asked Questions
1. Which proximity probe is specified by this part number?
Option A26 identifies a 3300 XL NSv proximity probe. The configuration also specifies a 0.5 m cable and the mechanical options encoded in the complete part number.
2. What are the standoff and probe penetration lengths?
The ordering code specifies a 2.0 in standoff adapter and a 4.1 in probe penetration option. Confirm the installed dimensions and machine geometry before ordering a replacement.
3. Is this housing explosion-proof or pressure-rated?
No. The housing is not explosion-proof and is not designed to resist internal or external pressure. Hazardous-area suitability requires verification of the complete approved transducer system.
4. Can it be used for shaft axial-position measurement?
For shaft axial-position measurement using dual proximity probes, housing 21022 is the specified alternative. Check the measurement arrangement before selecting the housing.
5. What information is needed for a quotation?
Provide the complete part number, quantity, destination, required date and machine/system model. A photo of the existing nameplate or housing can also help identify the required configuration.
