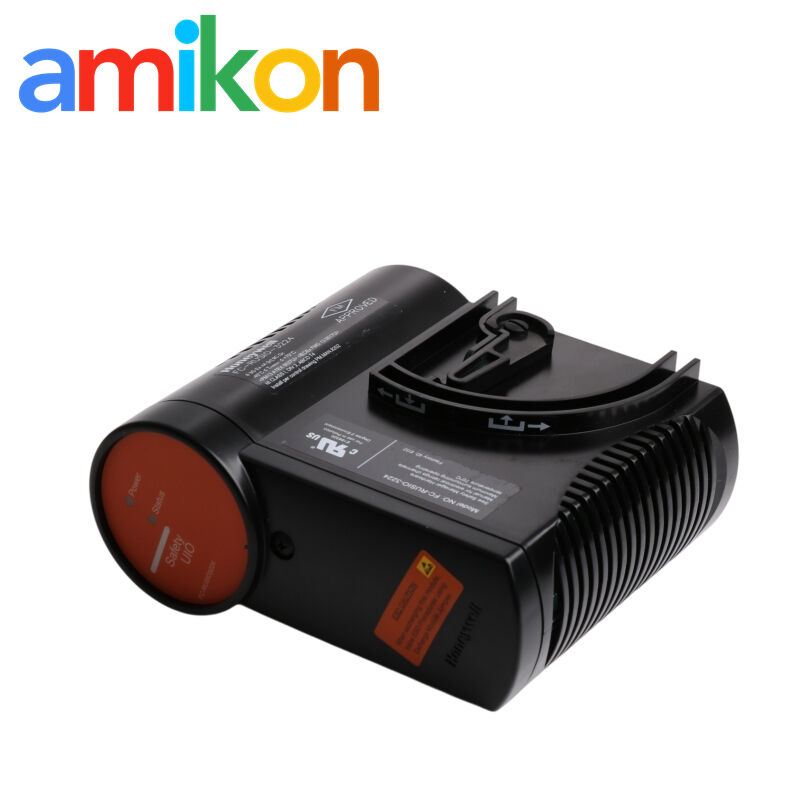

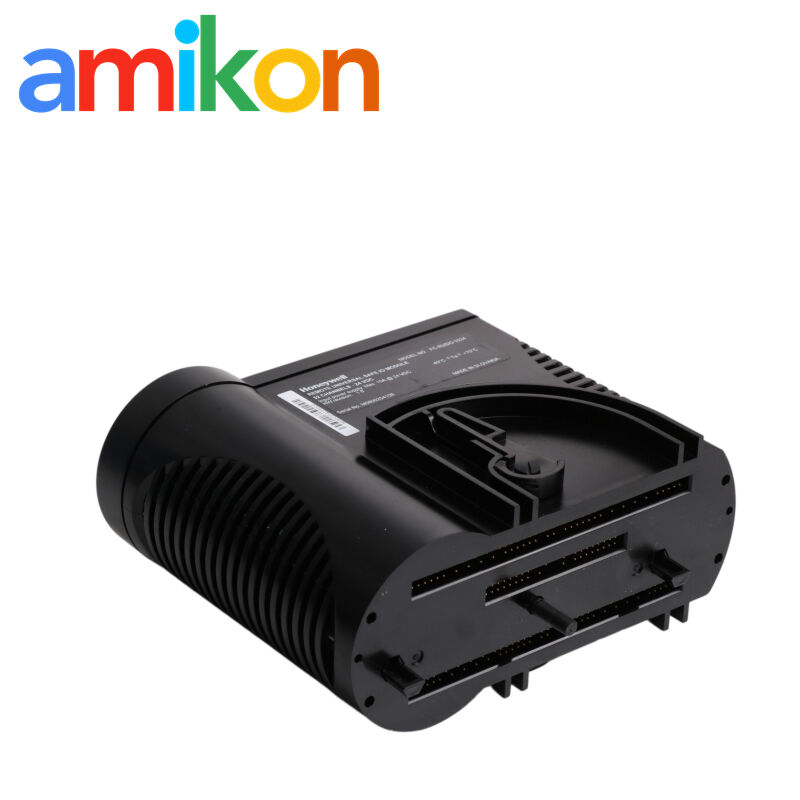

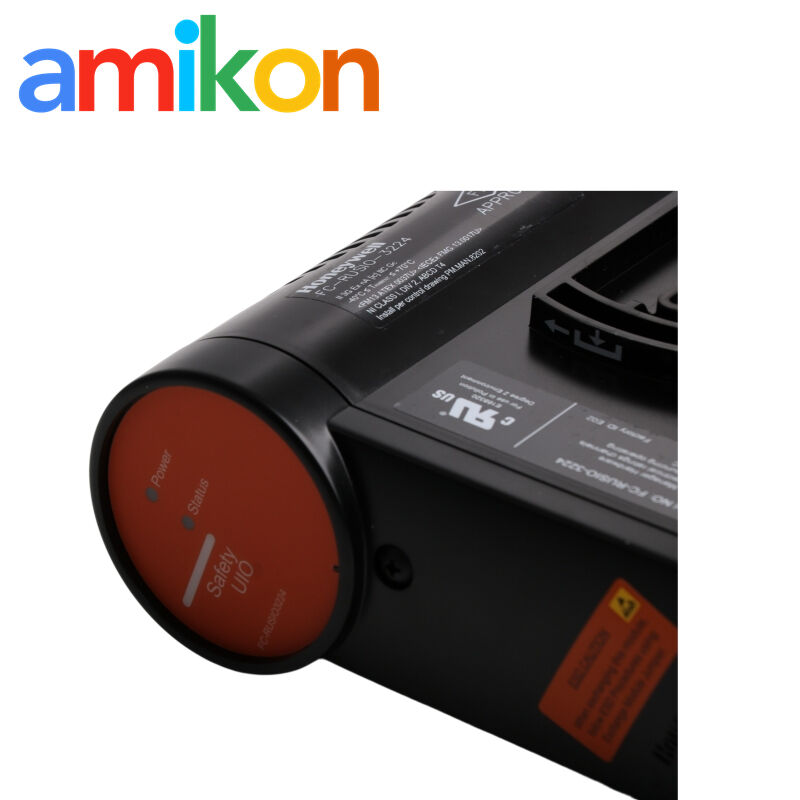

Honeywell FC-RUSIO-3224 Remote Universal Safe I/O Module, 32-Channel, 24 V DC
Honeywell FC-RUSIO-3224 Safe I/O Module
32-Channel 24 V DC I/O Module
Honeywell Remote Universal Controller Module
Brand Name:
Honeywell
Honeywell FC-RUSIO-3224 Safe I/O Module
,32-Channel 24 V DC I/O Module
,Honeywell Remote Universal Controller Module
Honeywell FC-RUSIO-3224
Remote Universal Safe I/O Device
The FC-RUSIO-3224 is a Honeywell Safety Manager universal safety I/O device for configurable field signal interfaces in safety-related automation systems. Its channel functions are assigned according to the applicable project design.
Technical Specifications
Confirmed specifications
| Device type | Remote Universal Safe I/O device |
| Channel count | 32 channels |
| Supply voltage | 24 V DC |
| Digital input | With or without loop monitoring |
| Digital output | Configurable with loop monitoring |
| Analog input | Active 0–20 mA or 4–20 mA |
| Analog output | Active 0–20 mA or 4–20 mA |
| Configuration | Safety Builder |
| Controller links | Two 100 Mbaud Ethernet links |
| Safety level | Up to SIL 3 under IEC 61508/61511 |
| Mounting | I/O Termination Assembly (IOTA) |
Match the product label and installed hardware details with the required replacement before ordering.
Application & Failure Scenarios
This device is used in Honeywell Safety Manager installations that require configurable safety-related field I/O. Maintenance teams may search for the exact model when investigating an I/O module fault, unavailable field signals or a planned module replacement.
An unavailable safety-related I/O function may require fault investigation or a controlled process shutdown, depending on the plant's safety design. Confirm the fault evidence before replacing hardware.
Technical Documentation
Honeywell Safety Manager Hardware Reference, EP-SM.MAN.6284, section 12.1.
Consult the applicable manufacturer documentation for approved installation, configuration and maintenance requirements.
Delivery & Warranty
Availability, condition, inspection and packaging arrangements are confirmed during quotation. Report DOA or transit-damage concerns promptly with order details and supporting photos. Return approval and warranty coverage follow the agreed sales terms.
Frequently Asked Questions
1. Which channel functions can be configured?
The documented functions include digital input, digital output, analog input and analog output. Available monitoring options depend on the configured function.
2. Which engineering software is used?
Safety Builder is used to configure channel functions for the applicable Safety Manager project.
3. What should be checked before a replacement?
Verify the installed part number, IOTA arrangement, system configuration and fault evidence before ordering replacement hardware.
4. What is required for a redundant configuration?
The manufacturer reference specifies two RUSIO-3224 modules for redundancy. Confirm the complete system design and installation requirements before implementation.
5. Which details should accompany a quotation request?
Provide the part number, quantity, destination, required date and machine/system model. Include the existing configuration when requesting a replacement.
