HONEYWELL · LCN INFRASTRUCTURE

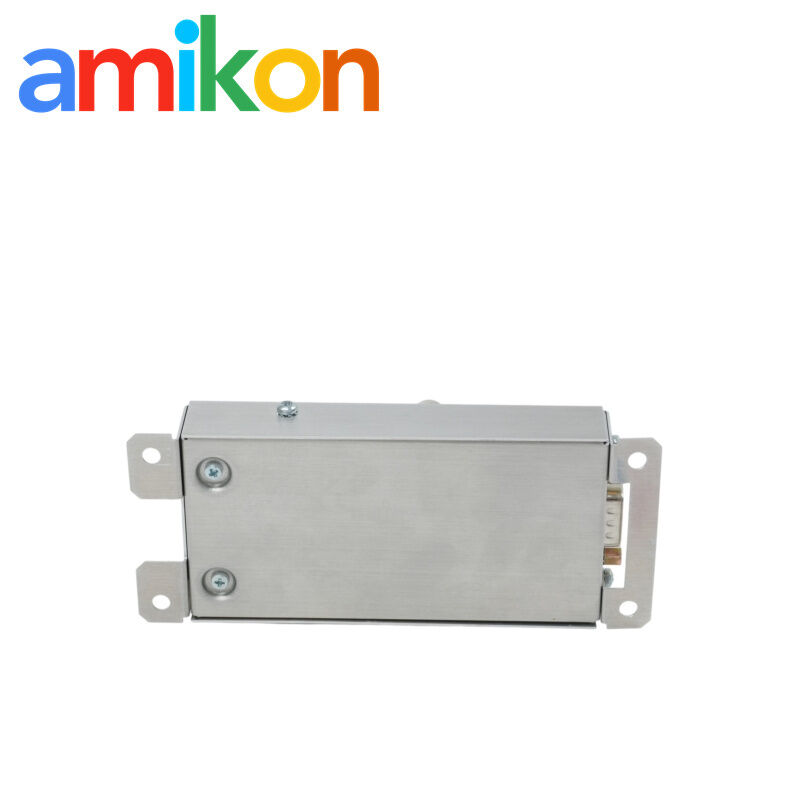

51305348-100 MAU Assembly
Honeywell Local Control Network Media Access Unit assembly associated with the T5400 workstation installation and its LCN Cable A / Cable B connection arrangement.
Part Number 51305348-100
Technical Specifications
| Manufacturer | Honeywell |
|---|---|
| Part Number | 51305348-100 |
| Product Type | Media Access Unit (MAU) Assembly |
| Network | Honeywell Local Control Network (LCN) |
| Documented Workstation Context | Honeywell T5400 Workstation |

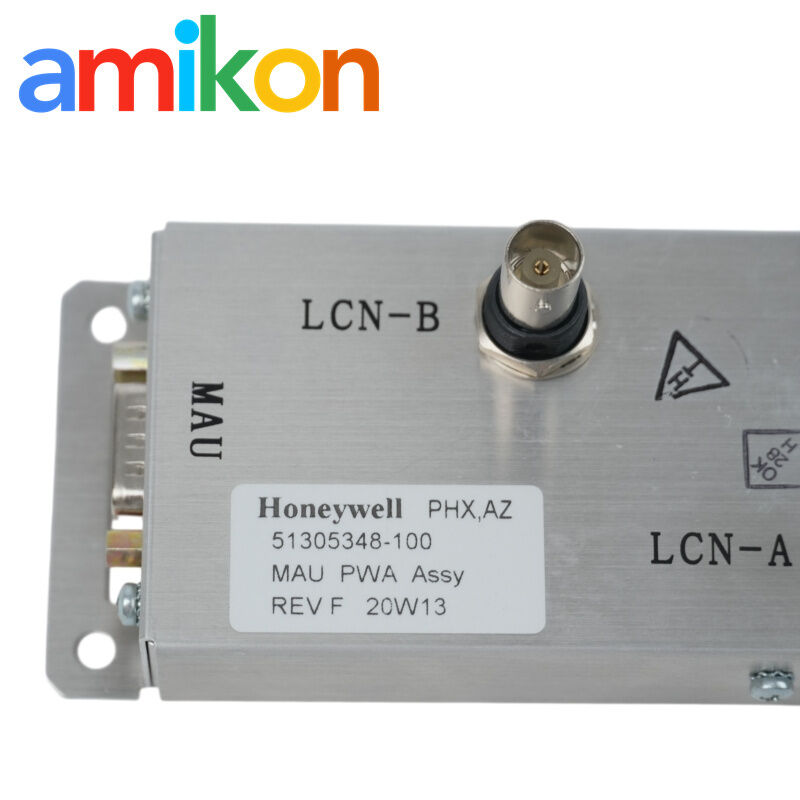

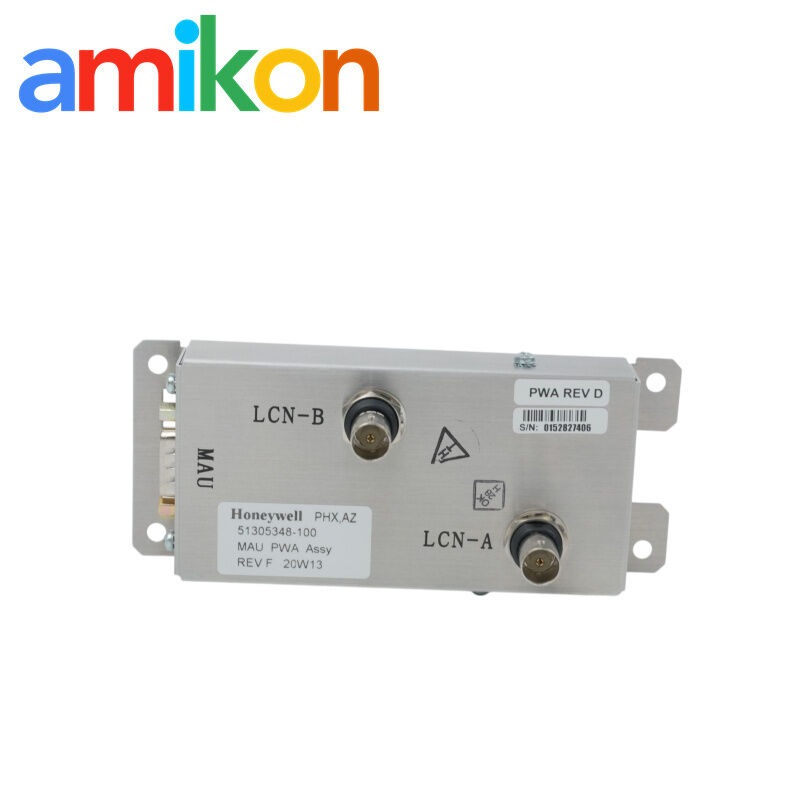

| LCN Connection Arrangement | Connection to both Cable A and Cable B through coaxial T-connectors |
| Associated MAU Cable | 51305380-100 |
| Documented Mounting Context | Footrest area of the Ergonomic (Z) console |
01 · Part Number Match the complete 51305348-100 marking.
02 · Cable Arrangement Check the installed Cable A and Cable B connections.
03 · Companion Cable Check whether 51305380-100 is required for the installation.
04 · System Context Confirm the actual workstation and LCN configuration before replacement.
Application & Failure Scenarios
Where It Is Used
The 51305348-100 serves as the LCN Media Access Unit in the documented Honeywell T5400 workstation network arrangement.
When It Becomes Relevant
It becomes relevant when an installed workstation requires MAU replacement or when the LCN media connection is being investigated during maintenance.
Downtime risk: An interrupted LCN media path can affect workstation access to the network. Replacement should preserve the installed connection arrangement and be checked before the affected system returns to operation.
AMIKON Supply & Support
Exact Part. Clear Supply.
AMIKON supports industrial automation spare-part sourcing with exact part-number identification, pre-shipment checking and protective packaging. Send the complete marking and application details so the supplied unit can be matched to your requirement.
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
Service & Supply
Sourcing
Inspection
Commercial terms: supplied units are checked before dispatch and packed for transport. Returns require prior confirmation; DOA cases should be reported promptly with relevant photos and order information. Warranty coverage follows the agreed quotation and warranty terms.
FAQ
What is Honeywell 51305348-100?
It is identified as an LCN Media Access Unit (MAU) assembly in the Honeywell T5400 Workstation Planning, Installation, and Service Guide.
Which network does the 51305348-100 connect to?
The documented application is the Honeywell Local Control Network (LCN), with the MAU connected to both Cable A and Cable B through coaxial T-connectors.
What cable is associated with the 51305348-100?
Honeywell's T5400 documentation identifies 51305380-100 as the LCN MAU cable. The cable is separately identified from the 51305348-100 MAU assembly.
Where is the MAU mounted in the documented T5400 installation?
The Honeywell guide identifies the LCN MAU mounting location in the footrest area of the Ergonomic (Z) console.
What should be checked before ordering a replacement?
Match the complete 51305348-100 part number, check the installed LCN A/B connection arrangement, confirm the workstation configuration, and determine whether the separate 51305380-100 MAU cable is also required.
Can a similar Honeywell part number be substituted directly?
A similar label alone does not establish interchangeability. The exact part number, installed configuration and applicable Honeywell documentation should be checked before replacement.
