Honeywell 10024/H/I Enhanced Communication Module | FSC Safety System | RS-422 / RS-485
Honeywell 10024/H/I
Enhanced Communication Module
Honeywell FSC
Brand Name:
Honeywell
Honeywell 10024/H/I
,Enhanced Communication Module
,Honeywell FSC

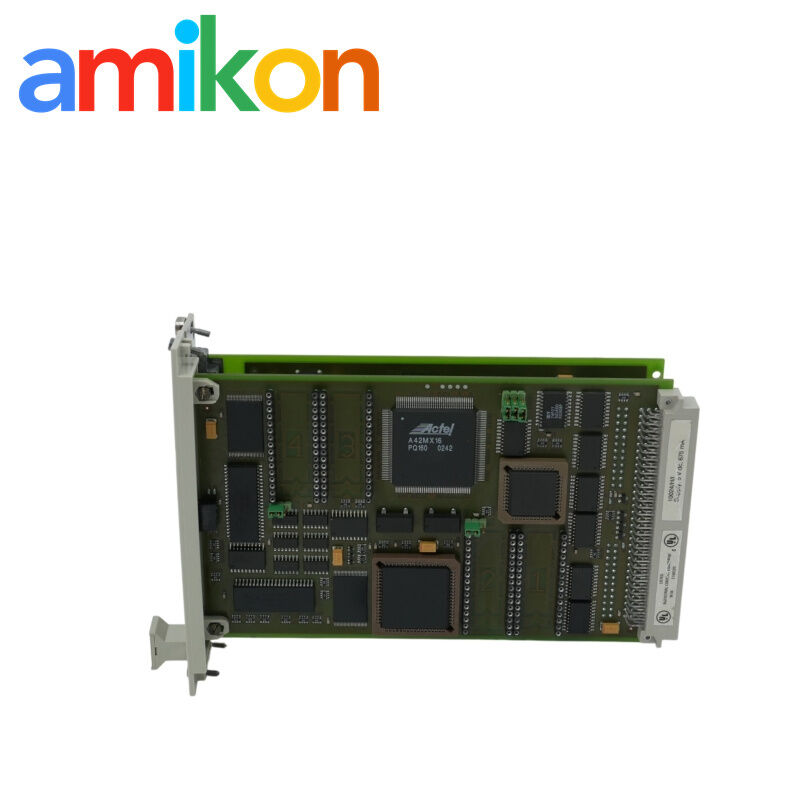

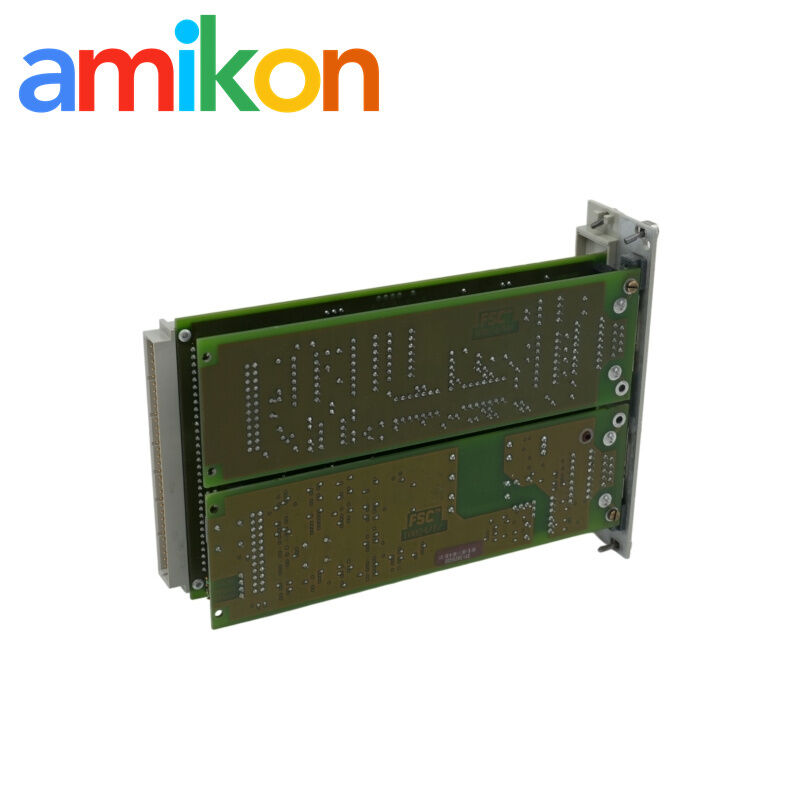

10024/H/I Enhanced Communication Module
An Enhanced Communication Module for Honeywell FSC systems, combining an internal Central Part communication interface with an isolated RS-422 / RS-485 communication interface.
Honeywell 10024/H/I PDF, manual and datasheet reference for identification, communication interface selection and maintenance planning.
Module Function
The 10024/H/I provides two distinct communication paths within an FSC architecture. The H-interface is assigned to redundant Central Part communication, while the I-interface provides an isolated serial connection for supported external equipment.
RS-422 interface with readback for communication between both Central Parts in a redundant FSC configuration. The interface is not intended for external communication links.
Galvanically isolated RS-422 / RS-485 interface for communication with an FSC user station, another FSC system or a DCS. RS-422 supports point-to-point communication, while RS-485 supports simplex or duplex communication with multiple devices.
Technical Specifications
Core module specifications
| Manufacturer | Honeywell Safety Management Systems |
|---|---|
| Part number | 10024/H/I |
| Product type | Enhanced Communication Module (ECM) |
| Type number | 26900 |
| Approvals | CE, UL, TV |
| Software version | 2.78f (configuration 530) |
| Space requirement | 8 TE, 3 HE (= 8 HP, 3U) |
| Ripple content | < 50 mV p-p |
Communication interfaces
| H-interface | RS-422 with readback |
|---|---|
| H maximum baud rate | 2 Mbaud |
| H connector | Male, 9 pins |
| H cable length | Up to 1.5 m (4.9 ft) at 2 Mbaud, using Belden 9728 or Belden 8314 cable |
| H isolation | No galvanic isolation |
| I-interface | Isolated RS-485 / RS-422 |
| I maximum baud rate | 1 Mbaud |
| I connector | Male, 9 pins |
| I isolation | > 6 kV |
| I cable length at 100 Kbaud | Up to 1.2 km (0.75 mi) |
| I cable length at 125 Kbaud | Up to 1 km (0.63 mi) |
| I cable length at 1 Mbaud | Up to 120 m (131.2 yd) |
| I cable length at 2 Mbaud | Up to 60 m (65.6 yd) |
Power and electrical data

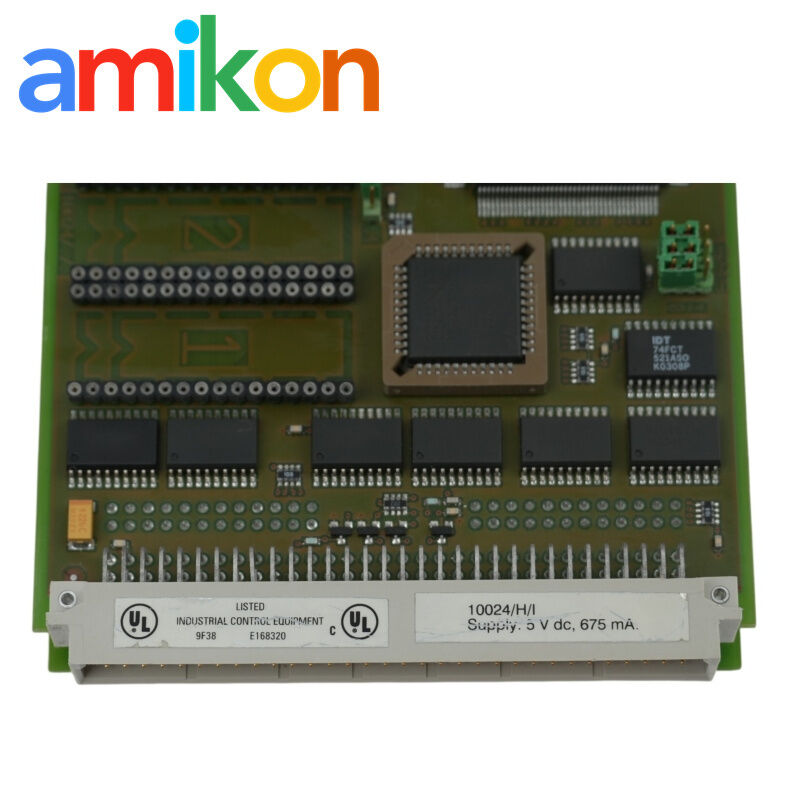

| Power requirement | 5 Vdc, 675 mA |
|---|---|
| Ripple content | < 50 mV p-p |
Installation & Connection
Application & Failure Scenarios
Application
The module is used where an FSC installation requires communication between redundant Central Parts together with a serial communication path to supported external equipment.
Replacement Search
Maintenance searches may arise when the communication path becomes unavailable or unstable, or when the installed communication module requires replacement during system maintenance.
Delivery & Warranty
AMIKON Supply Process
Each supplied unit can be checked against the ordered part number before dispatch and packed for industrial shipment.
RFQ — Send These Details
For faster part matching and quotation, include:
- Part Number
- Quantity
- Destination
- Required Date
- Machine/System Model
Contact
Miya Zheng · AMIKON
Honeywell FSC spare-part sourcing, identification and RFQ support.
sales@amikon.cn WhatsApp +86 180 2077 6792FAQ
What is the H-interface used for?
What is the I-interface used for?
How much rack space does 10024/H/I require?
Can 10024/H/I be removed while the Central Part is powered?
