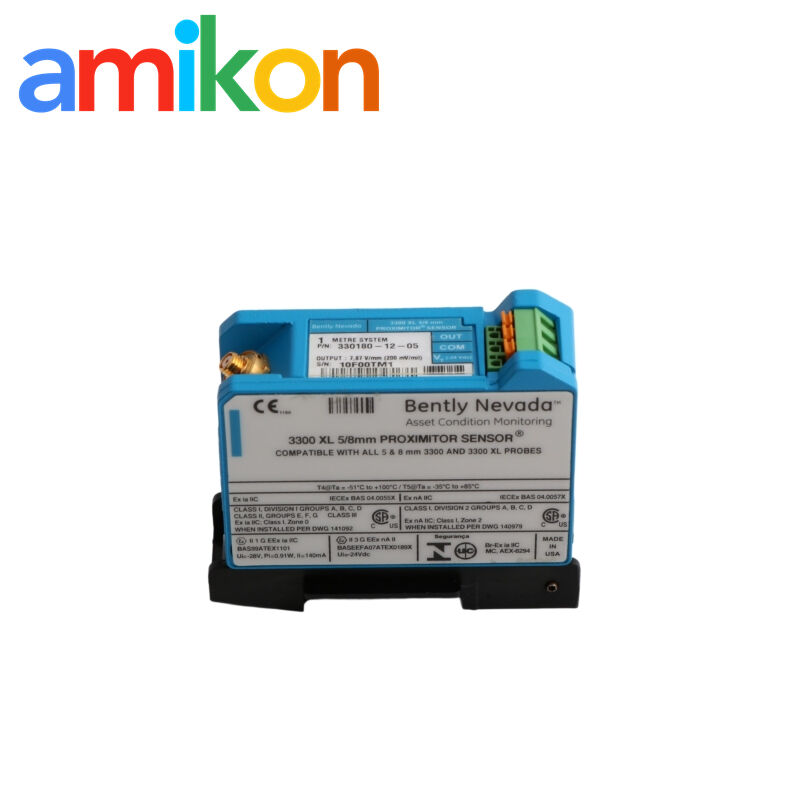

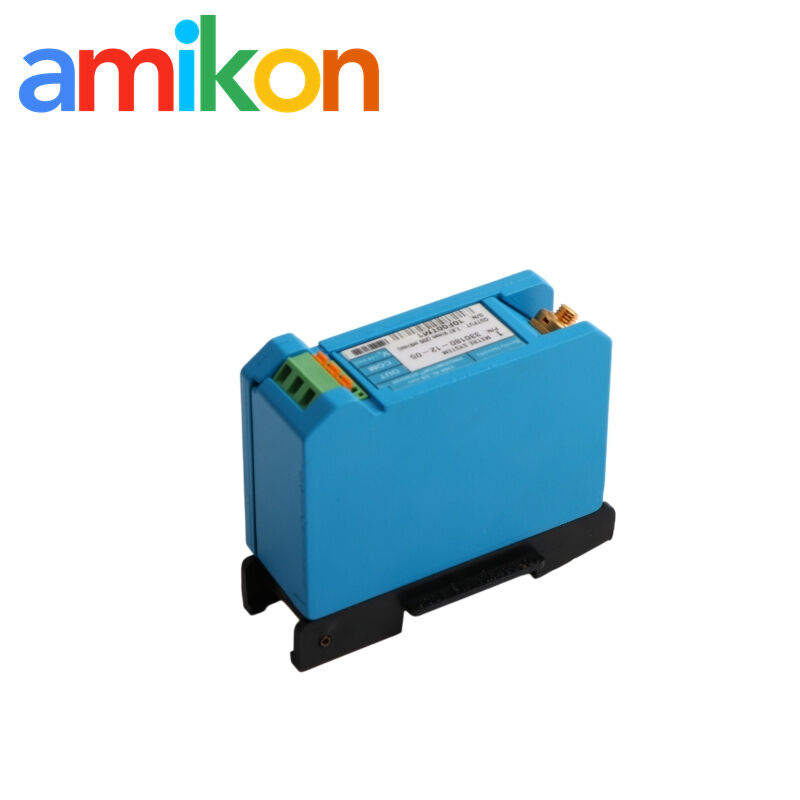

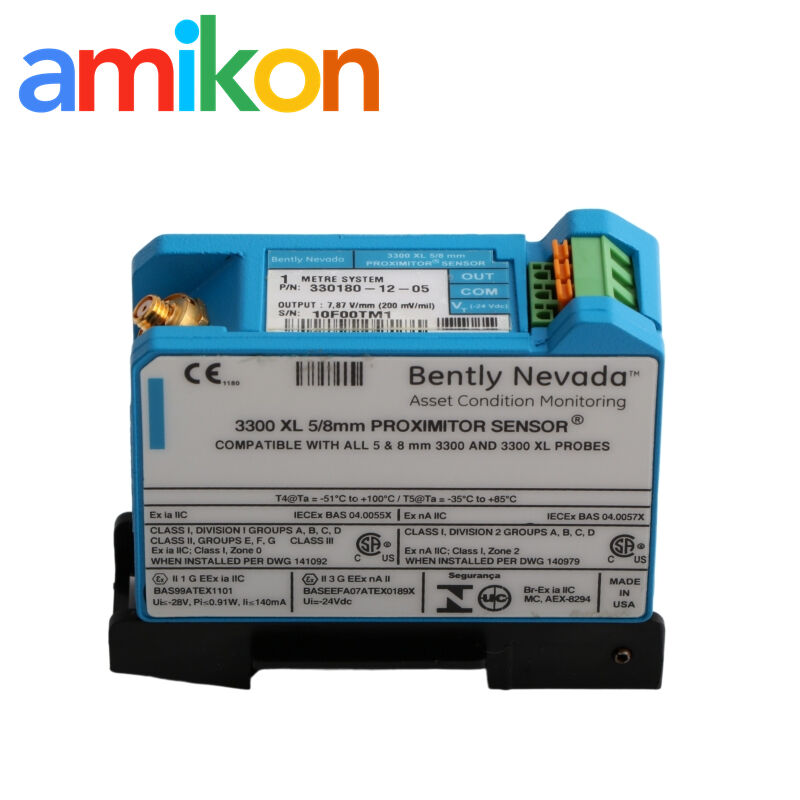

Bently Nevada 330180-12-05 3300 XL Proximitor Sensor – Multiple Approvals
3300 XL Proximitor Sensor
Bently Nevada 330180-12-05 Sensor
Proximitor Sensor Multiple Approvals
Brand Name:
Bently Nevada
3300 XL Proximitor Sensor
,Bently Nevada 330180-12-05 Sensor
,Proximitor Sensor Multiple Approvals
Inside a Proximity Measurement Chain
The probe, extension cable, sensor and monitoring input must match the intended system configuration. This part number alone does not establish compatibility with every 3300 XL installation.
Application & Fault Investigation
FIELD CHECKSProximity measurement systems support machinery condition monitoring, including vibration and shaft-position measurements. When readings become unreliable, investigate the complete measurement channel before identifying a failed component.
Missing or unstable signal
Check supply, wiring, connectors, probe, extension cable and monitor-channel diagnostics.
Unexpected vibration or position
Compare readings with operating conditions and inspect the full transducer chain before replacing the sensor.
Planned replacement
Match the complete ordering code and required approvals, then confirm the installed system configuration.
Technical Specifications
Compatibility and Technical Checks
The 3300 XL proximity transducer system uses a Proximitor sensor with a compatible proximity probe and extension cable. Compatibility is determined by the complete system configuration.
- Verify the probe type and extension-cable part numbers.
- Confirm power-supply and monitor-input requirements from the applicable technical information.
- Check the required approval markings and installation conditions for the site.
- Confirm terminal connections, mounting arrangement and wiring before energizing the channel.
- Validate signal response and monitoring-channel operation after replacement.
Installation & Verification
Use the applicable manufacturer instructions and site procedures for the actual installation.
Supply & Service
ORDER SUPPORTFrequently Asked Questions
1. What should be verified about the approval option?
2. Can it be connected to an existing probe and extension cable?
3. What should be checked if the signal is unstable?
4. How can I confirm the correct replacement configuration?
