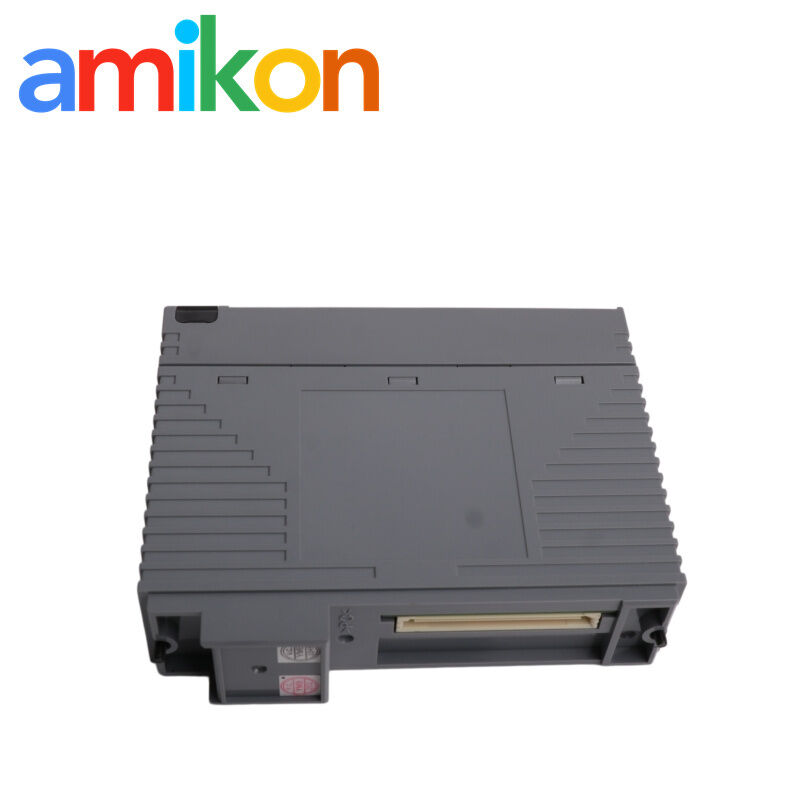

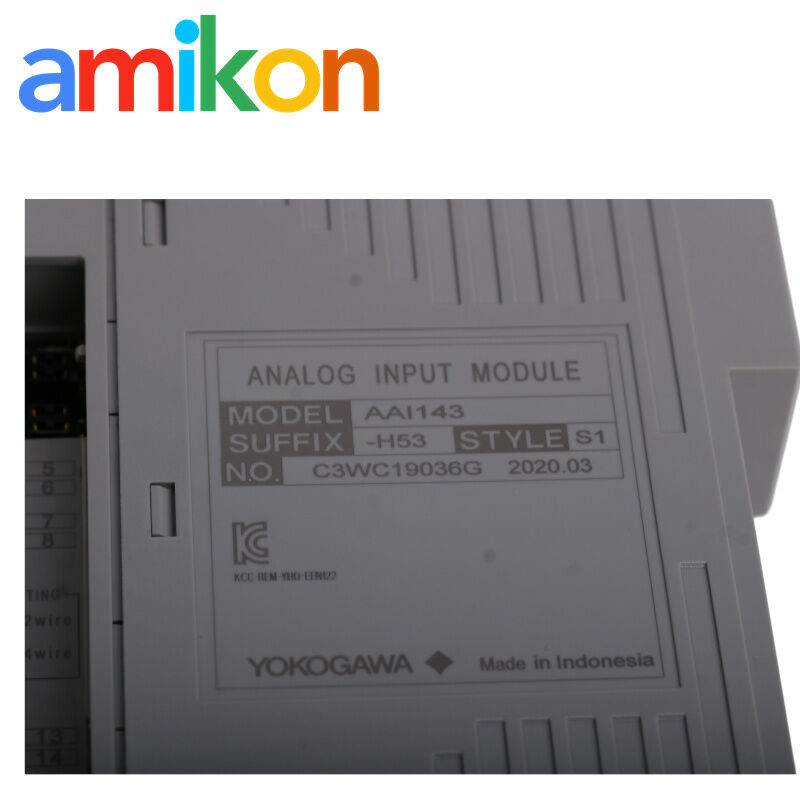

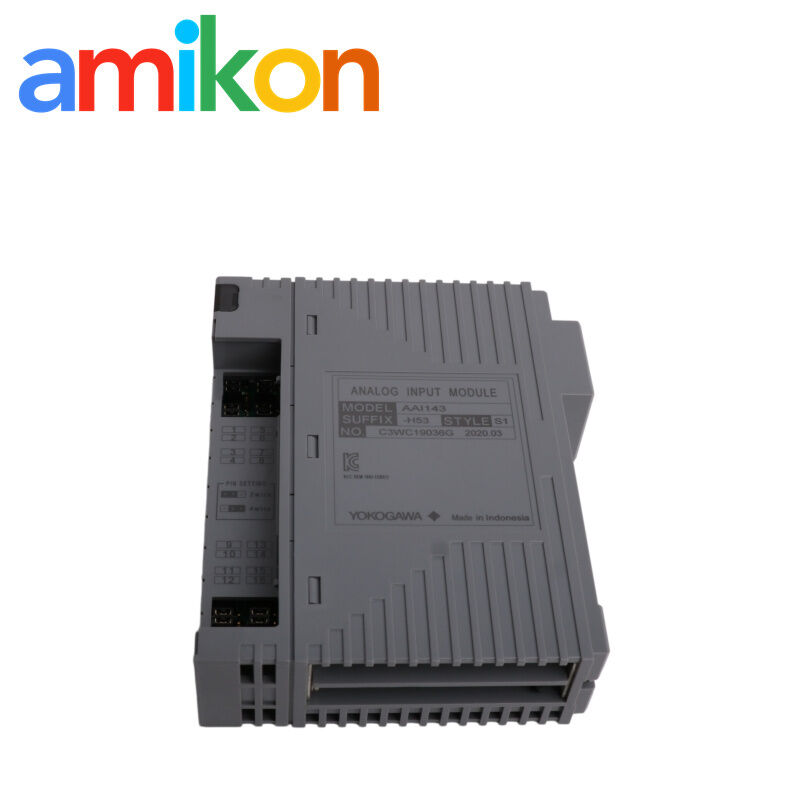

Yokogawa AAI143-H53 S1 Analog Input Module 16-Channel 4-20mA HART
Yokogawa AAI143-H53
16-Channel Analog Input Module
4–20 mA Input
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Yokogawa AAI143-H53
,16-Channel Analog Input Module
,4–20 mA Input
Yokogawa AAI143-H53
A process-control I/O module for industrial field-signal acquisition and DCS measurement applications.
Product Overview
Designed for process-control installations where dependable field measurements are important to plant operation. This model is relevant when maintaining an existing Yokogawa control system, replacing a suspected faulty I/O module, or sourcing a spare for maintenance planning.
Technical Specifications
| Model and signal characteristics | |
|---|---|
| Model | AAI143-H53 |
| Product type | Isolated analog input module |
| System family | CENTUM VP / FIO |
| Input channels | 16, isolated |
| Input signal | 4–20 mA |
| Digital communication | HART protocol |
| Explosion protection | Non-explosion-protection configuration |
| Environmental option | ISA Standard G3 |
| Temperature option | −20 to +70 °C |
Connection & Installation Reference
| Connection options | Terminal-block and cable-interface configurations are available within the AAI143 product family. Select the connection hardware according to the complete order code and installed system. |
| /K4A00 option | KS cable interface adapter ATK4A-00 for connection to an AEA4D terminal board. This option is separate from the base model code. |
| Replacement checks | Match the complete part number and verify the existing terminal arrangement, field wiring, and system configuration before installation. |
Additional Technical Documentation
Relevant reference titles:
- GS 33J60F60-01EN — CENTUM VP Analog I/O Module Specifications
- GS 33K50H51-50E — FIO Terminal Board Specifications
- TI 33J01A12-01EN — CENTUM VP FIO I/O Module Overview
Applications & Failure Scenarios
Suitable for process-control installations using field-instrument measurements as part of DCS monitoring and control. Typical replacement enquiries arise when readings become unavailable or unstable, an input channel is suspected of failure, or a maintenance team needs a spare module.
Delivery & Warranty
| Pre-shipment checks | Part-number and condition checks, with functional testing where applicable and agreed for the supplied unit. |
| Packaging | Protective industrial packaging for transport and handling. |
| Warranty | Coverage and duration are stated in the quotation or order confirmation. |
| Returns / DOA | Report suspected DOA, damage, or delivery discrepancies promptly with the order reference and supporting photos or test results. Return authorization and resolution follow the agreed sales terms. |
Request a Quote
Please include the following information for quotation and delivery coordination.
AMIKON Industrial Supply
Our team works with international customers to source industrial automation parts for maintenance, repair, and project requirements. We value responsive communication, practical coordination, and one-to-one support from enquiry through order follow-up.
English-language support and individual enquiry coordination.
Reliable Communication. Practical Support.
A dedicated contact for part enquiries, sourcing coordination, and order follow-up. Replace the image with an actual team, service, or industrial-workplace photograph.
Frequently Asked Questions
1. What is the AAI143-H53 used for?
It is a Yokogawa analog input module used in CENTUM VP/FIO process-control installations to acquire field-instrument signals.
2. Does the AAI143-H53 support HART?
Yes. This model supports HART digital communication.
3. What does the H53 suffix indicate?
H indicates HART communication, 5 indicates the non-explosion-protection configuration, and 3 indicates the ISA Standard G3 and −20 to +70 °C options.
4. Is AAI143-H53/K4A00 the same complete order code?
No. The /K4A00 suffix adds a KS cable interface adapter option for an AEA4D terminal board. Confirm the required connection hardware before ordering.
5. What should I provide when requesting a replacement?
Provide the exact part number, quantity, destination, required date, and machine/system model. A photo of the existing module label can also help clarify the required configuration.
For the Yokogawa AAI143-H53 datasheet, use the reference titles in the technical documentation section to identify the appropriate product information.
