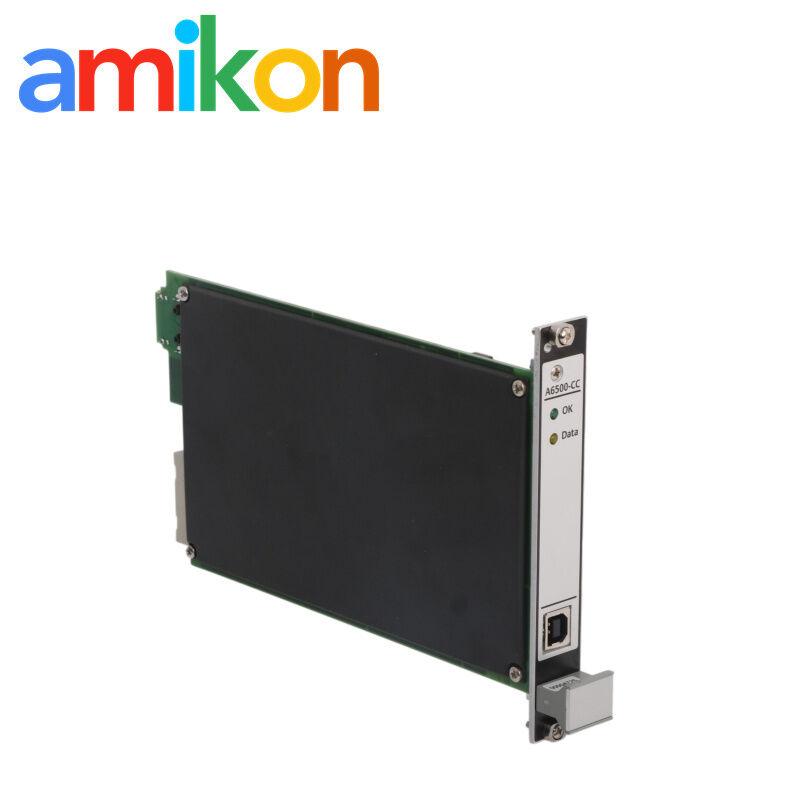

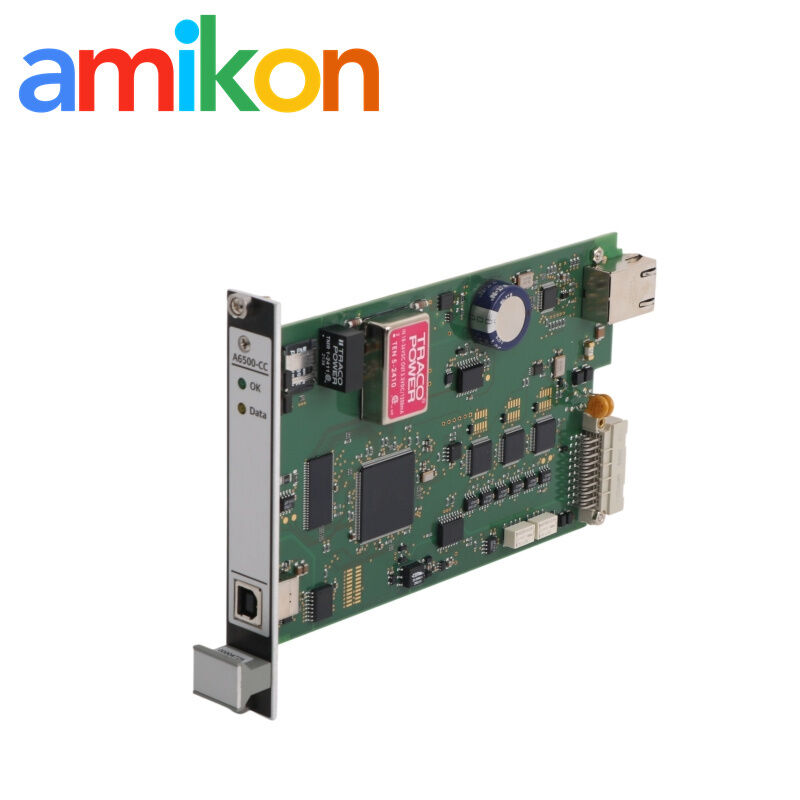

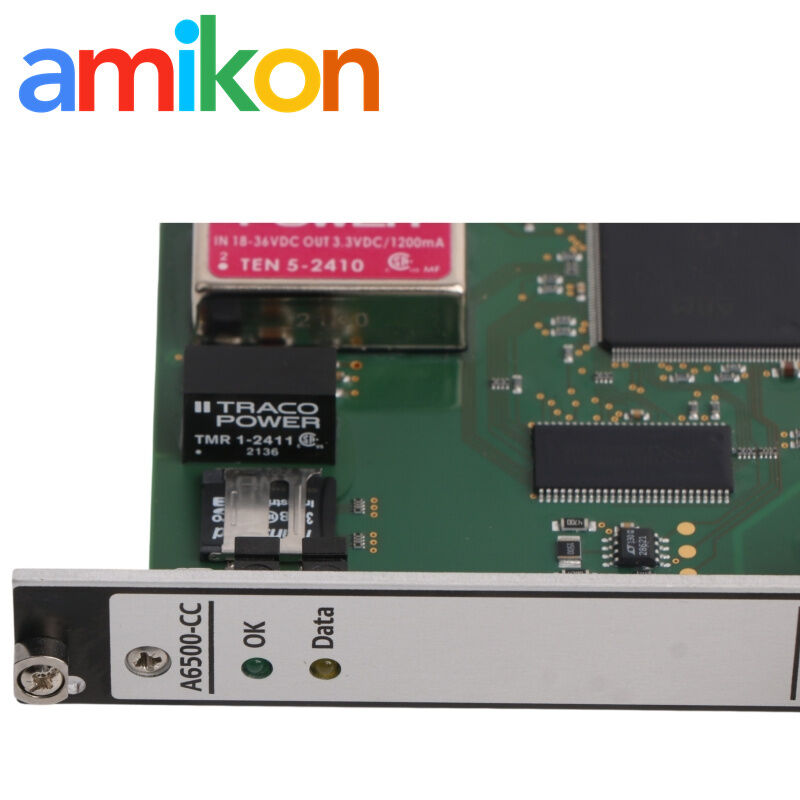

Emerson A6500-CC System Communication Card
AMS 6500 ATG · Machinery Health Monitoring
The Emerson A6500-CC is a communication card for the AMS 6500 ATG machinery protection platform. It gathers monitoring data from system modules and makes machinery-health information available to connected plant systems.
Product Overview
Designed for machinery protection installations, this module supports the exchange of operating and condition-monitoring data between the monitoring rack and external control or supervisory systems.
- Supports simultaneous communication paths for redundant data transmission when configured accordingly.
- Includes self-checking functions for hardware, power input and hardware temperature.
- Provides password-protected user configuration and SNTP time synchronization.
- Includes an SD card supporting AMS 6500 ATG Prediction functionality.
Technical Specifications
| Communication protocols | Modbus TCP/IP, Modbus RTU and OPC UA |
|---|---|
| Ethernet connector | RJ45 |
| Ethernet data rate | 10/100 Mbit/s |
| Maximum Ethernet cable length | 100 m |
| RS-485 bus lines | Up to 6 bus lines |
| RS-485 maximum data rate | 512 kbit/s according to EIA-485 |
| USB connector | USB Type B |
| USB data rate | 12 Mbit/s |
| Modbus RTU data rate | 9,600 or 19,200 baud |
| Assignable Modbus registers | 2,000 |
| Maximum power consumption | 4 W |
| Rack slot format | 3RU / 4HP |
| Board dimensions | 100 × 160 mm, Euro-card format |
| Weight | Approximately 170 g, excluding packaging |
Environmental and compliance specifications
| Operating temperature | -20 to 70°C with forced cooling; -20 to 55°C without forced cooling |
|---|---|
| Storage temperature | -40 to 85°C |
| Relative humidity | 5–95%, non-condensing |
| Protection class | IP20 according to IEC 60529 |
| Vibration | IEC 60068-2-6: 0.15 mm at 10–55 Hz; 20 m/s² at 55–150 Hz |
| Conformal coating | HumiSeal 1B31 |
| Airborne-contaminant resistance | ISA-S71.04-1985, class G3 |
| EMC | IEC 61326-1 |
| Compliance | CE-related EMC and applicable hazardous-area certifications are specified in the manufacturer documentation. |
Application & Failure Scenarios
Typical application: Machinery protection and condition monitoring for steam turbines, gas turbines, compressors and hydro-turbomachinery.
When this part is needed: Communication-card faults, missing machine-health data, interrupted data exchange or a requirement to restore communication between the monitoring rack and connected plant systems.
Operational risk: Communication loss can prevent connected systems from receiving monitoring data, affecting visibility of machine condition and potentially delaying maintenance decisions.
AMIKON Industrial Supply
Contact Miya Zheng
Industrial Parts Sourcing, Kept Practical.
Send the part number and equipment details for quotation and sourcing assistance.
Delivery, Testing & Warranty
- Testing: Visual inspection and applicable functional checks depend on item condition and available test facilities.
- Packaging: Protective packaging, including anti-static protection for electronic modules where appropriate.
- Returns / DOA: Report faults promptly with the order number and supporting evidence. Return authorization and resolution follow the agreed order terms.
- Warranty: Coverage follows the terms confirmed for the order. Physical damage, misuse and unauthorized modification may be excluded.
Request a Quote
Please include the following details in your inquiry.
Part Number: A6500-CC
Quantity: Required quantity
Destination: Delivery city and country
Required Date: Expected delivery date
Machine/System Model: Installed equipment or rack model
Frequently Asked Questions
1. What is the function of the A6500-CC?
It provides system communication for the AMS 6500 ATG platform, transferring monitoring-module data to connected systems.
2. Which communication protocols does the A6500-CC support?
It supports Modbus TCP/IP, Modbus RTU and OPC UA. The required protocol should be confirmed for the installed system.
3. Can the A6500-CC support redundant communication?
Yes. The manufacturer operating manual describes using a second A6500-CC to establish a redundant communication path.
4. What should be checked before replacing this module?
Confirm the part number, rack arrangement, required communication interfaces and system configuration before ordering or installation.
5. Can I request the A6500-CC datasheet or manual?
Yes. Contact AMIKON with the model number and your documentation requirements to request assistance locating the relevant technical documents.
