Emerson KJ3206X1-BK1 12P4696X032 8-Channel 24 VDC Isolated Digital Input Card
Emerson 8-Channel Digital Input Card
24 VDC Isolated Input Module
Emerson KJ3206X1-BK1 Input Card
Brand Name:
EMERSON
Emerson 8-Channel Digital Input Card
,24 VDC Isolated Input Module
,Emerson KJ3206X1-BK1 Input Card

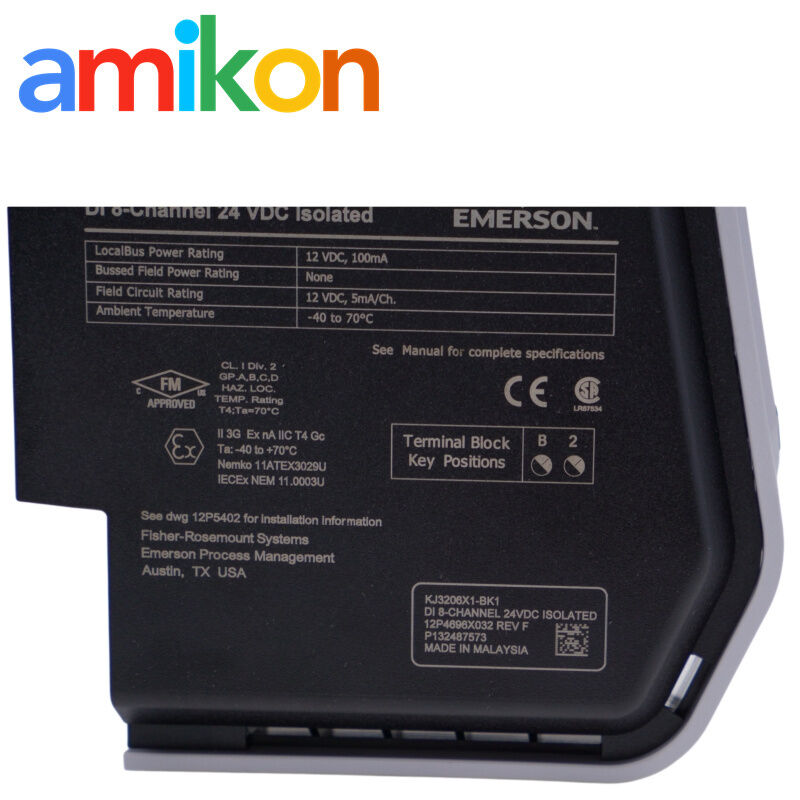

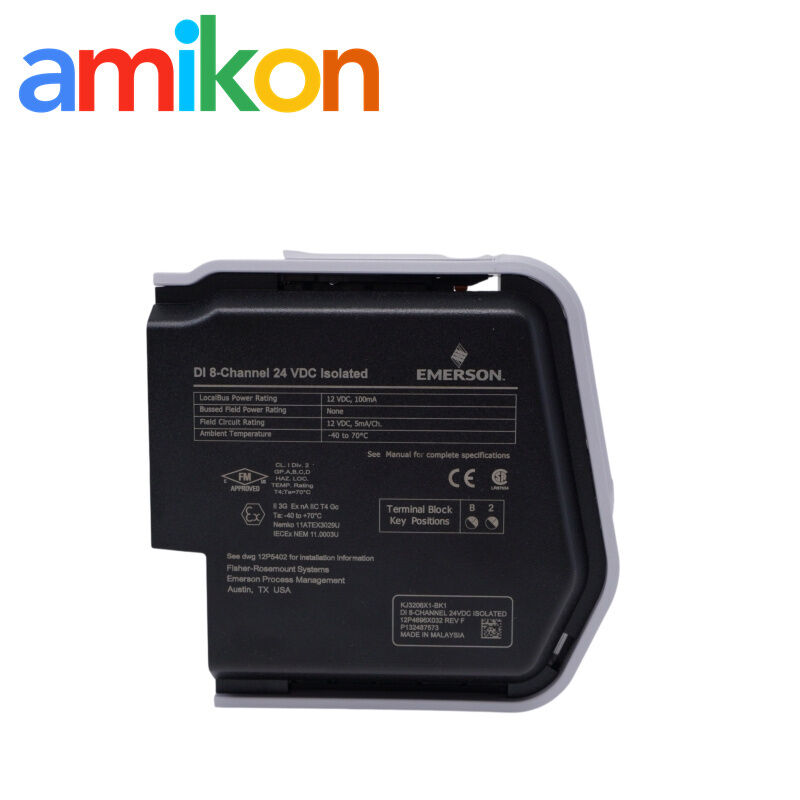

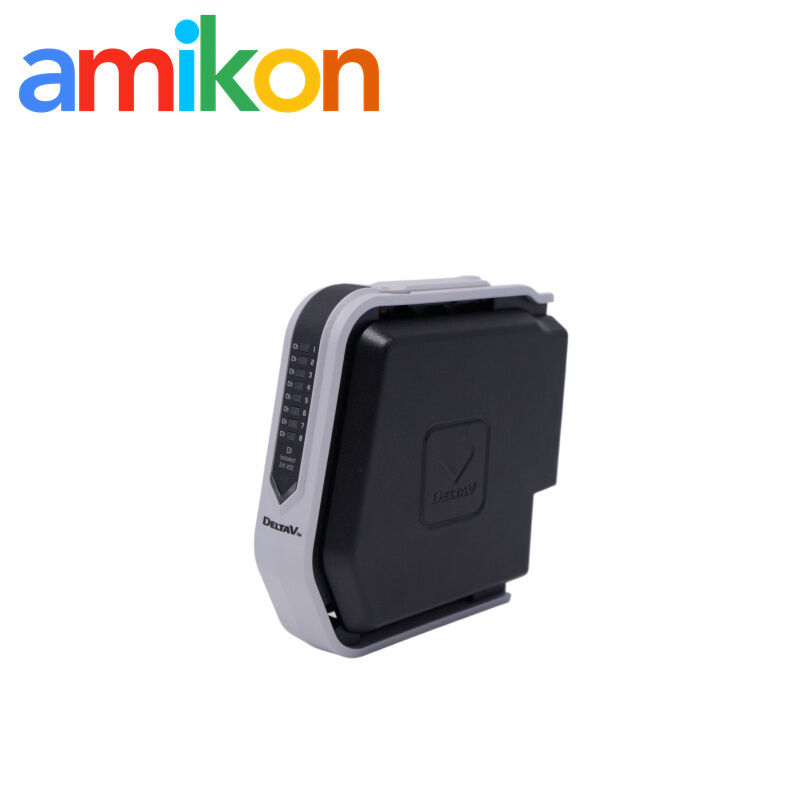

Emerson KJ3206X1-BK1 12P4696X032 S-Series DI Card
Product Overview
The Emerson KJ3206X1-BK1 is an S-Series digital input card for receiving isolated 24 VDC discrete field signals in a DeltaV S-Series control installation. It may be sourced for maintenance or replacement when input signals are lost or the existing card is suspected of failure. Confirm the full part number and installed hardware configuration before ordering.
Technical Specifications
| Manufacturer | Emerson |
|---|---|
| Model / Part Number | KJ3206X1-BK1 |
| Product Type | S-Series DI isolated card |
| Control Platform | DeltaV S-Series |
| Input Channels | 8 digital input channels |
| Field Circuit Rating | 24 VDC, 6 mA per channel |
| Local Bus Power | 12 VDC, 100 mA |
Installation, Removal & Maintenance
- Power isolation: Do not insert or remove the card while system power is energized. Disconnect the applicable field power before handling the card.
- Field circuits: De-energize non-sparking field circuits before removing or inserting the card, including the fused terminal block.
- Terminal block: The terminal block keying must match the installed I/O card.
- Maintenance: The card has no user-serviceable parts and should not be disassembled. Calibration is not required.
Application & Failure Scenarios
This card handles isolated 24 VDC discrete input signals in DeltaV S-Series control installations.
- Input signal loss: Field status signals are missing or inconsistent, prompting checks of the field device, wiring and input path.
- Suspected card failure: Input faults remain after field-side wiring and signal conditions have been checked.
- Maintenance replacement: A matching card is needed to restore input monitoring and reduce troubleshooting downtime.
A missing input signal does not alone prove card failure; check the field device and wiring before replacement.
Delivery, Testing & Warranty
Inspection: Part-number and visible-condition checks can be arranged before dispatch; confirm functional-test availability with sales.
Packaging: Protective packaging is selected for the shipment.
Warranty & DOA: Warranty coverage, duration and DOA reporting requirements are confirmed in the quotation or agreed sales terms.
Returns: Obtain return authorization from AMIKON before dispatching an item back. Eligibility is subject to the agreed terms and item condition.
Contact AMIKON
Industrial Automation Sourcing, Backed by More Than Two Decades of Industry Experience
AMIKON supplies industrial automation parts for maintenance, repair and system support, sourcing products from leading brands including Emerson, Siemens, ABB, Rockwell Automation, Bently Nevada, Yokogawa and more. Our team supports part identification, quotation enquiries and international order coordination for industrial customers.
