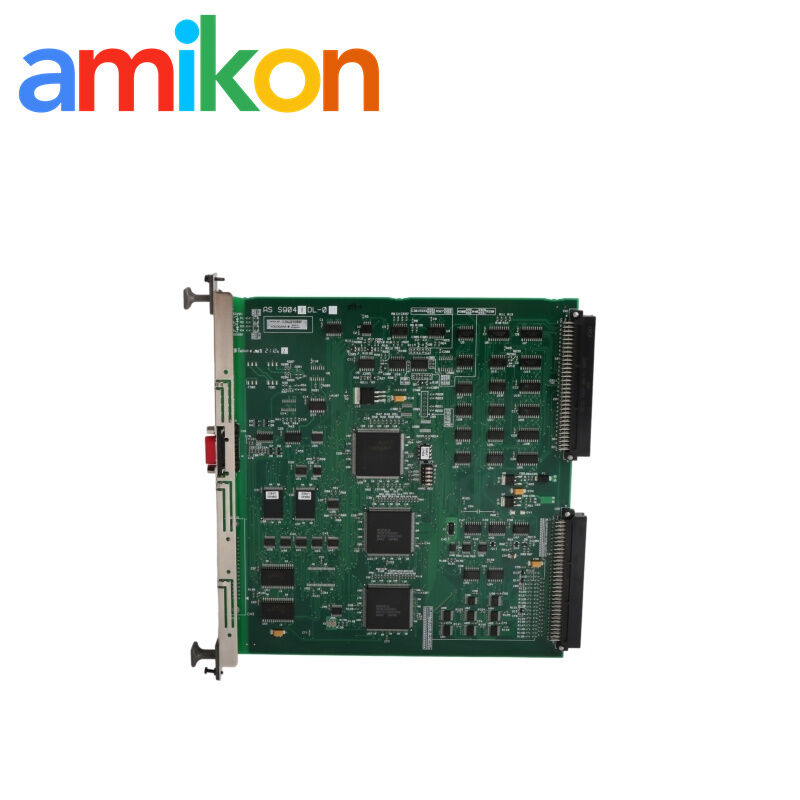

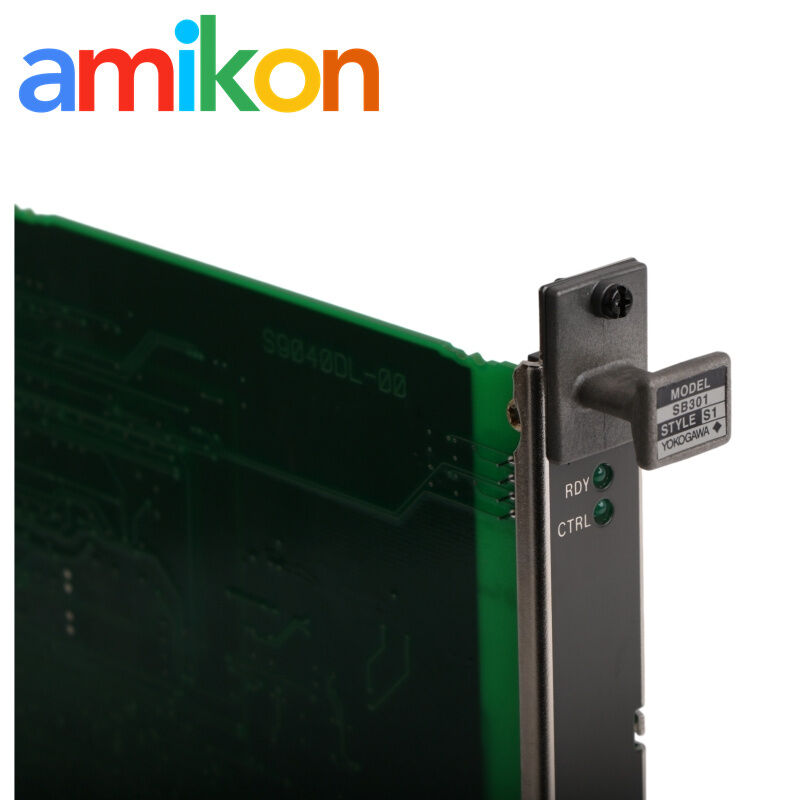

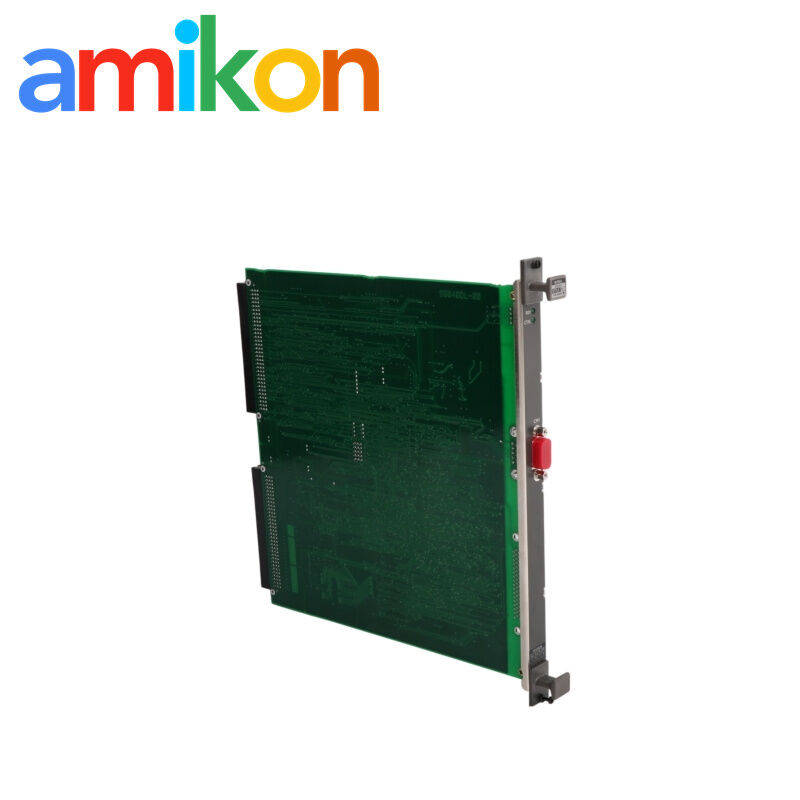

YOKOGAWA SB301 ESB Bus Interface Card for CENTUM Control Systems
YOKOGAWA SB301 ESB Bus Interface Card
CENTUM Control System Interface Card
Yokogawa Module ESB Bus Interface
Place of Origin:
JAPAN
Brand Name:
Yokogawa
YOKOGAWA SB301 ESB Bus Interface Card
,CENTUM Control System Interface Card
,Yokogawa Module ESB Bus Interface
AMIKON Industrial Automation
YOKOGAWA SB301
Application & Failure Scenarios
The SB301 is used for ESB bus communication between a field control unit and connected node units in the applicable Yokogawa control-system configuration. It may be investigated when ESB communication is interrupted or an interface-card fault is suspected.
In a dual-redundant arrangement, the active and standby SB301 cards are managed by the active CPU. If an abnormality is detected on one ESB bus, communication can use the other bus.
Technical Specifications
| Manufacturer | Yokogawa |
|---|---|
| Model | SB301 |
| Product Type | ESB bus interface card |
| System Application | CENTUM control system family; confirm the applicable system generation. |
| Interface Function | ESB bus communication with connected node units in the applicable system configuration. |
Additional Technical Notes
The SB301 is an ESB bus interface card used in Yokogawa control systems. In the CENTUM CS 3000 compact control station design, SB301 and CP345 hardware were integrated into a single processor module to reduce module size while maintaining software compatibility as much as possible. The compact module design uses a molded housing, fine-pitch BGA devices, 1005-size chip capacitors and resistors, and high-density build-up boards.
Replacement & Compatibility Checks
- Redundancy: Yokogawa documents a configuration using two SB301 cards in the field control unit for dual-redundant ESB communication.
- Active/standby operation: The active CPU manages the cards' states. The active SB301 acts as the ESB bus master; the other card remains on standby.
- Bus switchover: The redundant ESB buses are used alternately. If one bus is detected as abnormal, communication switches to the other.
Delivery & Warranty
Warranty duration, coverage and return conditions are confirmed in the quotation or order. Coverage is subject to the agreed terms.
