Product Overview
The ABB CMA130, part number 3DDE300410, is a display front panel for the SYNPOL D generator control and protection platform. SYNPOL D combines alternator protection, diesel-engine control and power management for generator installations, including marine power systems.
The operator panel provides local access to operating indications and system information. It is used alongside the SYNPOL D control hardware rather than as a standalone generator controller.
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Model | CMA130 |
| Part Number | 3DDE300410 |
| Product Type | Display front panel / local operator interface |
| System | SYNPOL D |
| System Purpose | Alternator protection, diesel control and power management |
| Operator Indications | Generator voltage, current, power, frequency and power factor indications are described for the SYNPOL D control panel. |

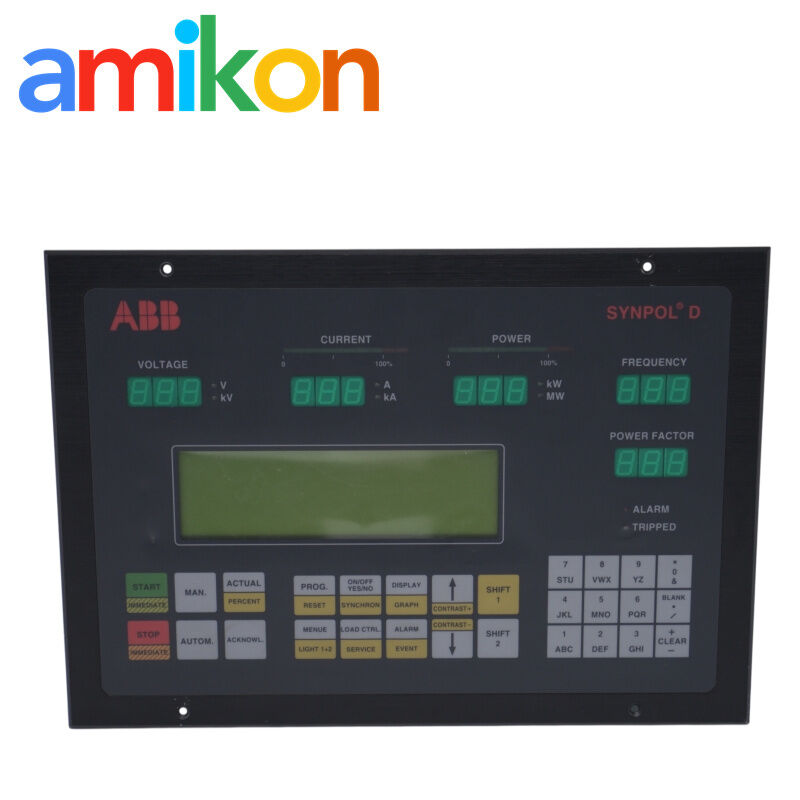

| Display Arrangement | SYNPOL D panel documentation describes green seven-segment LED indications, analog current and power light bands, and an LC display. |
Display, operation and configuration notes
The SYNPOL D service documentation describes the LC display as an interface for device information, parameter viewing and programming. The alphanumeric keypad is used for entering values and navigating parameters.
Programming access uses a password, and parameter changes are confirmed through the panel's acknowledgement key. The manual warns that the PROG key should only be pressed when the engine is not running.
The SYNPOL D documentation also describes RS422/485 communication settings, including address, protocol selection and transmission speed. These are system-level settings; verify the installed configuration before changing any parameter.
Application & Failure Scenarios
SYNPOL D is designed for generator control, alternator protection and power management. The operator panel supports local observation of generator operating values and system information.
- Missing or unreadable indications: Operators may lose local visibility of generator measurements, operating status or alarms, making diagnosis more difficult.
- Panel keypad or display malfunction: Access to local parameter screens and operating information may be impaired, potentially delaying maintenance.
- Generator protection or power-management issue: A system fault can require prompt inspection of alarms, control hardware and configuration. The display panel should not be assumed to be the cause without diagnosis.
Reduced visibility or delayed troubleshooting can extend downtime in generator installations. Check the complete SYNPOL D system before deciding whether the panel requires replacement.
Installation & Service Considerations
Use the applicable SYNPOL D service documentation and site procedures when inspecting or replacing the panel. Confirm the installed version and all associated connections before returning equipment to service.
SYNPOL D service instructions require damaged equipment or connecting cables to be checked by authorized service personnel before operation resumes. Do not change operating parameters or protection settings without the required authorization and system knowledge.
Delivery & Warranty
| TestingInspection or functional testing can be discussed and confirmed before shipment. | PackagingProtective packaging is arranged for dispatch according to the supplied item's handling needs. |
| WarrantyWarranty period and coverage are specified in the quotation or order confirmation. | Returns & DOAReport damage or suspected defects promptly. Retain packaging and contact AMIKON for return authorization and assessment. |
Request a Quote
Please provide the following information so the requested spare part and delivery requirements can be checked efficiently.
AMIKON Industrial Supply
Supporting industrial maintenance teams with spare-part sourcing, order coordination and international delivery.
Include the full part number and delivery destination in your enquiry.
Frequently Asked Questions
1. Which SYNPOL D functions are accessible through the operator panel?
The SYNPOL D panel provides generator operating indications and an LC display for device information, parameter navigation and programming functions, subject to the installed system configuration.
2. Which generator values are shown on the SYNPOL D panel?
The system documentation describes indications for generator voltage, current, power, frequency and power factor. Current and power also have analog light-band indications.
3. Can the panel be replaced without checking the control system?
No. Confirm the complete part number, installed equipment configuration and applicable service instructions before replacing the panel.
4. Where can I obtain the CMA130 3DDE300410 pdf/manual/datasheet?
Consult the SYNPOL D service documentation and contact ABB support or the equipment supplier for model-specific documentation and confirmation of the replacement part.
5. What precautions apply when servicing SYNPOL D equipment?
Follow the applicable safety and isolation procedures. The service manual states that programming should only be entered when the engine is not running, and damaged equipment or connecting cables must be checked by authorized service personnel before operation resumes.
