ABB SDCS-CON-H01 3ADT320000R1501 Control Circuit Board for DCS880 / DCT880
ABB SDCS-CON-H01
3ADT320000R1501
DCS880 Control Board
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB SDCS-CON-H01
,3ADT320000R1501
,DCS880 Control Board
SDCS-CON-H01
Order Number: 3ADT320000R1501
ABB control circuit board associated with DCS880 and DCT880 converter control equipment.
For a replacement enquiry, provide the drive model and the identification details on the installed component.
Technical Specifications
Product identification and control-board information.
| Product Type | Control circuit board |
|---|---|
| Equipment Series | DCS880 and DCT880 converter control equipment |
| Mounting Location | Installed on an electronic tray inside the converter housing. |
| Control Monitoring | An internal watchdog monitors the control board and its firmware. |
| Digital Inputs (DI) | Input processing stops if the internal watchdog trips. |
| Digital Outputs (DO) | Outputs remain in their current states if the internal watchdog trips. |
| Analog Inputs (AI) | Input processing stops if the internal watchdog trips. |
| Programmable Analog Outputs (AO) | Outputs remain in their current states if the internal watchdog trips. |
| Thyristor Firing Control | Disabled if the internal watchdog trips. |
| Control Cable Cross-Section | 0.5–2.5 mm² (24–12 AWG) |
| Control Terminal Tightening Torque | 0.5 N·m (5 lbf·in) |

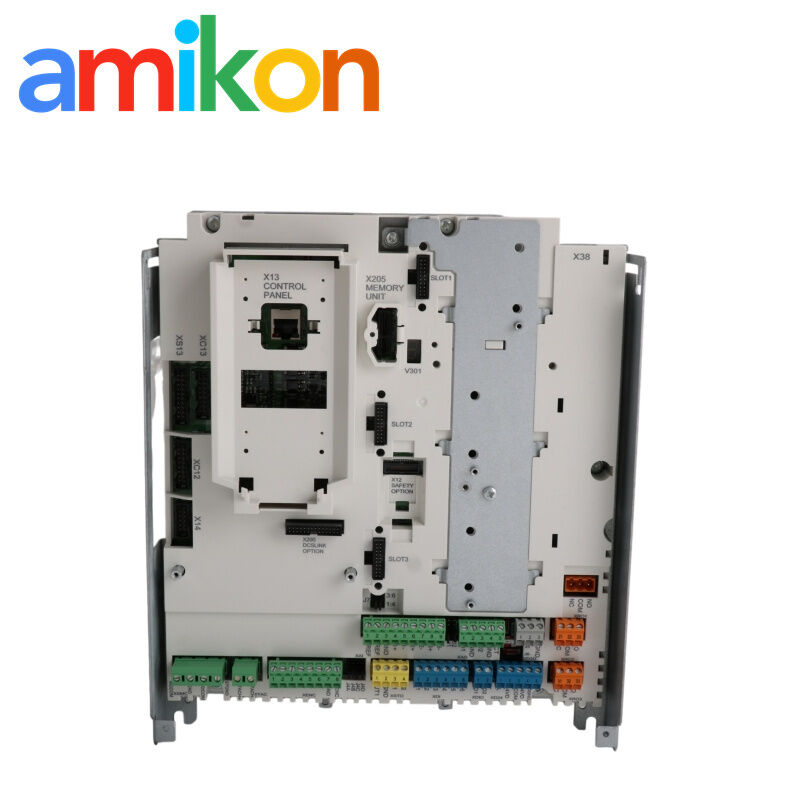

Board Layout and Connection Identifiers
| Control and Memory | X13 Control Panel; X205 Memory Unit |
|---|---|
| Option Locations | SLOT1, SLOT2, SLOT3; X12 Safety Option; X200 DCSLink Option |
| Fan and Battery | X208 Fan; X38 Battery |
| Analog and Digital Connections | XAI, XAO, XDI, XDIO, XD24 |
| Other Connection Identifiers | XD2D, XRO1, XRO2, XRO3, XSMC, XTAC, XENC, XSTO |
| Jumper Identifiers | J1–J7 |
Electronic Tray Replacement Notes
Electronic-tray replacement requires the correct assembly and the applicable service instructions for the installed converter.
- Disconnect the converter from its power supply and verify the electrically safe condition before work.
- Record the existing converter type code and relevant configuration settings.
- Check and transfer the required jumper settings in accordance with the applicable service instructions.
- Install the correct replacement assembly using the equipment service procedure.
- Verify the configuration before returning the converter to service.
Application & Failure Scenarios
Application
Used in the control electronics of ABB DCS880 and DCT880 converter equipment.
When to Search for This Part
Relevant to maintenance enquiries involving the control board, converter control electronics or electronic-tray replacement. Confirm the installed component identification before ordering.
Maintenance Planning
Confirming the part number and installed equipment details before ordering can help reduce replacement delays during maintenance.
Delivery & Warranty
| Inspection | Part-number and condition checks before dispatch. Functional testing and test records are subject to the confirmed quotation. |
|---|---|
| Packaging | Protective packaging suitable for electronic industrial components and the agreed shipping method. |
| DOA / Returns | Report suspected arrival damage or failure with the order reference and supporting details. Returns require prior authorization. |
| Warranty | Warranty duration and coverage are confirmed in the quotation or order confirmation. |
Request a Quote
Please include the following information in your enquiry.
| Part Number | Required |
| Quantity | Required |
| Destination | Country / city or delivery postcode |
| Required Date | Requested delivery date |
| Machine/System Model | Installed drive model and available identification details |
Contact AMIKON
Industrial automation spare-part enquiries and sourcing support.
Miya Zheng
AMIKON Industrial Supply
Send the part number and installed equipment details to request availability and a quotation.
Condition, lead time and warranty terms are confirmed during quotation.
Frequently Asked Questions
1. What is the SDCS-CON-H01 used for?
It is a control circuit board associated with ABB DCS880 and DCT880 converter control equipment. Confirm the installed assembly before ordering.
2. What information should I provide to confirm the required part?
Provide the order number, drive model and identification details from the installed board or electronic tray, if available.
3. What happens if the internal watchdog trips?
The converter control response includes disabling thyristor firing control, stopping input processing and holding the outputs in their current states.
4. What should be checked before replacing the electronic tray?
Confirm the replacement assembly and configuration requirements in the service instructions for the installed converter. Disconnect the power supply and verify the electrically safe condition before work.
5. How can I request a quotation or product documentation?
Contact Miya Zheng at sales@amikon.cn. For the SDCS-CON-H01 3ADT320000R1501 PDF/manual/datasheet, consult the applicable ABB DCS880 or DCT880 documentation.
