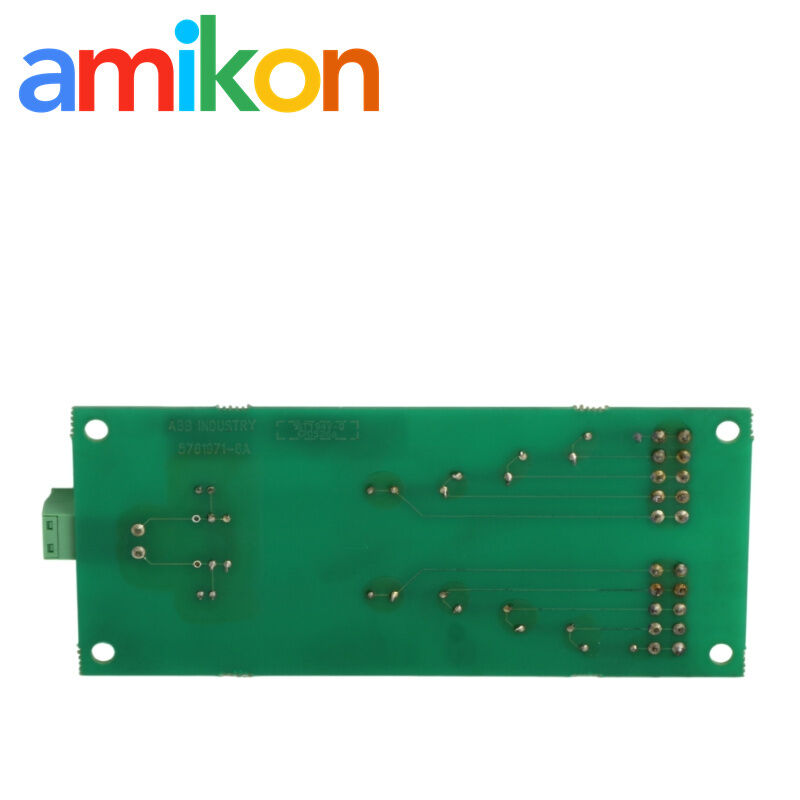

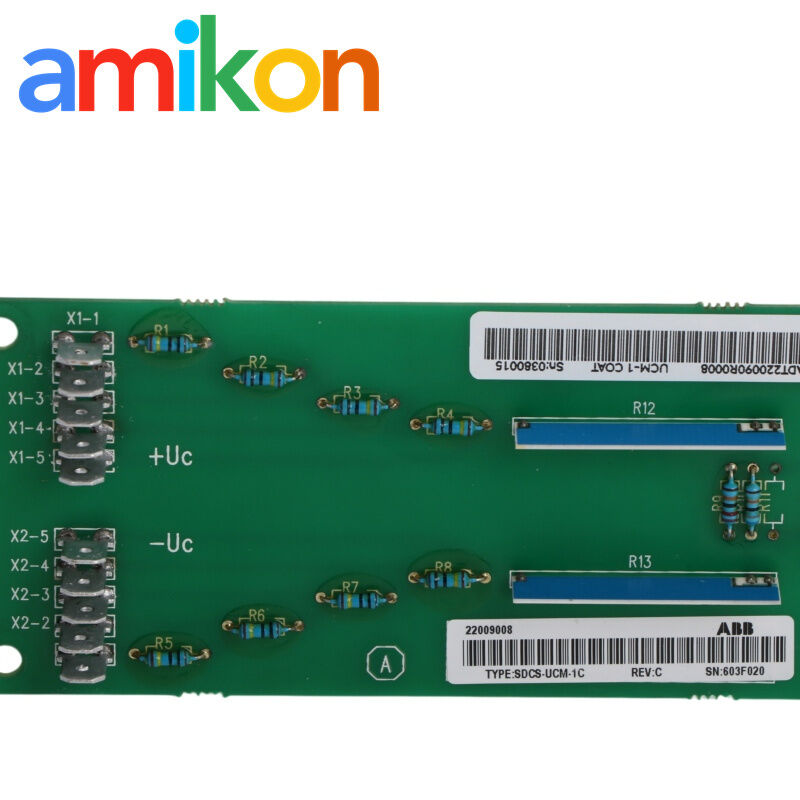

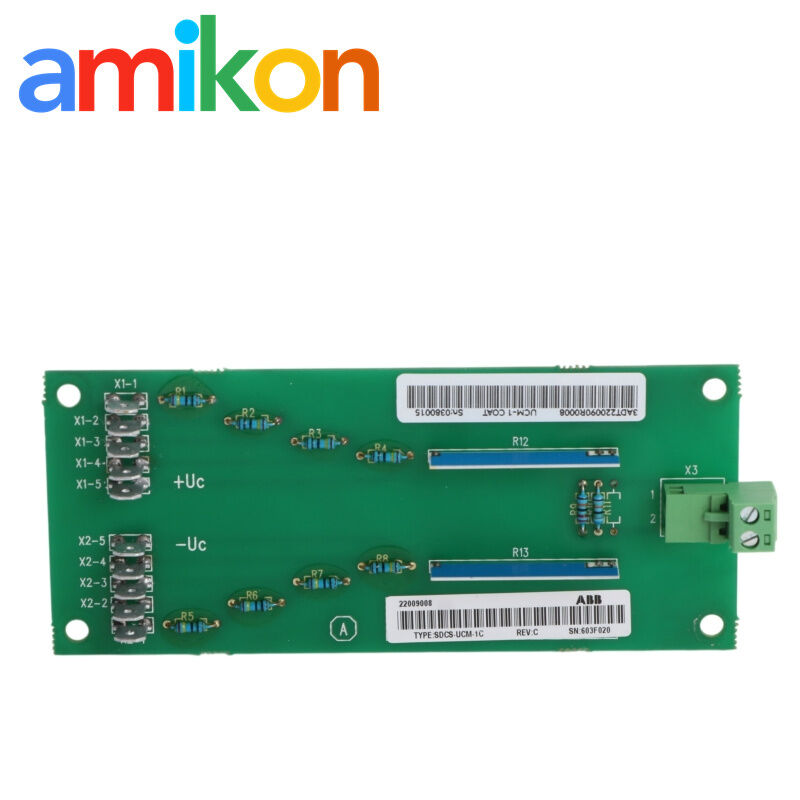

ABB SDCS-UCM-1-COAT 3ADT220090R0008 External DC Voltage Measurement Unit
ABB SDCS-UCM-1-COAT voltage measurement unit
external DC voltage measurement unit
ABB PLC voltage measurement with warranty
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB SDCS-UCM-1-COAT voltage measurement unit
,external DC voltage measurement unit
,ABB PLC voltage measurement with warranty
ABB SDCS-UCM-1-C 3ADT220090R0008
External DC Voltage Measurement · Industrial Drive Spare Part
ABB SDCS-UCM-1 DCS880 Drive ApplicationsTechnical Specifications
| Manufacturer | ABB |
|---|---|
| Model | SDCS-UCM-1-C |
| Product Number | 3ADT220090R0008 |
| Product Type | External DC voltage measurement resistor board |
| Drive Family | ABB DCS880 DC drives |
| Drive Frame Context | DCS880 sizes H1–H5 for the documented SDCS-UCM-1 measurement arrangement |
| Measurement Purpose | External measurement of motor armature DC voltage |
| Measurement Signal | Reduced voltage signal supplied to the drive's AI3 analog input |
| Control Configuration | External DC voltage measurement selection is configured through drive parameter 95.37 |
The application details above describe the SDCS-UCM-1 arrangement in the DCS880 documentation. Confirm the exact hardware revision for product number 3ADT220090R0008 before applying wiring or commissioning settings.
Application & Failure Scenarios
DC Drive Voltage Measurement
Used in the external armature-voltage measurement arrangement for applicable ABB DCS880 DC drive installations.
When Replacement Is Needed
Sourcing may be required when the measurement board is damaged, the external feedback path is faulty, or maintenance requires a matching spare part.
Operational Impact
Incorrect or unavailable armature-voltage feedback can affect drive operation and commissioning, potentially delaying equipment restart.
Contact AMIKON
Miya Zheng
AMIKON supports industrial spare-part sourcing, product identification and order coordination for maintenance and replacement requirements.
More than two decades in the industry, one part at a time.
Delivery & Warranty
Testing: Inspection and available testing arrangements can be confirmed before shipment.
Packaging: Protective packaging for transport.
Warranty & Returns: Subject to the agreed quotation and sales terms.
DOA: Report arrival damage or a suspected defective item promptly with order details and supporting photos.
Frequently Asked Questions
1. What is the model and part number?
The requested model is SDCS-UCM-1-C and the supplied product number is 3ADT220090R0008.
2. What is the function of the SDCS-UCM-1?
It is a resistor board used in an external DC voltage measurement arrangement for applicable ABB DCS880 DC drive systems.
3. When is external DC voltage measurement required?
In the documented DCS880 application, it is relevant when a DC breaker or US-style DC contactor is used, EMF is selected as speed feedback, and dynamic braking requires more than the configured delay provides.
4. Which drive family is associated with this measurement arrangement?
The documented arrangement applies to DCS880 drive sizes H1–H5. Confirm the exact board revision and product number when selecting a replacement.
5. What information is needed for a quotation?
Provide the part number, quantity, destination, required date and machine/system model. A photo of the installed part label is also helpful.
