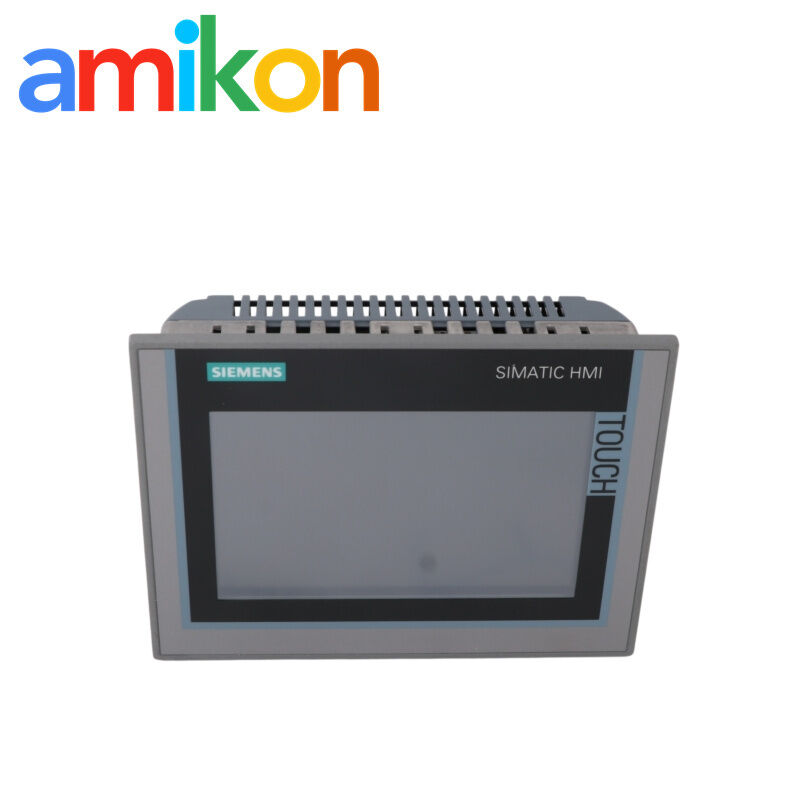

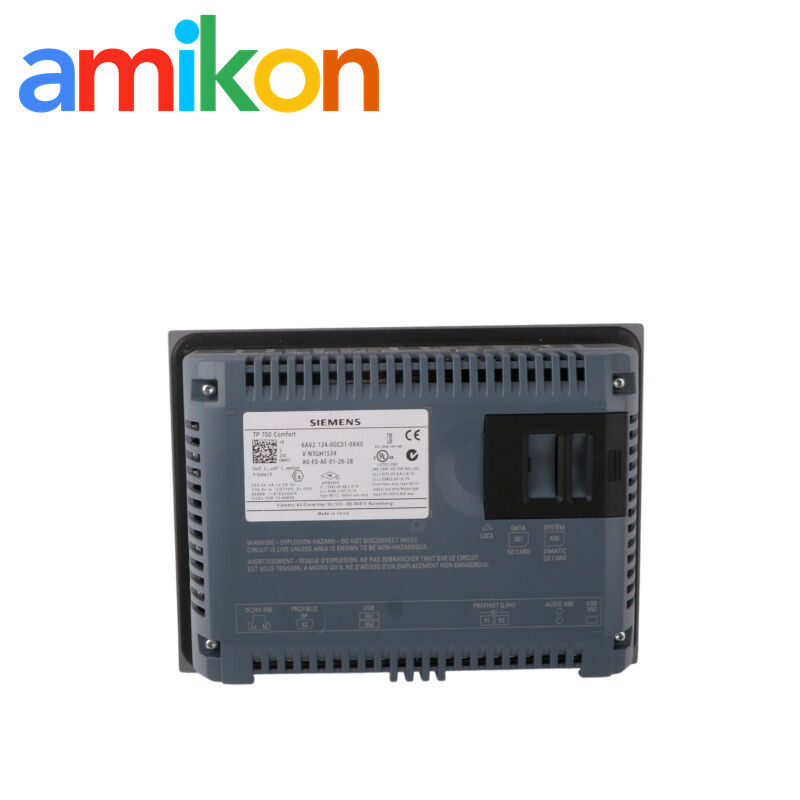

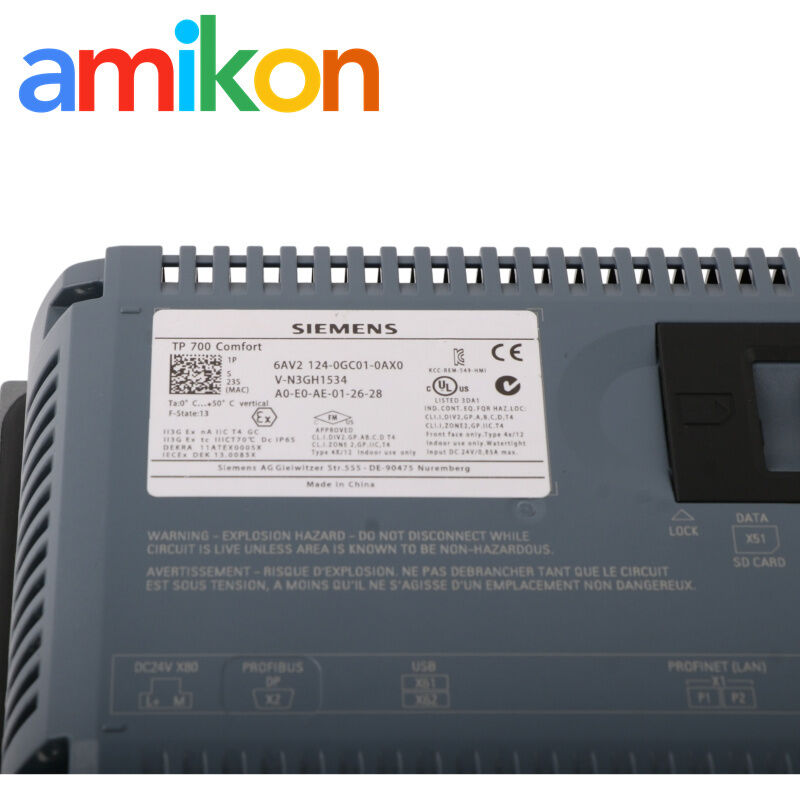

Siemens 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Panel 7-Inch Touchscreen
Siemens SIMATIC HMI TP700 touchscreen
7-inch Comfort Panel industrial display
SIMATIC PLC HMI with warranty
Place of Origin:
Germany
Brand Name:
Siemens
Siemens SIMATIC HMI TP700 touchscreen
,7-inch Comfort Panel industrial display
,SIMATIC PLC HMI with warranty
Siemens SIMATIC HMI TP700 Comfort
A 7-inch Comfort Panel for industrial operator interaction and machine-process visualization. This model features a widescreen TFT display, touch operation, and PROFINET and MPI/PROFIBUS DP interfaces.
Product Overview
The analog-resistive touch surface supports direct screen interaction. The displayed controls and operating screens depend on the HMI project configured for the machine.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Order number | 6AV2124-0GC01-0AX0 |
| Product designation | SIMATIC HMI TP700 Comfort |
| Product type | Comfort Panel |
| Display size | 7-inch widescreen TFT display |
| Display colors | 16 million colors |
| Operator input | Touch operation; analog-resistive touch screen |
| PROFINET | Available |
| MPI / PROFIBUS DP | Available |
| Configuration memory | 12 MB |
| Operating system | Windows CE 6.0 |
Additional Technical and Catalog Data
| Configuration software | Configurable from WinCC Comfort V11 |
|---|---|
| Product family | Comfort Panels standard devices |
| EAN | 4025515079026 |
| Net weight | Approximately 1.58 kg |
| Packaging dimensions | Approximately 19.7 × 26.6 × 11.8 cm (W × H × D as listed in the catalog packaging data) |
Additional Product Information
| Quantity unit | 1 piece |
|---|---|
| Minimum order quantity | 1 piece, as listed in the Siemens catalog |
| Country of origin | Germany, as listed in the Siemens catalog |
| Export classification | AL: N / ECCN: 9N9999 |
| RoHS information | Siemens lists substance-restriction compliance information dated 30 November 2015. Check current documentation for applicable requirements. |
Application & Failure Scenarios
The TP700 Comfort serves as an HMI operator interface in automation systems where operators need to view process information and interact with machine controls.
A damaged display, unresponsive touch operation, failure to start, or loss of communication may prompt a replacement request. These are general HMI service scenarios, not confirmed faults specific to this model.
If the HMI is unavailable, operators may lose access to configured visualization, alarms, or manual operating functions. The actual impact depends on the machine design and available alternative controls.
Configuration & Replacement Checks
Before ordering, compare the complete part number and check the existing HMI project's software version, communication setup, and required operator functions. Confirm that the replacement is suitable for the installed project and system architecture.
For software versions, connections, commissioning, and troubleshooting, consult the applicable Siemens documentation for this device and the relevant machine project.
Looking for the Siemens 6AV2124-0GC01-0AX0 PDF/manual/datasheet? Use the exact order number when searching the Siemens documentation available to your project or maintenance team.
Delivery & Warranty
- Inspection: Product identity and available condition checks are confirmed according to the order and supply arrangement.
- Packaging: Protective packaging is selected to help reduce handling and transit damage.
- Returns / DOA: Report arrival damage or a suspected dead-on-arrival item promptly with the order details and supporting photos or test results. Return authorization and resolution follow the agreed sales terms.
- Warranty: Coverage, duration, and remedy are confirmed in the quotation or order terms. Applicable exclusions follow the agreed conditions.
Contact & Sourcing Support
Industrial Parts Sourcing
AMIKON supports industrial spare-part sourcing for maintenance teams and automation projects. Send the exact part number and application details to help us review availability and quotation options.
Include these details in your inquiry so the team can review your requirements and respond with a suitable quotation.
Frequently Asked Questions
1. What touch technology does the TP700 Comfort use?
This model uses an analog-resistive touch screen.
2. How many colors can the display show?
The listed display specification is 16 million colors.
3. Which communication interfaces are available?
The listed interfaces include PROFINET and MPI/PROFIBUS DP.
4. Which engineering software is specified for configuration?
The listed configuration software is WinCC Comfort V11. Check the existing project and engineering environment before transferring or restoring a project.
5. What should be checked before replacing an installed TP700 Comfort?
Verify the complete order number, project compatibility, communication setup, required operator functions, and installation arrangements.
