Siemens 6ES7134-4JB51-0AB0 SIMATIC ET 200S RTD Analog Input Module
Siemens SIMATIC ET 200S RTD module
RTD analog input module 6ES7134-4JB51-0AB0
SIMATIC ET 200S PLC module
Place of Origin:
Germany
Brand Name:
Siemens
Siemens SIMATIC ET 200S RTD module
,RTD analog input module 6ES7134-4JB51-0AB0
,SIMATIC ET 200S PLC module

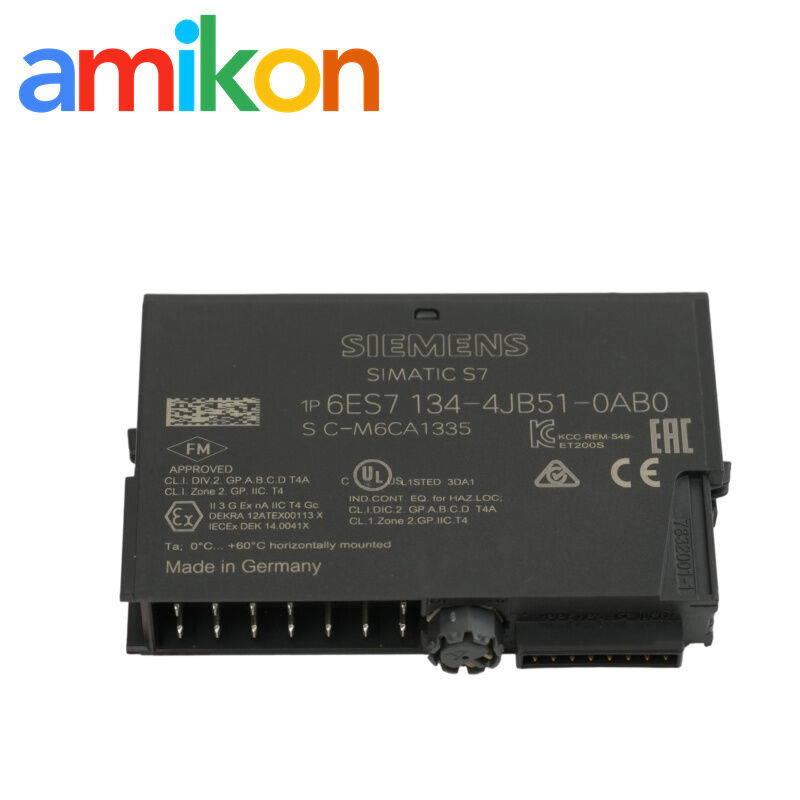

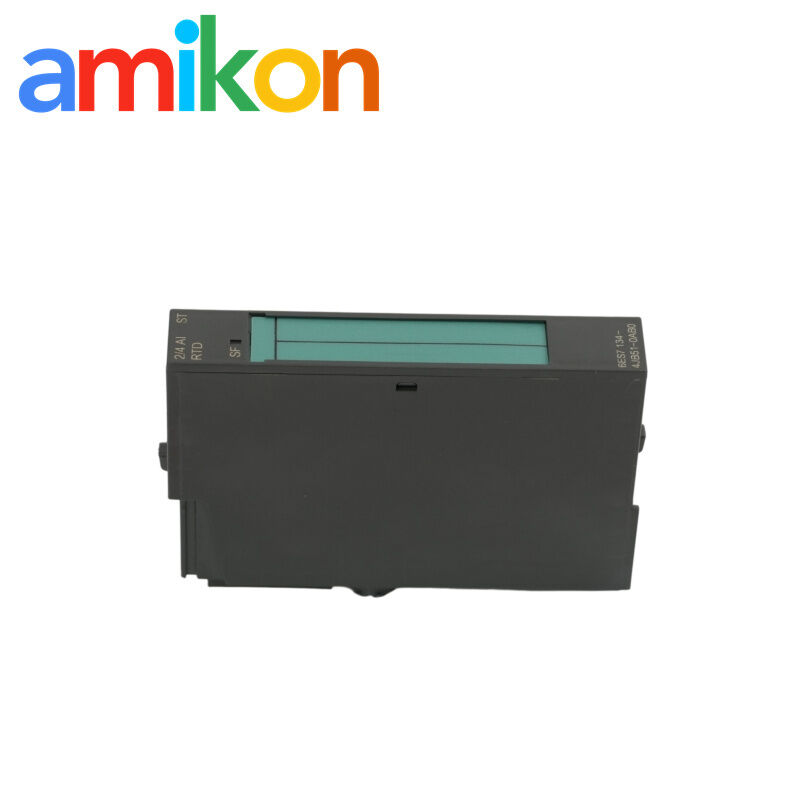

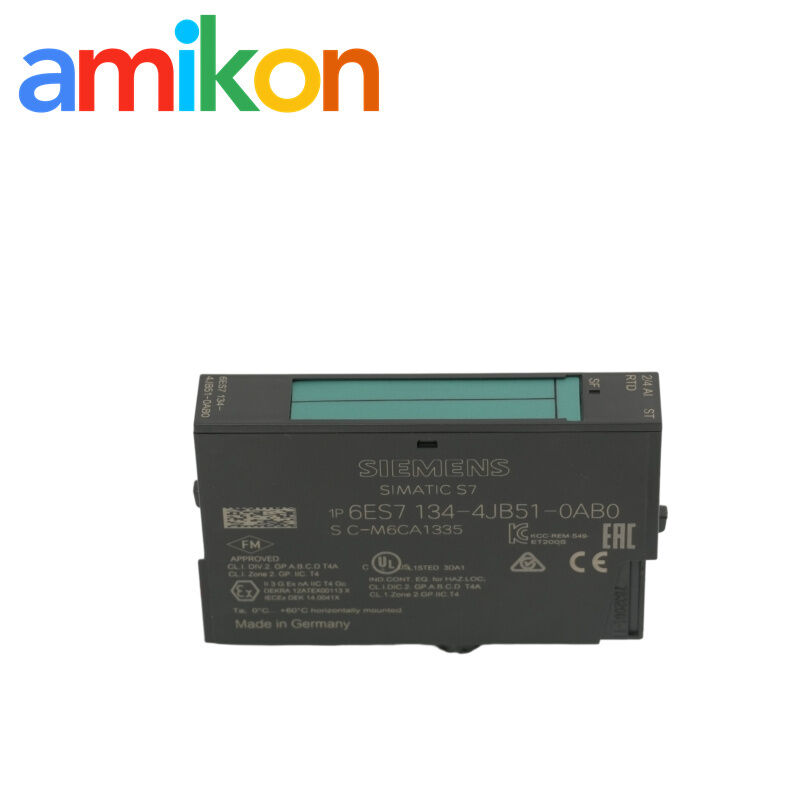

Siemens 6ES7134-4JB51-0AB0 Analog Input Module
A Siemens ET 200S spare-part electronic module for industrial automation maintenance. Contact AMIKON to inquire about the exact part number, supply condition and delivery arrangements.
RTD Input Industrial Automation Spare PartPart Number
6ES7134-4JB51-0AB0
Module Type
2/4 AI RTD Standard
Product Overview
This module acquires resistance-temperature detector signals and supported resistance measurements in distributed I/O applications. Sensor selection, wiring and measurement-range settings must match the actual installation.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Order Number | 6ES7134-4JB51-0AB0 |
| Product Family | SIMATIC DP, ET 200S |
| Product Description | Standard RTD analog input electronic module; spare-part product |
| Module Width | 15 mm |
| Analog Inputs | 4 inputs; 2 inputs when using 3-wire or 4-wire connections |
| Supported Temperature Sensors | Pt100 standard/climate; Ni100 standard/climate |
| Resistance Measurement Ranges | 150 Ω, 300 Ω and 600 Ω |
| Resolution | 15 bits + sign; the effective resolution depends on the configured measurement range |
| Load Voltage L+ | 24 V DC, supplied from the power module |
| Reverse-Polarity Protection | Yes |
Additional Technical Specifications
| Maximum Current from L+ (without load) | 30 mA |
|---|---|
| Maximum Current from 3.3 V Backplane Bus | 10 mA |
| Typical Power Dissipation | 0.6 W |
| Maximum Address Space | 8 bytes per module |
| Maximum Permissible Voltage Input | 9 V destruction limit; not a general voltage-input operating range |
| Typical Constant Measuring Current | 1.67 mA for resistance-type sensors |
| Group Fault Indicator | SF LED |
| Isochronous Mode | Not supported |
Application & Failure Scenarios
Installed in SIMATIC DP ET 200S distributed I/O stations, this module is relevant when a control system needs temperature or supported resistance measurements from field sensors.
Common replacement search triggers
- Temperature readings are missing, unstable or outside the expected range.
- The existing RTD input module is suspected of failure during maintenance.
- A station fault prompts checks of the input module, sensor wiring or channel configuration.
Installation & Configuration Checks
- Confirm the sensor wiring arrangement and terminal assignment against the applicable Siemens manual.
- Verify the configured sensor type and measurement range before commissioning.
- Follow the machine's approved isolation procedure and installation instructions before removing or installing the module.
Delivery & Warranty
Frequently Asked Questions
1. What is the Siemens 6ES7134-4JB51-0AB0 used for?
It is an ET 200S standard RTD analog input electronic module for acquiring supported temperature-sensor and resistance-measurement signals in a SIMATIC DP distributed I/O station.
2. Which temperature sensors does this module support?
The specified sensor types include Pt100 and Ni100 in standard/climate versions. Confirm the sensor type and settings against the applicable module documentation.
3. Does it provide four inputs for every wiring arrangement?
The module has four inputs, with two inputs available when using 3-wire or 4-wire connections. Check the selected wiring method and terminal arrangement.
4. What should be checked if a temperature value is incorrect?
Check the sensor, field wiring, terminal connections, configured sensor type and measurement range, as well as the station's diagnostic indications.
5. What information should I provide when requesting a replacement?
Provide the part number, quantity, destination, required date and machine/system model. Existing station details or fault information can also help clarify the requirement.
About AMIKON
Parts Sourcing for Maintenance & Repair
AMIKON supports industrial customers sourcing automation components for maintenance, repair and equipment continuity. Our team can help coordinate part identification, supply condition and delivery details for your inquiry.
Industrial automation sourcing and supply coordination.
Please provide Part Number, Quantity, Destination, Required Date and Machine/System Model.
