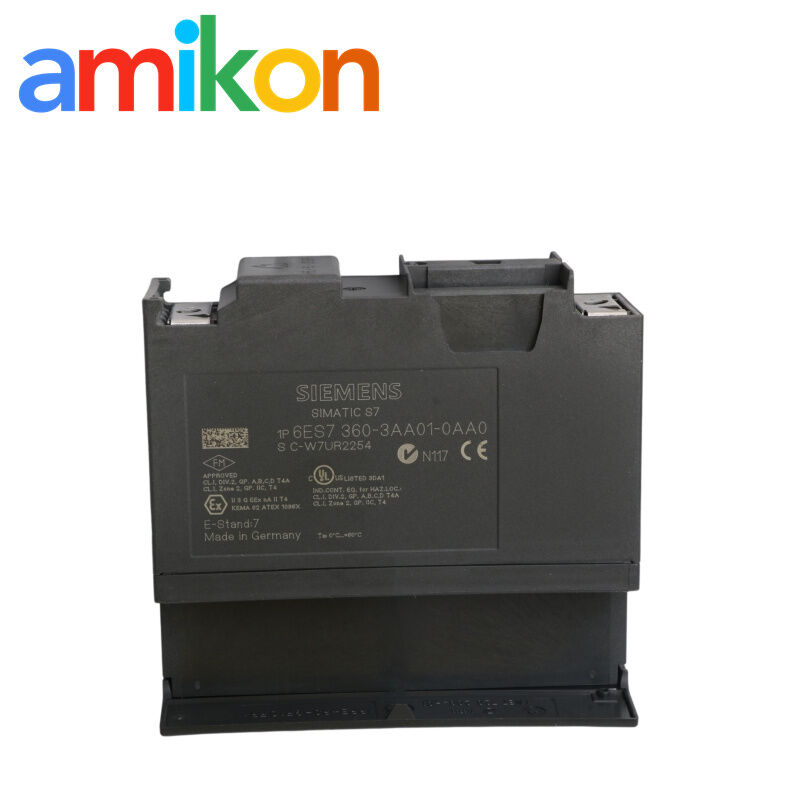

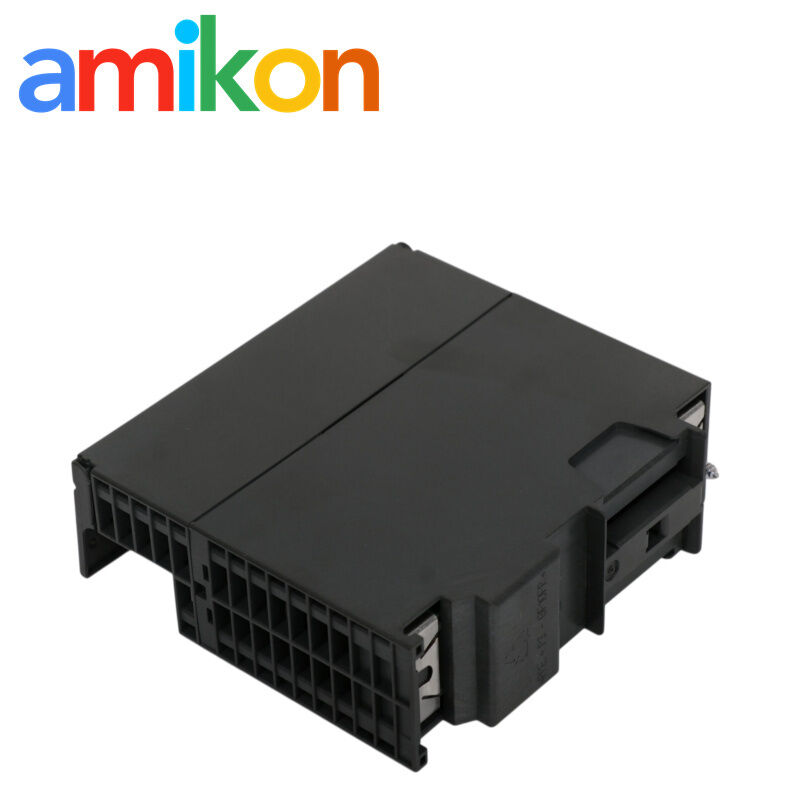

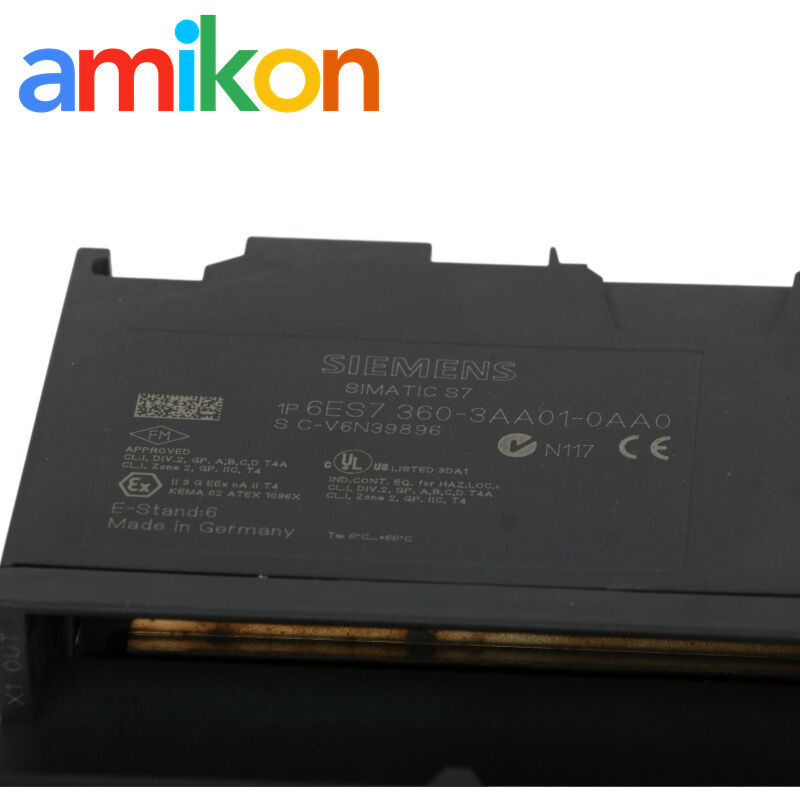

Siemens 6ES7360-3AA01-0AA0 SIMATIC S7-300 IM 360 Interface Module
Siemens 6ES7360-3AA01-0AA0
SIMATIC S7-300 IM 360
Expansion Rack Connection
Place of Origin:
Germany
Brand Name:
Siemens
Siemens 6ES7360-3AA01-0AA0
,SIMATIC S7-300 IM 360
,Expansion Rack Connection
Siemens 6ES7360-3AA01-0AA0
IM 360 interface module for connecting a central rack to expansion racks in a SIMATIC S7-300 system.
For multi-rack system expansion.
Application & Failure Scenarios
Rack expansion and system continuity
This module is relevant when a SIMATIC S7-300 installation requires additional expansion racks. During maintenance, engineers may look for it when the connection between the central rack and an expansion rack is suspected of causing a rack communication or module availability problem.
A fault in the rack interface path may prevent affected expansion-rack I/O or installed modules from operating as expected, potentially interrupting machine sequences or production. Confirm the fault location before replacing the module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product family | SIMATIC S7-300 |
| Model | IM 360 interface module |
| Order number | 6ES7360-3AA01-0AA0 |
| Installation position | Central rack |
| Expansion capability | Connection of up to 3 expansion racks in an IM 360/IM 361 configuration |
| Bus designation | With K-Bus |
| Maximum interfaces per CPU | 1 |
| Backplane bus current, 5 V DC | 350 mA maximum |
| Typical power loss | 2 W |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Approximate weight | 225 g |
Check the complete rack configuration and applicable system instructions before installation.
System Configuration Notes
The IM 360 is the sending interface module for the central rack. The corresponding IM 361 is used in the expansion rack, with the connecting cable selected for the installation layout.
| System component | Order number | Role |
|---|---|---|
| IM 360 | 6ES7360-3AA01-0AA0 | Central-rack interface module |
| IM 361 | 6ES7361-3CA01-0AA0 | Expansion-rack interface module |
| Connecting cable, 1 m | 6ES7368-3BB01-0AA0 | Connects interface modules between racks |
| Connecting cable, 2.5 m | 6ES7368-3BC51-0AA0 | Connects interface modules between racks |
| Connecting cable, 5 m | 6ES7368-3BF01-0AA0 | Connects interface modules between racks |
| Connecting cable, 10 m | 6ES7368-3CB01-0AA0 | Connects interface modules between racks |
These are system component references; they are not included automatically with the IM 360. Confirm cable length and ordering requirements separately.
