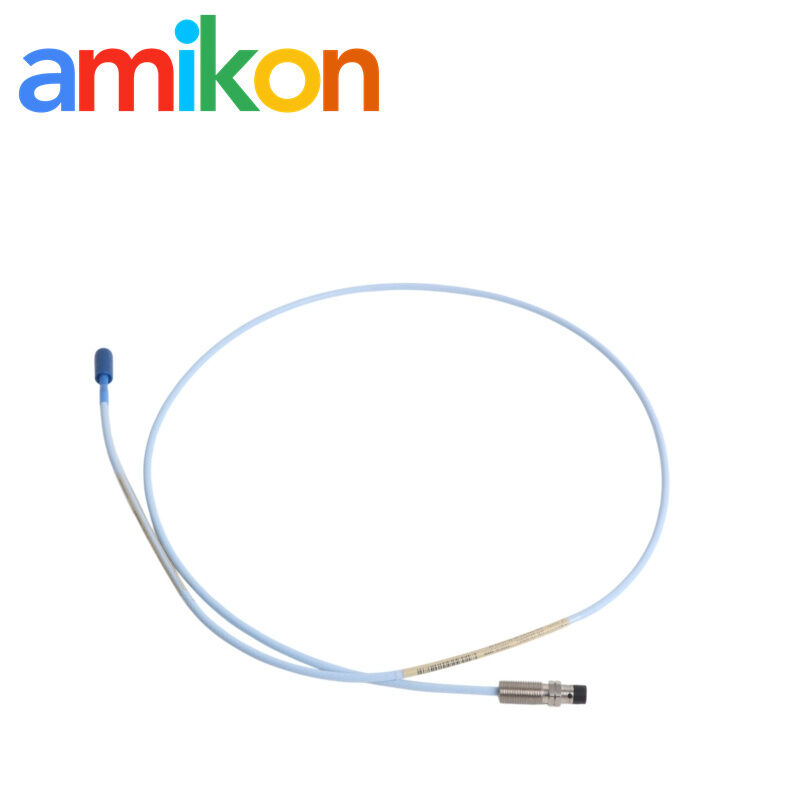

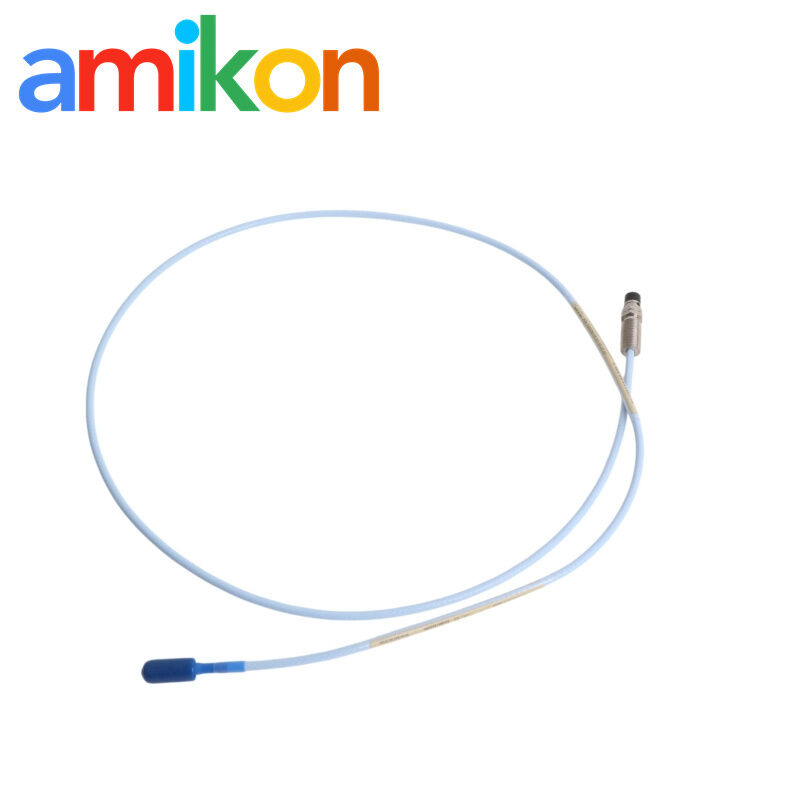

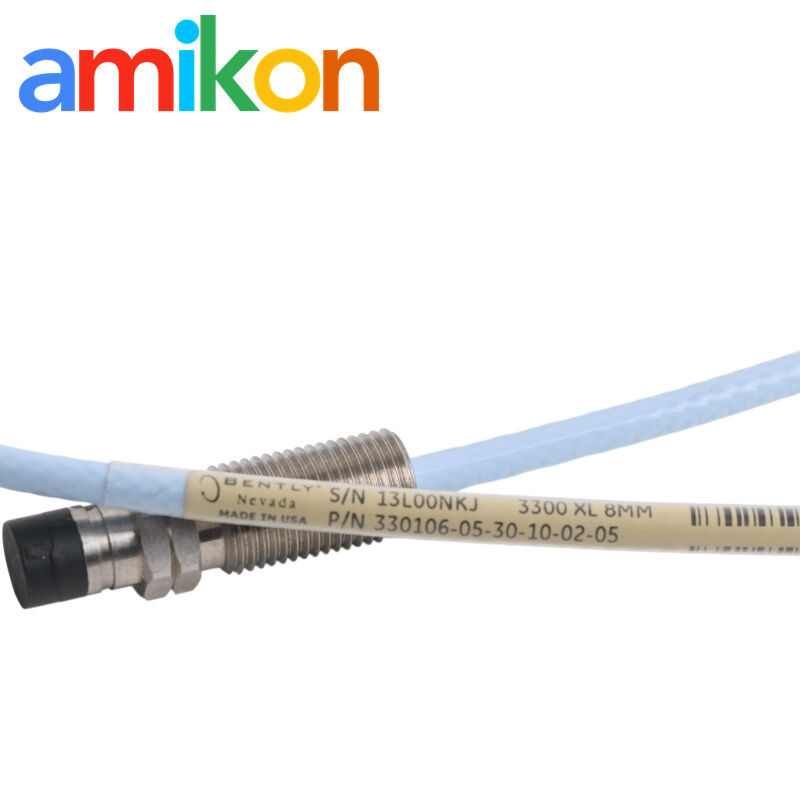

Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Proximity Probe
3300 XL 8 mm
Reverse Mount Probe
M10 × 1 Thread
Brand Name:
Bently Nevada
3300 XL 8 mm
,Reverse Mount Probe
,M10 × 1 Thread
330106-05-30-10-02-05
3300 XL 8 mm Reverse Mount Probe with M10 × 1 thread, 1.0 m total probe length, Miniature ClickLoc connector and CSA / ATEX / IECEx approvals.
Product Overview
The 330106-05-30-10-02-05 is a reverse-mount probe for the 3300 XL 8 mm proximity transducer system. The system produces an output proportional to the distance between the probe tip and the observed conductive surface, supporting non-contact position and vibration measurement.
Technical Specifications
Core specifications
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Model | 330106-05-30-10-02-05 |
| Probe type | 3300 XL 8 mm Reverse Mount Probe |
| Thread | M10 × 1 |
| Unthreaded length | 5.0 mm (0.20 in) |
| Case length | 30 mm (1.2 in) |
| Probe tip diameter | 8.0 mm (0.31 in) |
| Total probe length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc connector |
| Approvals | CSA, ATEX, IECEx |
Mechanical and electrical characteristics
| Probe tip material | Polyphenylene sulfide (PPS) |
|---|---|
| Probe case material | AISI 303 or 304 stainless steel |
| Standard cable | 75 Ω triaxial, FEP insulated |
| Maximum probe case-to-lead tensile strength | 330 N (75 lbf) |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Linear range | 2 mm (80 mils) |
| Linear range | 0.25 to 2.3 mm (10 to 90 mils) from target |
| Recommended radial vibration gap | −9 Vdc, approximately 1.27 mm (50 mils) |
| Incremental scale factor | 7.87 V/mm (200 mV/mil) ±5% for standard 5 m or 1 m systems |
| Connector material | Gold-plated brass or gold-plated beryllium copper |
Installation values
| Reverse-mount probe maximum case torque | 22.6 N·m (200 in·lbf) |
|---|---|
| Reverse-mount probe recommended case torque | 7.5 N·m (66 in·lbf) |
| Maximum connector torque | 0.565 N·m (5 in·lbf) |
| 1 m system configuration | Probe only; no extension cable |
Application & Fault Scenarios
Configuration Check
Use the complete part number when sourcing a replacement. The configuration identifies the reverse-mount design, M10 × 1 thread, 1.0 m length, connector arrangement and approval option.
About AMIKON
Global Industrial Sourcing
AMIKON connects industrial buyers with sourcing and delivery support for automation and control-system spare parts, helping coordinate part-number checks, quotation requests and international order arrangements.
Miya Zheng
sales@amikon.cn +86 180 2077 6792
Delivery & Warranty
FAQ
What is the recommended gap setting for radial vibration?
The recommended setting is −9 Vdc, corresponding to approximately 1.27 mm (50 mils).
What is the linear range of the 3300 XL 8 mm system?
The linear range is 2 mm (80 mils), from approximately 0.25 to 2.3 mm (10 to 90 mils) from the target.
Does the 1 meter configuration require an extension cable?
No. Bently Nevada specifies that 1 meter systems use the probe without a separate extension cable.
What is the minimum cable bend radius?
The minimum cable bend radius is 25.4 mm (1.0 inch).
What shaft and target dimensions should be considered?
The minimum flat target diameter is 15.2 mm (0.6 in). Minimum shaft diameter is 50.8 mm (2 in), with 76.2 mm (3 in) recommended.
