Bently Nevada 330103-00-13-10-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-13-10-02-00
3300 XL 8 mm Proximity Probe
8 mm Probe
Brand Name:
Bently Nevada
Bently Nevada 330103-00-13-10-02-00
,3300 XL 8 mm Proximity Probe
,8 mm Probe
330103-00-13-10-02-00

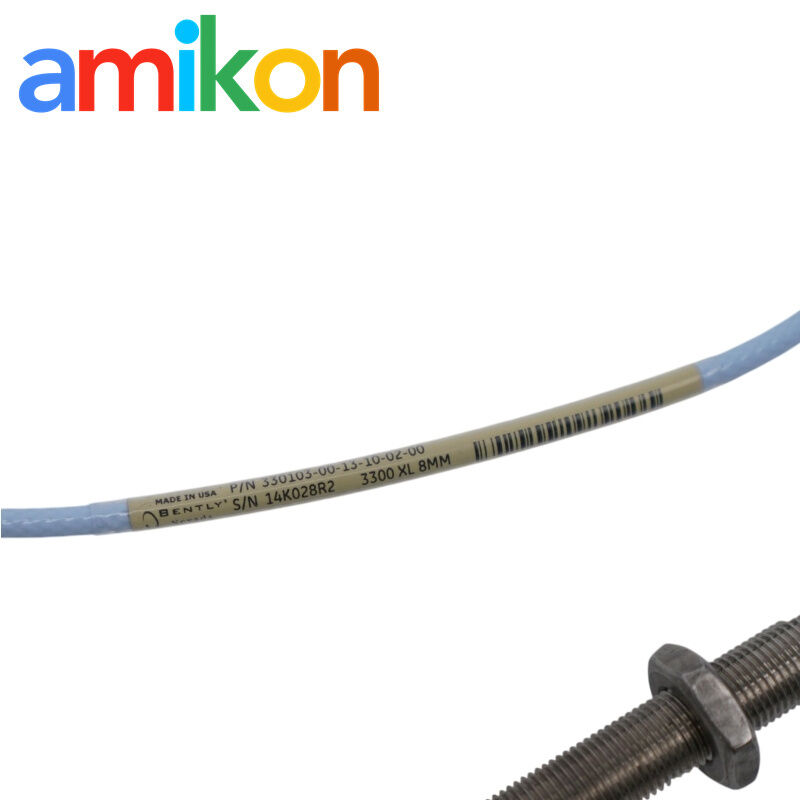

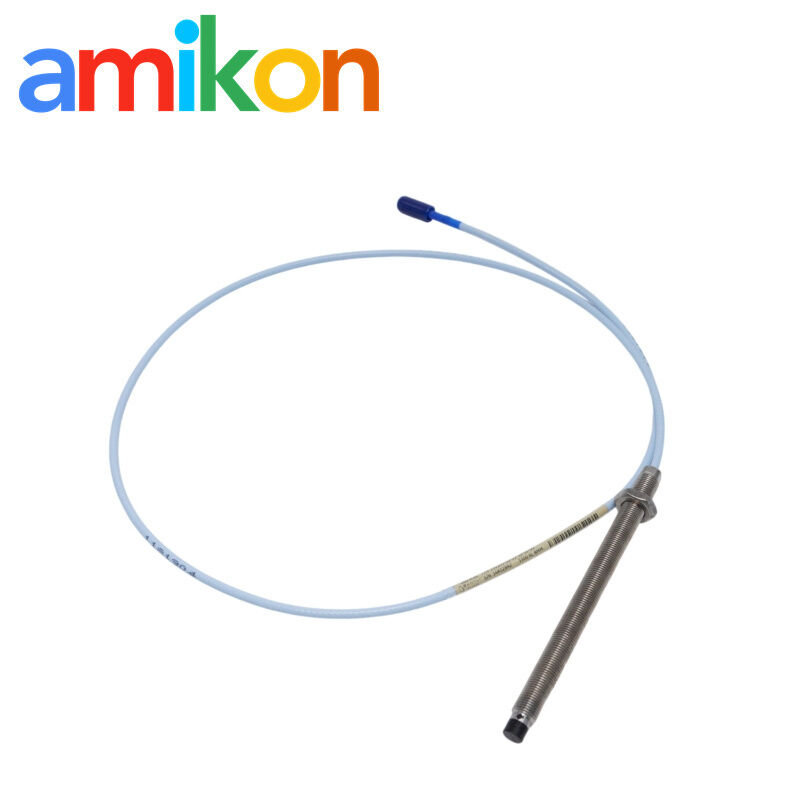

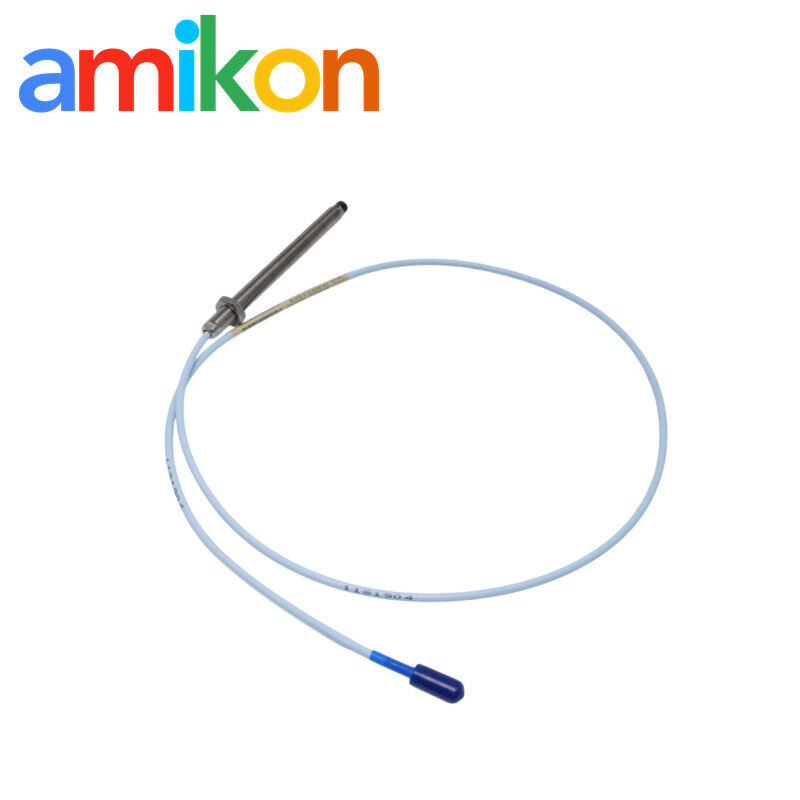

3300 XL 8 mm proximity probe with M10 × 1 thread, 130 mm overall case length, 1.0 m total probe length, miniature coaxial ClickLoc connector and standard cable.
System Role
MEASUREMENT CHAINThe 3300 XL 8 mm proximity transducer system consists of a proximity probe, extension cable and Proximitor Sensor. It provides an output voltage proportional to the distance between the probe tip and the observed conductive surface and can measure both static position and dynamic vibration.
Bently Nevada specifies the system for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Technical Specifications
CORE DATA- Probe type 3300 XL 8 mm proximity probe
- Thread M10 × 1
- Armor Without armor
- Probe tip material Polyphenylene sulfide (PPS)
- Probe case material AISI 303 or 304 stainless steel
- Standard probe cable 75 Ω triaxial, FEP insulated
- Probe DC resistance 7.59 ± 0.50 Ω at 1.0 m
- Linear range 2 mm (80 mils)
- Recommended radial gap −9 V · approximately 1.27 mm (50 mils)
- Incremental scale factor 7.87 V/mm (200 mV/mil) ±5% for standard 1 m / 5 m system
- Frequency response 0 to 10 kHz, +0 / −3 dB
- Minimum target size 15.2 mm (0.6 in) diameter, flat target
- Minimum shaft diameter 50.8 mm (2 in)
- Recommended shaft diameter 76.2 mm (3 in)
- Minimum cable bend radius 25.4 mm (1.0 in)
- Maximum field wiring 305 m (1,000 ft)
Additional mechanical and environmental data
- Standard forward-mounted probe maximum rated case torque: 33.9 N·m (300 in·lbf); recommended torque: 11.2 N·m (100 in·lbf).
- Maximum connector torque: 0.565 N·m (5 in·lbf).
- Standard cable operating and storage temperature: −52°C to +177°C (−62°F to +350°F).
- Probe cable maximum rated tensile strength from probe case to probe lead: 330 N (75 lbf).
- Probe-to-extension connector tensile strength: 270 N (60 lbf).
Installation & Connection
FIELD NOTES- The 1.0 m system configuration does not use an extension cable.
- 3300 XL gold ClickLoc connectors are tightened finger-tight; the connector clicks when properly tightened and requires no special installation or removal tools.
- Maintain the specified minimum cable bend radius during installation.
- Connector protectors are recommended by Bently Nevada for increased environmental protection.
Confirm the installed probe configuration and mounting arrangement before replacement. Cable routing and connector installation should follow the applicable Bently Nevada installation documentation.
System Compatibility
REPLACEMENT CHECKBently Nevada states that 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components when the minimum permissible cable bend radius is observed.
Mixed-system limitation
When XL and non-XL 3300-series 5 mm or 8 mm components are mixed, system performance is limited to the specifications of the non-XL 3300 5 mm and 8 mm transducer system.
Application & Failure Scenarios
MAINTENANCE SEARCH TRIGGERSDocumentation
REFERENCEFor technical reference and procurement records, use the complete ordering designation 330103-00-13-10-02-00. Request the 330103-00-13-10-02-00 datasheet/manual PDF when the installation requires supporting technical documentation.
