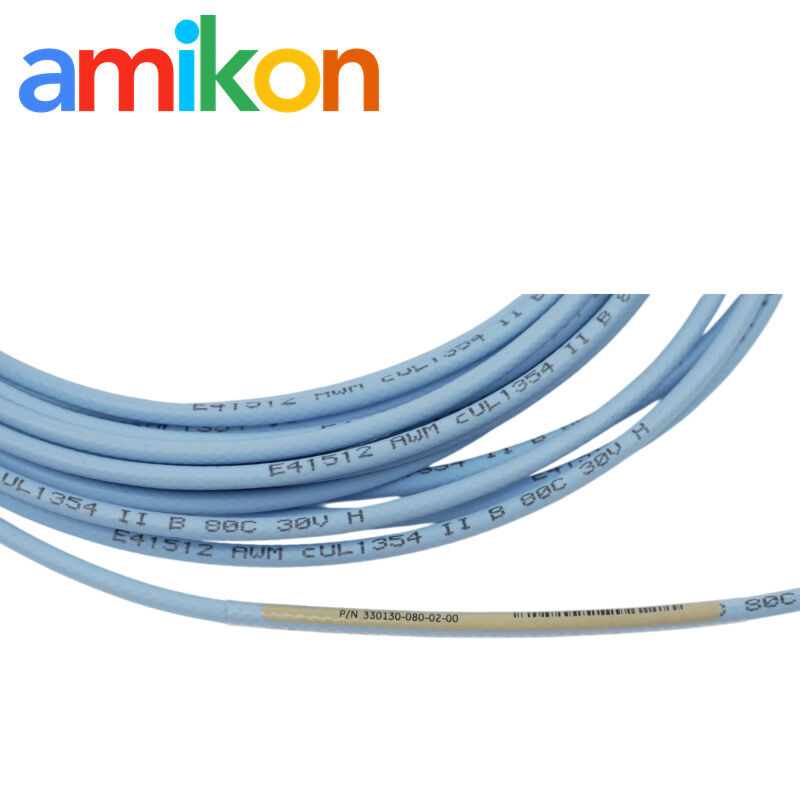

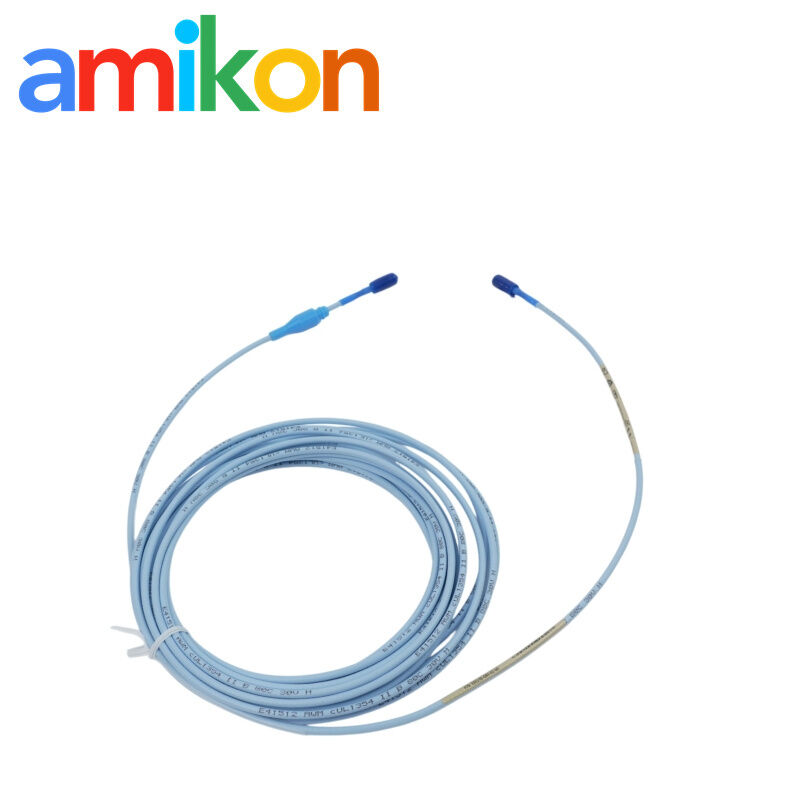

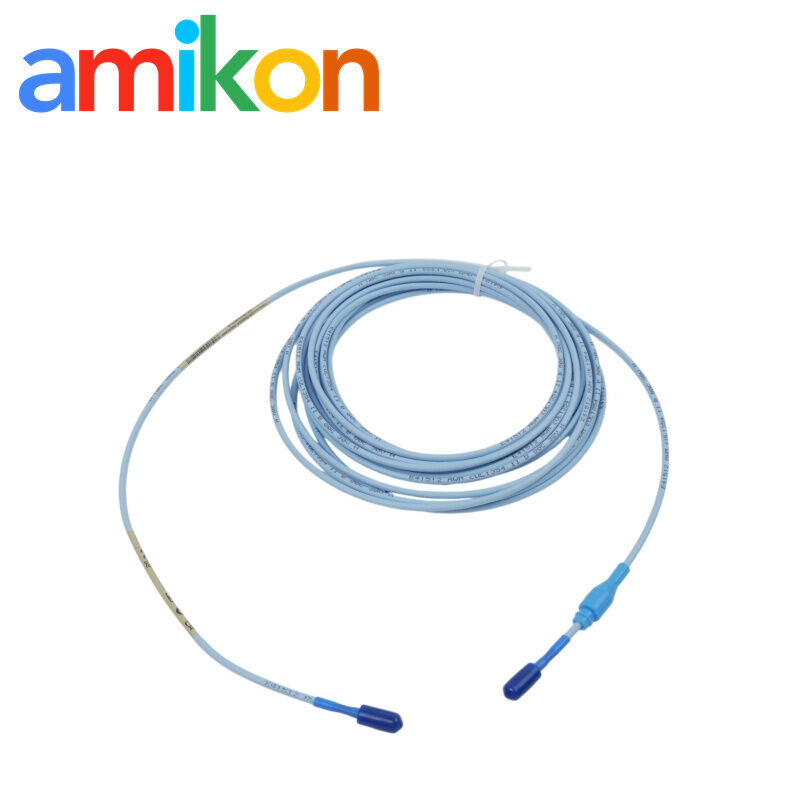

Bently Nevada 330130-080-02-00 3300 XL Standard Extension Cable 8.0m
Bently Nevada 330130-080-02-00
3300 XL Standard Extension Cable
26.2 ft Extension Cable
Brand Name:
Bently Nevada
Bently Nevada 330130-080-02-00
,3300 XL Standard Extension Cable
,26.2 ft Extension Cable
330130-080-02-00
3300 XL Standard Extension Cable
Product Role
The 330130-080-02-00 is a 3300 XL standard extension cable used within the 3300 XL 8 mm proximity transducer system. It forms the cable connection between the proximity probe and the 3300 XL Proximitor Sensor, carrying the measurement signal through the transducer system.
Application
The 3300 XL 8 mm proximity system is used for vibration and position measurement on rotating machinery, including machinery with fluid-film bearings. The extension cable is part of the probe-to-sensor signal path in an installed proximity monitoring system.
When Customers Search for It
Replacement searches commonly occur when the installed extension cable or connector area is damaged, or when a proximity monitoring channel needs to be restored during maintenance. A cable-path problem can interrupt the probe signal and affect vibration or displacement monitoring.
Technical Specifications
330130-080-02-00
3300 XL Standard Extension Cable
8.0 m (26.2 ft)
Standard cable with connector protector
75 Ω triaxial cable, FEP insulated
69.9 pF/m (21.3 pF/ft)
Additional manufacturer specifications
| Specification | Confirmed information |
|---|---|
| System | 3300 XL 8 mm Proximity Transducer System |
| Extension Cable Family | 330130 |
| Cable Length Option | 080 = 8.0 m (26.2 ft) |
| Connector / Cable Option | 02 = standard cable with connector protector |
| Agency Approval Option | 00 = not required |
| Connector Type | Corrosion-resistant, gold-plated ClickLoc connector system |
| Connector Tightening | Finger-tight; no special installation or removal tools required |
| Standard Temperature Specification | 177°C (350°F) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft), typical |
Installation & Configuration
The extension-cable length and probe length must add up to the total system length selected for the Proximitor Sensor.
The 3300 XL ClickLoc connectors are tightened by hand until they click and do not require special installation or removal tools.
The 02 configuration is the standard cable supplied with a connector protector. Bently Nevada recommends connector protectors for installations to provide increased environmental protection.
Maintenance & Diagnostic Context
During troubleshooting of a 3300 XL 8 mm proximity measurement channel, the extension cable is part of the physical signal path between the probe and Proximitor Sensor. If the cable or connector area is suspected during maintenance, the installed part number and cable configuration should be checked before replacement.
FAQ
What does 330130-080-02-00 identify?
What system uses the 330130-080-02-00?
Can the 8.0 m extension cable be used with any probe length?
What is the purpose of the connector protector on this version?
Does this cable have hazardous-area agency approvals?
