BERGER LAHR TLC511F Twin Line Positioning Controller
Twin Line Positioning Controller
Stepper Motor Control
Point-to-Point Positioning
Brand Name:
BERGER LAHR
Twin Line Positioning Controller
,Stepper Motor Control
,Point-to-Point Positioning

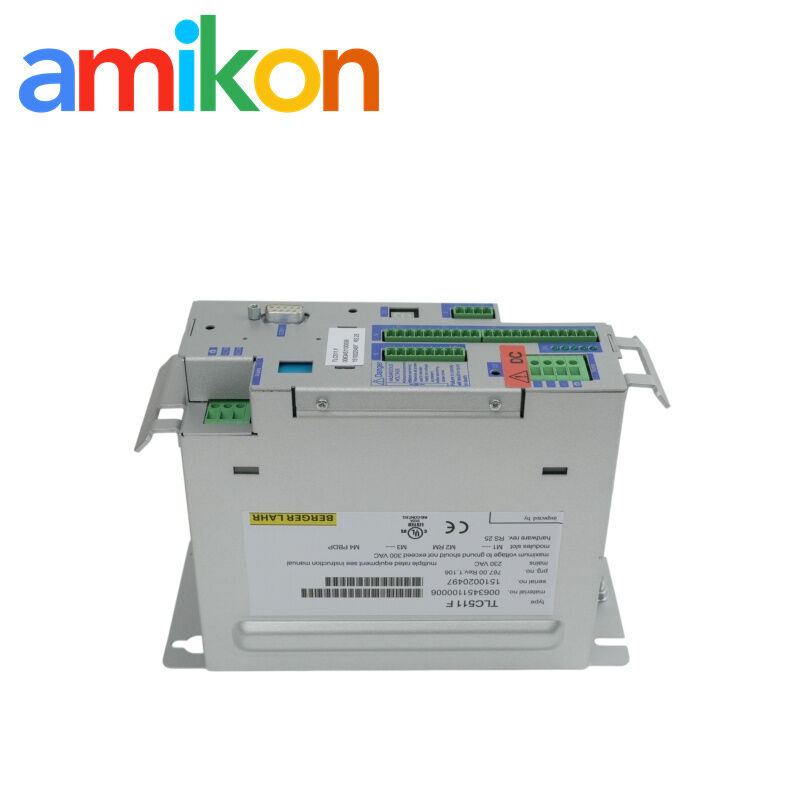

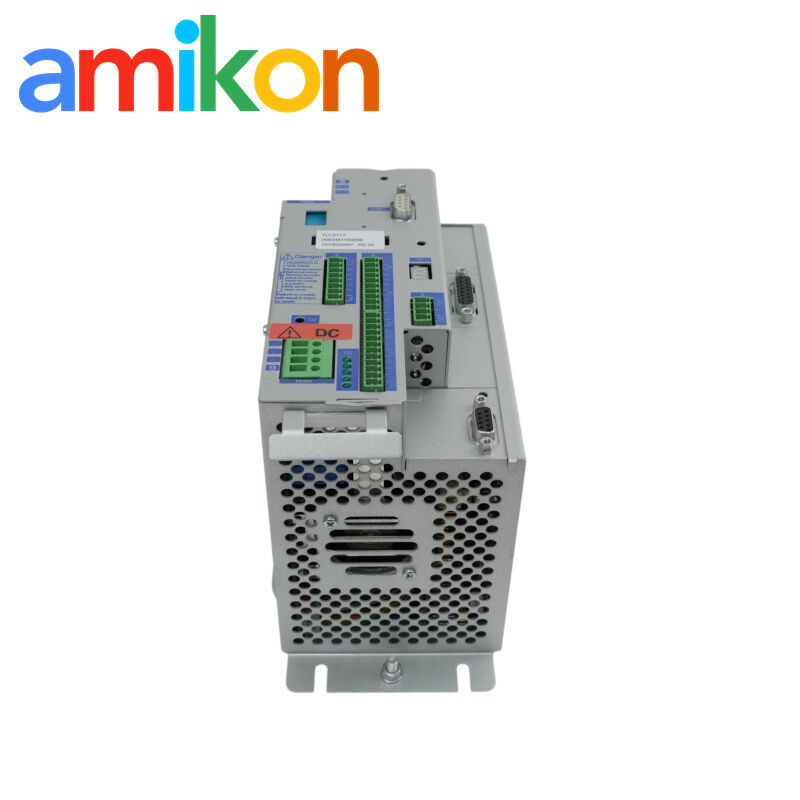

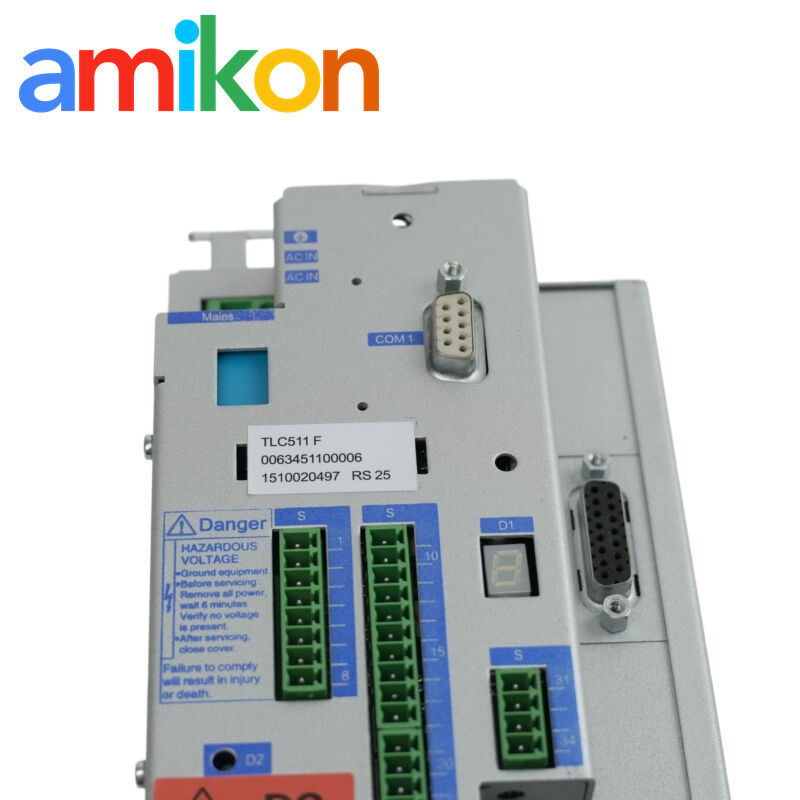

BERGER LAHR TLC511F
Twin Line positioning controller for stepper motors and AC servomotors, with positioning, motion-control and commissioning functions for industrial drive applications.
Positioning control for industrial motion systems.
The TLC51x platform combines positioning control and power amplification for motor movement, with operation available through its signal interface, field bus, HMI or commissioning software.
Electrical & motor data
24 VDC supply & signal interface
Interfaces & module configuration
Mechanical data
Positioning & operating functions
- Manual movement and speed operation.
- Point-to-point positioning.
- Electronic gearing and synchronization.
- Referencing and dimension setting.
- Teach-in and list-controlled operation.
- Acceleration and deceleration ramps.
- Quick-stop and monitoring functions.
- Fast position capture.
Installation & commissioning
The documented installation requires vertical mounting with the mains connection at the top and mounting on a galvanized metal plate with good conductive contact across the rear surface.
Commissioning includes checking the wiring, holding brake and limit switches where installed, setting phase current and device parameters, carrying out a manual motor run, checking rotation direction and optimizing travel behaviour.
Diagnostics & setup tools
Status indication, error displays, error-number information and movement-related diagnostic functions are available.
The Twin Line HMI provides parameter, operating-mode and service menus. The Twin Line Control Tool provides graphical parameter handling, signal testing, recording and additional diagnostic functions through RS232.
Typical system role
The TLC511 is a positioning controller for stepper-motor and AC-servo motion systems. It can be used with manual control, signal-interface operation or field-bus-based machine control.
Maintenance search trigger
The part number is commonly relevant when an installed controller develops a drive or positioning fault, fails to complete commanded movement, or requires replacement during machine maintenance.
Match the exact controller before shipment.
AMIKON can arrange identification, functional testing and protective industrial packaging before dispatch. For DOA cases, contact us promptly with the order details and clear fault evidence. Warranty support covers confirmed product functional failure under normal use; damage caused by incorrect wiring, misuse, modification or external equipment is excluded.
sales@amikon.cn
1. What motor power class is specified for TLC511?
The technical documentation specifies a 0.35 kW rated power class and 3 Arms rated current for TLC511.
2. What supply voltage does TLC511 use?
The TLC51x documentation specifies 230 VAC with a -20% to +15% range and also documents a reversible 115 VAC version. The control system uses a separate 24 VDC PELV supply.
3. Can TLC511 be integrated into a field-bus system?
Yes. The TLC51x supports field-bus configurations through the applicable module installed in the M4 position, including Profibus-DP, CAN-based, RS485 and Interbus-S options.
4. Where can I find the TLC511F pdf, manual or datasheet information?
The Twin Line Controller 51x technical documentation covers installation, commissioning, operating modes, parameters and diagnostics. For replacement enquiries, provide the complete TLC511F marking and machine information.
