Yokogawa AAB841-S53/M4A00 Analog I/O Module · 8-Channel I/O

8-Channel Analog I/O Module

1–5 V DC Differential Input

FIO Analog I/O

Place of Origin:

JAPAN

Brand Name:

Yokogawa

Request A Quote

Product Details

Highlight:

8-Channel Analog I/O Module

1–5 V DC Differential Input

FIO Analog I/O

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Brand new and original

Delivery Time

2-3 work days

Payment Terms

T/T

Supply Ability

in stock

Yokogawa S2MMM843-SS1130 Analog Digital I/O Module · 16-Channel Isolated

Get Best Price

Yokogawa AAB841-S53/M4A00 Analog I/O Module · 8-Channel I/O

Get Best Price

Yokogawa SDV541-S5C/B4S10 Digital Output Module — 16-Channel, 24 V DC

Get Best Price

Yokogawa SAI143-H63/PRP Analog Input Module

Get Best Price

Contact Now

Product Description

YOKOGAWA · FIO ANALOG I/O

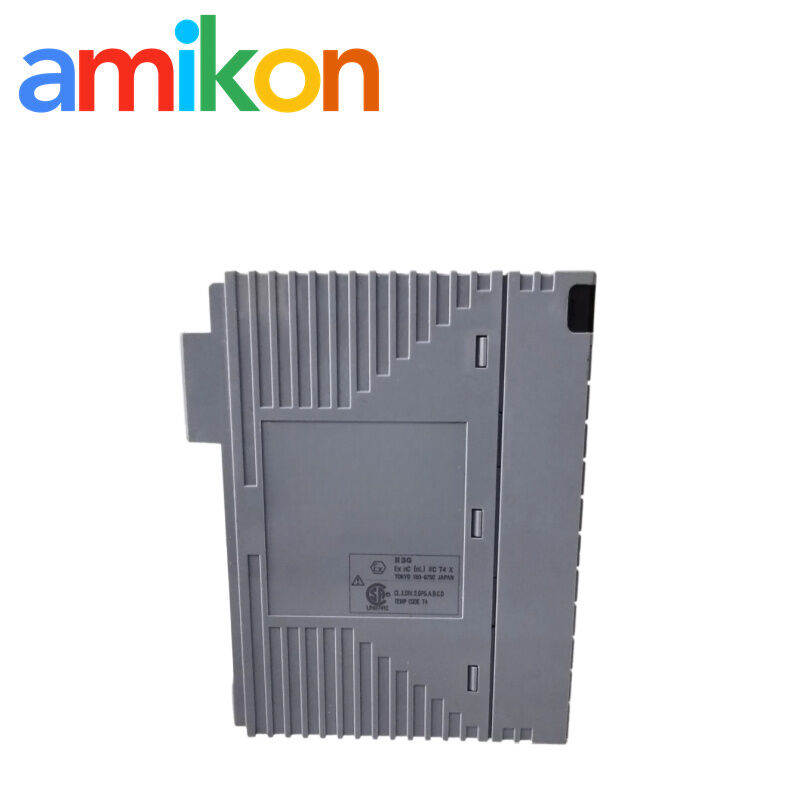

Yokogawa AAB841-S53/M4A00 Analog I/O Module · 8-Channel I/O

8-channel analog I/O module with 1–5 V differential inputs, 4–20 mA outputs and an ATM4A-00 / MAC2-compatible adapter option.

Part Number

AAB841-S53/M4A00

Input

8 × 1–5 V DC

Output

8 × 4–20 mA DC

Adapter

ATM4A-00 / MAC2

Technical Specifications

AAB841

Model	AAB841
Exact ordering code	AAB841-S53/M4A00
Product type	Analog I/O Module
I/O configuration	8-channel input / 8-channel output
Input signal	1–5 V DC, differential input
Allowable common-mode voltage	±1 V or less
Allowable input voltage	±7.5 V
Input resistance, power ON	1 MΩ or larger
Input resistance, power OFF	340 kΩ or larger
Input accuracy	±4 mV
Output signal	4–20 mA DC
Allowable load resistance	0–750 Ω

+ Show additional specifications

Output range	0–23 mA
Circuit-open detection	Less than 0.65 mA
Output accuracy	±48 μA
Input data update period	10 ms
Output data update period	10 ms
Input step response	100 ms
Output step response	40 ms
Temperature drift	±0.1% / 10 °C
Signal isolation	Non-isolated between field and system and between channels
Maximum current consumption	310 mA at 5 V DC; 250 mA at 24 V DC
Weight	Approx. 0.30 kg
Dimensions	107.5 × 32.8 × 130 mm
External connection	KS cable

Source: Yokogawa Electric Corporation, GS 33J60F60-01EN — General Specifications: Analog I/O Modules (for FIO).

Ordering Configuration

S53

Standard type, no explosion protection, with ISA Standard G3 and −20 to 70 °C option.

M4A00

MAC2-compatible adapter option using ATM4A-00.

Application & Fault Scenarios

System use

Used as an analog I/O point in Yokogawa FIO node and field control unit configurations.

Typical search trigger

Input/output signal abnormalities, output circuit-open indication, or replacement of an installed AAB841.

Operational impact

A failed channel can interrupt its associated measurement or control signal and may affect the related process loop.

Compatibility & Replacement

Original Compatibility

AAB841 is part of Yokogawa's FIO analog I/O range for ESB bus node and FIO field control unit configurations.

Historical Replacement

No historical replacement number for this exact ordering code is specified in the source used here.

Installation & Connection

Interface

External connection is specified as KS cable; /M4A00 uses the ATM4A-00 MAC2-compatible adapter.

Redundancy

The AAB841 is specified for use in a dual-redundant configuration.

Physical size

107.5 × 32.8 × 130 mm; approximate weight 0.30 kg.

Talk to AMIKON

Need the exact configuration?

Send us the complete part number and system details. Miya can help check the order information with you.

Contact

Miya Zheng

sales@amikon.cn

+86 180 2077 6792

RFQ

Send these five details

Part Number · Quantity · Destination · Required Date · Machine/System Model

Delivery & Warranty

Inspection or testing where applicable, protective export packaging and one-year warranty under quotation terms. DOA cases require photos and relevant test details for after-sales review.

AAB841-S53/M4A00 FAQ

+ What input and output signals does AAB841-S53/M4A00 use?

It provides eight 1–5 V DC differential inputs and eight 4–20 mA DC outputs.

+ What does the /M4A00 option specify?

It specifies the MAC2-compatible adapter option using ATM4A-00.

+ Is AAB841 suitable for dual-redundant operation?

Yes. The Yokogawa FIO documentation specifies AAB841 for use in a dual-redundant configuration.

+ What is the allowable load resistance for the analog output?

The specified allowable load resistance is 0–750 Ω.

+ What should be checked before ordering a replacement?

Check the complete AAB841-S53/M4A00 code, installed FIO configuration and adapter arrangement, then provide the machine or system model with the RFQ.
