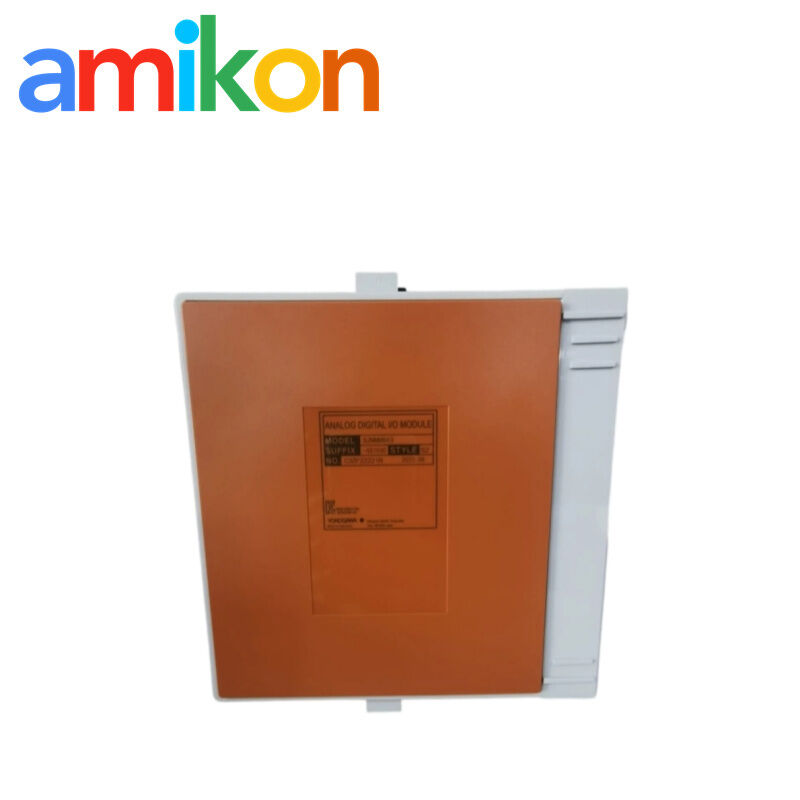

Yokogawa S2MMM843-SS1130 Analog Digital I/O Module · 16-Channel Isolated
Yokogawa S2MMM843-SS1130 Analog Digital I/O Module · 16-Channel Isolated
16-Channel Isolated I/O
Analog / Digital I/O
Software-Configurable I/O
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Contact Us
Request A Quote
Product Details
Highlight:
16-Channel Isolated I/O
,Analog / Digital I/O
,Software-Configurable I/O
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
YOKOGAWA · PROSAFE-RS · N-IO
Yokogawa S2MMM843-SS1130 Analog Digital I/O Module · 16-Channel Isolated
Software-configurable analog/digital I/O for N-IO, with isolated channels and the SS1130 explosion-protection configuration.
01 · Technical Data
Technical Specifications
GS 32P06K30-01EN
| Model | S2MMM843-SS1130 |
| Module | S2MMM843 Analog Digital I/O Module |
| Channels | 16, isolated |
| Channel functions | AI, AO, DI or DO selectable by software configuration |
| System power supply | 600 mA maximum at 24 V DC |
| Field power supply | 11 A at 24 V DC maximum |
| Field supply input | 24 V DC, -10% / +20% |
| Isolation withstand | 1500 V AC for 1 minute between input/output and system; 42 V DC continuous |
| Weight | Approx. 0.64 kg |
| Ambient temperature | -40 to 70 °C |
| Dimensions | 206.4 × 97 × 32 mm |
| Software support | ProSafe-RS R4.01 or later |
Show detailed electrical specifications ＋
Analog Input
| Rated input | 4 to 20 mA |
| Allowable input | 0 to 24 mA |
| Input impedance | 250 Ω power ON; 500 kΩ or more power OFF / dual-redundant standby side |
| Accuracy | ±16 μA (±0.1% full-scale) from 0.05 to 23 mA; ±32 μA below 0.05 mA |
| Wiring setting | 2-wire or 4-wire, individual channel setting |
| Transmitter supply | 15.0 V or more at 20 mA; 24.0 V or less at 0 mA |
| Data update | 40 ms |
| HART | Revision 7.3 |
Analog Output
| Rated output | 4 to 20 mA |
| Load resistance | 230 to 600 Ω |
| Open-circuit detection | 0.65 mA or less |
| Short-circuit detection | 60 to 600 Ω, configurable |
| Accuracy | ±48 μA (±0.3% full-scale) |
| Current limitation | 23 mA or lower |
| Data update | 40 ms |
| HART | Revision 7.3 |
Digital Input
| Input format | Dry contact |
| ON resistance | 1 kΩ or less, 6 mA continuous |
| OFF resistance | 10 kΩ or more, 2.4 mA or less |
| Input current | 6 mA ±20% |
| Contact rating | 30 V DC or more; 10 mA or more |
| Data update | 10 ms |
| Response time | 30 to 40 ms |
| Diagnostics | Open-circuit and short-circuit detection |
Digital Output
| Output format | Current source |
| Output voltage | 24 V DC |
| Voltage drop | 1 V or less |
| OFF leak current | 0.3 mA or less |
| Maximum load current | 0.66 A single; 1.3 A two-channel parallel; 2.0 A three-channel parallel |
| Load resistance | 36 Ω to 2.4 kΩ single; 18 to 120 Ω two-channel; 12 to 120 Ω three-channel |
| Data update | 10 ms |
| Response time | 20 to 30 ms |
| Diagnostics | Open-circuit and short-circuit detection |
HART Communication
| Protocol | HART Revision 7.3 | Compatible channels | Maximum 16; maximum 8 for analog output |
| HART devices | One HART device per channel | Transmission speed | 1200 bps ±1% |
| Communication | Serial half duplex, start-stop synchronization | ||
Source: Yokogawa Electric Corporation, GS 32P06K30-01EN, S2MMM843 I/O Module for N-IO.
02 · System Integration
Installation & Compatibility
Original compatibility
Mounts on S2BN1D, S2BN4D or S2BN5D Base Plate for N-IO I/O. A pair of S2MMM843 modules can be used in a dual-redundant configuration.
Configuration
Each channel can be configured as AI, AO, DI or DO in software. ProSafe-RS support starts at R4.01.
03 · Protection
SS1130 Configuration
The suffix identifies explosion protection with ISA Standard G3 and a wide temperature range of -40 to 70 °C. For intrinsic-safety instrumentation, Yokogawa specifies an isolation barrier; a Zener barrier is not permitted.
04 · Field Use
Application & Fault Scenarios
Typical use
ProSafe-RS N-IO field I/O for configurable analog and digital signals, including HART-enabled field devices.
When buyers search this model
Typical triggers include an unavailable I/O channel, field open/short diagnostics, or replacement of a module in an existing N-IO installation. Loss of the affected I/O path can interrupt associated field signals.
05 · Buyer Questions
Frequently Asked Questions
Can S2MMM843-SS1130 be used in a redundant configuration? ＋
Yes. Yokogawa specifies a pair of S2MMM843 modules for dual-redundant configuration.
Which Base Plates are specified for S2MMM843? ＋
S2BN1D, S2BN4D and S2BN5D Base Plates for N-IO I/O.
Does the S2MMM843 support HART 7? ＋
Yes. The module supports HART Protocol Revision 7.3 on its analog input and analog output functions.
What temperature range is specified for S2MMM843-SS1130? ＋
The SS1130 configuration is specified for -40 to 70 °C.
Which ProSafe-RS version supports S2MMM843? ＋
Yokogawa lists ProSafe-RS R4.01 or later.
Testing
Inspection/testing where applicable.
Packaging
Protective export packaging.
Warranty
One-year warranty under quotation terms.
DOA / Returns
Handled through after-sales review with photos and test details.
