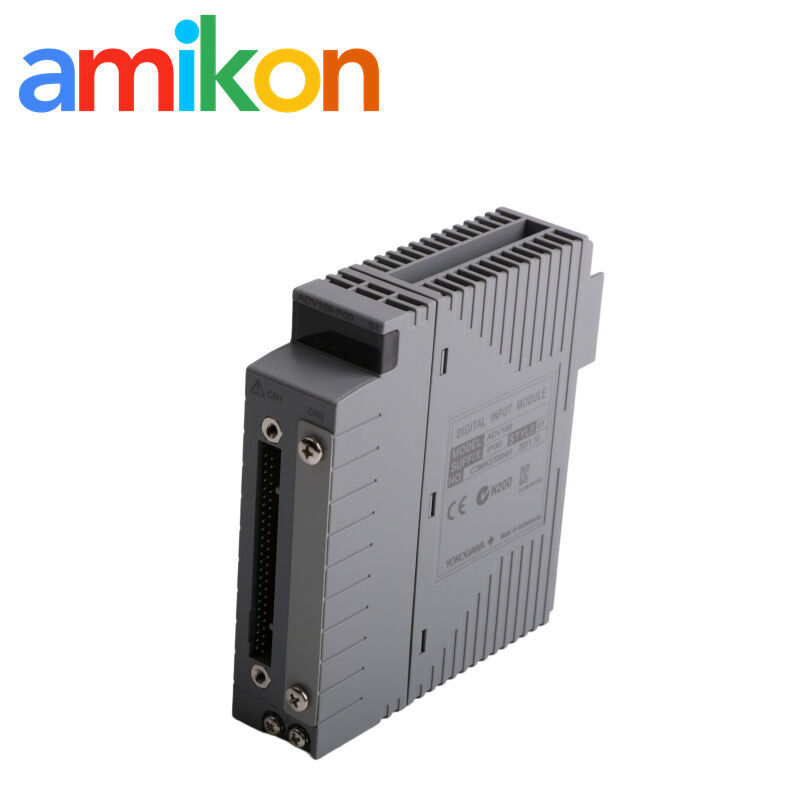

Yokogawa ADV169-PK0 64-Channel Digital Input Module for ST6 Compatible RIO System Upgrade
Yokogawa ADV169-PK0 64-Channel Digital Input Module for ST6 Compatible RIO System Upgrade
Yokogawa ADV169-PK0 digital input module
64-channel ST6 RIO module
Yokogawa RIO system upgrade module
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Contact Us
Request A Quote
Product Details
Highlight:
Yokogawa ADV169-PK0 digital input module
,64-channel ST6 RIO module
,Yokogawa RIO system upgrade module
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Electrical & Interface Data
| Model | ADV169-PK0 |
|---|---|
| Product type | Digital Input Module for compatible ST6 |
| Module channel capacity | 64-channel digital input module |
| RIO System Upgrade input limit | 32 input channels when used for the RIO System Upgrade |
| Input signal | Contact input: OFF signal 100 kΩ or more; ON signal 200 Ω or lower. Voltage input: OFF signal 4.5 to 25 V DC; ON signal ±1 V DC, 200 Ω or lower. |
| Input contact rating | 5 V DC, 20 mA or higher |
| Input response time | 8 ms for status input |
| Minimum ON detection time | 20 ms for pushbutton input |
| Minimum ON/OFF period | 40 ms (25 Hz) for pushbutton input |
| Functions | Status input function and pushbutton input function |
| Signal isolation | Common on the minus (-) side for every 16 channels |
| Current consumption | 170 mA at 24 V DC for the RIO System Upgrade specification |
Connection, compatibility & physical data
| External signal connection | KS9 or KS10 dedicated cable |
|---|---|
| Compatible card | ST6 compatible |
| Compatible existing module for upgrade | ADM12C |
| Weight | Approx. 0.56 kg |
| Suffix configuration | -P = standard type; K = RIO System Upgrade for ADM12C, KS cable connection type; 0 = basic type |
Source: Yokogawa GS 33J64F10-01EN, General Specifications for RIO System Upgrade.
Field Input Architecture
Digital Input Flow
Field Contact / Voltage → KS9 / KS10 → ADV169-PK0 → ST6-Compatible I/O
The module accepts contact and voltage input signals through the dedicated KS cable connection. The input arrangement uses a common minus side for every 16 channels.
Upgrade Boundary
The ADV169 module has 64 input channels, while the RIO System Upgrade specification limits the usable input count to 32 channels.
Connection Configuration
KS Cable Connection
ADV169-PK0 uses the KS cable connection arrangement specified for the PK version, with KS9 or KS10 identified as the applicable dedicated cable.
RIO Upgrade Context
The PK configuration is associated with RIO System Upgrade applications for the connector-type ADM12C and compatible ST6 installation context.
Where ADV169-PK0 Matters
01 · SYSTEM
RIO System Upgrade
Used in the documented upgrade context where ADM12C digital input hardware is migrated to the ADV169-based ST6-compatible arrangement.
02 · SEARCH
Input Signal Loss
The exact part number is relevant when a digital input point is not detected as expected or when an installed input module requires inspection or replacement.
03 · DOWNTIME
I/O Availability
Loss of required digital input points can affect the associated control-system I/O availability. The actual process impact depends on the function assigned to the affected input.
Inspection, Delivery & Direct Contact
AMIKON Industrial Automation Inspection and functional testing where applicable · Protective export packaging · One-year AMIKON warranty · DOA after-sales support
AMIKON Industrial Automation
Direct Contact
Email sales@amikon.cn
WhatsApp +86 180 2077 6792
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
Customer Visit
AMIKON Team
Warehouse & Delivery
ADV169-PK0 Buyer Questions
Is ADV169-PK0 suitable for an ADM12C RIO System Upgrade?
Yes. Yokogawa identifies the ADV169-PK configuration for RIO System Upgrade of ADM12C in the applicable ST6-compatible arrangement.
How many input channels can be used in the RIO System Upgrade?
Although ADV169 is specified as a 64-channel digital input module, the RIO System Upgrade specification limits the number of inputs to 32 channels.
Which cable connection is used with ADV169-PK0?
The PK configuration uses the KS cable connection arrangement, with KS9 or KS10 specified as the applicable dedicated cable.
What details should I send for an ADV169-PK0 quotation?
Please provide the exact part number, quantity, destination, required date, and machine or system model.
What should be checked before ordering an ADV169-PK0?
Confirm the exact model suffix, the ADM12C upgrade context, the KS cable arrangement, and the applicable system configuration before ordering.
