Yokogawa SAI533-H63/PRP Analog Output Module · 8-Channel HART
Yokogawa SAI533-H63 analog output module
8-channel HART output module
Yokogawa PRP analog module
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Yokogawa SAI533-H63 analog output module
,8-channel HART output module
,Yokogawa PRP analog module

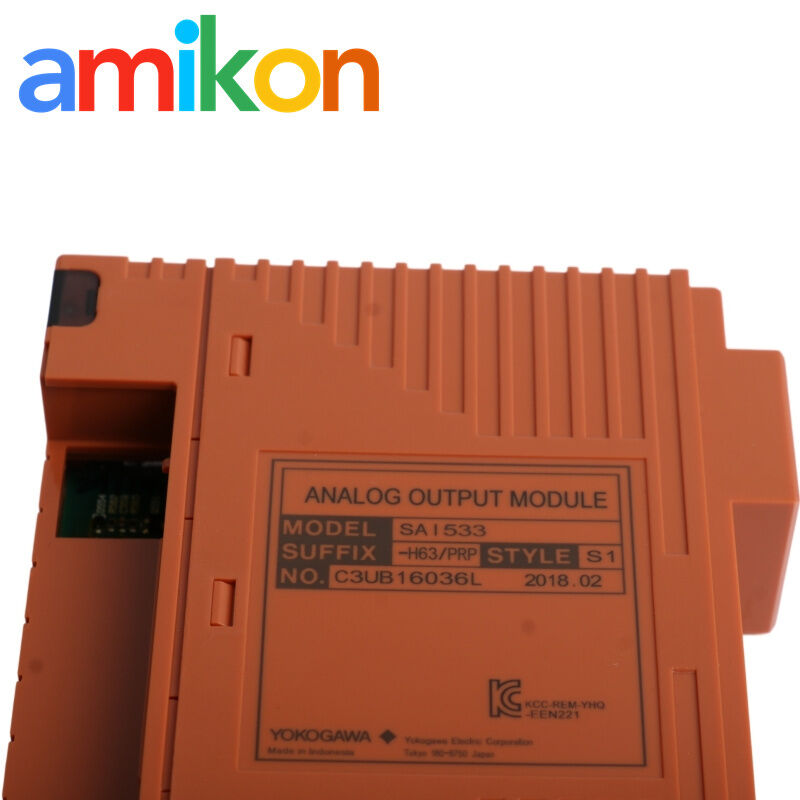

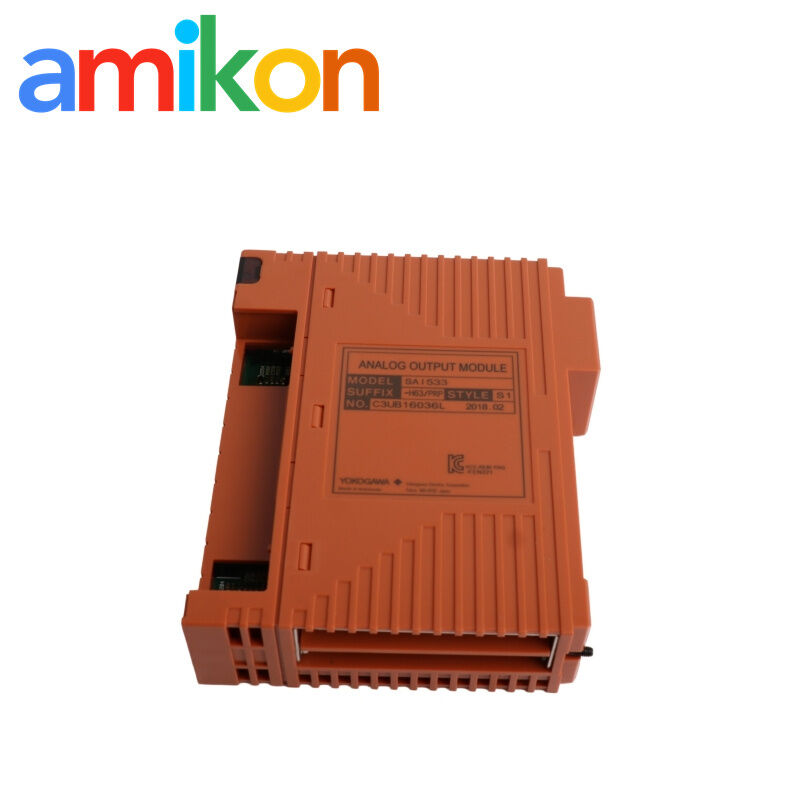

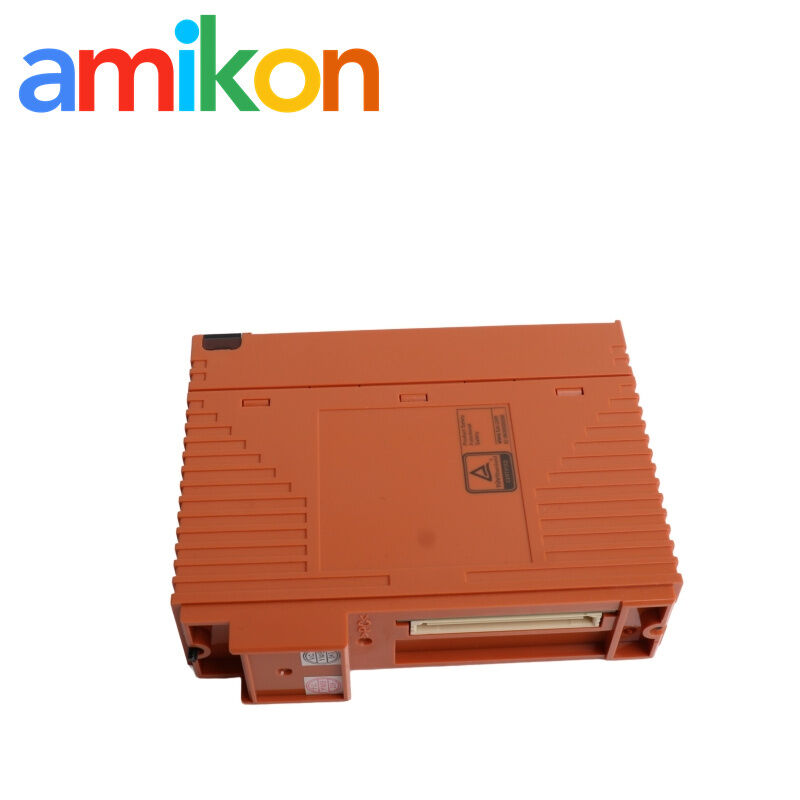

Yokogawa SAI533-H63/PRP Analog Output Module
Eight-channel isolated analog output module for the ProSafe-RS safety system, providing 4–20 mA outputs with HART communication and a Yokogawa-specific signal-cable interface.
Core electrical data
Frequently needed values are shown first; secondary specifications remain available below.
Core specifications
| Product type | Analog Output Module |
|---|---|
| Channels | 8, module isolation |
| Rated output | 4–20 mA |
| Output range | 1.25–23 mA |
| Allowable load resistance | 230–600 Ω at rated output range |
| Accuracy | ±48 µA |
| Data update frequency | 40 ms |
| HART | HART communication; HART Protocol Revision 5.7 function |
Electrical and environmental specifications
| Temperature drift | ±16 µA / 10 °C |
|---|---|
| Withstand voltage | 1.5 kV AC between output signal and system for 1 minute |
| Maximum current consumption | 5 V system: 320 mA; 24 V system: 300 mA |
| Operating temperature code | ISA Standard G3; −20 to 70 °C |
| Weight with signal cable interface adapter | Approx. 0.33 kg |
HART and configuration details
| HART device connection | One HART device per channel |
|---|---|
| HART modem | One modem per module; communication with one HART device at a time |
| HART transmission speed | 1200 ±2 bps |
| Partial Stroke Test | Available with KS1 signal-cable configuration |
| External connection | Dedicated signal cable through signal cable interface adapter |
Source: Yokogawa GS 32Q06K30-31E.
Control output to field loop
H63 /PRP connection requirements
Signal cable
H63 uses the Yokogawa-specific signal-cable interface. Pressure-clamp terminal and MIL cable connector options cannot be selected with H63.
/PRP prevention
The /PRP option uses a prevention pin to avoid wrong-type I/O module insertion. The associated signal cable must carry the /SAI533 option.
Redundancy
For dual-redundant use, Yokogawa specifies an additional module with the same specifications but without option codes.
Replacement check
Match the complete installed suffix and signal-cable option before changing the module.
Source: Yokogawa GS 32Q06K30-31E and TI 32S01J10-01E.
For ProSafe-RS analog output loops
Typical search situations
Used when an analog output channel, HART communication path or installed H63 module requires inspection or replacement.
First checks
Check the module suffix, cable identification, commanded output, loop current and SCS diagnostics.
Downtime risk
An affected output channel may interrupt its assigned field loop; impact depends on the safety function.
HART maintenance function
HART on-demand communication
PRM can communicate with HART field devices through the SCS, with the SAI533-H acting as the communication relay.
Partial Stroke Test
Yokogawa lists PST support with the KS1 signal-cable configuration.
Configuration-specific matching
ProSafe-RS
SAI533-H63 is specified for the ProSafe-RS SAI533 analog output family with HART communication.
Match the installed configuration
Confirm the complete suffix, signal-cable option and connection method before replacement.
Procurement & support
Request a Quote
Send the part number, quantity and delivery requirements for availability review.
20+ Years in Industrial Automation
More than 20 years of experience in industrial automation spare parts, with long-term focus on DCS, PLC, safety systems, drives and control hardware. AMIKON combines sourcing experience, inspection capability and international industrial-part logistics for maintenance and replacement projects.
SAI533-H63/PRP questions
Can SAI533-H63/PRP connect to a pressure-clamp terminal block?
What cable is required for the /PRP configuration?
How many HART devices can the SAI533-H module handle?
Is SAI533-H63 suitable for a dual-redundant configuration?
What should I send when requesting this module?
