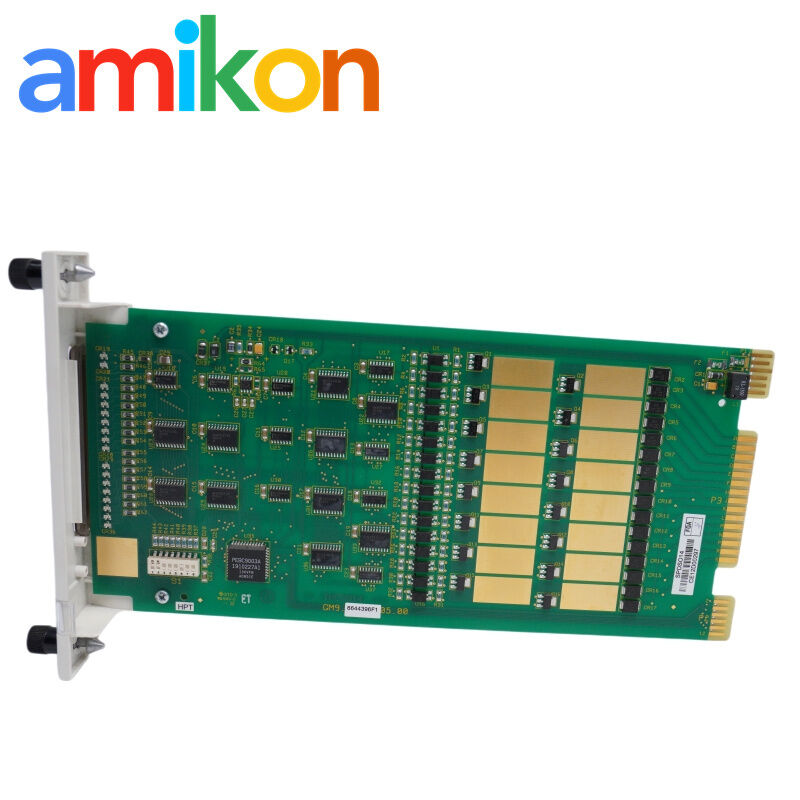

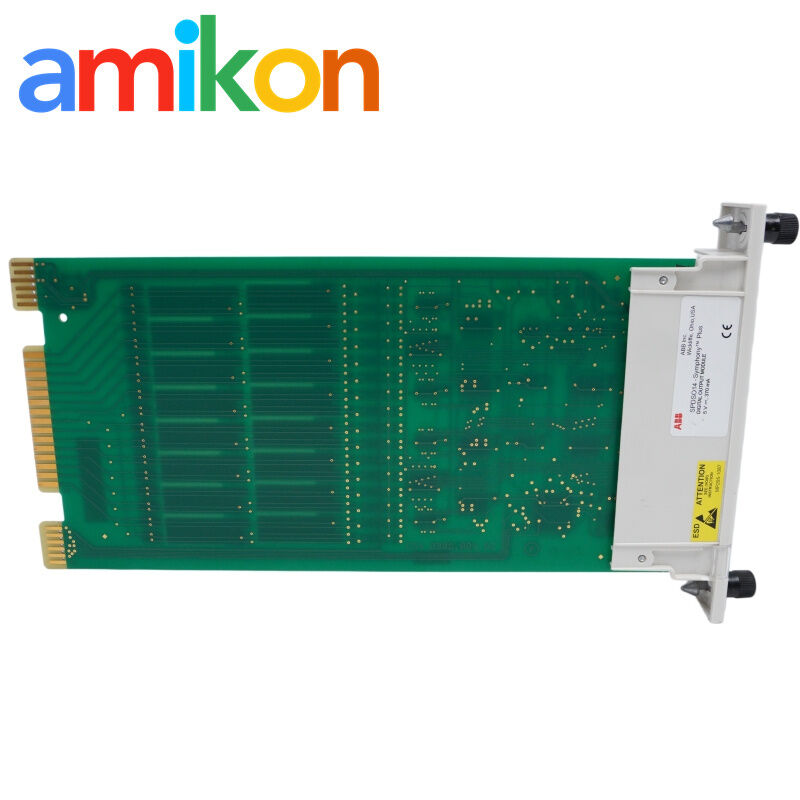

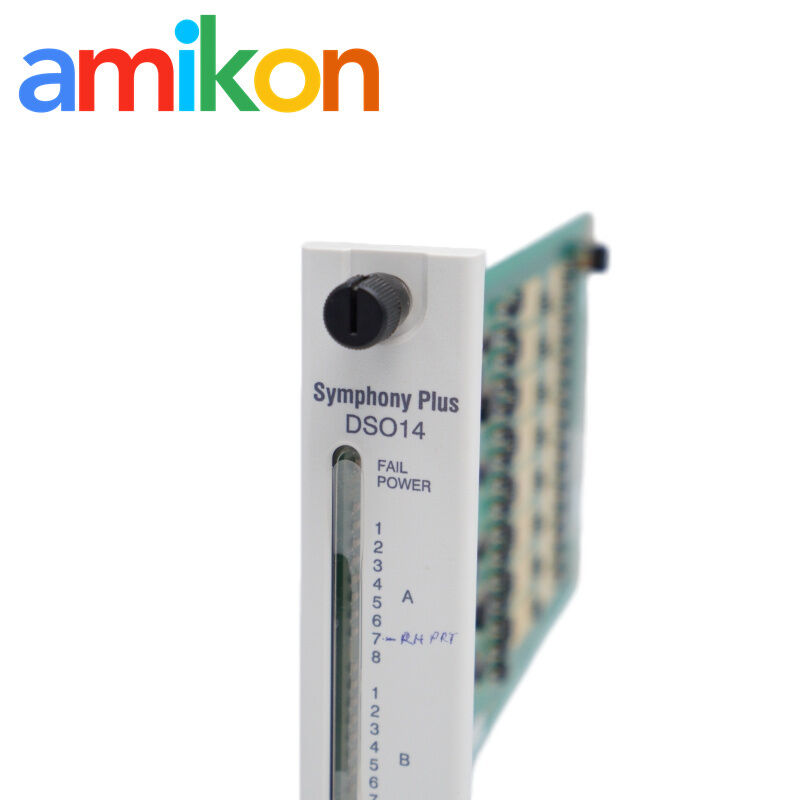

ABB SPDSO14 Symphony Plus Digital Output Module
ABB Symphony Plus output module
SPDSO14 digital output module
ABB PLC output module with warranty
Brand Name:
ABB
Model Number:
SPDSO14
Contact Us
Request A Quote
Product Details
Highlight:
ABB Symphony Plus output module
,SPDSO14 digital output module
,ABB PLC output module with warranty
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
AMIKON · ABB AUTOMATION SPARE · TECHNICAL PRODUCT NOTE
SPDSO14
The ABB SPDSO14 is a Harmony Rack digital output module with 16 optically isolated, independently configured open-collector outputs. It switches 24 VDC or 48 VDC field loads and can interface to solid-state or optional electromechanical relay hardware.
01
Product Introduction
The ABB SPDSO14 is a Harmony Rack digital output module with 16 optically isolated, independently configured open-collector outputs. It switches 24 VDC or 48 VDC field loads and can interface to solid-state or optional electromechanical relay hardware.
02
Technical Specifications
| 01Output channels | 16 optically isolated open-collector outputs |
|---|---|
| 02Channel configuration | Individually configurable |
| 0324 VDC load rating | 250 mA maximum per documented output condition |
| 0448 VDC load rating | 125 mA maximum per documented output condition |
| 05Logic power | +5 VDC ±5%, 275 mA typical |
| 06Operating temperature | 0 to 70°C (32 to 158°F) |
| 07Relay interface | Solid-state relays on NTDO02, or optional relay assembly for electromechanical relays |
| 08Mapped legacy function codes | FC83 and FC128 in the IMDSO14 migration context |
| 09Processor / memory / dimensions | Not stated for this model in the reviewed ABB product documentation |
03
Compatibility & Replacement
02
Historical Replacement
ABB identifies SPDSO14 as the HR replacement for IMDSO04 and IMDSO14. For an output-only IMDSM05 migration, a dipshunt change and reversed field-wire polarity are required; mixed I/O or Digital Logic Station use has no direct replacement in the mapping.
04
Applications & Fault Scenarios
- On/off commands to interposing relays, solenoids, annunciators and control circuits.
- 24 VDC and 48 VDC plant output service within the documented load limits.
- Maintenance searches commonly involve a missing output group, FC83/address mismatch, wrong field polarity, bus timeout/default action, overcurrent, relay failure or open load.
- A failed command output can stop a sequence, leave equipment unavailable or force an operator to a manual procedure; default/hold behavior must be understood before module exchange.
05
Configuration & Installation
- Verify the module address, output database, required 24/48 VDC load rating and termination/relay arrangement before wiring.
- For IMDSO14 migration, review FC83 and FC128 default/hold logic as part of commissioning.
- For an output-only IMDSM05 migration, complete the ABB-specified dipshunt and field-polarity changes; do not apply the same method to mixed I/O or Digital Logic Station service.
06
Failure Behavior & Diagnostics
- Confirm controller command, module status, field supply, termination and relay/load continuity before replacing the output module.
- Legacy IMDSO14 applications can enter the configured default or hold state following a slave-bus fault; preserve this behavior in the migrated database.
- Investigate repeated trips or failed loads for wiring, polarity, output-current demand and relay condition rather than repeatedly changing modules.
07
Associated Hardware
- NTDO02 for solid-state relay interfaces.
- Optional relay assembly for electromechanical relays.
- Exact cabinet cable, dipshunt and controller details must be verified from the installed Symphony/INFI 90 drawings.
08
Official Manufacturer Sources
01
ABB · 2VAA005340 en G
ABB Ability Symphony Plus Product Catalog
SPDSO14 channel count, 24/48 VDC load ratings, logic power, relay interface and operating temperature.
02
ABB · ABB Users Group – Harmony
Harmony Evolution / HR and SD I/O Mapping
IMDSO04/14 and IMDSM05 replacement mapping, FC83 context, wiring changes and SD-series output options.
03
Elsag Bailey Process Automation · WBPEEUI240753A0
IMDSO14 Digital Output Module Instruction
Original manufacturer source for IMDSO14 compatibility, load behavior, setup and fault-state considerations used in migration checks.
Original document ID
09
Amikon Service
Test & Packing
Pre-shipment check, antistatic protection and reinforced packing.
DOA & Returns
Prompt review under the written order terms with fault evidence.
Warranty
Covers confirmed supply defects during the agreed period.
Sales Support
Part-number, revision and system checks before dispatch.
10
Request for Quotation
RFQ checklist
Send the Part Number, Quantity, Destination, Required Date and Machine/System Model. A clear nameplate photo helps confirm the request.
11
Multi-brand Spare Parts Also Requested
These models are separate sourcing references, not stated replacements for SPDSO14. Compatibility and availability must be confirmed independently.
1C31113G051C31122G011C31129G041C31166G021C31189G031C31194G011C31194G031C31197G011C31199G051C31203G011C31232G011C31232G021FK7063-5AF71-1AG01X01046H01L1X01047H01L1X01177H01333U3503E3A99158G015A26458G08
12
FAQ
01How should SPDSO14 be installed?
Confirm the slot and address, 24/48 VDC field supply, load current, output database, termination and relay type. Isolate field power where required and prove each commanded output under a controlled test.
02Can SPDSO14 replace IMDSO14 or IMDSM05 directly?
ABB maps it as the HR replacement for IMDSO04 and IMDSO14. An output-only IMDSM05 migration requires a dipshunt change and reversed field-wire polarity; mixed I/O or Digital Logic Station use is not a direct replacement.
03What must be configured on SPDSO14?
Match the module address, per-output logic, default/hold behavior and load arrangement to the controller database. Confirm whether NTDO02 solid-state relays or the optional electromechanical relay assembly is used.
04How should SPDSO14 be maintained and protected from ESD?
Use a grounded wrist strap and antistatic packaging. Check the field supply, polarity, terminal tightness, relay/load continuity and controller command before removing the module.
05What delivery and warranty support is available for SPDSO14?
Each unit is function-checked where suitable test facilities are available and packed in an antistatic bag with protective cushioning. DOA, return and exchange requests are handled under the written order terms after evidence and technical evaluation. Warranty covers confirmed supply defects during the agreed period, excluding misuse, incorrect installation, ESD damage, improper storage and unauthorized repair.
06What information is needed for an SPDSO14 RFQ?
Please provide the Part Number, Quantity, Destination, Required Date and Machine/System Model. Add the legacy module, field voltage, load current, relay arrangement and termination number for a migration check.
Technical statements are limited to verified ABB/Bailey manufacturer documentation. Installation must follow the plant safety procedure and the documentation for the installed system revision.
