Original-System Compatibility
Designed for ABB Symphony Plus HR systems as a conventional analog input interface. ABB's Harmony evolution mapping identifies FC132 and FC133 for the mapped application.

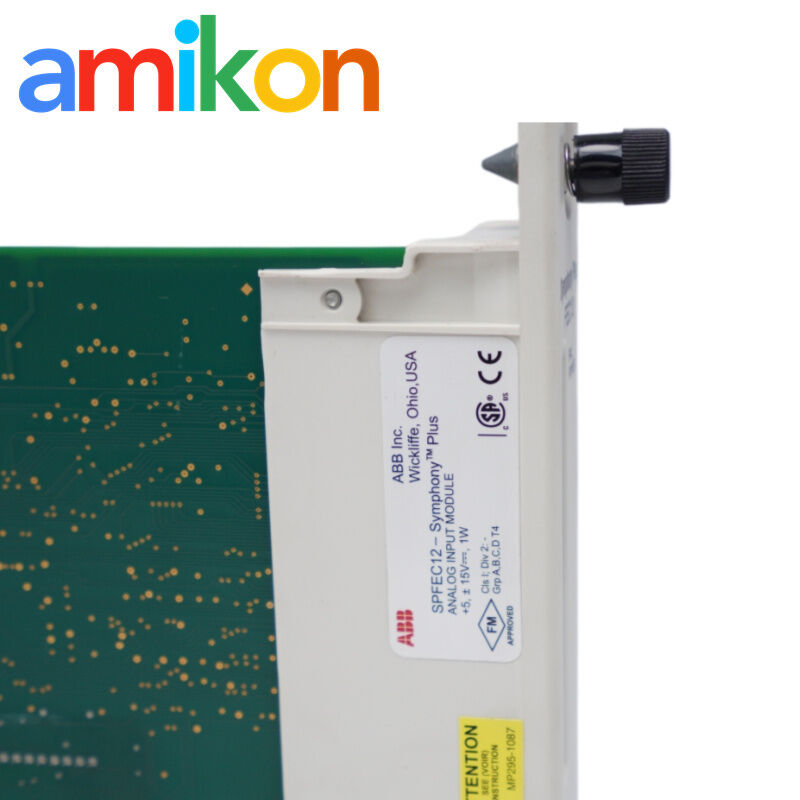

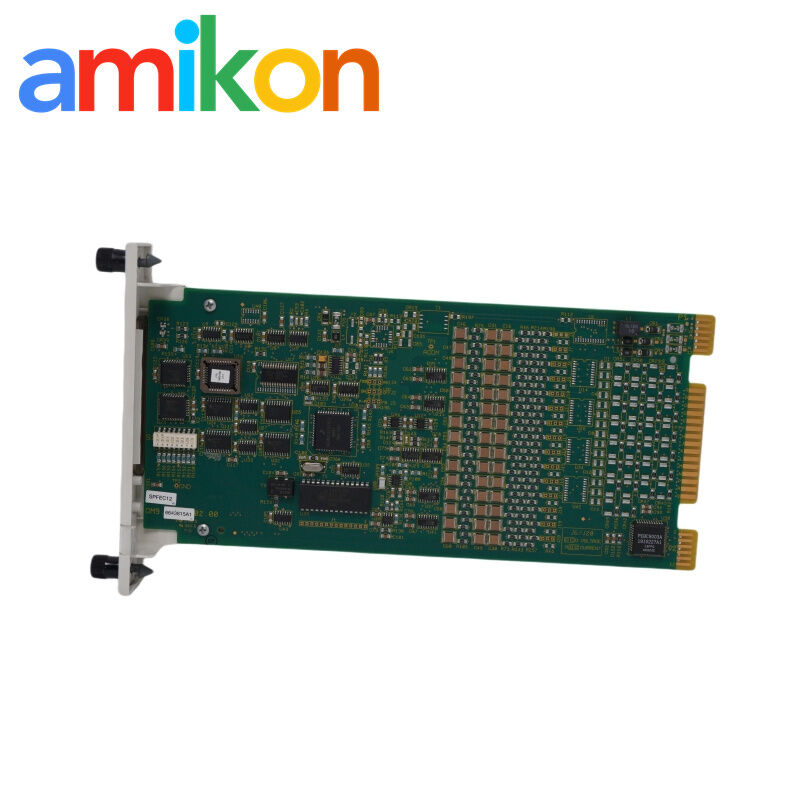

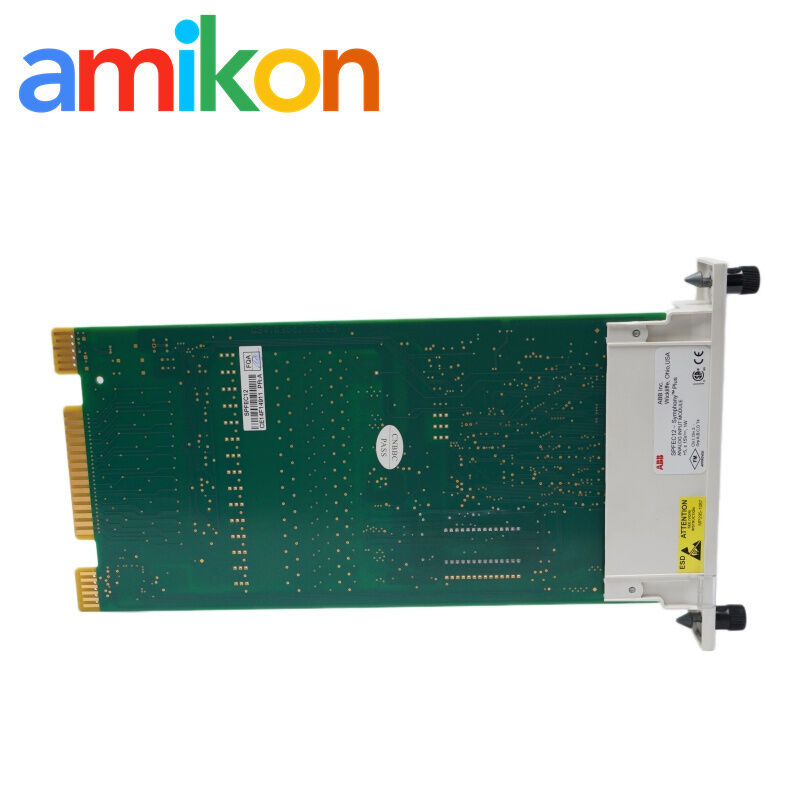

ABB SPFEC12 Symphony Plus HR Analog Input Module
ABB Symphony Plus HR module
ABB PLC analog input module
SPFEC12 input module with warranty
Brand Name:
ABB
Model Number:
SPFEC12
Contact Us
Request A Quote
Product Details
Condition:
100% Original
Highlight:
ABB Symphony Plus HR module
,ABB PLC analog input module
,SPFEC12 input module with warranty
Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
USD 66 / Piece
Packaging Details
Antistatic bag, cushioning and strong outer carton
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
In stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
AMIKON · ABB AUTOMATION SPARE · TECHNICAL PRODUCT NOTE
SPFEC12
The ABB SPFEC12 is a Harmony Rack (HR) Series analog input module for conventional transmitters and standard analog signals. It provides 15 individually configurable input channels for current and voltage measurement in Symphony Plus control systems.
01
Product Introduction
The ABB SPFEC12 is a Harmony Rack (HR) Series analog input module for conventional transmitters and standard analog signals. It provides 15 individually configurable input channels for current and voltage measurement in Symphony Plus control systems.
02
Technical Specifications
| 01Input channels | 15, individually configurable |
|---|---|
| 02Resolution | 14 bit |
| 03Current input | 4 to 20 mA |
| 04Voltage input ranges | 1 to 5 VDC; 0 to 1 VDC; 0 to 5 VDC; 0 to 10 VDC; -10 to +10 VDC |
| 05+5 VDC requirement | +5 VDC ±5%, 85 mA typical |
| 06+15 VDC requirement | +15 VDC ±5%, 25 mA typical |
| 07-15 VDC requirement | -15 VDC ±5%, 20 mA typical |
| 08Typical power dissipation | 1.1 W |
| 09Operating temperature | 0 to 70°C (32 to 158°F) |
| 10Smart transmitter communication | Not supported |
| 11Mapped function codes | FC132 and FC133 |
| 12Processor / memory / dimensions | Not stated for this model in the reviewed ABB product documentation |
03
Compatibility & Replacement
02
Historical Replacement
ABB identifies SPFEC12 as the HR replacement for NASI01, NASI02 and NASM01. Migration still requires confirmation of channel count, signal range, termination, function-code settings and cabinet wiring; it should not be treated as an automatic plug-in exchange.
04
Applications & Fault Scenarios
- Acquisition of 4 to 20 mA process-transmitter signals.
- Standard low-voltage analog measurements in boiler, turbine and balance-of-plant control.
- Maintenance searches triggered by a missing module, channel quality alarm, range mismatch, unstable field signal or termination fault.
- Loss of a critical process input can inhibit control logic, force a fallback strategy or extend a unit outage while the signal path is checked.
05
Configuration & Installation
- Set each channel for the required current or voltage range in the controller configuration.
- Confirm FC132/FC133 settings and the module address against the installed database before service.
- Use the ABB FC132/FC133 mapping together with the cabinet-specific cable and termination arrangement; do not assume smart-transmitter functions are available.
06
Diagnostics & Maintenance
- Compare the field signal, termination point and configured range before replacing the module.
- If several channels fail together, check module power, rack communication and common termination hardware before investigating individual transmitters.
- Record switch settings, slot position and configuration before exchange, and use ESD controls whenever the module is handled.
07
Associated Hardware
- ABB evolution material maps the module with FC132 and FC133.
- Exact termination units, cables and controller firmware must be matched to the installed Symphony Plus cabinet documentation.
08
Official Manufacturer Sources
01
ABB · 2VAA005340 en G
ABB Ability Symphony Plus Product Catalog
SPFEC12 channel count, signal ranges, power requirements and operating temperature.
02
ABB · ABB Users Group – Harmony
Harmony Evolution / HR I/O Mapping
Legacy NASI/NASM mapping, FC132/FC133 use and the Smart Transmitter communication limitation.
09
Amikon Service
Test & Packing
Pre-shipment check, antistatic protection and reinforced packing.
DOA & Returns
Prompt review under the written order terms with fault evidence.
Warranty
Covers confirmed supply defects during the agreed period.
Sales Support
Part-number, revision and system checks before dispatch.
10
Request for Quotation
RFQ checklist
Send the Part Number, Quantity, Destination, Required Date and Machine/System Model. A clear nameplate photo helps confirm the request.
11
Multi-brand Spare Parts Also Requested
These models are separate sourcing references, not stated replacements for SPFEC12. Compatibility and availability must be confirmed independently.
1C31113G051C31122G011C31129G041C31166G021C31189G031C31194G011C31194G031C31197G011C31199G051C31203G011C31232G011C31232G021FK7063-5AF71-1AG01X01046H01L1X01047H01L1X01177H01333U3503E3A99158G015A26458G08
12
FAQ
01How should SPFEC12 be installed?
Confirm the rack slot, module address, FC132/FC133 configuration, termination hardware and every channel range before insertion. Isolate field circuits where the site procedure requires it and follow the cabinet's ESD and power-safety rules.
02Can SPFEC12 directly replace NASI01, NASI02 or NASM01?
ABB identifies it as the HR migration replacement, but the work still requires an engineering check of channel allocation, signal ranges, termination and configuration. It should not be assumed to be a no-change swap.
03What should be checked when configuring SPFEC12?
Verify the selected current or voltage range for every channel, the module address and the applicable function-code settings. Smart-transmitter communication must not be enabled because it is not supported.
04How should SPFEC12 be maintained and protected from ESD?
Use a grounded wrist strap and static-safe packaging, keep connectors clean, and compare the field signal with the configured range before condemning the module. Preserve the original switch and database records for any exchange.
05What delivery and warranty support is available for SPFEC12?
Each unit is function-checked where suitable test facilities are available and packed in an antistatic bag with protective cushioning. DOA, return and exchange requests are handled under the written order terms after evidence and technical evaluation. Warranty covers confirmed supply defects during the agreed period, excluding misuse, incorrect installation, ESD damage, improper storage and unauthorized repair.
06What information is needed for an SPFEC12 RFQ?
Please provide the Part Number, Quantity, Destination, Required Date and Machine/System Model. A clear nameplate photo and the existing termination or controller details help confirm the correct supply.
Technical statements are limited to verified ABB/Bailey manufacturer documentation. Installation must follow the plant safety procedure and the documentation for the installed system revision.
