ABB Bailey IMFEC12 Analog Input Module – 15-Channel INFI 90 OPEN
ABB Bailey IMFEC12 INFI 90 OPEN
High Level Analog Input Module 14-bit A/D Resolution
15-Channel Analog Input 4–20 mA Input
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
IMFEC12
Document:
Contact Us
Request A Quote
Product Details
Quotation Time:
Quick Quote Within 24 Hours
Place Of Shipment:
Xiamen,China
Packaging:
Original New Packaging
Condition:
100% Original
Highlight:
ABB Bailey IMFEC12 INFI 90 OPEN
,High Level Analog Input Module 14-bit A/D Resolution
,15-Channel Analog Input 4–20 mA Input
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

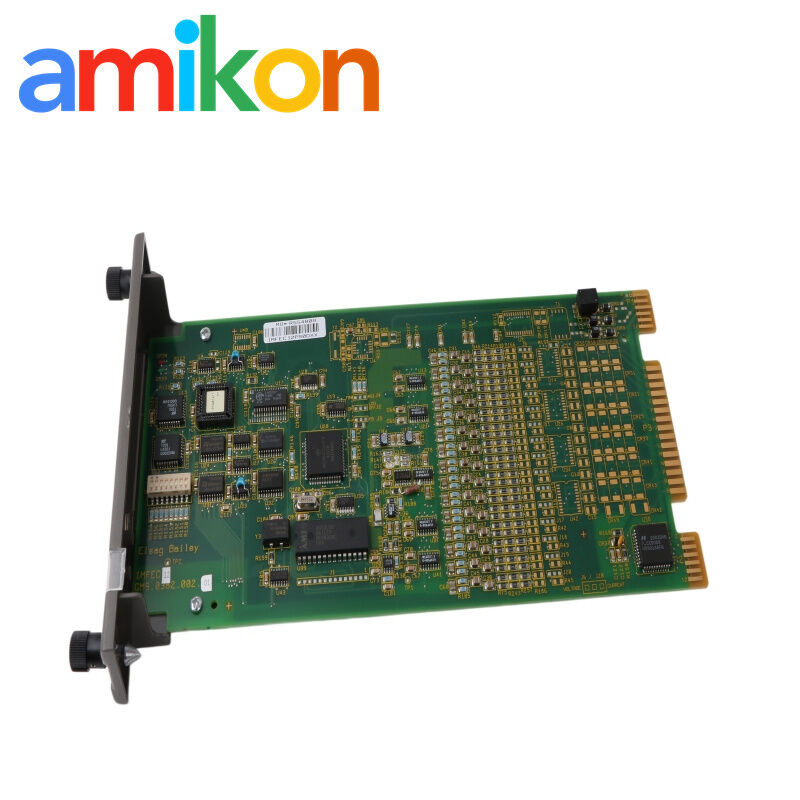

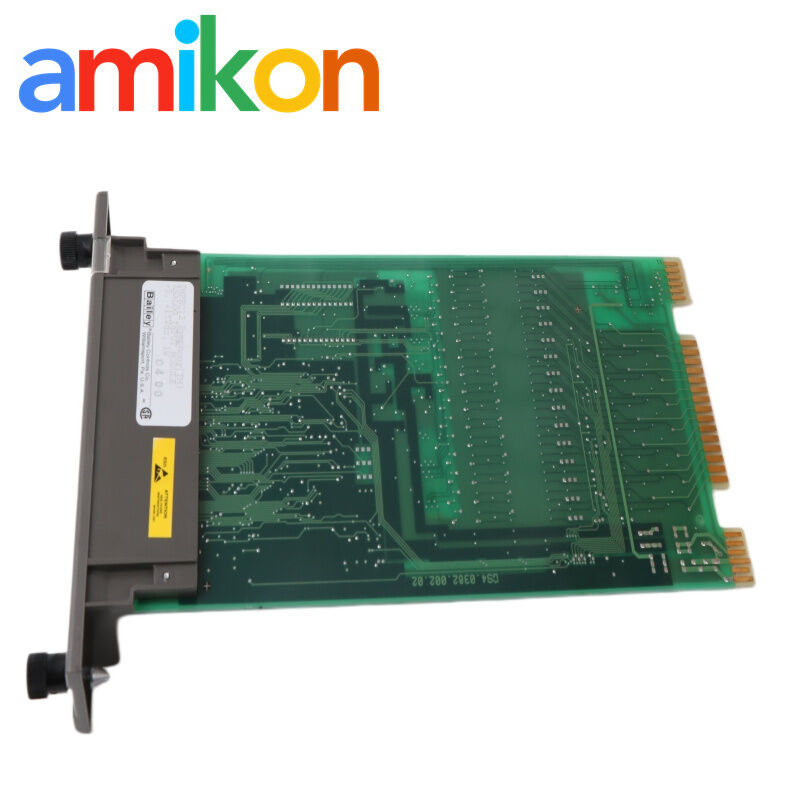

ABB Bailey IMFEC12 Analog Input Module
The ABB Bailey IMFEC12 is a High Level Analog Input (FEC) Module for the INFI 90 OPEN system. It accepts analog signals from conventional transmitters and standard analog sources and communicates process data to an MFP or MFC through the I/O expander bus.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IMFEC12 |
| Product Type | High Level Analog Input (FEC) Module |
| System | INFI 90 OPEN |
| Input Channels | 15 |
| Input Signals | 4-20 mA, 1-5 VDC, 0-1 VDC, 0-5 VDC, 0-10 VDC, −10 to +10 VDC |
| A/D Conversion Rate | 5 conversions/second |
| A/D Resolution | 14 bits with polarity |
| Accuracy | 0.1% for 4-20 mA, 1-5 VDC, 0-5 VDC, 0-10 VDC and −10 to +10 VDC; 0.25% for 0-1 VDC |
| Input Impedance | >1 MΩ/channel |
| Common Mode Rejection | 90 dB minimum at 50/60 Hz |
| Normal Mode Rejection | 70 dB minimum at 50/60 Hz |
| Common Mode Voltage | −12 to +15 VDC |
| Memory | 8 KB RAM |
| Processor | On-board microprocessor |
| System Communication | I/O expander bus |
| Power | 5 VDC ±5%, 85 mA typical; +15 VDC ±5%, 25 mA typical; −15 VDC ±5%, 20 mA typical |
| Power Dissipation | 1.1 W typical |
| Mounting | One MMU slot |
| Ambient Temperature | 0 to 55°C (32 to 131°F), noncondensing |
| Relative Humidity | 5-95% up to 55°C; 5-45% at 70°C, noncondensing |
| Atmospheric Pressure | Sea level to 3 km |
| Air Quality | Noncorrosive |
| Overvoltage Category | Power Category I; Input Category III |
| Certifications | CSA; FM listed as pending in the referenced documentation |
| Hazardous Location | Nonincendive Class I Division 2, Groups A, B, C, D and Class II Division 2, Groups F, G |
System Integration
Compatible Components
- MFP: Multifunction Processor
- MFC: Multifunction Controller
- NTAI05: Analog Input Termination Unit
- NIAI04: Analog Input Termination Module
- NKTU01: Termination Unit Cable
- NKTM01 / NKTU02: Termination Module Cables
Support Services
Amikon supports industrial automation spare-part requirements with comprehensive services:
- Pre-shipment testing
- Protective packaging
- DOA support
- Return and replacement handling
- Warranty support
- After-sales assistance
Compatibility Information
Original-System Compatibility: Designed for INFI 90 OPEN installations using compatible MFP and MFC control modules. The documented control function is Function Code 132.
Historical Replacement: The manufacturer identifies IMFEC12 as a direct replacement for IMASI02.
Application & Troubleshooting
IMFEC12 is used where conventional transmitter signals need to be brought into an INFI 90 OPEN control system.
Common Fault Conditions
- Incorrect module address or Function Code 132 configuration
- I/O expander-bus communication problems
- Channel or termination/cabling faults
- Calibration errors

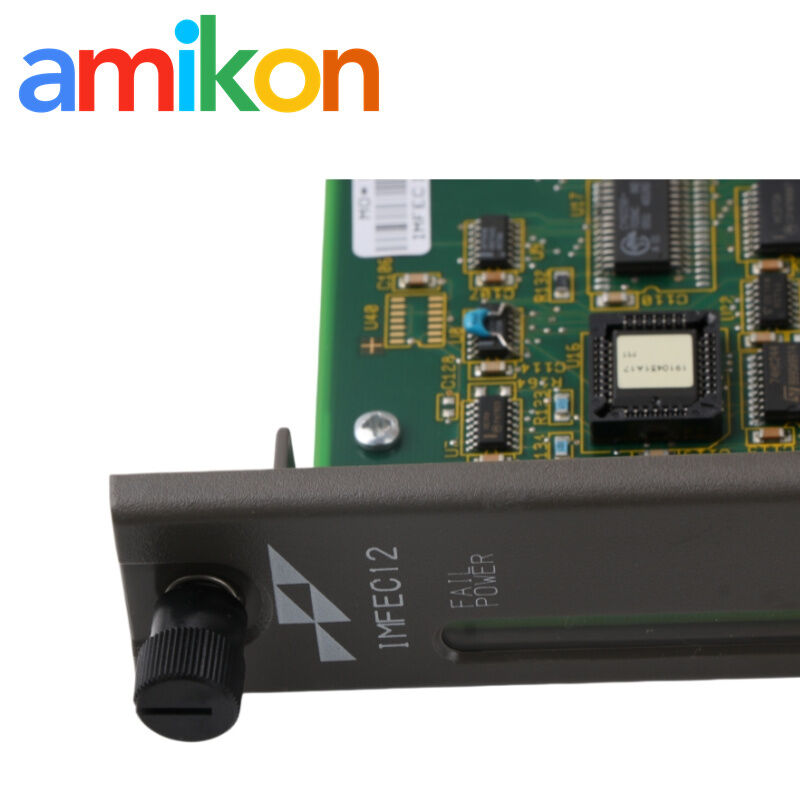

- Module hardware failure indicated by a blinking green LED
These conditions can interrupt the associated analog input signal and may require module replacement or restoration of the affected field connection.
Frequently Asked Questions
Installation & Configuration
- What should be checked before installing IMFEC12?
Check the S1 I/O expander-bus address and confirm that it matches the system configuration. Verify the applicable termination hardware before connecting field wiring. - Can IMFEC12 replace an existing module?
Yes. IMFEC12 can be used as a direct replacement for IMASI02. Check the original module configuration before installation. - How is IMFEC12 configured in an INFI 90 OPEN system?
The I/O expander-bus address is set through S1. Addresses 0-63 are available, with switches 3-8 used for the address and switches 1-2 kept closed. - What termination hardware can be used with IMFEC12?
The applicable field connection hardware includes NTAI05 and NIAI04 termination assemblies, together with the associated termination cables.
Troubleshooting & Maintenance
- What should be checked if IMFEC12 develops a fault?
Check the status LEDs, module address, I/O expander-bus communication and field connections. A blinking green LED indicates a module hardware failure. - What ESD precautions should be followed when handling IMFEC12?
Use a grounded wrist strap and static-shielding protection when handling the module. Avoid direct contact with the circuit board and electronic components. - What maintenance is recommended for IMFEC12?
Periodic inspection should include the cabinet, air filters, module condition, signal and power connections, circuit board and edge connectors. Failed modules should be replaced rather than repaired at component level.
Ordering Information
- What information is required for an IMFEC12 RFQ and what service is available?
Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model. Amikon offers pre-shipment testing, protective packaging, DOA handling, return/replacement support and warranty service according to the applicable order terms.
