ABB SPASI23 Isolated Analog Input Module – Harmony Rack I/O, 16-Channel
16-Channel Analog Input Millivolt Input
24-bit A/D Resolution 3-Wire RTD Input
Isolated Analog Inputs Thermocouple Input
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
SPASI23
Document:
16-Channel Analog Input Millivolt Input
,24-bit A/D Resolution 3-Wire RTD Input
,Isolated Analog Inputs Thermocouple Input

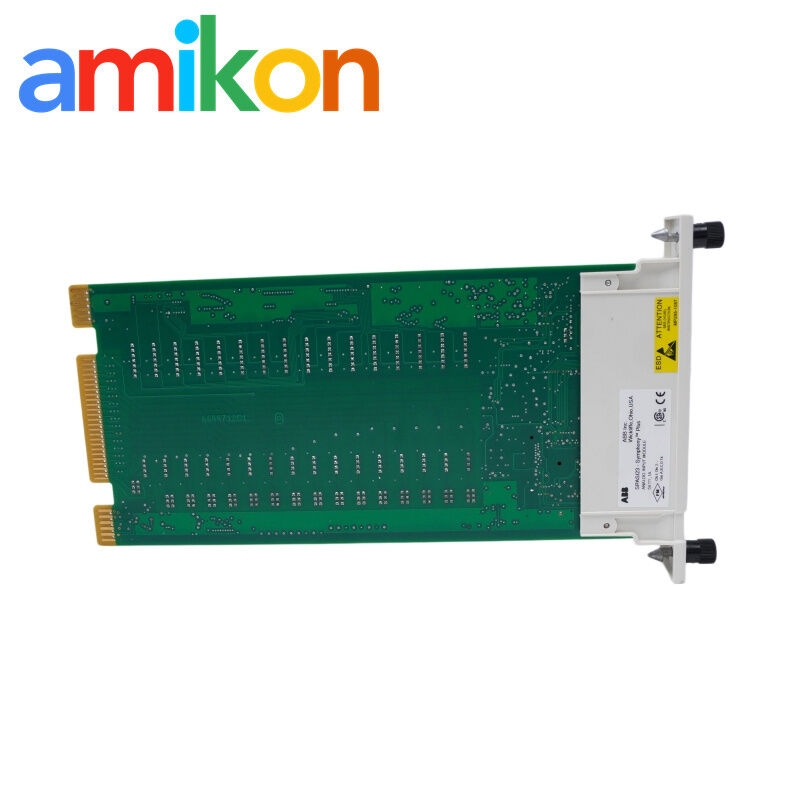

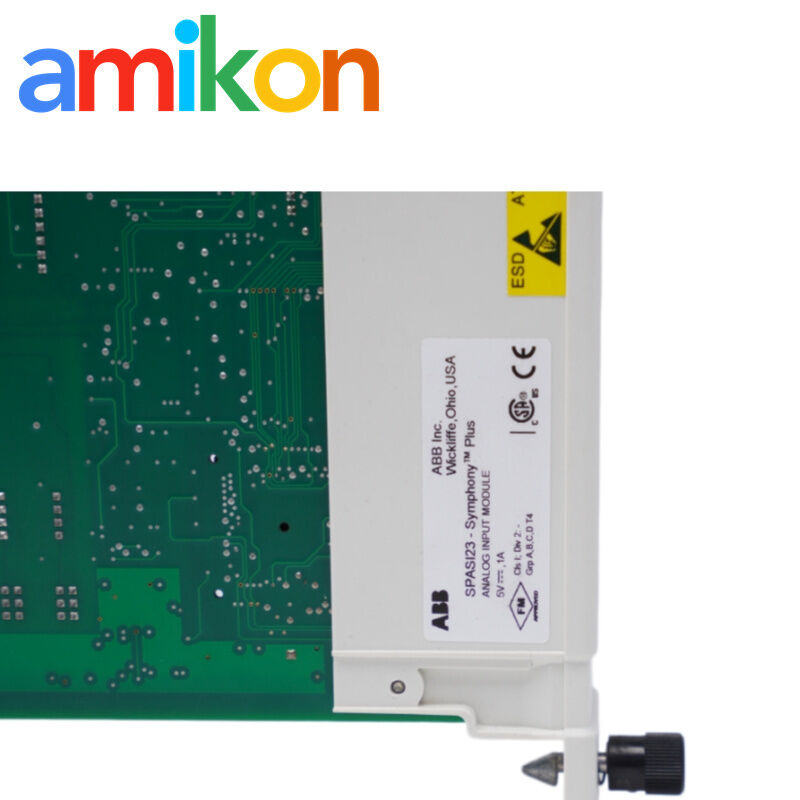

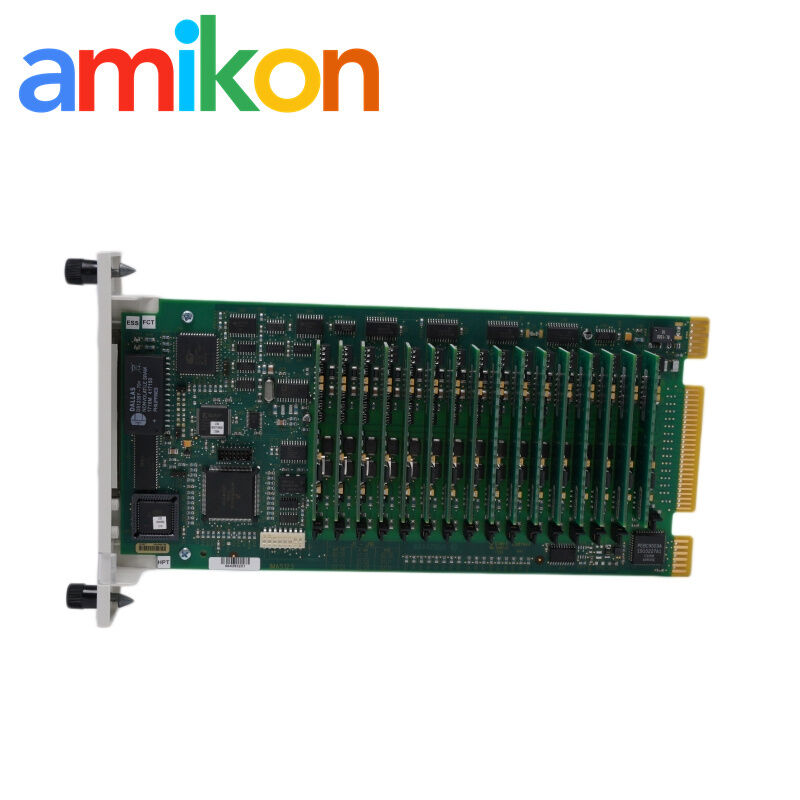

ABB SPASI23 is an isolated analog input module for the Harmony rack I/O system. It handles up to 16 independently configured analog inputs and supports thermocouple, millivolt, RTD, and high-level signals.
The module performs A/D conversion, signal correction, calibration, cold-junction compensation, and engineering-unit conversion for supported inputs.
| Manufacturer | ABB |
|---|---|
| Part Number | SPASI23 |
| Product Type | Isolated Analog Input Module |
| System | Symphony™ Enterprise Management and Control System / Harmony rack I/O |
| Channels | 16 analog inputs |
| A/D Resolution | 24-bit |
| Input Types | High-level, mV, thermocouple, 3-wire RTD |
| High-Level Ranges | 1-5 V, 0-5 V, 0-10 V, -10 to +10 V |
| mV Ranges | -100 to +100 mV; 0-100 mV |
| Thermocouples | B, E, J, K, L, N, R, S, T, U and documented regional variants |
| RTD | 3-wire RTD configurations including platinum, nickel, and copper types |
| Power | +5 VDC ±5%, 500 mA typical |
| Operating Temperature | 0 to 70 °C |
Original-System Compatibility
SPASI23 is designed for Harmony rack I/O within the Symphony™ Enterprise Management and Control System.
Historical Replacement
According to the ABB SPASI23 Analog Input Module User Manual (Document No. 2VAA001604), SPASI23 is documented as a replacement for SPASI03 and SPASI13. The manual also documents its relationship with IMASI23 for INFI 90 systems.
SPASI23 is used to acquire temperature, millivolt, and voltage signals in Harmony-based control systems.
Common maintenance scenarios include input signal faults, incorrect readings, configuration issues, and module replacement. The ABB manual includes troubleshooting and replacement procedures.
Before installation, verify the module address, jumper settings, I/O expander-bus dipshunts, and termination-unit configuration.
For SPASI03/SPASI13 replacement, check the required resolution settings and power-supply capacity before commissioning.
The ABB manual covers troubleshooting, preventive maintenance, module inspection, repair, replacement, and installation checks.
Maintenance should be performed by qualified personnel following applicable system safety procedures.
NTAI06 is the documented analog input termination unit associated with the ASI/SPASI analog input module, providing field signal termination for the 16 input channels.
The installation documentation also covers the associated cable and termination arrangements used with the module.
