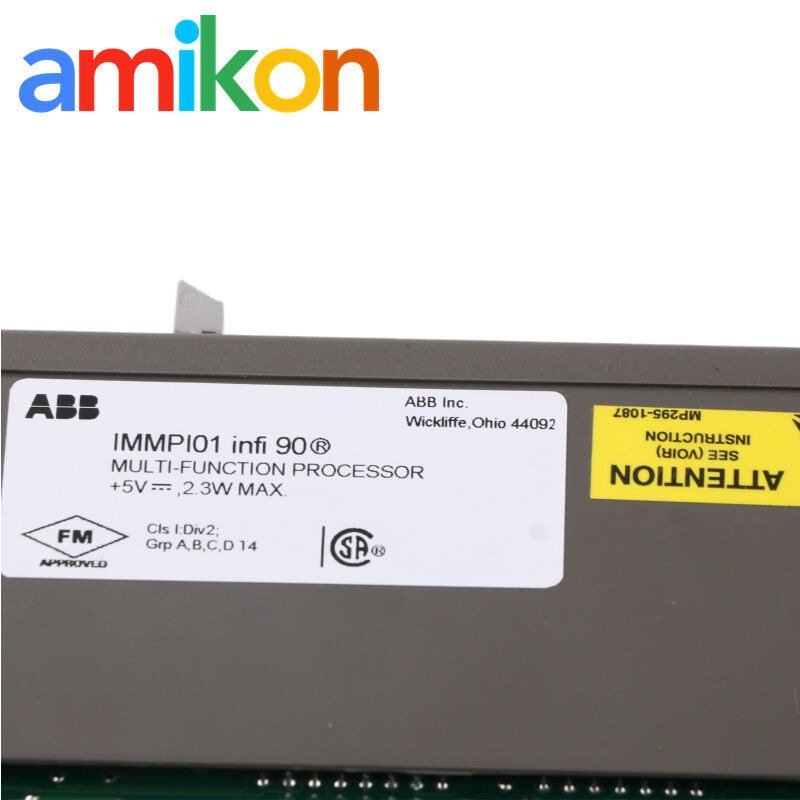

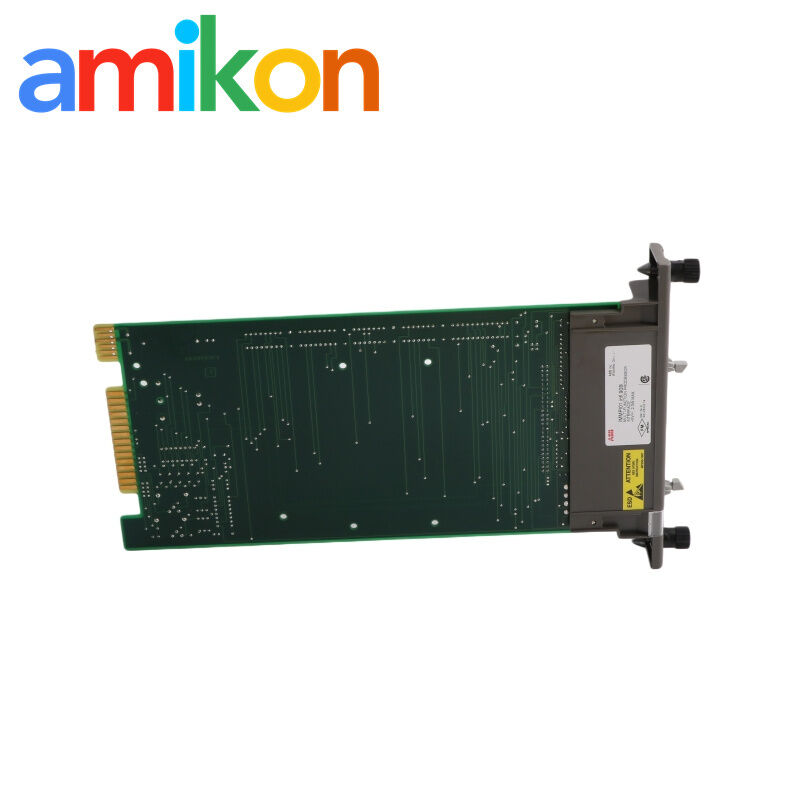

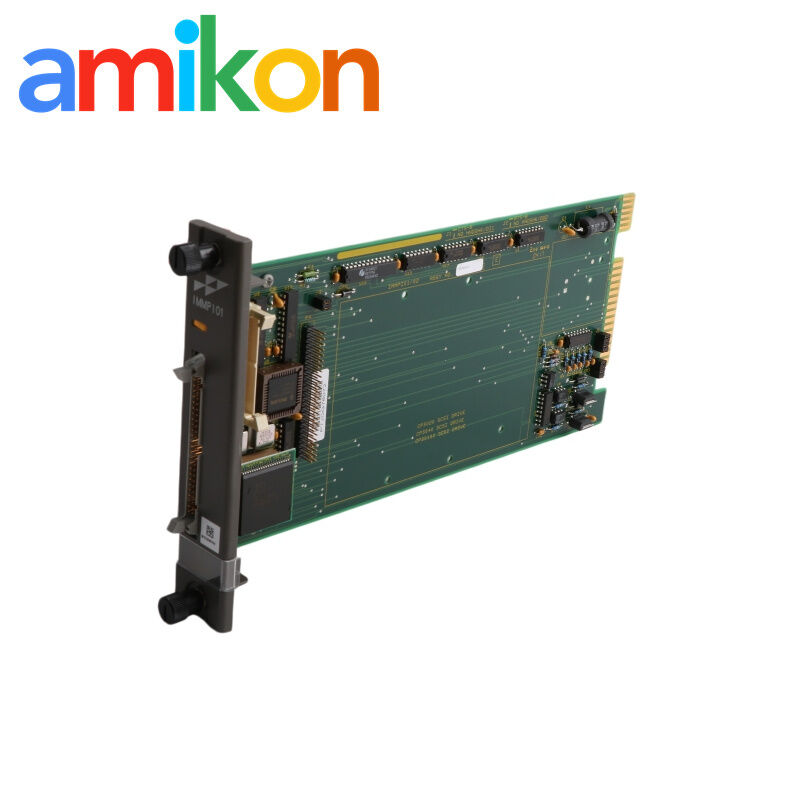

ABB IMMPI01 Multi-Function Processor Interface Module – 2 RS-232-C Ports, INFI-NET
Multi-Function Processor Interface 60-Pin Ribbon Cable
INFI 90 / INFI-NET INICT03 Compatible
2 × RS-232-C Ports SCSI Interface
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
IMMPI01
Document:
Multi-Function Processor Interface 60-Pin Ribbon Cable
,INFI 90 / INFI-NET INICT03 Compatible
,2 × RS-232-C Ports SCSI Interface
The ABB Bailey IMMPI01 Multi-Function Processor Interface Module is an interface module for the INFI 90 / INFI-NET control system. It is used with the INICT03 INFI-NET to Computer Transfer Module and provides communication interfaces for computer-interface applications.
The module includes two RS-232-C ports and one SCSI port, with communication between the IMMPI01 and INICT03 through a 60-pin ribbon cable.
| Model | IMMPI01 |
| Product Type | Multi-Function Processor Interface Module |
| System | INFI 90 / INFI-NET |
| Module Function | Computer interface / communication I/O |
| RS-232-C Ports | 2 |
| SCSI Port | 1 |
| ICT-to-MPI Connection | 60-pin ribbon cable |
| Power Supply | +5 VDC |
| Current Consumption | 415 mA |
| Typical Power Consumption | 2.08 W |
| Mounting | One standard INFI 90 module slot |
| Module Arrangement | Installed adjacent to the INICT03 |
| RS-232-C Handshake | RTS / CTS selectable by jumper |
| Ambient Temperature | 0 to 70°C (32 to 158°F) |
| Relative Humidity | 0-95% up to 55°C, noncondensing |
| Relative Humidity Above 55°C | 0-45%, noncondensing |
| Atmospheric Pressure | Sea level to 3 km (1.86 mi.) |
| Air Quality | Noncorrosive |
| ESD Protection | Required during handling and maintenance |
| Mounting Unit | Compatible with IEMMU01/02 module mounting units |
| Associated Termination | NTMP01 / NIMP01 |
| Redundant Termination | NIMP02 for applicable redundant configurations |
Processor and memory specifications are not separately specified for IMMPI01 in the referenced manufacturer documentation.
IMMPI01 is used with the INICT03 INFI-NET to Computer Transfer Module in the INICI03 INFI-NET to Computer Interface. The documented interface configuration also includes the INNIS01 Network Interface Slave Module.
IMMPI01 is used for INFI-NET computer-interface communication in INFI 90 installations.
Common maintenance scenarios may include:
- Host-computer communication issues
- RS-232-C or SCSI communication issues
- Module replacement
- Jumper or dipswitch configuration checks
- Cable or termination connection checks
Amikon supports industrial automation spare-part requirements with:
- Pre-shipment testing
- Protective packaging
- DOA support
- Return and replacement handling
- Warranty support
- After-sales assistance
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
The INCI documentation supports redundant ICT configurations and identifies NIMP02 for redundant module termination.
Redundancy depends on the complete system configuration and associated termination hardware rather than the IMMPI01 alone.
IMMPI01 uses jumper settings for the RS-232-C handshake configuration, including RTS and CTS signal selection.
Installation requires the correct:
- Module position
- 60-pin ICT-to-MPI ribbon cable
- I/O expander bus configuration
- Termination hardware and cable arrangement
Replacement modules should retain the applicable jumper and dipswitch configuration of the removed module.
Yes. It is documented for the INFI 90 / INFI-NET computer-interface configuration.
The documentation references IMMPI02 but does not confirm it as a universal direct replacement. System configuration should be checked before substitution.
Yes. Applicable jumper and dipswitch settings should match the removed module.
Verify the module position, interconnecting cable, termination hardware and existing configuration.
Yes. Use appropriate antistatic precautions during handling and replacement.
Yes. Pre-shipment testing can be arranged according to the applicable service and product condition.
Amikon can provide warranty and DOA support according to the applicable quotation and service terms.
Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model.
These models are listed as available inventory only and are not official or compatible replacement models for IMMFP01.
