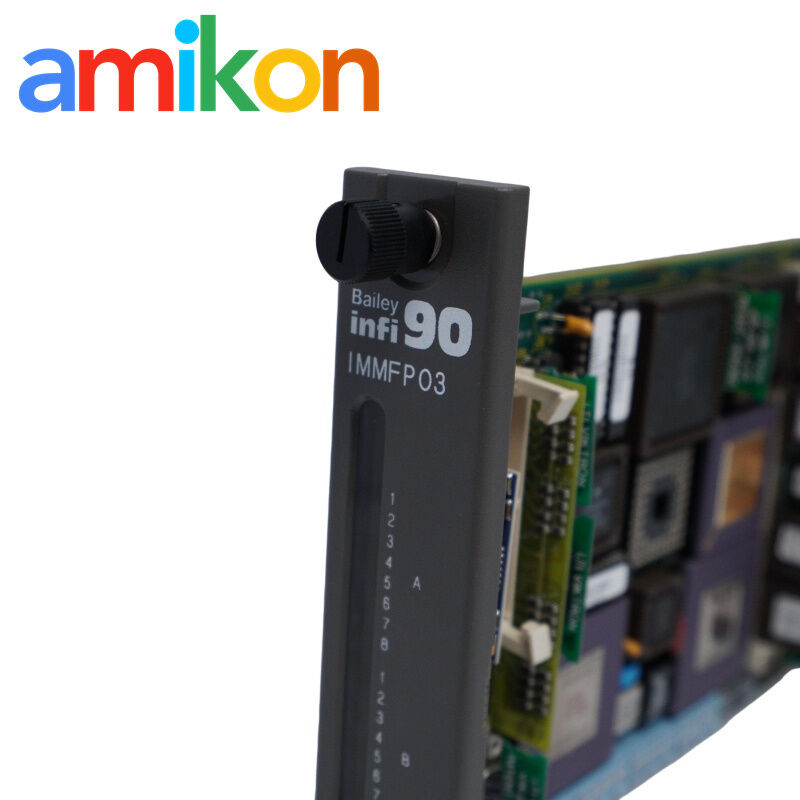

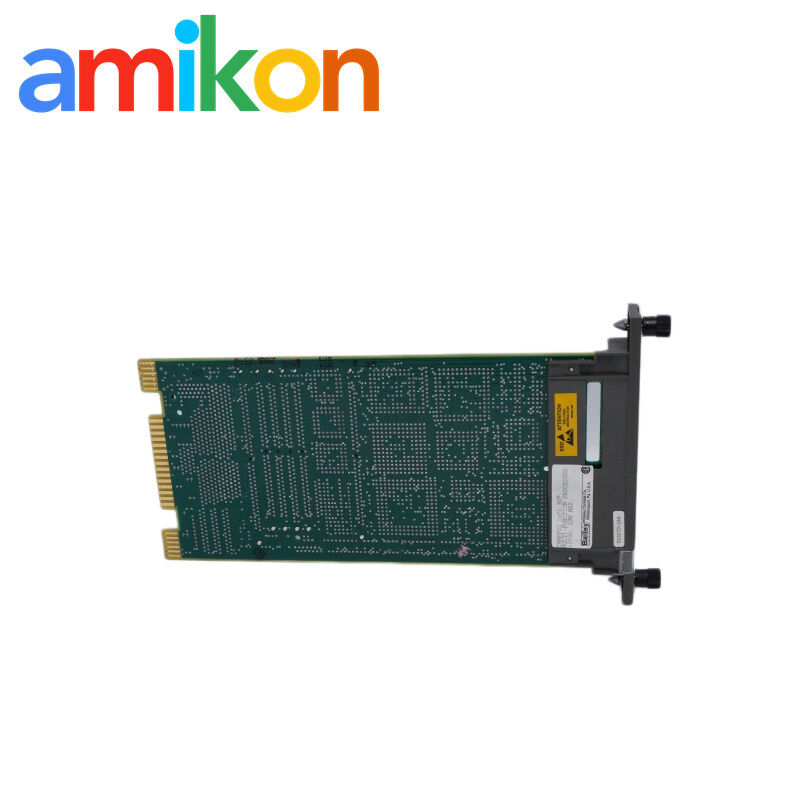

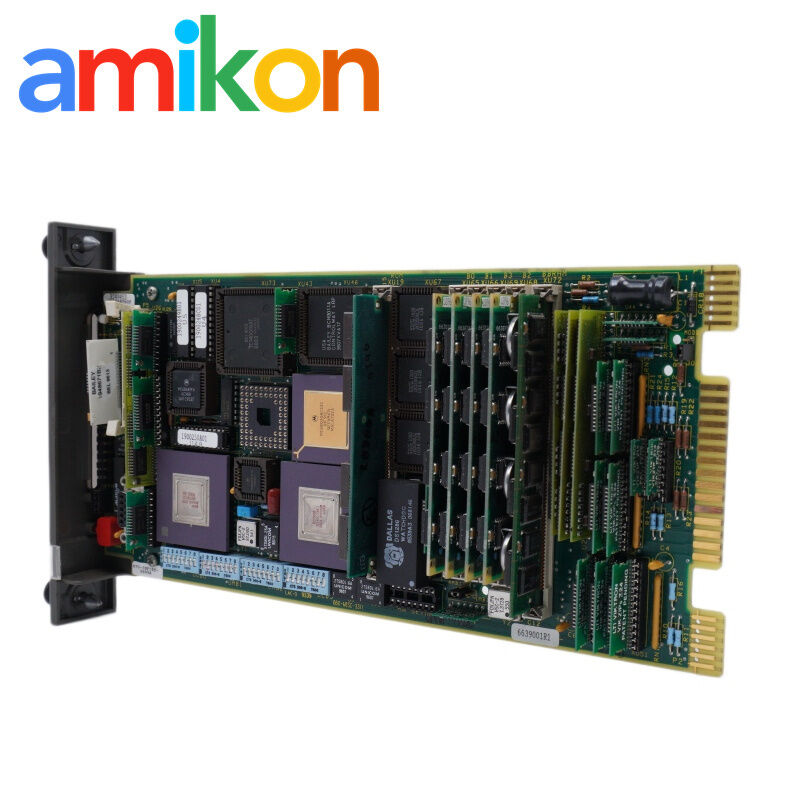

ABB IMMFP03 Multi-Function Processor Module
ABB IMMFP03 is a Multi-Function Processor module for the INFI 90 process control system, designed for multiple-loop analog control, sequential control, batch control, supervisory control, optimization, and other demanding process-control applications.
Technical Specifications
| Model | IMMFP03 |
| Product Type | Multi-Function Processor Module |
| System | INFI 90 |
| Processor | 32-bit, 32 MHz |
| SRAM | 2 MB total; 1.57 MB available |
| NVRAM | 512 KB total; 441 KB available |
| ROM | 512 KB |
| Power Requirement | +5 VDC, 2 A |
| Typical Power Consumption | 10 W |
| I/O Capacity | Up to 64 I/O modules |
| IISAC01 Station Capacity | Up to 64 at 40 kbaud |
| NDCS03 Station Capacity | Up to 8 at 5 kbaud |
| Redundant Communication Link | 8 MB maximum; 4 MB normal operation |
| Controlway | 1 Mbps peer-to-peer communication |
| Controlway Capacity | Up to 32 devices |
| Programming | C, BASIC, Batch, Ladder, function blocks and user-defined functions |
| Operating Modes | Configure, Execute, Error |
| Dimensions | 35.56 × 177.80 × 298.45 mm |
| Weight | 0.84 kg |
| Operating Temperature | 0 to 70°C |
| Relative Humidity | 0-95% up to 55°C; 0-45% at 70°C, noncondensing |
| Altitude | Sea level to 3 km |
| Mounting | One slot in the module mounting unit |
| Front Panel | 16 CPU LEDs + 1 status LED |
System Compatibility
IMMFP03 is designed for INFI 90 systems and works within the system's I/O and control architecture. Associated hardware includes IMMPI01, NTMP01, NIMP01/NIMP02 and NKMP03.
No official successor or replacement model is specified for IMMFP03 in the available manufacturer documentation.
Applications & Operation
IMMFP03 is used in INFI 90 process-control applications requiring processor-based control and data processing, including analog loop control, sequential control and batch applications.
The manual provides troubleshooting procedures for processor errors, abnormal status indications, communication-related issues and other diagnostic conditions.
Because the module can execute process-control functions, taking an active MFP offline may affect the controlled process and can create a shutdown or process-upset risk.
Redundancy & Configuration
IMMFP03 supports redundant MFP configurations. A secondary processor can remain in standby and assume control when the primary MFP goes offline.
IMMFP03 uses hardware configuration settings for module address, bus speed, operating mode, memory and other module functions.
- Before replacement, check the existing module's DIP-switch and jumper settings
- Confirm the backplane and associated interface configuration
- The module occupies one slot in the module mounting unit
Diagnostics & Maintenance
The front panel provides CPU and status LEDs for operating and diagnostic information.
Troubleshooting Functions:
- Error-code identification
- LED status checks
- Diagnostic operation
- Status reporting
- Serial-port troubleshooting
- Module replacement
ESD precautions should be followed when handling or replacing the module.
Frequently Asked Questions
- Q1. Can IMMFP03 be installed directly into any INFI 90 rack?
Replacement should be checked against the existing mounting-unit configuration and backplane connections before installation. - Q2. What hardware may be installed alongside IMMFP03?
The documented configuration may include an IMMPI01 interface module, NTMP01 termination unit, NIMP01/NIMP02 termination modules and NKMP03 redundant MFP ribbon cable. - Q3. Does replacing an IMMFP03 require transferring configuration settings?
Yes. The replacement procedure includes checking and transferring the required module configuration before returning the replacement to service. - Q4. What should be done before removing an installed IMMFP03?
The controlled equipment should be secured before maintenance. Removing or adjusting an active module can upset the controlled process. - Q5. Is ESD protection required when handling IMMFP03?
Yes. The module contains electrostatic-sensitive devices, so appropriate static-control procedures should be followed during handling and replacement. - Q6. What maintenance does the manufacturer recommend?
The manual covers PCB cleaning, edge-connector cleaning, connection inspection and module replacement procedures. - Q7. What information should I provide when requesting an IMMFP03?
Please provide Part Number, Quantity, Destination, Required Date and Machine/System Model. For compatibility review, photos of the existing module label and faceplate are also useful.
