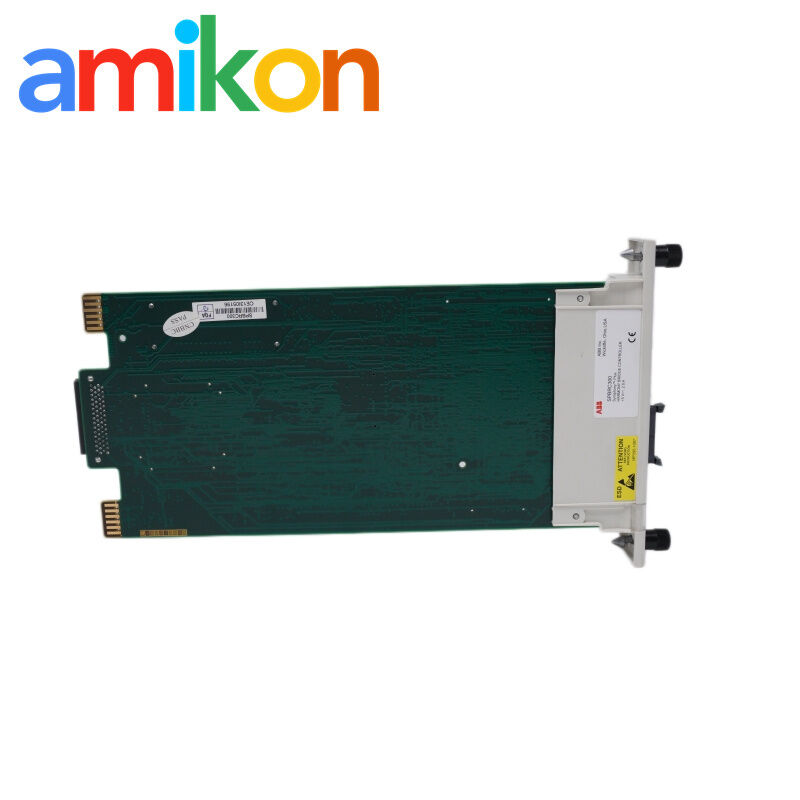

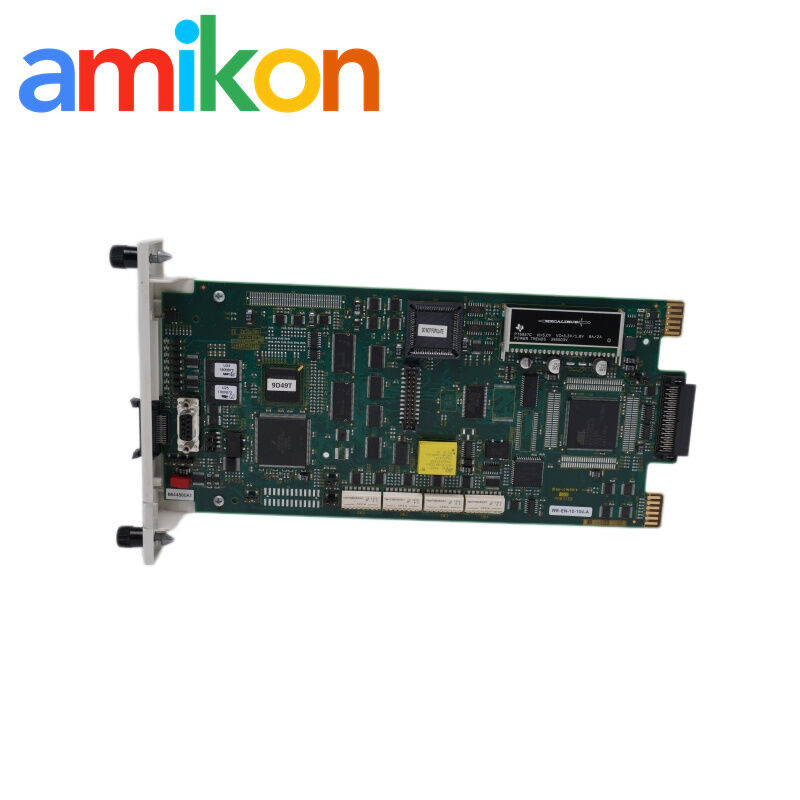

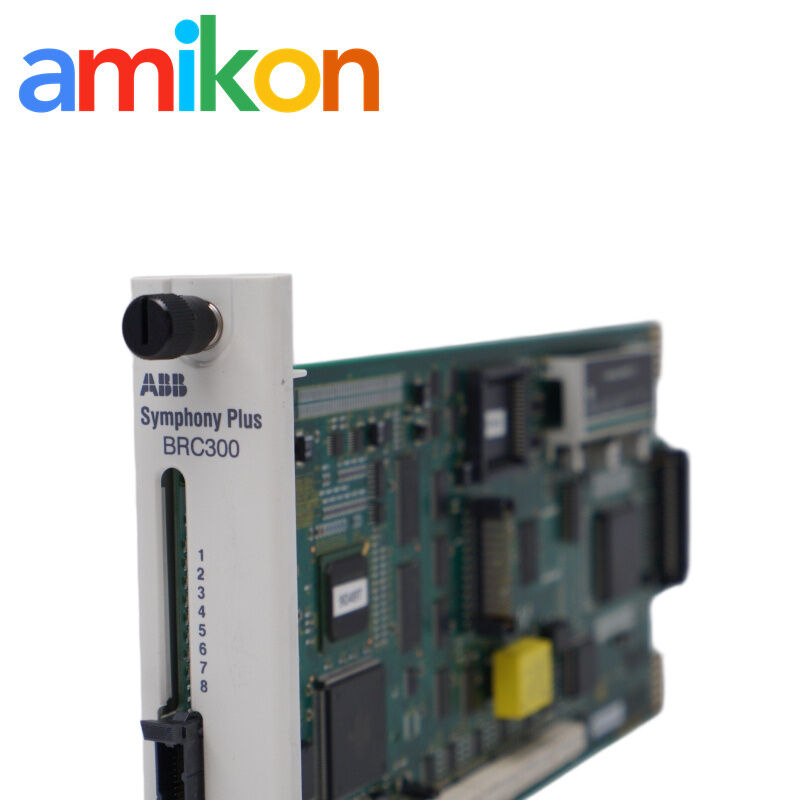

ABB SPBRC300 Harmony Bridge Controller – HR Series
ABB SPBRC300 is a Harmony Rack (HR Series) Bridge Controller used in ABB Ability™ Symphony® Plus control systems. ABB identifies the SPBRC300 as one of the HR Series BRC controllers, together with the SPBRC400 and SPBRC410. The HR Series was developed to support existing Harmony control investments while providing compatibility with multiple generations of Harmony and related I/O systems.
Product Specifications
| Manufacturer | ABB |
| Model | SPBRC300 |
| Product Family | HR Series (Harmony Rack) BRC Controller |
| System | ABB Ability™ Symphony® Plus / Harmony |
| Controller Type | Harmony Bridge Controller |
| Related Controllers | SPBRC300 / SPBRC400 / SPBRC410 |
| Supported I/O | HR Series I/O and previous rack generations |
| Additional I/O Support | SD Series I/O, including PROFIBUS and HART I/O; Block I/O; S800 I/O |
| Control Network | INFI-Net / Harmony control architecture |
| GPI Compatibility | BRC-300 firmware revision L_9 or later |
| Product Net Height | 14.1 in |
| Product Net Length | 2.9 in |
| Product Net Width | 10.6 in |
| Gross Weight | 0.567 kg |
| Data Source | ABB official HR Series Control and I/O documentation, Symphony Plus GPI Version 4.0 Data Sheet (3BCA013068R1701), and ABB product data for PHCBRC30000000 |
Original Compatibility
ABB places SPBRC300 within the HR Series Harmony Rack controller family. The HR Series supports HR Series I/O together with previous rack generations, SD Series I/O, Block I/O and S800 I/O.
Historical Replacement
ABB's lifecycle documentation states that the earlier P-HC-BRC300 and P-HC-BRC400 Harmony Rack alternatives moved to Limited status in January 2015, with a form/fit/function replacement relationship to the newer HR Series controllers. ABB also recommends evolution from older MFP, MFC, AMM, LMM and COM controller families to BRC300 / BRC400 / BRC410, subject to the appropriate I/O processing modules and control-logic consolidation requirements.
This should be understood as an ABB-documented historical replacement/evolution path, not as a statement that every older controller can be directly exchanged with SPBRC300 without checking the existing system configuration.
Control Architecture
SPBRC300 belongs to the Harmony Rack control architecture of Symphony Plus. ABB describes Symphony Plus HR Series as a scalable control and I/O platform covering loop, unit, area, plant and interplant control applications. Its control architecture uses the INFI-Net control network, with redundant communication paths available in the system architecture.
Typical Applications
- Existing Harmony Rack controller replacement
- Maintenance of an installed Symphony Plus / Harmony control system
- Controller hardware failure affecting control execution
- Troubleshooting involving loss of controller operation or communication
- Modernization of earlier Harmony / Network 90 / INFI 90 installations where ABB's documented evolution path applies
AMIKON - Industrial Automation Spare Parts
AMIKON specializes in DCS, PLC, and industrial automation spare parts, with access to 30,000+ parts and global sourcing support for hard-to-find, obsolete, and discontinued components.
Each product is inspected and tested before shipment. We also provide warranty and after-sales support for maintenance, repair, and replacement requirements.
Need a quote? Contact us for availability and pricing.
Firmware Requirements
ABB's General Purpose Interface documentation specifies BRC-300 firmware revision L_9 or later for compatibility with the GPI Version 4.0 interface.
Frequently Asked Questions
Q1. Can SPBRC300 be used with PROFIBUS I/O?
Yes. ABB documentation specifies support for SD Series I/O, including PROFIBUS. For the PDP800 PROFIBUS interface, ABB specifies up to 2 redundant PDP800 pairs per SPBRC300 controller.
Q2. Can SPBRC300 be used in an existing Harmony / INFI 90 environment?
Yes. ABB positions the HR Series BRC controllers as the latest generation of Harmony Rack controllers and documents their use with previous rack generations and existing Harmony system investments.
Q3. What older controllers can be migrated to the BRC300 family?
ABB recommends evolution from the MFP, MFC, AMM, LMM and COM controller families to BRC300/BRC400/BRC410. For AMM, AOM, COM and LMM applications, ABB notes that appropriate I/O processing modules and consolidation of logic into the BRC may be required.
Q4. Is SPBRC300 a direct replacement for P-HC-BRC300?
ABB identifies the HR Series BRC300/BRC400 as the form/fit/function replacement for the earlier Harmony Rack P-HC-BRC300/P-HC-BRC400 alternatives, which moved to Limited status in January 2015. The exact installed configuration should still be checked before replacement.
Q5. How does Amikon handle testing, packaging, DOA and warranty?
The unit is checked before shipment and packaged for transport. DOA handling and warranty coverage follow Amikon's applicable sales terms and can be confirmed with the quotation.
Q6. What information should I provide for an RFQ?
Please provide Part Number, Quantity, Destination, Required Date, and Machine/System Model. For replacement applications, the existing controller model, I/O configuration and available firmware information are also helpful.
Available Inventory Models
140CPS11420, 140DDO35300C, 1444-DYN04-01RA, 151-7AA21-0AB0, 1734-AENT, 1734-AENTR, 1734-IE2V, 1756-L73, 1783-ETAP, 1FT7084-5AH71-1BG0, 20-750-ENETR, 20-750-UFB-1, 20AC022A0AYNANC0, 20AC030A0AYNANC0, 20BC030A0AYNANC0, 20BC1P3, 20BC5P0A0AYNANC0
These models are listed as available inventory only and are not official or compatible replacement models for SPBRC300.
