Product Overview

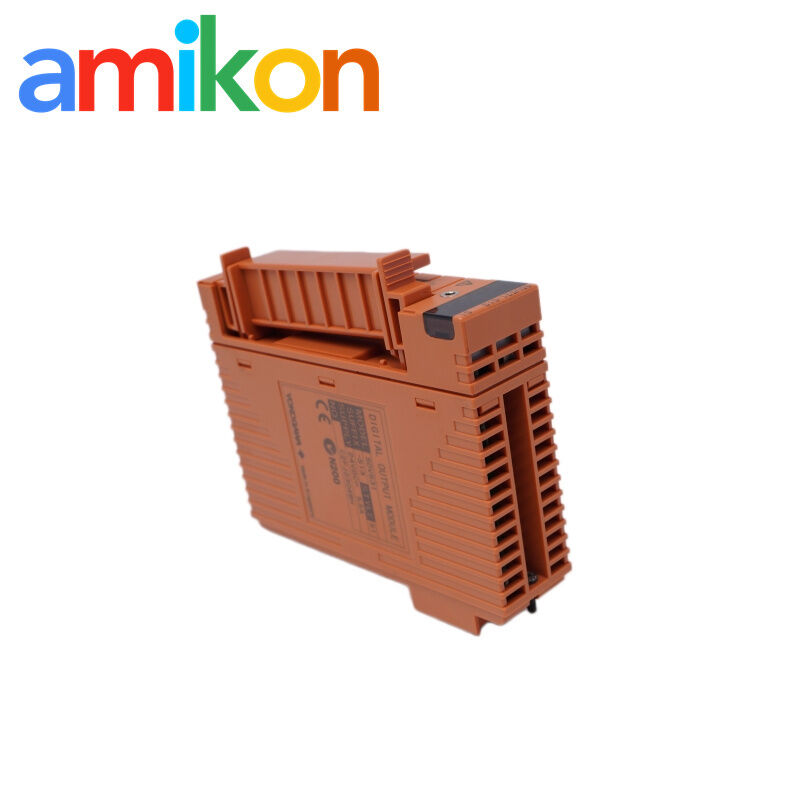

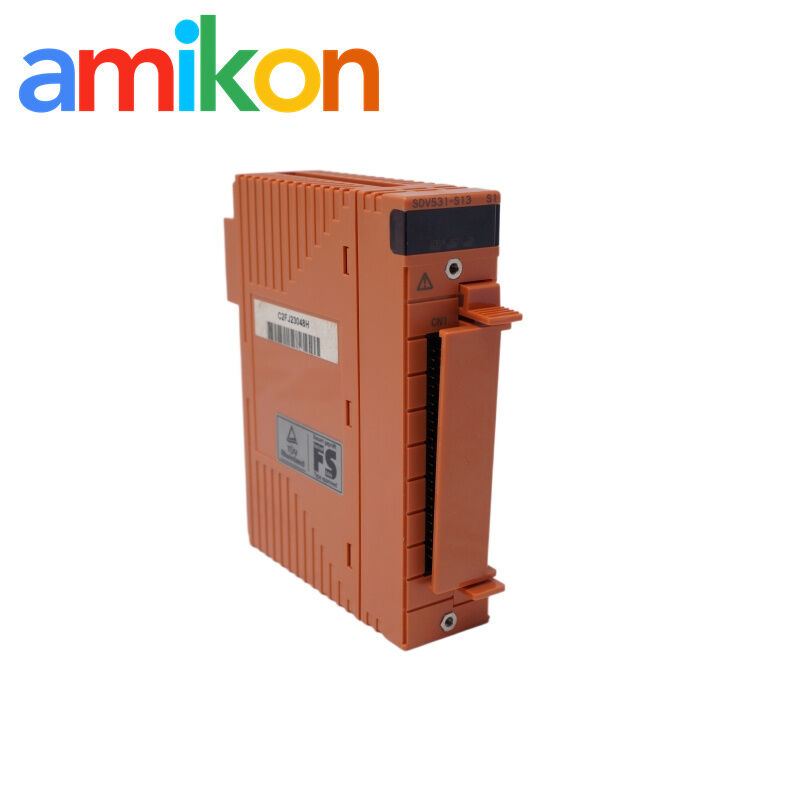

The Yokogawa SDV531 is a digital output module used with the ProSafe-RS safety control system. Yokogawa identifies the SDV531 family as an 8-channel, 24 V DC output module with module isolation. The SDV531-S13 is a standard-type version whose short-circuit response must be considered during engineering and maintenance.
Officially Confirmed Technical Information
Yokogawa documents connection arrangements including pressure-clamp terminals, dedicated signal-cable arrangements and MIL cable configurations, depending on the exact suffix and accessories.
Important: SDV531-S13 Short-Circuit Behavior
Yokogawa’s ProSafe-RS hardware manual states that a field-side short circuit on SDV531-S13 activates the Output Shutoff Switch and turns OFF all output channels on the module. After the short circuit is removed, recovery requires starting the output module from the SCS Status Management Window and performing the Output Enable Operation. Until that operation is completed, all outputs remain OFF.
Application and Engineering Context
The module is intended for discrete 24 V DC output duties within a ProSafe-RS safety control architecture. Typical engineering use is to drive compatible field loads through the approved terminal and cable arrangement. The connected load, supply voltage, cable resistance, cable length, terminal board and short-circuit-detection setting all affect the voltage available at the field device.
Before Ordering
Verify the complete model and style marking, ProSafe-RS hardware/software compatibility, channel allocation, terminal or cable type, external 24 V DC supply, load current and allowable voltage drop.
Before Replacement
Confirm slot, connector, signal cable, redundancy, environmental requirements, short-circuit recovery behavior and whether application logic, wiring or proof testing must change.
Lifecycle and Replacement Status
No Yokogawa official source located during preparation of this page confirmed a discontinuation date for the complete SDV531-S13 S1 identification.
No Yokogawa official source located named a direct replacement or confirmed a fully interchangeable substitute. Buyers should obtain written confirmation from Yokogawa for current lifecycle status, repair/support availability and the approved migration path for the installed ProSafe-RS release.
SDV531-S23/-S33 are not presented here as automatic drop-in replacements. Yokogawa documents different field short-circuit behavior: the S13 shuts down all module channels, while S23/-S33 isolate the affected output channel. An approved engineering review is required.
Replacement Conditions to Verify
- Approved output electrical characteristics
- Channel count and isolation
- Mechanical and slot compatibility
- Terminal board, connector and cable compatibility
- ProSafe-RS software/revision support
- Redundancy configuration
- Short-circuit detection and recovery behavior
- Environmental and certification requirements
Frequently Asked Questions
What is the SDV531-S13 S1?

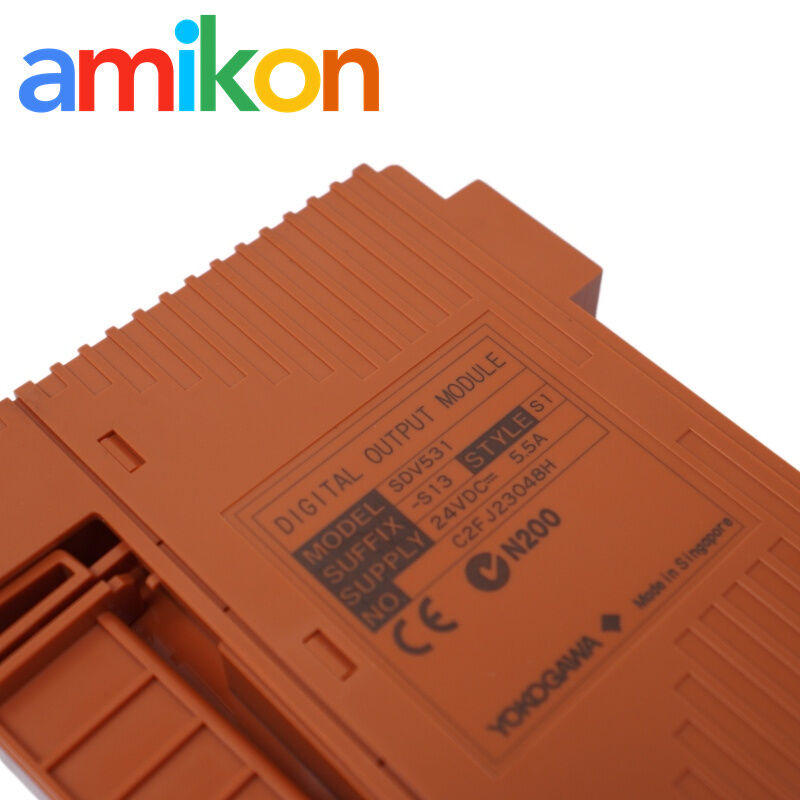

It is an identification associated with Yokogawa’s SDV531 family, an 8-channel 24 V DC module-isolated digital output module for ProSafe-RS. Verify the S1 marking against the physical module and project documentation.
Can each channel drive 0.6 A?
Yokogawa states a maximum of 0.6 A per channel, but permissible load and cable length depend on voltage drop, cable and adapter resistance, terminal arrangement and short-circuit detection.
Is an official discontinuation date available?
No official Yokogawa discontinuation date for the complete SDV531-S13 S1 identification was found in the official sources reviewed for this page.
Is SDV531-S23 or SDV531-S33 a direct replacement?
The official material located does not confirm either as fully interchangeable. Their documented short-circuit behavior differs from SDV531-S13.
Contact Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
For an engineering review, include the full nameplate, style/revision, installed ProSafe-RS release, terminal or cable arrangement and field-load details.
Other Industrial Products Available
The following are separate product families and are not stated as replacements for SDV531-S13 S1.
Official Yokogawa References
- ProSafe-RS Hardware manual IM 32Q06C10-31E
- ProSafe-RS I/O Modules and Terminal Units General Specifications GS 32P06K60-01EN
- ProSafe-RS Safety Control Units General Specifications GS 32Q06K40-31E
Source note: technical and lifecycle statements are limited to Yokogawa official documents. Where the reviewed official sources did not confirm a fact, that limitation is stated explicitly.
