3500/42M 176449-02 Bently Nevada Proximitor Seismic Monitor
Bently Nevada 3500/42M Bently Nevada 3500 rack module
176449-02 Monitor steam turbine protection
3500/42M Proximitor Seismic Monitor radial vibration monitoring
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
3500/42M 176449-02
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen,China
Model:
3500/42M 176449-02
Shipping:
TNT, DHL, FedEx, EMS, UPS
Packaging:
Original New Packaging
Country Of Origin:
USA
Highlight:
Bently Nevada 3500/42M Bently Nevada 3500 rack module
,176449-02 Monitor steam turbine protection
,3500/42M Proximitor Seismic Monitor radial vibration monitoring
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

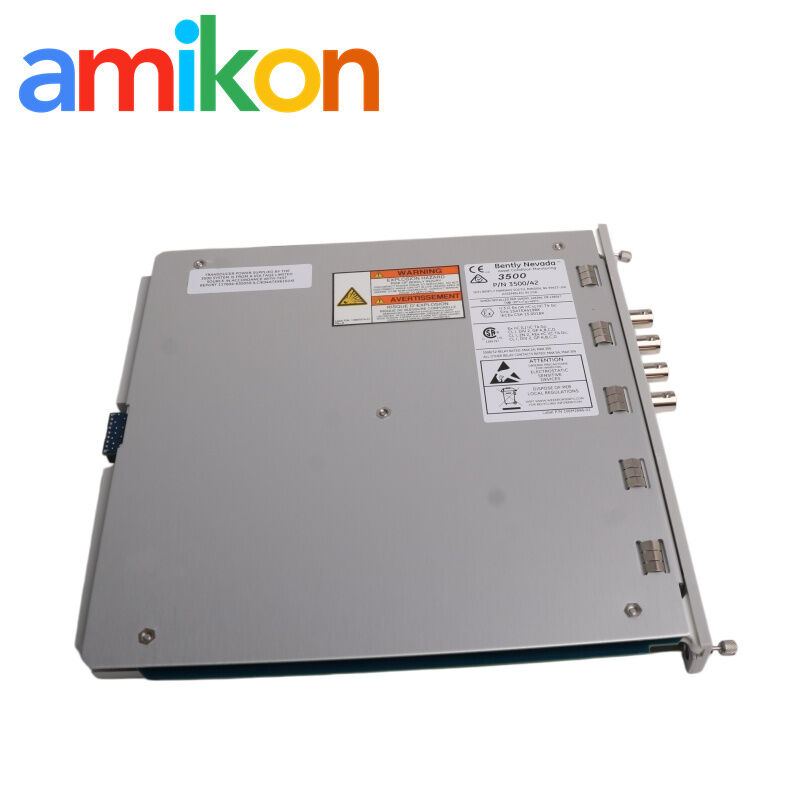

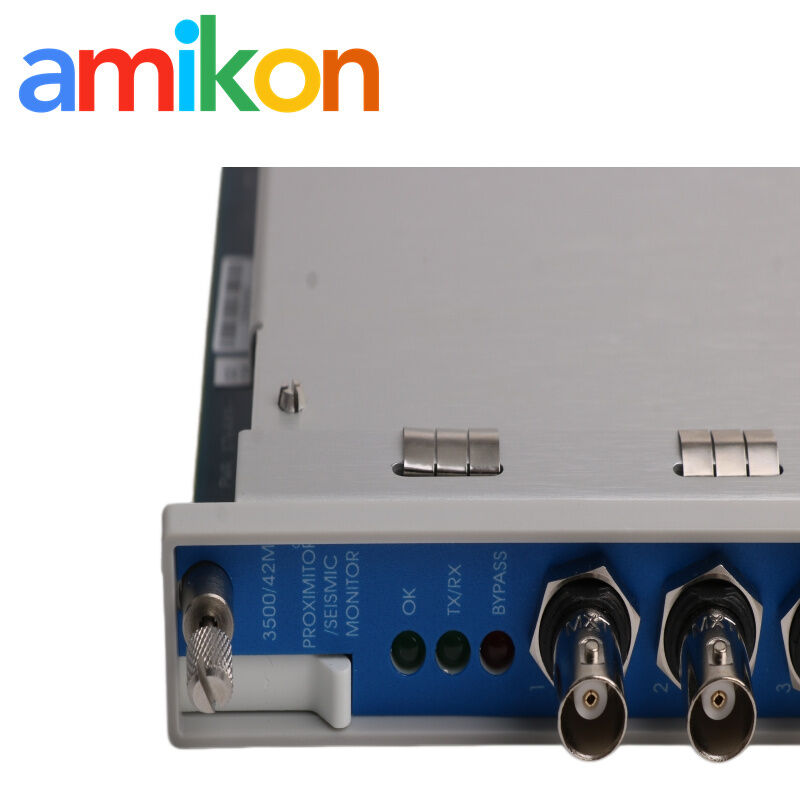

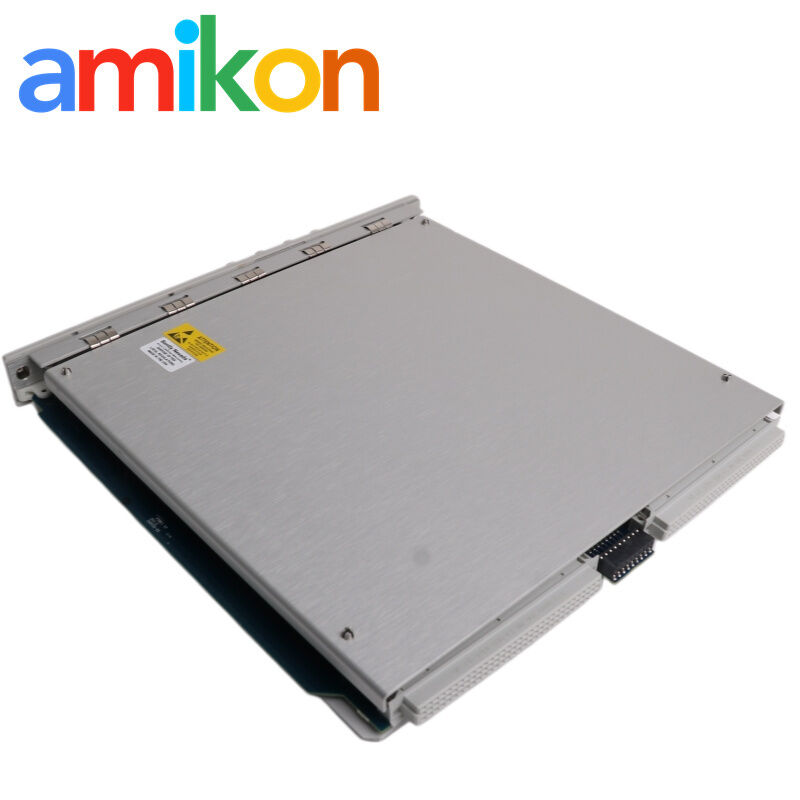

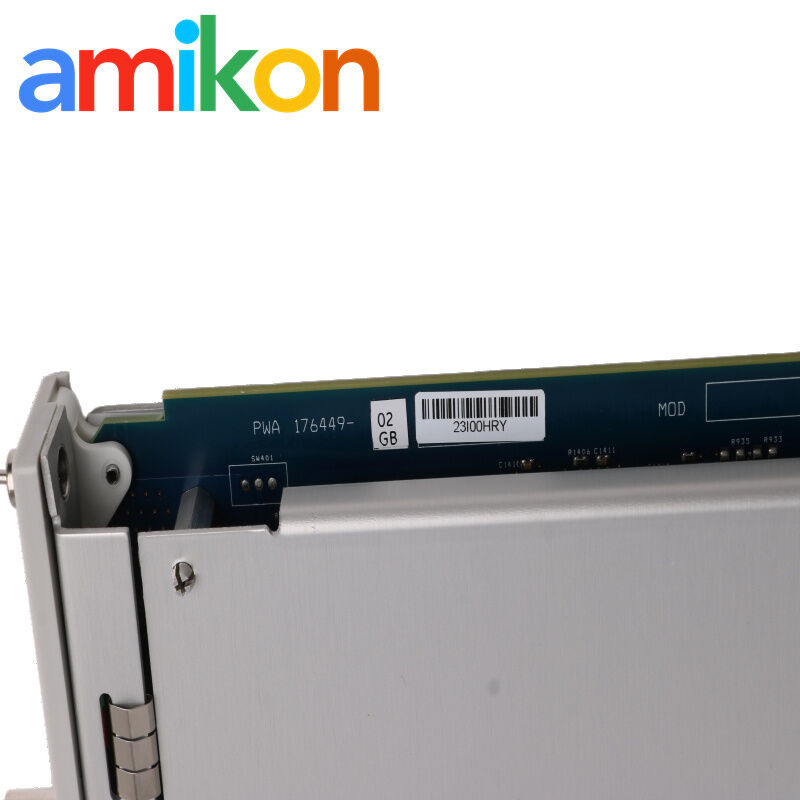

3500/42M 176449-02 Bently Nevada Proximitor Seismic Monitor
Core Hardware Specifications
- Channels: 4 independent channels, programmable in pairs
- Signal Input: 1 to 4 proximity, velocity, or acceleration transducer signals
- Power Consumption: 7.7 watts typical
- Inputs/Outputs: Provides -24 Vdc sensor power, with front-panel buffered outputs and rear +4 to +20 mA recorder outputs
Monitoring & Configuration
- Capabilities: Configurable for radial vibration, thrust, acceleration, velocity, eccentricity, differential expansion, REBAM, and shaft absolute functions
- Alarms: Adjustable setpoints (0-100% of full-scale) with high accuracy, supporting individual Alert and Dual Danger settings
Operating Environment
- Temperature Range: Operates from -30°C to +65°C and stores between -40°C to +85°C
- System Integration: Occupies 1 full-height front slot in the 3500 rack system
Global Distribution Network
Amikon supplies industrial automation spare parts, including PLC, DCS, and TSI systems, to more than 160 countries worldwide.
- North America: Steady demand from US and Canada, serving oil & gas plants and automotive production sites
- Europe: Strong presence in Germany and UK, supporting chemical plants and heavy equipment lines
- Middle East and Africa: Refinery projects and mining sites in UAE, Saudi Arabia, South Africa, and remote field installations
- Asia-Pacific: Broad coverage including China, Singapore, Australia, India for semiconductor fabs, power stations, and metallurgy plants
- South America: Stable operations in Brazil, Chile, Argentina for mining, copper operations, and hydropower projects
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Service Benefits
100% Original Parts - Vetted industrial automation & DCS/PLC spares
Massive Inventory - 30,000+ items ready for immediate shipment
12-Month Warranty - Fully covered by a 1-year quality guarantee
Fast Global Shipping - Secure express delivery to 160+ countries
24/7 Rapid Response - Dedicated 1-on-1 customer service
Frequently Asked Questions
Q1: What is the primary function of the Bently Nevada 3500/42M 176449-02 monitor in rotating machinery protection systems?
A: The Bently Nevada 3500/42M 176449-02 is a four-channel Proximitor Seismic Monitor used in the 3500 monitoring system for continuous machinery protection. It processes signals from field transducers and helps operators track radial vibration, thrust position, shaft absolute vibration, and other key machine conditions. When measured values move beyond configured limits, the monitor can initiate alarms to support critical asset protection.
Q2: Which transducer types are compatible with the 3500/42M 176449-02 proximity seismic monitor module?
A: The 3500/42M 176449-02 accepts up to four proximity probe, velocity, or seismic acceleration monitoring inputs. Depending on the application, channels can be configured to support functions such as REBAM bearing monitor logic, differential expansion monitor duties, eccentricity measurement, velocity tracking, and circular acceptance region monitoring within an API 670 compliant system.
Q3: Can the 3500/42M 176449-02 card be used for emergency shutdown system (ESD) applications?
A: Yes. The 3500/42M 176449-02 is commonly installed in machinery vibration protection systems tied to emergency shutdown system (ESD) functions and automated plant trip logic. Adjustable alarm time delays help ensure fast response when vibration or shaft position values exceed safe operating thresholds.
Q4: In which industrial applications is the Bently Nevada 3500/42M 176449-02 most commonly deployed?
A: You'll typically find this monitor in steam turbine protection systems, gas turbine vibration monitoring packages, and centrifugal compressor safety loops. It's widely used across power plants, oil and gas facilities, and petrochemical sites where industrial rotating machinery protection is a key requirement. The module also supports predictive condition monitoring and diagnostic software platforms.
Q5: How do I select the correct I/O termination modules for the 3500/42M 176449-02 rack module?
A: I/O selection mainly depends on sensor wiring and site safety requirements. The 3500/42M 176449-02 can be matched with the 128229-01 Prox/Seismic I/O module for internal termination or the 128240-01 version for external termination. Where hazardous area approvals or explosion-proof zones are involved, internal barrier I/O configurations are available for safe proximity sensor and seismic transducer connections.
