330104-00-11-05-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 330104 fluid-film bearing machine
330104-00-11-05-02-00 3300 XL Proximitor Sensor
3300 XL 8mm Proximity Probe eddy current proximity sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-00-11-05-02-00
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen,China
Model:
330104-00-11-05-02-00
Packaging:
Original New Packaging
Shipping:
TNT, DHL, FedEx, EMS, UPS
Weight:
0.1kg
Expected Shipping Dimensions:
1.8x1.5x58cm
Highlight:
Bently Nevada 330104 fluid-film bearing machine
,330104-00-11-05-02-00 3300 XL Proximitor Sensor
,3300 XL 8mm Proximity Probe eddy current proximity sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

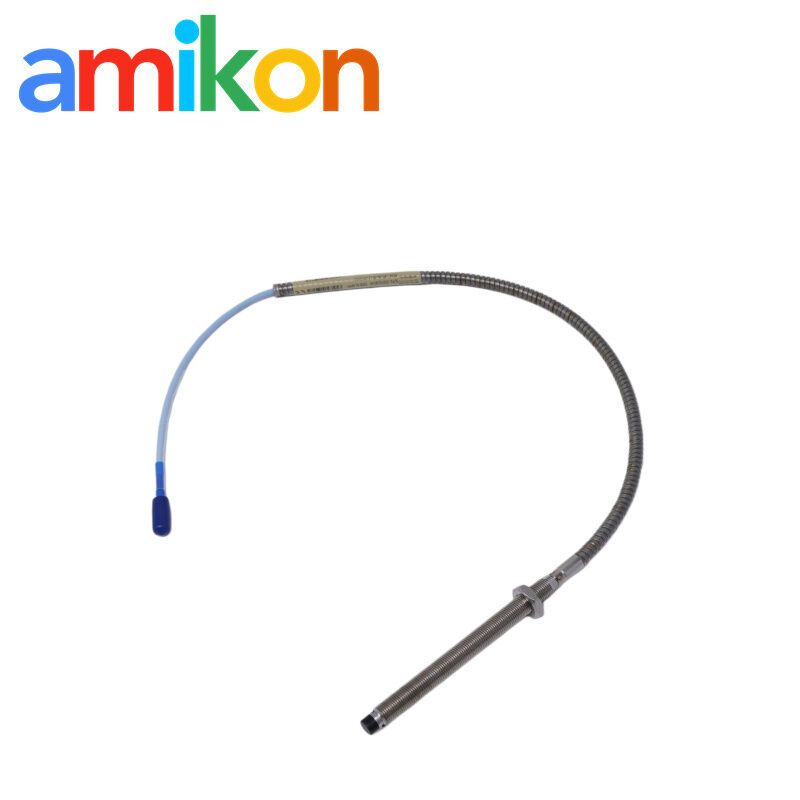

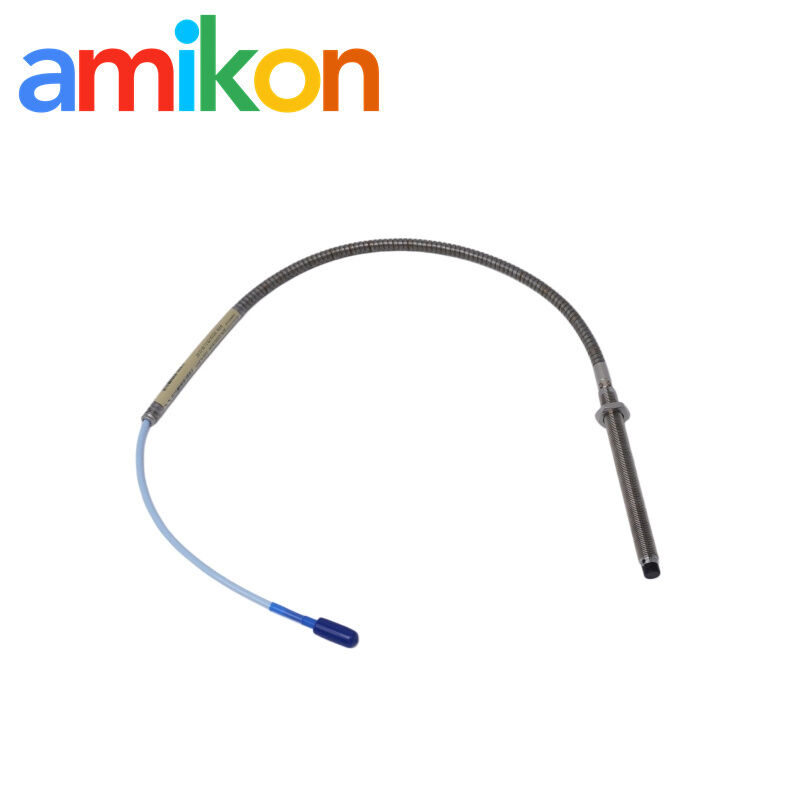

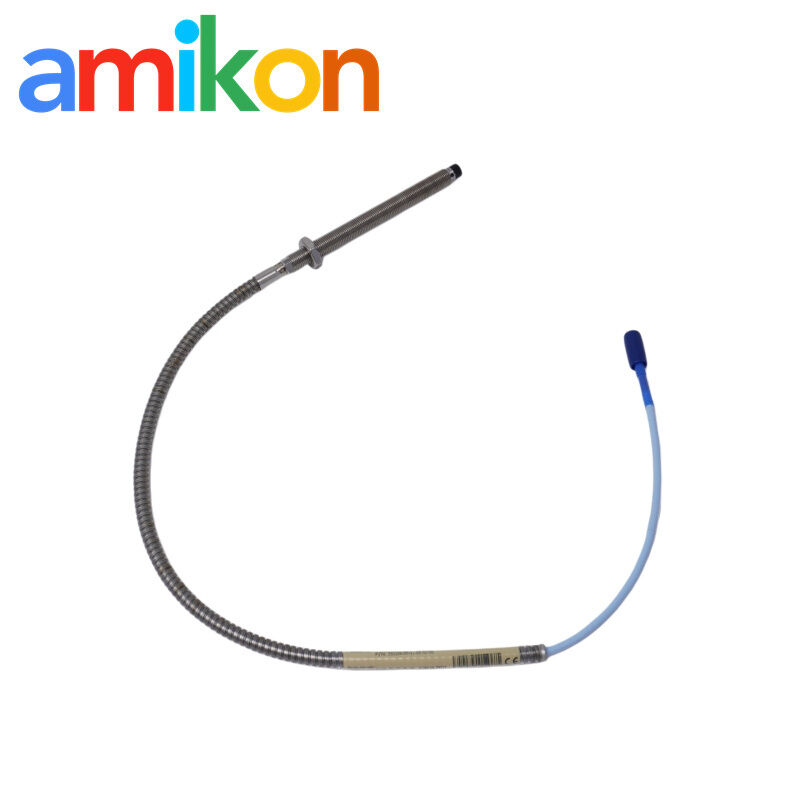

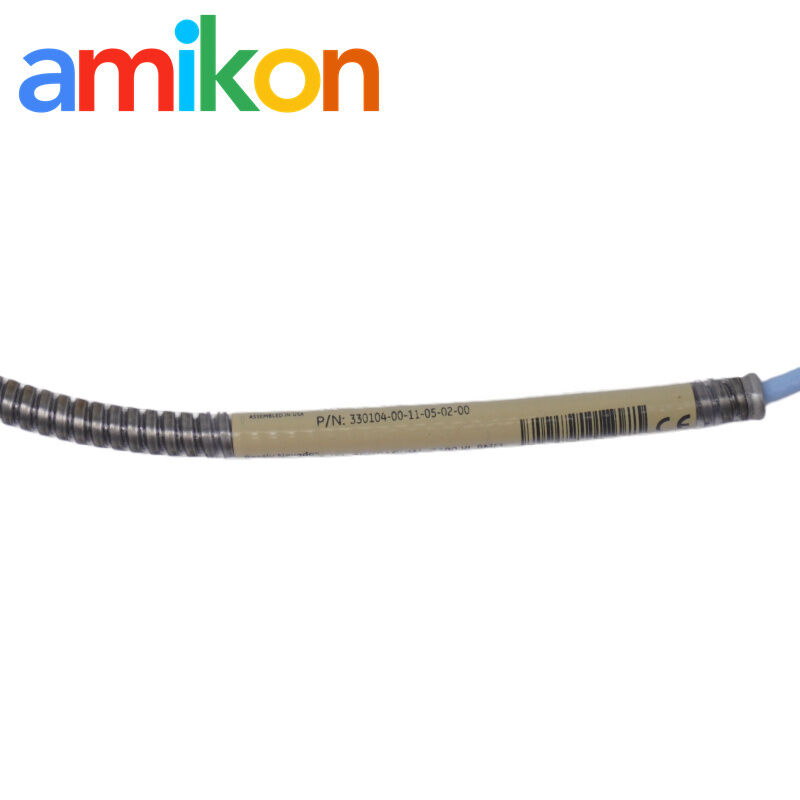

330104-00-11-05-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Key Applications
- Vibration and position monitoring on steam turbines, gas turbines, and centrifugal compressors
- Asset protection for fluid-film bearing machines
- Keyphasor (reference) and speed measurements
Technical Specifications
- Probe Tip Diameter: 8 mm (Rugged Polyphenylene Sulfide (PPS) encapsulation)
- Thread Type: Metric M10 x 1
- Dimensions: 0 mm unthreaded length | 110 mm overall case length
- Cable Length: Integrated 0.5-meter (1.6 feet) cable
- Cable & Protection: Flexible stainless steel armor with FEP outer jacket; equipped with gold-plated ClickLoc coaxial connector (finger-tight, vibration-proof locking mechanism)
System Features
- Complete Interchangeability: Probes, extension cables, and Proximitor sensors can be interchanged without individual calibration
- System Pairing: This 0.5-meter probe is typically paired with a 4.5-meter extension cable to match a standard 5-meter Proximitor Sensor system
Global Distribution Network
Amikon delivers premium industrial automation spare parts—principally PLC, DCS, and TSI systems—to over 160 countries across major global regions:
- North America (United States, Canada, Mexico) — Active supply channels dedicated to oil & gas facilities and automotive manufacturing plants
- Europe (Germany, UK, France, Italy) — Consistent procurement demand across automated heavy machinery lines and chemical processing plants
- Middle East & Africa (UAE, Saudi Arabia, South Africa) — Reliable deployment in major oil refineries and severe-environment mining operations
- Asia-Pacific (China, Singapore, Australia, India) — High-volume infrastructure support spanning semiconductor fabs, metallurgy, and power generation stations
- South America (Brazil, Chile, Argentina) — Primary logistical support for copper mining infrastructures and large-scale hydropower facilities
Request a Quote Now
Discontinued Part Specialist We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running
Massive Inventory, Ready to Ship Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch
100% Tested & 1-Year Warranty Every component undergoes strict quality inspection and comes with a comprehensive 12-month warranty
Minimize Your Downtime Fast global shipping and rapid quotation response to get your production line back up instantly
Technical Questions & Answers
Q1: What specific physical dimensional constraints must be considered when installing the 330104-00-11-05-02-00 probe into a machine casing?
The 330104-00-11-05-02-00 is defined by “00-11” configuration: 0 mm unthreaded length and 110 mm overall case length. Installation requires at least 110 mm internal counterbore clearance for proper positioning. M10 x 1 thread is used for mounting in 3300 XL 8 mm systems, mainly in turbine and compressor housings.
Q2: The 330104-00-11-05-02-00 has a "00" agency approval suffix. Does this prevent SIL application?
“00” only indicates no ATEX/IECEx certification on ordering level. Core 3300 XL 8 mm probe performance remains unchanged. It can be used in SIL 2 or SIL 3 loops when paired with 3300 XL Proximitor Sensor and 3500 system modules such as 3500/40M, depending on system design.
Q3: How does the 330104-00-11-05-02-00 shielding mitigate EMI/RFI near high-power drives?
The 75 Ω triaxial structure in 330104-00-11-05-02-00 keeps the eddy current signal separated from surrounding electrical noise. VFD cabinets and large motors tend to inject EMI into nearby wiring, and the dual-shield layout limits that coupling effect along the 3500 monitoring loop. Signal stability stays higher even when routing passes close to high-power drive sections.
Q4: Can the 330104-00-11-05-02-00 handle oil exposure or fluid ingress at the casing exit?
Stainless steel armor plus FEP jacket provides resistance to oil mist and process fluids along the routing path. Viton O-ring seals the probe mounting point. It is not designed as a pressure-tight barrier against internal fluid migration.
Q5: What electrical check confirms the 330104-00-11-05-02-00 condition before gapping?
Measure DC resistance between center conductor and shield after disconnecting ClickLoc. Nominal value is around 7.45 Ω. Stable reading confirms coil integrity; near 0 Ω indicates short; open loop indicates cable or coil failure.
Compatible Parts Reference
| 3500/22M 288055-01 | 330130-080-00-00 |
| 3500/33 149986-01 | 330130-045-00-05 |
| 3500/60 163179-01 | 330130-085-00-00 |
| 3500/72M 176449-08 | 09E01KPS 3300XL 8MM |
| 3500/62 163179-03 | 330180-50-05 |
| 3500/40M 140734-01 | TM0180-08-00-15-10-02 |
| 330500-02-00 | TM0180-A08-B00-C02-D10 |
| 135137-01 | 3500/70M 176449-09 |
| 149992-02 | 330130-040-02-00 |
| 147663-01 | 3500/45 140072-04 |
| 3500/94 145988-01 | 330130-045-01-00 |
| 140482-01 | 330130-080-00-05 |
| 330500-00-20 | 990-04-70-02-00 |
| 170133-090-00 | 330104-15-23-10-02-00 |
| 3500/32M 149986-02 | 330104-19-25-10-11-05 |
| 1900/65A 172323-01 | 330103-00-05-10-02-05 |
| 330180-X0-05 | 330103-00-18-05-02-05 |
| 125720-01 | 330130-045-02-05 |
| 125760-01 | 330101-00-08-05-02-05 |
| 125768-01 | 330130-085-00-05 |
