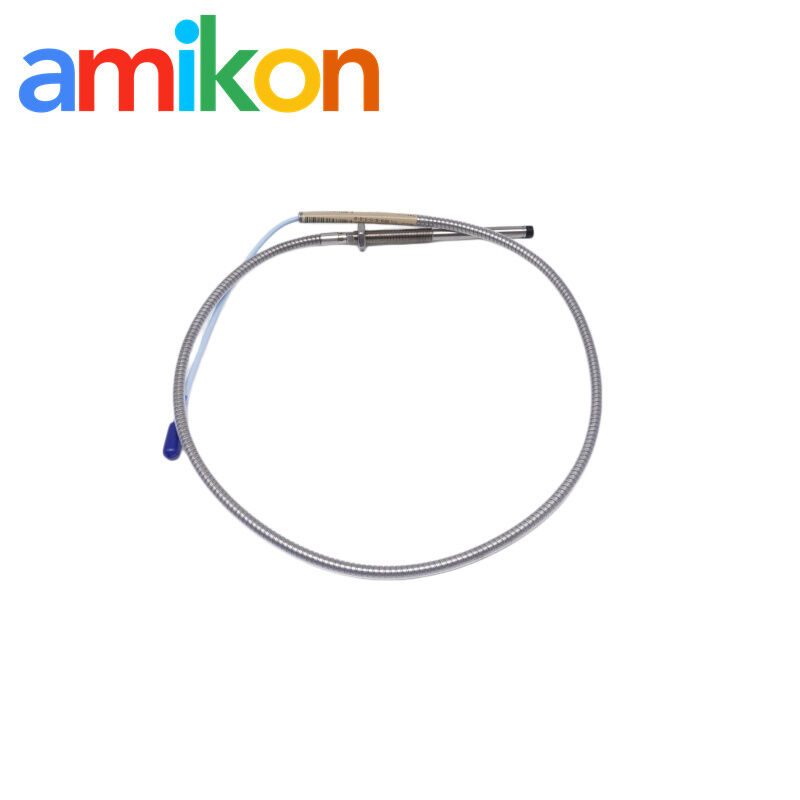

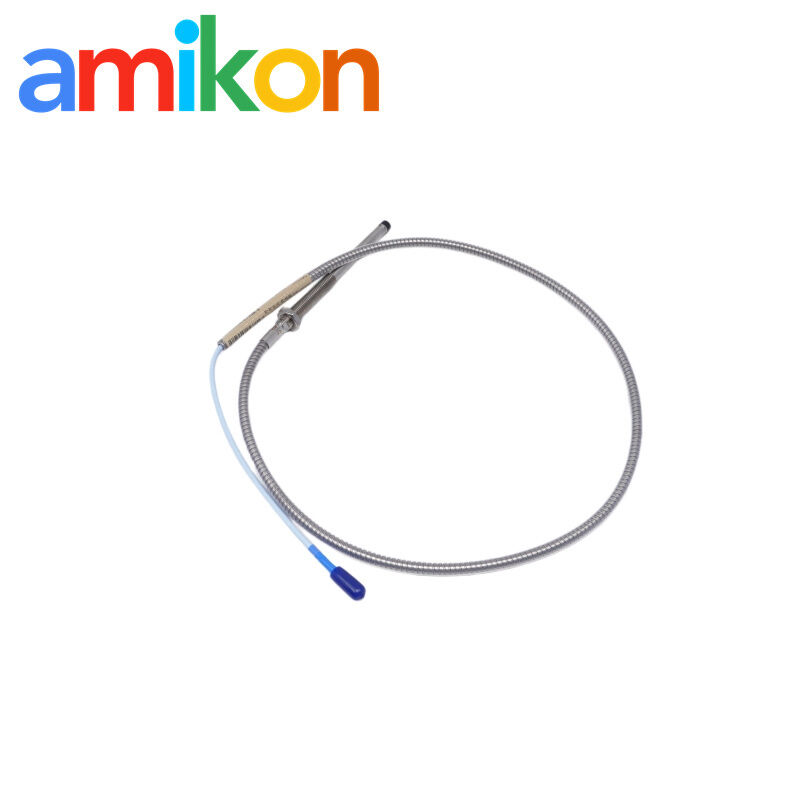

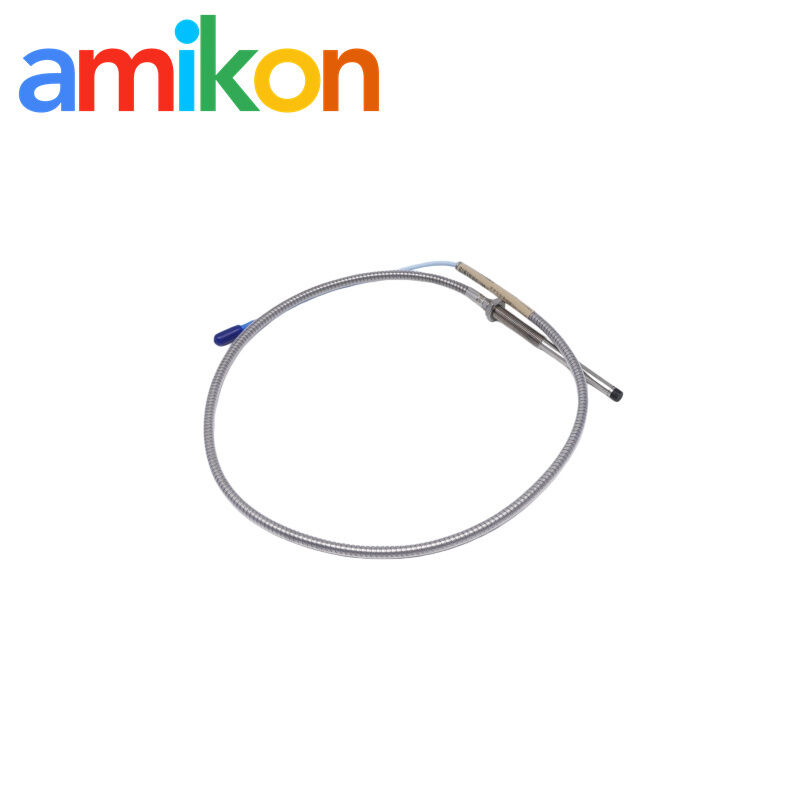

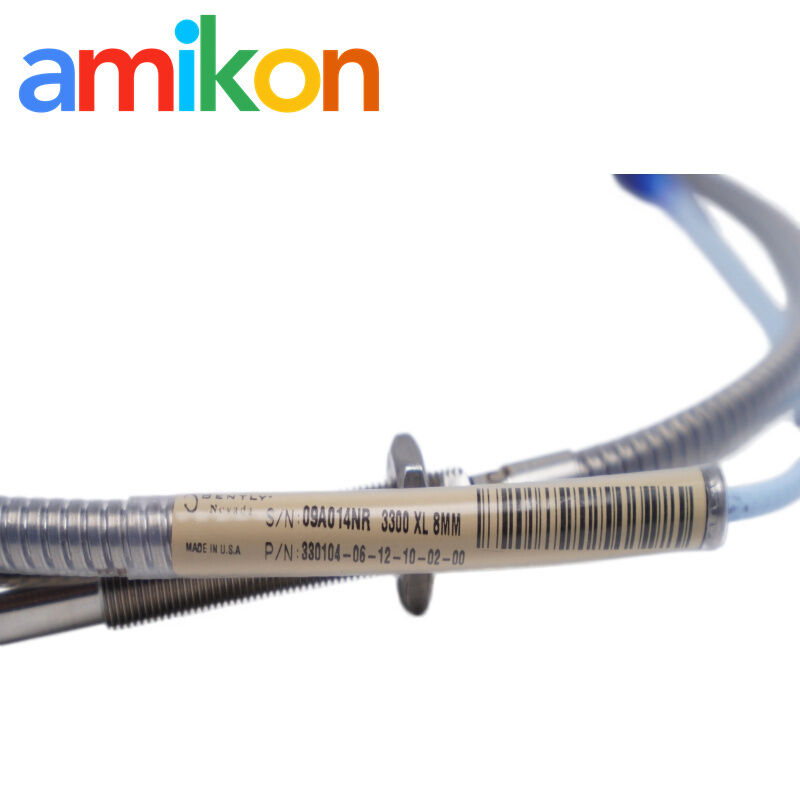

330104-06-12-10-02-00 Bently Nevada 3300 XL 8 mm Probe
Overview
The Bently Nevada 330104-06-12-10-02-00 is a premium 3300 XL 8 mm Proximity Probe featuring a Metric M10 x 1 thread and integrated stainless steel armor. This non-contacting eddy current transducer system provides an output voltage directly proportional to target distance. It is engineered to monitor both static displacement (axial position) and dynamic vibration in critical high-speed industrial rotating machinery.
Exact Configuration Breakdown
- Base Part Number (330104): 3300 XL 8 mm Proximity Probe, Metric M10 x 1 thread, with protective stainless steel armor.
- Unthreaded Length Option (06): 60 mm unthreaded case length.
- Overall Case Length Option (12): 120 mm overall metal housing length.
- Total Length Option (10): 1.0 Metre (3.3 feet) integrated cable length.
- Connector Type Option (02): Miniature coaxial ClickLoc connector, standard cable.
- Agency Approval Option (00): Standard industrial configuration (No hazardous area certification required).
Key Performance & Engineering Features
- API 670 Standard Compliance: Fully complies with the American Petroleum Institute (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
- Ultimate Mechanical Robustness: Designed with high-durability Polyphenylene sulfide (PPS) tip encapsulation and patented TipLoc & CableLoc molding. This guarantees a 330 N (75 lbf) case-to-lead pull strength.
- Secure ClickLoc Connectors: Features corrosion-resistant, gold-plated connectors with an automated tactile locking mechanism that "clicks" when tight. This prevents loosening from machine vibrations without requiring specialized tools.
- Complete Cross-Interchangeability: Allows 100% component swap out with other 3300 XL series items, completely eliminating the need for complex bench calibration or matching individual parts.
- Excellent Linear Range: Delivers a continuous 2 mm (80 mils) linear measuring range with a standard scale factor of 7.87 V/mm (200 mV/mil).
Primary Applications
- Steam and Gas Turbine dynamic vibration monitoring.
- Centrifugal and Axial Compressor protection.
- Fluid-Film Bearing shaft displacement and dynamic position measurement.
- Keyphasor ® speed reference, tachometer, and overspeed protection.
Global Distribution
Amikon delivers premium industrial automation spare parts—principally PLC, DCS, and TSI systems—to over 160 countries across major global regions:
- North America (United States, Canada, Mexico) — oil & gas side is pretty active, and automotive plants also show up a lot in shipments.
- Europe (Germany, UK, France, Italy) — more on machinery lines and chemical plants, nothing too surprising here, but demand stays consistent.
- Middle East & Africa (UAE, Saudi Arabia, South Africa) — refineries mostly, plus mining projects in harsher environments where equipment reliability matters.
- Asia-Pacific (China, Singapore, Australia, India) — quite mixed, from semiconductor fabs to metallurgy and power stations, depends on the country.
- South America (Brazil, Chile, Argentina) — mining is the big one, especially copper-related projects, hydropower also comes up from time to time.
Request a Quote Now
Why Choose Amikon
- Discontinued Part Specialist
We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running. - Massive Inventory, Ready to Ship
Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch. - 100% Tested & 1-Year Warranty
Every component undergoes strict quality inspection and comes with a comprehensive 12-month warranty. - Minimize Your Downtime
Fast global shipping and rapid quotation response to get your production line back up instantly.
Frequently Asked Questions
Q1: What unique installation advantages does the specific suffix code of the 330104-06-12-10-02-00 probe offer for heavy-duty gas turbines?
A1: This one usually shows up in turbine installs where space isn’t very friendly. The 60 mm unthreaded section basically helps it slide through thicker housings or around oil deflectors without much trouble. The stainless steel armor is also one of those things people tend to rely on when the environment is rough or oily or just not clean.
Q2: Why does the 330104-06-12-10-02-00 model feature a 1.0-meter cable length, and how does this impact signal integrity?
A2: The “10” code is just the 1.0 m integral cable version. In a 3300 XL setup, this kind of fixed cable keeps things simple. Fewer joins inside the machine, less extra handling during install. That’s usually the main reason it gets picked.
Q3: How should engineers pair the 330104-06-12-10-02-00 with a Proximitor Sensor to ensure full API 670 compliance?
A3: It’s normally used with a matching 1.0 m 3300 XL Proximitor Sensor like 330180-10-00 or 330180-11-00. People generally don’t extend the cable unless they really have to, since the system is already set up around that length.
Q4: From an operational longevity standpoint, how do TipLoc and CableLoc innovations prevent common field failures in the 330104-06-12-10-02-00 probe?
A4: TipLoc keeps the sensing tip locked onto the body, and CableLoc is more about keeping the cable from moving or loosening over time. Together with the Viton O-ring inside, it’s basically aimed at keeping things stable in vibration-heavy machines.
Q5: Can the 330104-06-12-10-02-00 handle high-vibration connections securely, and do I need specialized torque tools for its ClickLoc connector?
A5: No special tool needed. The ClickLoc connector just clicks in place. Once it’s seated, it usually holds well enough even when the machine is shaking or running at high load.
Q6: What is the significance of the Metric M10x1 thread on the 330104-06-12-10-02-00 during a legacy plant modernization project?
A6: TM10x1 just means it fits a lot of existing mounting points. In upgrade work, that makes life easier because you’re not redoing brackets or changing the mechanical layout too much.
Compatible Parts Reference
| Part Number | Part Number |
|---|---|
| 3500/22M 288055-01 | 330130-080-00-00 |
| 3500/33 149986-01 | 330130-045-00-05 |
| 3500/60 163179-01 | 330130-085-00-00 |
| 3500/72M 176449-08 | 09E01KPS 3300XL 8MM |
| 3500/62 163179-03 | 330180-50-05 |
| 3500/40M 140734-01 | TM0180-08-00-15-10-02 |
| 330500-02-00 | TM0180-A08-B00-C02-D10 |
| 135137-01 | 3500/70M 176449-09 |
| 149992-02 | 330130-040-02-00 |
| 147663-01 | 3500/45 140072-04 |
| 3500/94 145988-01 | 330130-045-01-00 |
| 140482-01 | 330130-080-00-05 |
| 330500-00-20 | 990-04-70-02-00 |
| 170133-090-00 | 330104-15-23-10-02-00 |
| 3500/32M 149986-02 | 330104-19-25-10-11-05 |
| 1900/65A 172323-01 | 330103-00-05-10-02-05 |
| 330180-X0-05 | 330103-00-18-05-02-05 |
| 125720-01 | 330130-045-02-05 |
| 125760-01 | 330101-00-08-05-02-05 |
| 125768-01 | 330130-085-00-05 |
