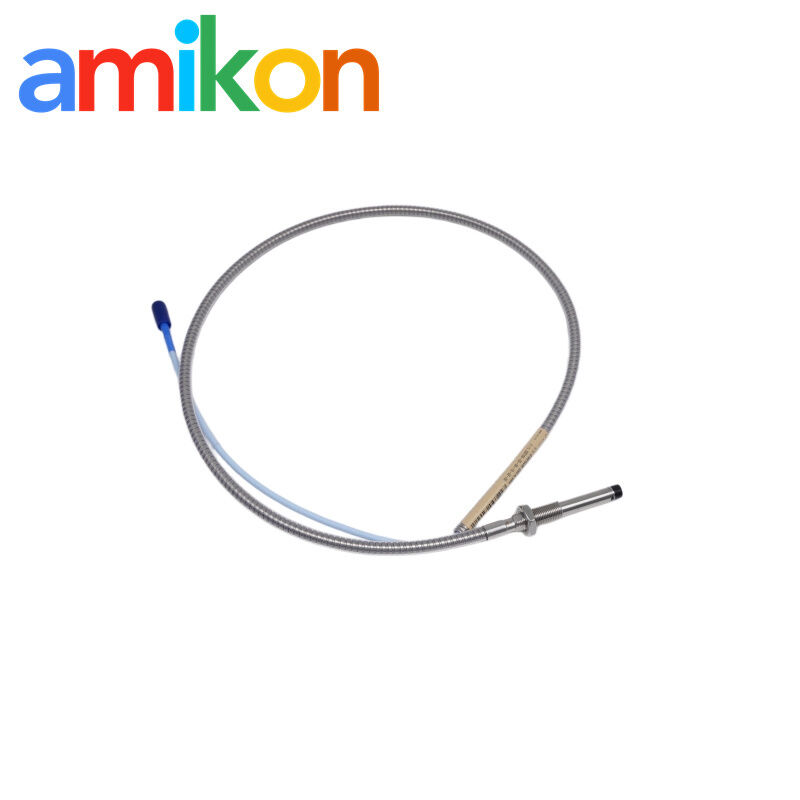

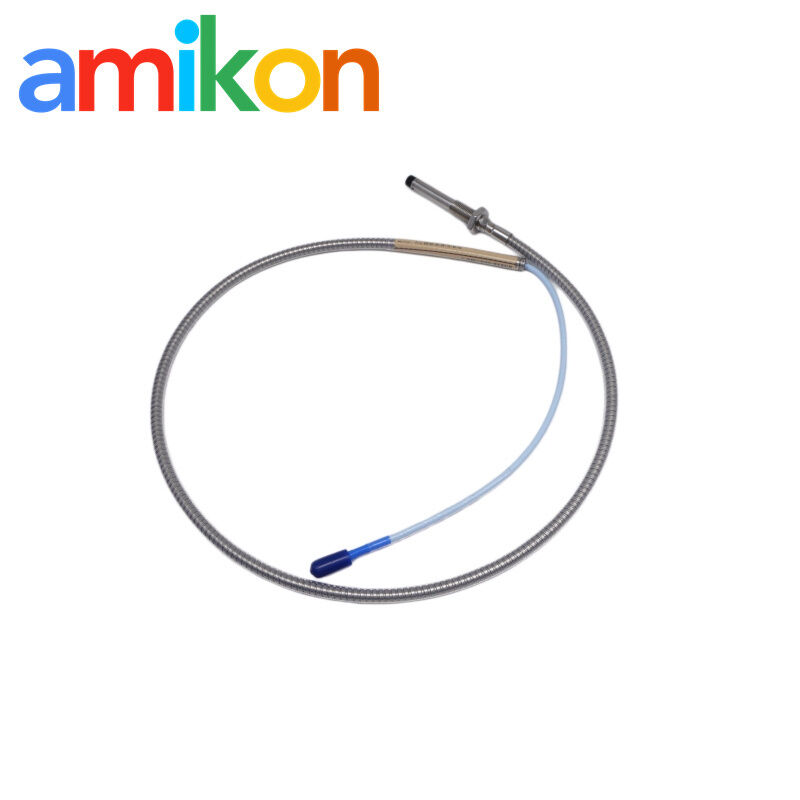

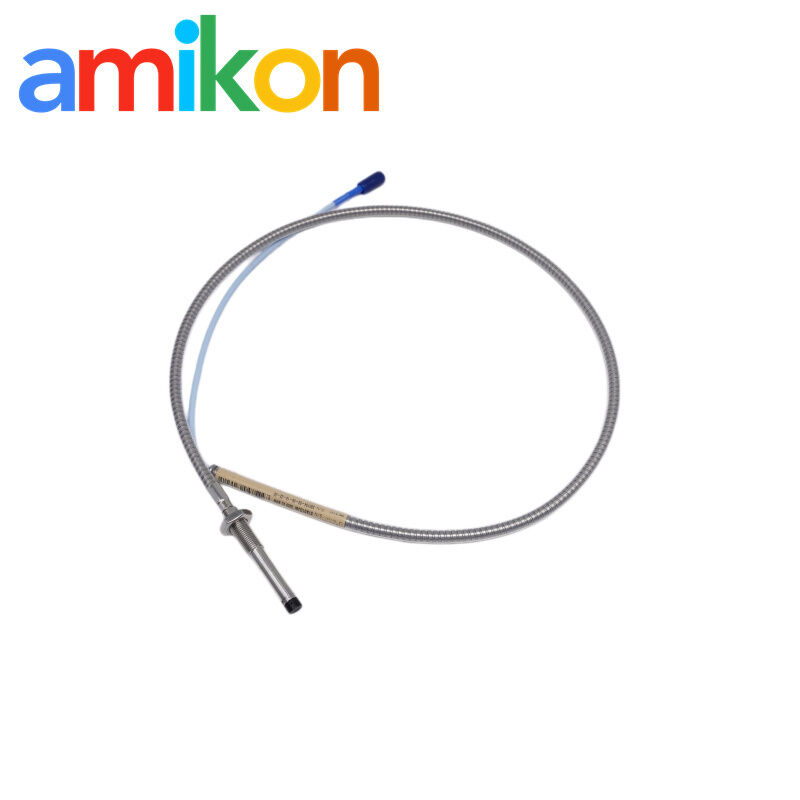

330104-03-06-10-02-00 Bently Nevada 3300 XL 8 mm Probe
Bently Nevada 330104 3300 XL Proximitor Sensor
330104-03-06-10-02-00 steam turbine vibration analysis
3300 XL 8 mm Proximity Probe radial vibration measurement
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-03-06-10-02-00
Bently Nevada 330104 3300 XL Proximitor Sensor
,330104-03-06-10-02-00 steam turbine vibration analysis
,3300 XL 8 mm Proximity Probe radial vibration measurement
- Dual Capabilities: Measures both static values (axial position) and dynamic values (radial vibration)
- API 670 Compliant: Fully complies with API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability
- Primary Applications: Optimized for fluid-film bearing machines, Keyphasor reference and speed measurements
- No Bench Calibration: Probes, extension cables, and Proximitor sensors are fully interchangeable without component matching
- Backward Compatible: Completely compatible with older, non-XL 3300 series 5 mm and 8 mm transducer system components
- Stainless Steel Armor: Flexible AISI 302 or 304 stainless steel armor with FEP outer jacket
- Patented Structural Integrity: TipLoc molding method and CableLoc design with 330 N (75 lbf) pull strength
- Rugged Materials: Polyphenylene sulfide (PPS) plastic probe tip and AISI 303 or 304 stainless steel case
- ClickLoc Connectors: Corrosion-resistant, gold-plated connectors requiring only finger-tight torque
- Locking Mechanism: Connectors "click" when tight, preventing loosening without special tools
Amikon delivers premium industrial automation spare parts to over 160 countries across major global regions:
- North America (United States, Canada, Mexico): Oil & gas and automotive plants
- Europe (Germany, UK, France, Italy): Machinery lines and chemical plants
- Middle East & Africa (UAE, Saudi Arabia, South Africa): Refineries and mining projects
- Asia-Pacific (China, Singapore, Australia, India): Semiconductor fabs, metallurgy, and power stations
- South America (Brazil, Chile, Argentina): Mining and hydropower projects
We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running.
Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch.
Every component undergoes strict quality inspection with comprehensive 12-month warranty.
Fast global shipping and rapid quotation response to get your production line back up instantly.

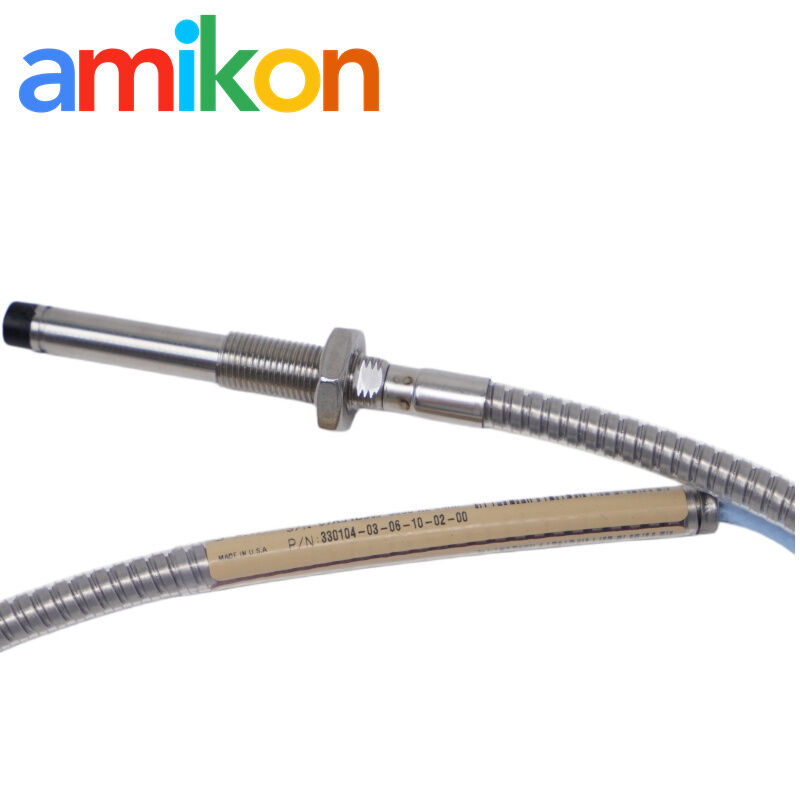

A1: The part number 330104-03-06-10-02-00 represents a Bently Nevada 3300 XL series 8 mm eddy current proximity transducer probe. The breakdown includes:
- 330104: 8 mm standard mount probe with M10 x 1 metric thread and protective stainless steel armor jacket
- 03: 30 mm unthreaded length for the probe case
- 06: 60 mm overall case length
- 10: 1.0-meter total integral cable length (approximately 3.3 feet)
- 02: Standard cable with miniature coaxial ClickLoc gold-plated connector without connector protector
- 00: No specialized third-party agency safety approvals required
A2: The probe has a standard linear measurement range of 2.0 mm (80 mils). For radial vibration monitoring, the probe should be mechanically gapped at approximately 1.27 mm (50 mils) from the observed conductive target surface. At this distance, the calibrated Proximitor Sensor will deliver a nominal static DC bias output voltage of -9 Vdc.
A3: The probe features flexible AISI 302 or 304 stainless steel armor sleeve with FEP outer jacket for protection against physical pinching, abrasion, and fluid exposure. It utilizes Bently Nevada's patented TipLoc molding method and CableLoc design, securing the junction to withstand maximum rated pull strength of 330 N (75 lbf).
A4: The total combined length of probe cable and extension cable must exactly match the system length of the Proximitor Sensor:
- For 5-meter system: Connect to 4.0-meter 330130 extension cable and 5-meter Proximitor Sensor
- For 9-meter system: Connect to 8.0-meter 330130 extension cable and 9-meter Proximitor Sensor
A5: Yes, the probe features full backward compatibility and is both physically and electrically interchangeable with traditional, non-XL 3300 series components. However, if mixed with older non-XL extension cables or Proximitor designs, the entire loop's performance specifications, accuracy thresholds, and temperature stability limits will be downgraded to match the lower performance standards of the legacy non-XL 3300 system.
| Product | Part Number |
|---|---|
| 3500/22M | 288055-01 | 330130-080-00-00 |
| 3500/33 | 149986-01 | 330130-045-00-05 |
| 3500/60 | 163179-01 | 330130-085-00-00 |
| 3500/72M | 176449-08 | 09E01KPS 3300XL 8MM |
| 3500/62 | 163179-03 | 330180-50-05 |
| 3500/40M | 140734-01 | TM0180-08-00-15-10-02 |
| 330500-02-00 | TM0180-A08-B00-C02-D10 |
| 135137-01 | 3500/70M 176449-09 |
| 149992-02 | 330130-040-02-00 |
| 147663-01 | 3500/45 140072-04 |
| 3500/94 | 145988-01 | 330130-045-01-00 |
| 140482-01 | 330130-080-00-05 |
| 330500-00-20 | 990-04-70-02-00 |
| 170133-090-00 | 330104-15-23-10-02-00 |
| 3500/32M | 149986-02 | 330104-19-25-10-11-05 |
| 1900/65A | 172323-01 | 330103-00-05-10-02-05 |
| 330180-X0-05 | 330103-00-18-05-02-05 |
| 125720-01 | 330130-045-02-05 |
| 125760-01 | 330101-00-08-05-02-05 |
| 125768-01 | 330130-085-00-05 |
