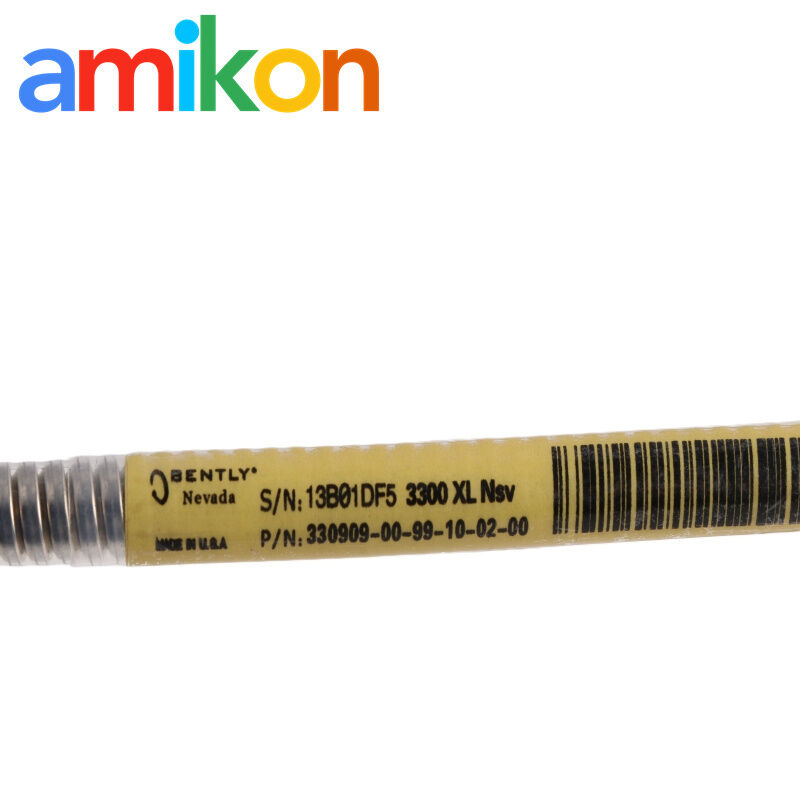

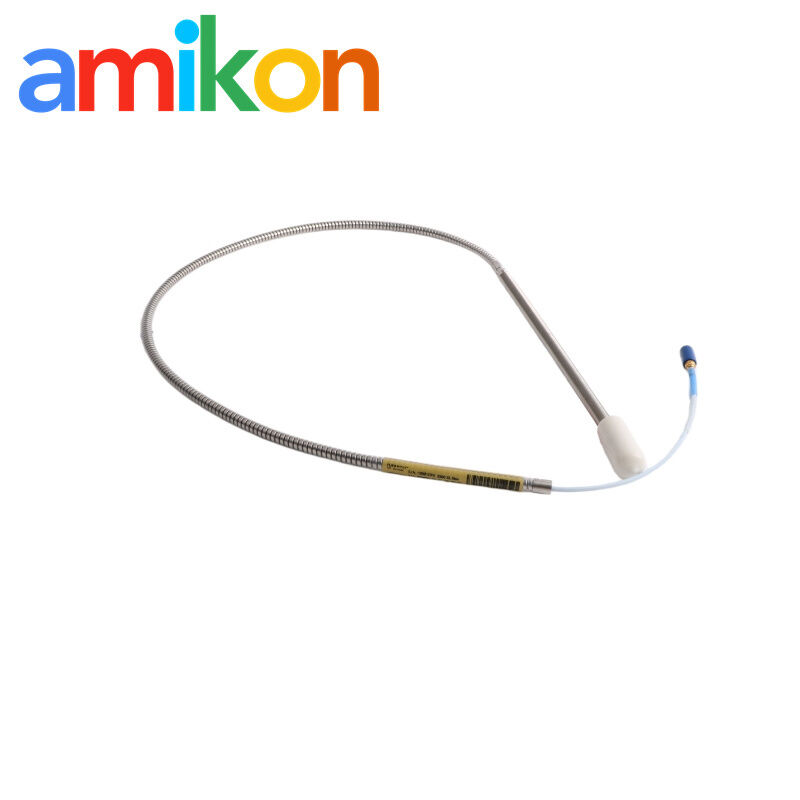

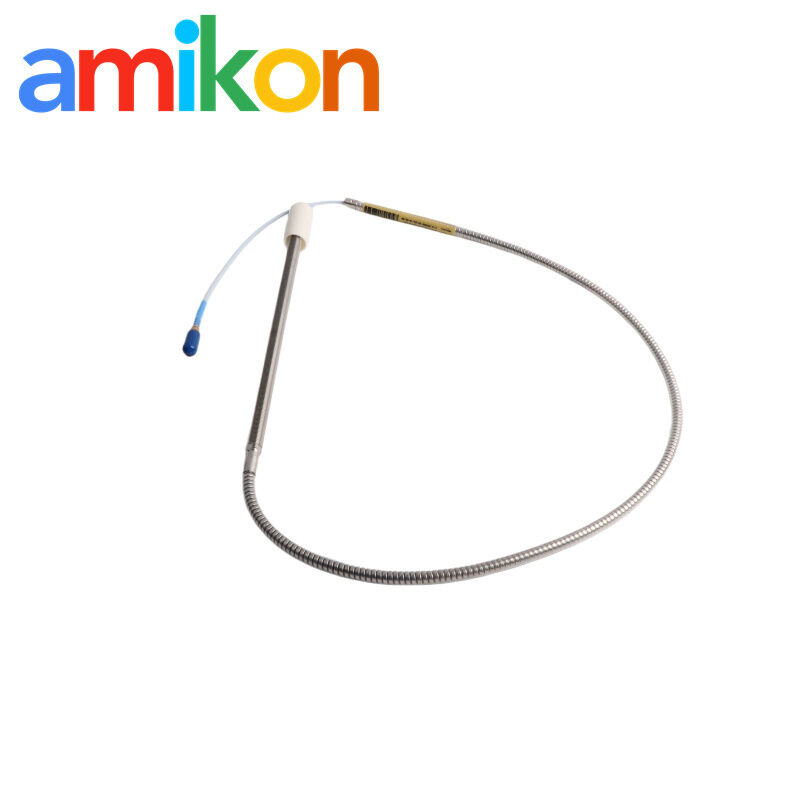

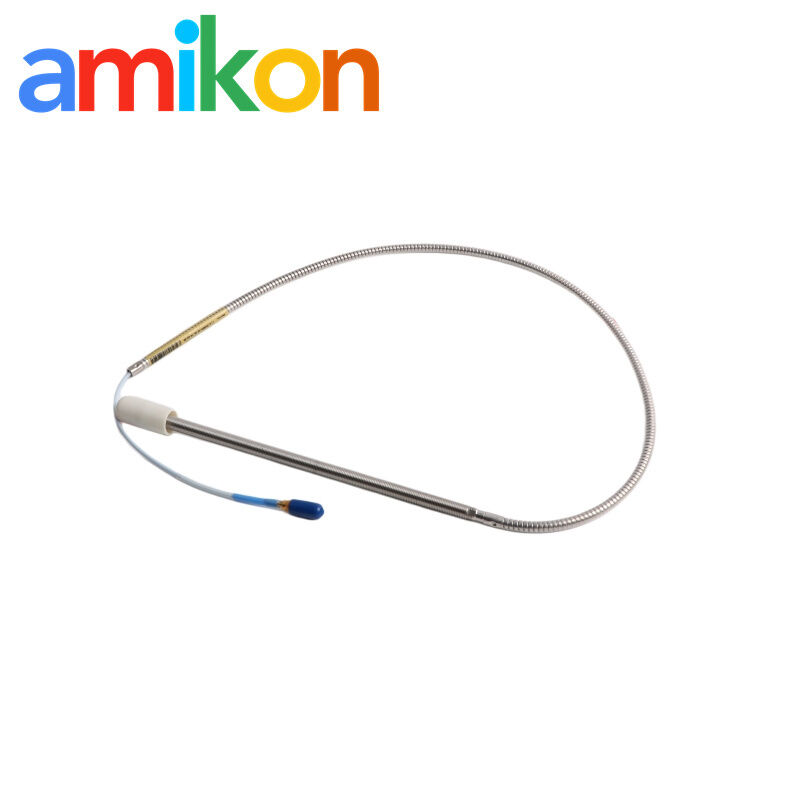

330909-00-99-10-02-00 Bently Nevada 3300 NSv Proximity Probe
Bently Nevada 330909 3300 XL NSv Proximitor Sensor
330909-00-99-10-02-00 centrifugal air compressor monitor
3300 NSv Proximity Probe eddy current distance measurement
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330909-00-99-10-02-00
Bently Nevada 330909 3300 XL NSv Proximitor Sensor
,330909-00-99-10-02-00 centrifugal air compressor monitor
,3300 NSv Proximity Probe eddy current distance measurement
330909-00-99-10-02-00
(Bently Nevada 3300 NSv Proximity Probe, 3/8-24 UNF thread, with armor)
- 00 (Unthreaded Length): 0.0 in
- 99 (Overall Case Length): 9.9 in
- 10 (Total Length): 1.0 meter (39 in)
- 02 (Connector/Cable): Miniature coaxial ClickLoc connector, standard cable (no protector)
- 00 (Agency Approval): Not required
- Lock Nut: 9/16 inch
- Wrench Flats: 5/16 inch
- Linear Range: 1.5 mm (60 mils)
Amikon delivers premium industrial automation spare parts—principally PLC, DCS, and TSI systems—to over 160 countries across major global regions:
- North America (United States, Canada, Mexico) — oil & gas and automotive plants
- Europe (Germany, UK, France, Italy) — machinery lines and chemical plants
- Middle East & Africa (UAE, Saudi Arabia, South Africa) — refineries and mining projects
- Asia-Pacific (China, Singapore, Australia, India) — semiconductor fabs, metallurgy, and power stations
- South America (Brazil, Chile, Argentina) — mining and hydropower projects
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running.
Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch.
Every component undergoes strict quality inspection and comes with a comprehensive 12-month warranty.
Fast global shipping and rapid quotation response to get your production line back up instantly.
A1: NSv (Narrow Side View), tight clearance around bearings. Fluid-film machines, side/rear access often limited. Radial vibration, axial thrust, tach, Keyphasor signals. Centrifugal air compressors, refrigeration, process gas compressors. Shaft <51 mm / 2 in.
A2: Linear range 1.5 mm (60 mils), ASF 7.87 V/mm (200 mV/mil), AISI 4140 target. Frequency response 0–10 kHz (-3 dB). NSv tip reduces cross-talk. Dual-axis spacing ~23–25 mm, depends on mounting.
A3: PPS tip, AISI 304 body. AISI 302 armored cable, FEP insulation. 220 N tensile strength. 3/8-24 UNF-2A thread. 9.9 in case length, 1.0 m total. Lock nut 9/16 in.
A4: Probe → 3300 NSv extension cable (330930) via ClickLoc.
Then → 3300 XL NSv Proximitor Sensor (330980).
Output → Bently Nevada 3500/40M monitor module.
