330909-00-60-10-02-05 Bently Nevada 3300 NSv Proximity Probe
Bently Nevada 330909-00-60-10-02-05 3300 XL NSv Proximitor Sensor
3300 NSv Proximity Probe centrifugal air compressor protection
330909 eddy current sensor radial vibration measurement
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330909-00-60-10-02-05
Contact Us
Request A Quote
Product Details
Packaging:
Original New Packaging
Place Of Shipment:
Xiamen,China
Model:
330909-00-60-10-02-05
Shipping:
TNT, DHL, FedEx, EMS, UPS
Expected Shipping Dimensions:
118x1.5x1.2cm
Weight:
0.16kg
Highlight:
Bently Nevada 330909-00-60-10-02-05 3300 XL NSv Proximitor Sensor
,3300 NSv Proximity Probe centrifugal air compressor protection
,330909 eddy current sensor radial vibration measurement
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

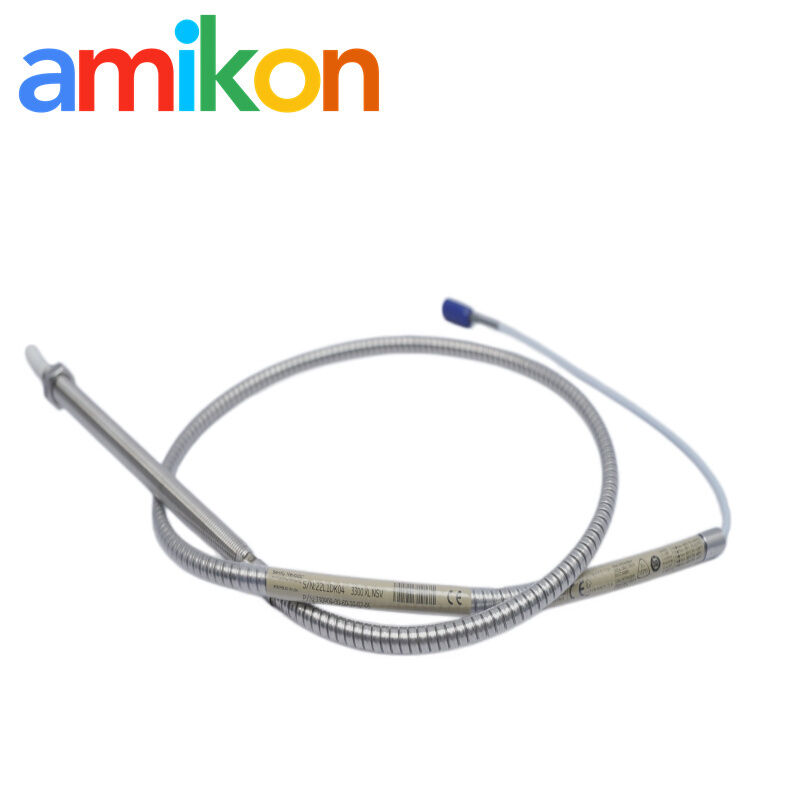

330909-00-60-10-02-05 Bently Nevada 3300 NSv Proximity Probe
Physical & Mechanical Attributes
- Thread Type: Standard 3/8-24 UNF-2A thread mount
- Case Armor: Integrated AISI 302 Stainless Steel Armor providing 220 N (50 lb) case-to-armor tensile pull strength
- Case Dimensions: Overall case length of 6.0 inches with 0.0 inches of unthreaded length (fully threaded body)
- Cable Length: Standard total probe length of 1.0 meter (approx. 39 inches)
- Connector Type: Miniature coaxial ClickLoc connector made of gold-plated brass without integrated connector protector
Functional & Performance Attributes
- Design Configuration: Specialized Narrow Side View (NSv) profile for machines with restricted installation counterbore, side-view, or rear-view clearances
- Measurement Applications: Optimized for non-contacting radial vibration, axial (thrust) position, tachometer, and Keyphasor phase reference tracking
- Small Target Optimization: Ideal for radial vibration monitoring on shafts smaller than 51 mm (2 in) and axial targets smaller than 15 mm (0.6 in)
- Linear Range & Sensitivity: Linear range of 1.5 mm (60 mils) with Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil)
- System Compatibility: Mechanically and electrically interchangeable with legacy Bently Nevada 3300 RAM transducer systems and replaces 3000/7000 series 190 systems
Environmental & Compliance Attributes
- Material Construction: Robust polyphenylene sulfide (PPS) probe tip attached using TipLoc molding, combined with AISI 304 stainless steel probe case
- Temperature & Pressure Sealing: Operating and storage temperature range from -52 °C to +177°C with Viton O-ring differential pressure seal
- Hazardous Area Approvals: Multiple Approvals (Option 05) certified for cNRTLus, ATEX, and IECEx intrinsic safety and non-incendive zones (Class I, Zone 0/2; Ex ia/nA/ec)
- Functional Safety: Certified for safety-critical asset protection system compliance under SIL 2 (HFT = 0) or SIL 3 (HFT = 1) parameters
Global Distribution
Amikon delivers premium industrial automation spare parts—principally PLC, DCS, and TSI systems—to over 160 countries across major global regions:
- North America (United States, Canada, Mexico): Oil & gas and automotive plants
- Europe (Germany, UK, France, Italy): Machinery lines and chemical plants
- Middle East & Africa (UAE, Saudi Arabia, South Africa): Refineries and mining projects in harsh environments
- Asia-Pacific (China, Singapore, Australia, India): Semiconductor fabs, metallurgy, and power stations
- South America (Brazil, Chile, Argentina): Mining (especially copper-related projects) and hydropower
Our Services
Discontinued Part Specialist
We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running.
Massive Inventory, Ready to Ship
Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch.
100% Tested & 1-Year Warranty
Every component undergoes strict quality inspection and comes with a comprehensive 12-month warranty.
Minimize Your Downtime
Fast global shipping and rapid quotation response to get your production line back up instantly.
Frequently Asked Questions
Q1: When is the 330909-00-60-10-02-05 the better choice over a standard 8mm probe?
A1: The Bently Nevada 330909-00-60-10-02-05 is usually chosen when installation space gets tight. Think centrifugal air compressor protection, small process gas compressor setups, or other industrial rotating machinery where normal 8mm probes struggle with side or rear clearance. As part of the 3300 XL NSv proximity probe series, it uses a tighter magnetic field to reduce side interference, which helps with small shaft vibration detection and more stable non-contact displacement sensor readings.
Q2: Any installation points technicians of the 330909-00-60-10-02-05 should pay attention to?
A2: Yes, mainly threading and torque. The 330909-00-60-10-02-05 comes with a 3/8-24 UNF armored probe body, so forcing installation into the casing is something technicians generally avoid. Recommended mounting torque is around 11.3 N·m (100 in·lb). Going too far can put unnecessary pressure on the internal sensing structure.
Q3: What does “-02-05” mean on the 330909-00-60-10-02-05?
A3: The -02 version uses a ClickLoc miniature coaxial connector, while -05 relates to hazardous area monitoring ATEX IECEx approvals. For loop setup, this 330909 eddy current sensor normally works with a 3300 XL NSv Proximitor Sensor and a matching 3300 NSv extension cable. Cable length matters here — most systems follow a tuned total loop length, usually around 5 or 7 meters.
Q4: Can the 330909-00-60-10-02-05 replace older Bently Nevada probes?
A4: Usually yes for 3300 RAM systems. Many plants use it during upgrades because the probe fits older layouts without major changes. But if the site still runs very old transducer systems, a full Bently Nevada transducer system upgrade may be needed instead of replacing only one sensor.
Q5: How do engineers avoid crosstalk with multiple 330909-00-60-10-02-05 probes?
A5: On compact shafts, probes placed too close together can sometimes interfere with each other. In radial vibration measurement layouts, engineers normally leave enough spacing between probe tips to reduce signal overlap. That becomes more important in tight-clearance proximity measurement environments or confined installations.
