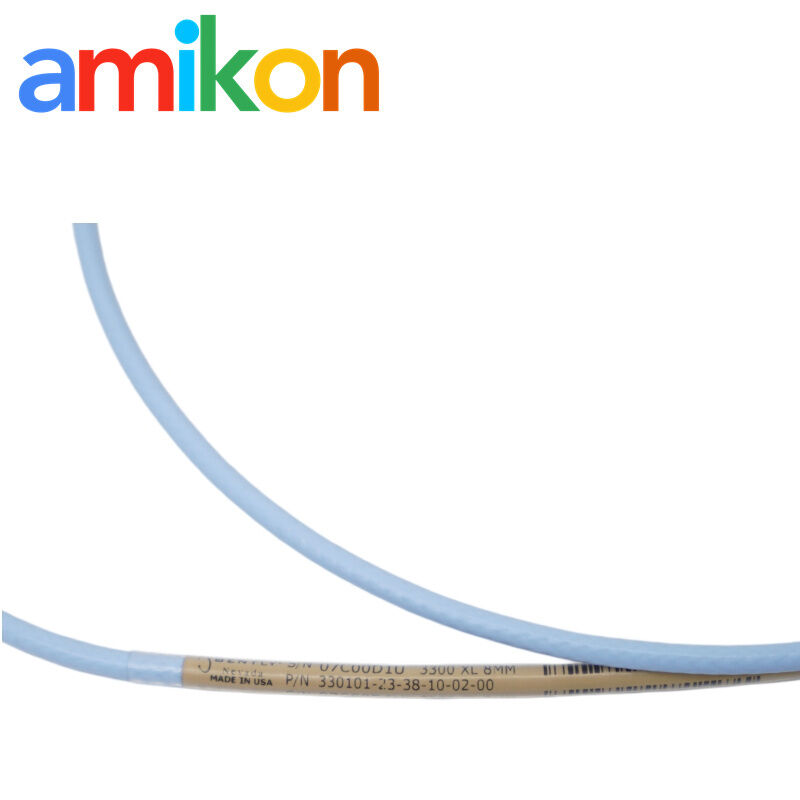

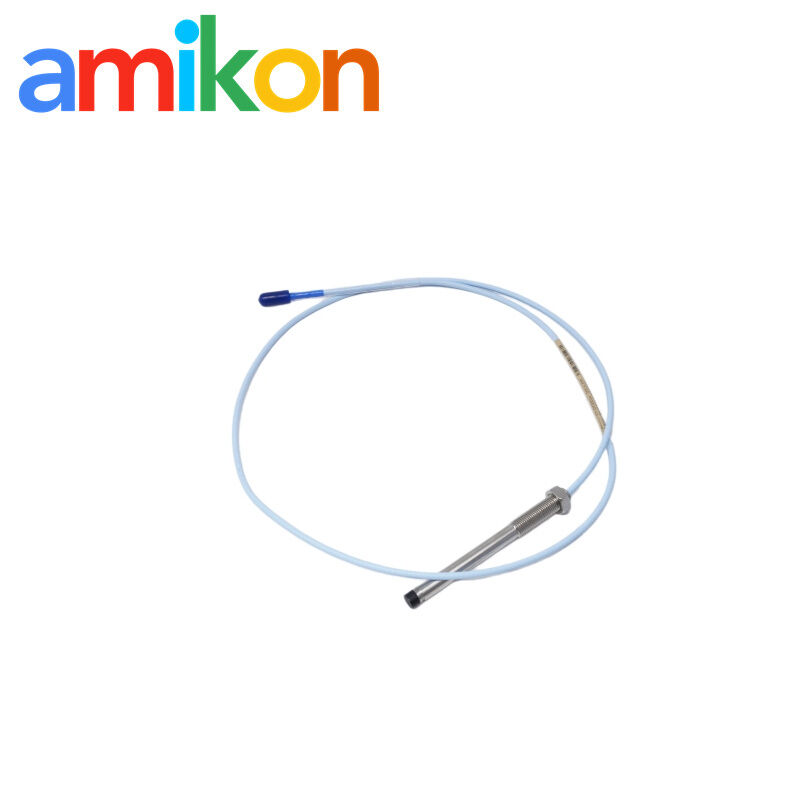

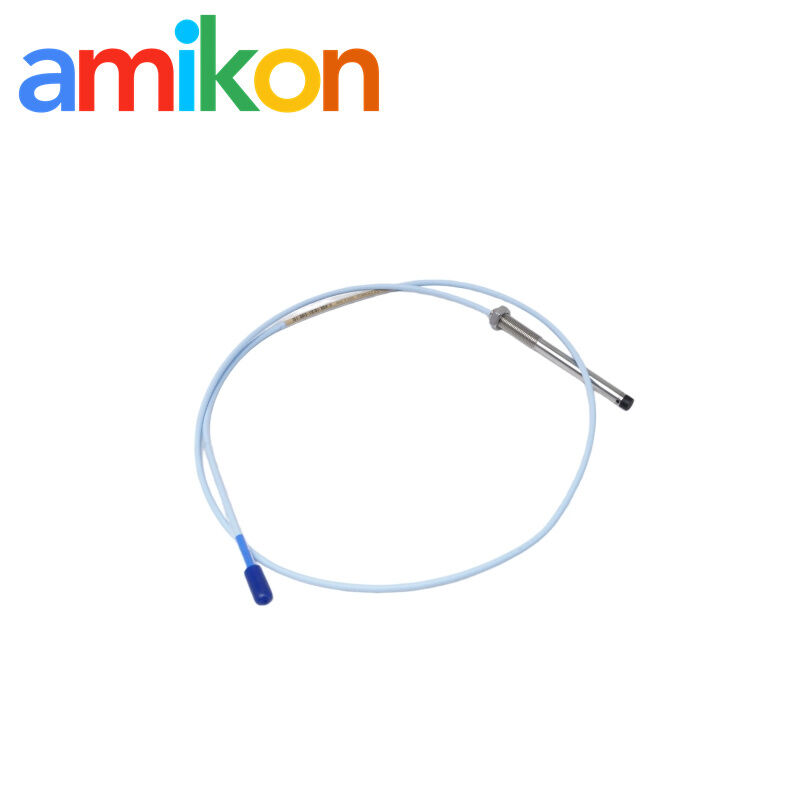

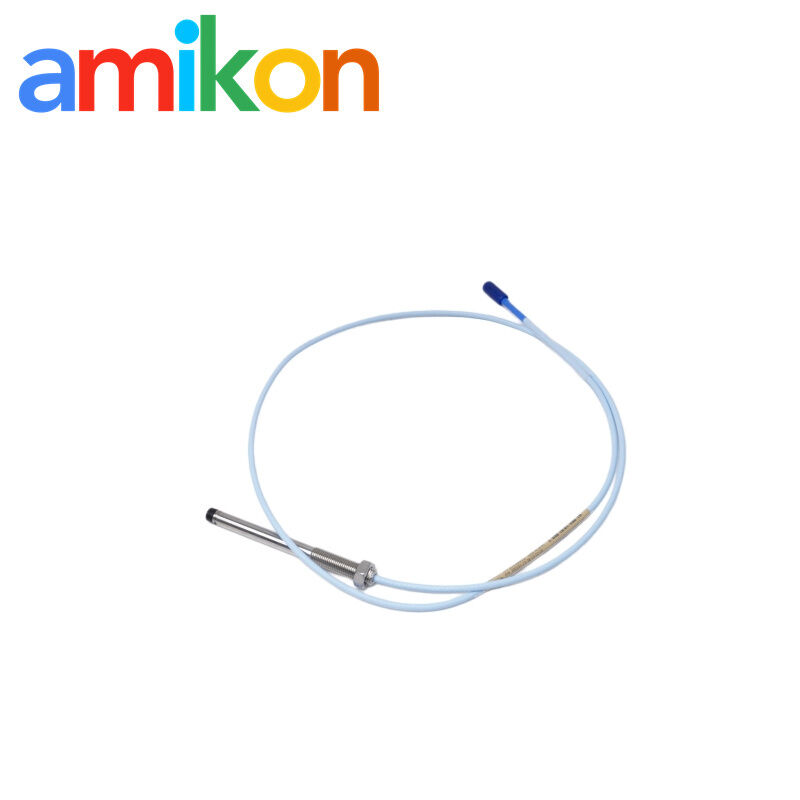

330101-23-38-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probes
Bently Nevada 330101 3300 XL Proximitor Sensor
330101-23-38-10-02-00 Probe steam turbine vibration monitoring
Bently Nevada 3300 XL 8mm eddy current proximity sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330101-23-38-10-02-00
Bently Nevada 330101 3300 XL Proximitor Sensor
,330101-23-38-10-02-00 Probe steam turbine vibration monitoring
,Bently Nevada 3300 XL 8mm eddy current proximity sensor
video
330104-00-25-10-02-05 Bently Nevada 3300 XL 8mm Armored Probe for Rotating Machinery
- Base Model: 330101 (3/8-24 UNF English thread, without cable armor)
- Unthreaded / Case Length: 2.3-inch unthreaded length with a 3.8-inch overall case length
- Total System Cable Length: 1.0 meter (3.3 feet) lead cable, optimized for 9-meter proximitor setups
- Connector Type: Gold-plated ClickLoc miniature coaxial connector (without connector protector)
- Agency Approvals: Standard option (no specific hazardous area certifications)
- Dynamic & Static Monitoring: Engineered for radial vibration monitoring, thrust position measurement, and shaft eccentricity tracking. In practice it’s mainly used where signals need to stay stable on high-speed rotating shafts, not just lab conditions.
- Critical Asset Protection: Widely deployed in high-speed steam turbines, gas turbines, centrifugal compressors, pumps, and fluid-film bearing machines. Most of the time it shows up in real plant protection loops, especially equipment that can’t afford downtime.
- System Integration: Fully compatible with Bently Nevada 3300 XL extension cables, 9m Proximitor sensor setups, and 3500 series rack modules (including 3500/40M and 3500/42M cards). Usually integrated into existing machinery protection architecture without much adjustment on site.
This original Bently Nevada spare part ensures precise bearing oil film clearance tracking and rotor stability data. It minimizes unplanned downtime and provides reliable machinery protection in harsh industrial environments (-51 °C to +177 °C).
Amikon provides global automation supply with a multilingual team supporting 166+ countries.
- English, Chinese, Spanish, German, French, and Japanese.
- Americas: USA, Canada, Mexico, Brazil.
- Europe: Germany, UK, France, Italy.
- Asia-Pacific: Singapore, Australia, South Korea, Japan.
- Middle East: UAE, Saudi Arabia, Qatar.
Daily express dispatch worldwide via DHL, FedEx, and UPS.
- Discontinued Part Specialist - We source rare, obsolete, and hard-to-find PLC/DCS parts to keep your legacy systems running.
- Massive Inventory, Ready to Ship - Huge stock of top brands (ABB, AB, Bently Nevada) available for immediate worldwide dispatch.
- 100% Tested & 1-Year Warranty - Every component undergoes strict quality inspection and comes with a comprehensive 12-month warranty.
- Minimize Your Downtime - Fast global shipping and rapid quotation response to get your production line back up instantly.
Standard field tightening sits around 11.2 N·m (100 in·lbf). That’s what most field engineers will actually use in normal machinery protection casing installs.
Upper rated limit is 33.9 N·m (300 in·lbf), though in practice it’s rarely treated as an operating value.
If load is more on the first few threads, people usually drop it further — around 7.5 N·m (66 in·lbf). Going beyond that line, internal eddy current coil structure and sealing can slowly get affected.
Measurement point is the ClickLoc connector, and the probe itself has a 1.0 m unarmored triaxial lead cable, so access is straightforward.
Typical reading: 7.59 ± 0.50 Ω at room temperature.
Field interpretation is almost routine:
- around 0 Ω → short inside
- OL → open loop / broken coil
In most plants, it doesn’t get repaired at component level, just replaced from spare stock for critical rotating machinery protection systems.
Typical setup is a 9-meter transducer chain, usually completed with an 8-meter extension cable (330130-080-00-00) and connected into a Bently Nevada 3500 rack module.
If lengths don’t match exactly, the Incremental Scale Factor (ISF) can drift from the standard 7.87 V/mm (200 mV/mil). Not always obvious immediately, but vibration values may look slightly off later.
In fluid-film bearing machines or turbine oil mist areas, this point is usually where problems start. Oil ingress → unstable signal → sometimes machinery protection card errors. Most sites don’t rely on tape long-term. They go with fluorosilicone connector protector sleeves (40113-02 / 40180-02) or molded protection parts instead.
