330910-03-09-05-02-05 Bently Nevada 3300 NSv Proximity Probe
Bently Nevada 330910 Bently Nevada 3500 rack module
330910-03-09-05-02-05 centrifugal compressor monitor
3300 NSv Proximity Probe radial vibration monitoring
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330910-03-09-05-02-05
Contact Us
Request A Quote
Product Details
Model:
330910-03-09-05-02-05
Packaging:
Original New Packaging
Expected Shipping Dimensions:
2x66x1.6cm
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
Weight:
0.1kg
Highlight:
Bently Nevada 330910 Bently Nevada 3500 rack module
,330910-03-09-05-02-05 centrifugal compressor monitor
,3300 NSv Proximity Probe radial vibration monitoring
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

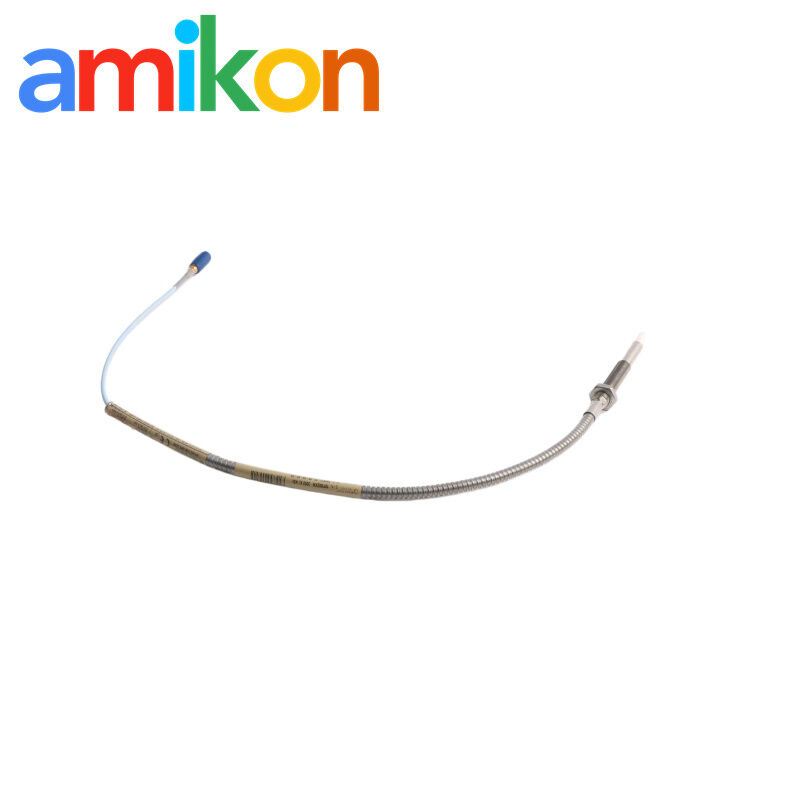

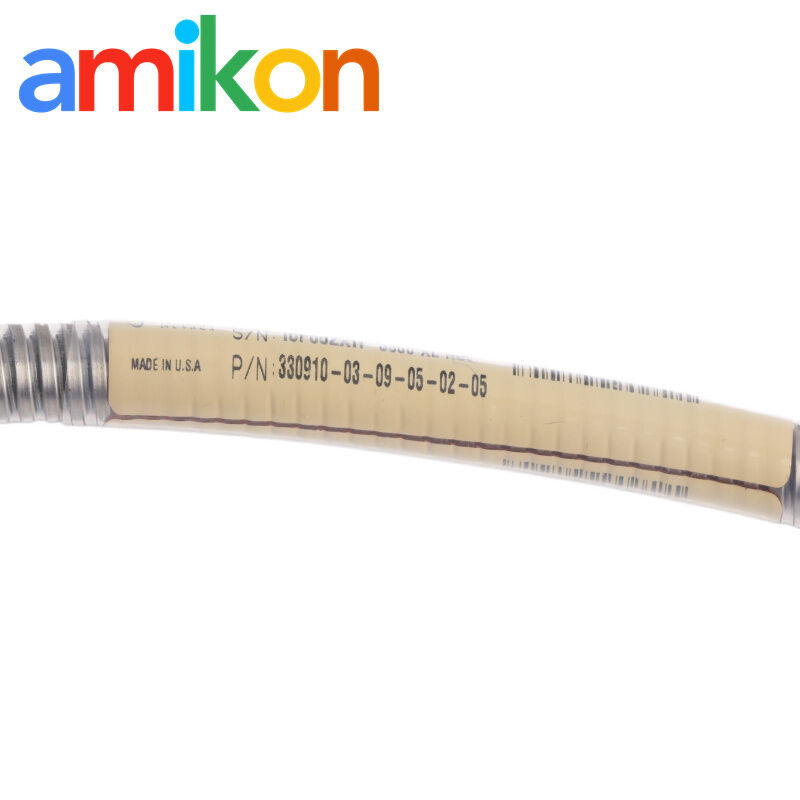

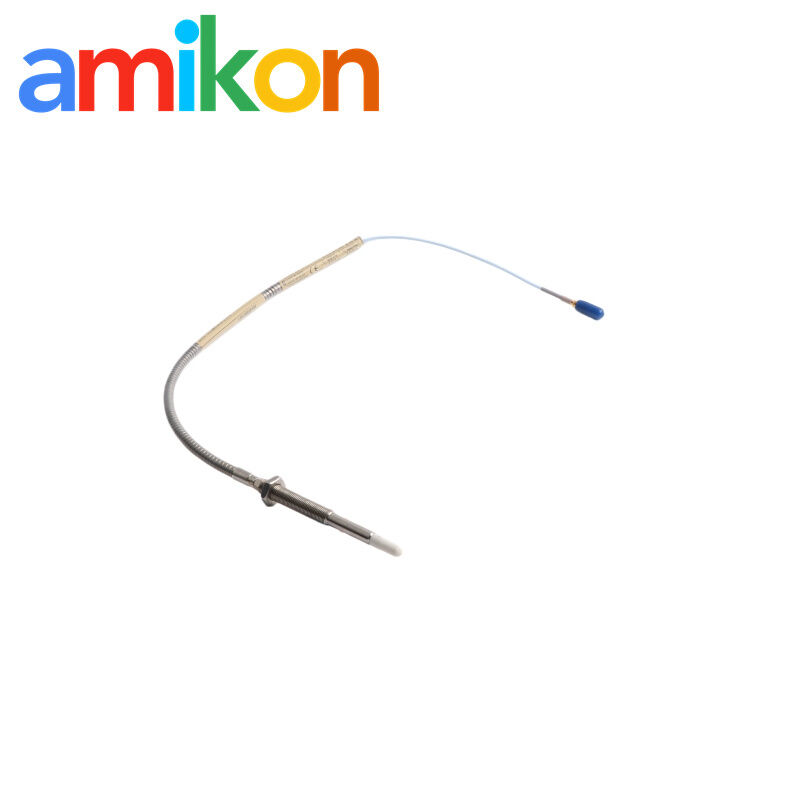

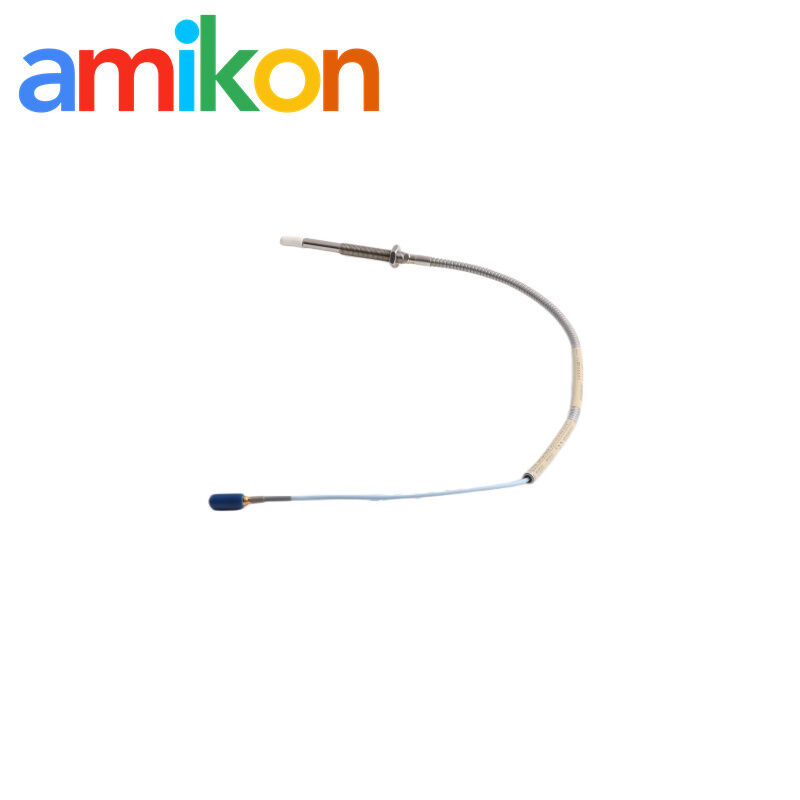

330910-03-09-05-02-05 Bently Nevada 3300 NSv Proximity Probe
Product Overview
- 100% Genuine Replacement: Bently Nevada 330910 03 09 05 02 05 is a factory-original NSv probe, mainly used as direct replacement to avoid downtime on critical machines.
- Eliminate Interference: NSv (Narrow Side View) design helps reduce side-wall effects in tight spaces, so signal stays more stable around small clearances.
- Heavy-Duty Protection: About 0.5 m stainless steel armored cable. In practice, just better resistance to oil, heat, and wear in field routing.
- Hazardous Area Ready: Comes with ATEX, CSA, IECEx approvals, so it’s used in regulated or hazardous zones.
Applications & System Compatibility
- Target Machinery: Centrifugal compressors, turboexpanders, high-speed pumps—basically tight bearing clearance machines.
- System Components: Works with Bently Nevada 3300 XL NSv transducer system, usually paired with 330930 cables and Bently Nevada 330980 Proximitor sensor, then into 3500/40M or 3500/42M.
Technical Specifications
| Parameter | Specification | Model Code Breakdown |
|---|---|---|
| Probe Type | M10 x 1 Thread | 3300 NSv Proximity Probe |
| Unthreaded Length | 30 mm | 03 Option |
| Overall Case Length | 90 mm | 09 Option |
| Cable & Armor | 0.5 m (20 in) | 05 Option + Stainless Steel Armor |
| Connector Type | ClickLoc Coaxial | 02 Option (Gold-plated, anti-vibration) |
| Agency Approval | Multiple Approvals | 05 Option (ATEX, CSA, IECEx Certified) |
| Scale Factor | 7.87 V/mm | 200 mV/mil micron-level tracking |
Global Support & Shipping
Amikon provides global automation supply with a multilingual team supporting 166+ countries.
Languages Spoken
- English, Chinese, Spanish, German, French, and Japanese.
Key Markets
- Americas: USA, Canada, Mexico, Brazil.
- Europe: Germany, UK, France, Italy.
- Asia-Pacific: Singapore, Australia, South Korea, Japan.
- Middle East: UAE, Saudi Arabia, Qatar.
Global Shipping
- Daily express dispatch worldwide via DHL, FedEx, and UPS.
Request a Quote Now
Quality Assurance & Support
- 12-Month Warranty: Comprehensive full-year functional guarantee on all supplied modules.
- 100% Quality Inspected: Rigorous pre-shipment testing to ensure components arrive ready for installation.
- 14-Day Return Window: Clear, upfront return policy for qualified product parts.
- 24/7 Rapid Response: Dedicated, multilingual account managers providing around-the-clock sales and support.
Frequently Asked Questions
Q1: What should be checked during 3300 XL NSv system installation with 330910-03-09-05-02-05?
A: Main thing is mechanical fit. For Bently Nevada 330910 03 09 05 02 05, just make sure mounting depth is right and the unthreaded section actually clears the sleeve without rubbing. Cable routing also matters—stainless armor cable shouldn’t be bent too tight, otherwise the inner coax can get stressed over time and start causing signal issues later.
Q2: Does 330910-03-09-05-02-05 need field calibration?
A: Not really. It’s factory calibrated already. Typically works at 7.87 V/mm (200 mV/mil). If the system is matched with 330930 cable and Bently Nevada 330980 Proximitor sensor, you can just install and connect into 3500/40M without extra tuning.
Q3: How to troubleshoot signal drop on 330910-03-09-05-02-05?
A: Start simple. Check ClickLoc connector first—oil or dirt is usually the real issue. Then check continuity. If resistance is way off normal range, it’s usually cable damage, not rack side. In most cases, it ends with probe replacement.
Q4: Why is 330910-03-09-05-02-05 suitable for high temperature monitoring?
A: It’s built for harsh temp range, roughly -52°C to +177°C. Materials and potting inside are rated for that. Combined with ATEX / IECEx approvals, it’s commonly used on hot rotating equipment like compressors and turbines.
Q5: Can 330910-03-09-05-02-05 be used as emergency spare part?
A: Yes, it’s often stocked as critical spare. Bently Nevada 330910 03 09 05 02 05 is usually kept for fast replacement when machinery goes down, especially on compressors and turbine trains. Most suppliers treat it as fast-moving maintenance stock.
