330102-22-58-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe

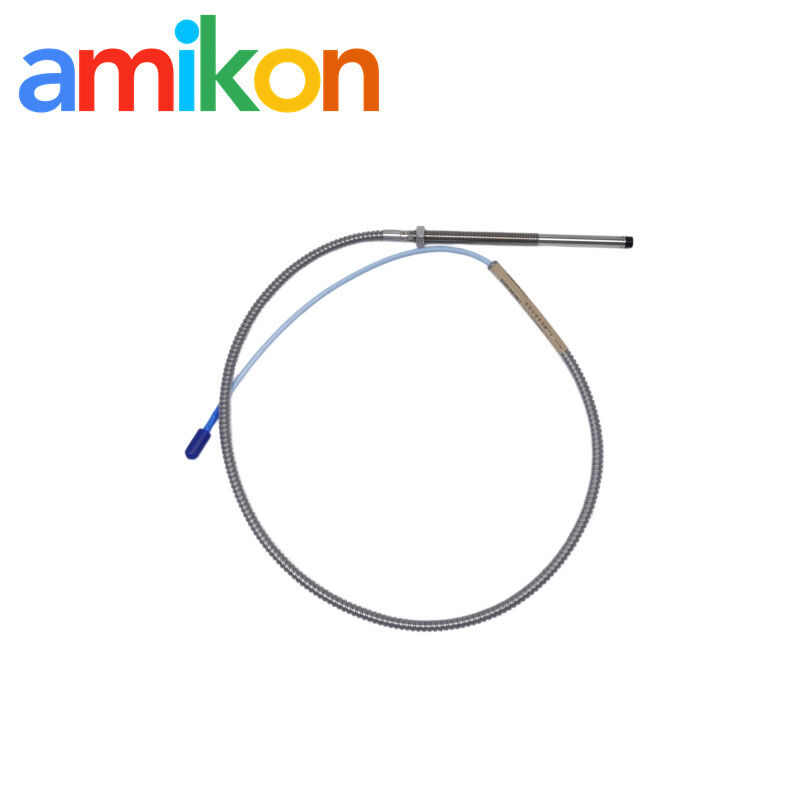

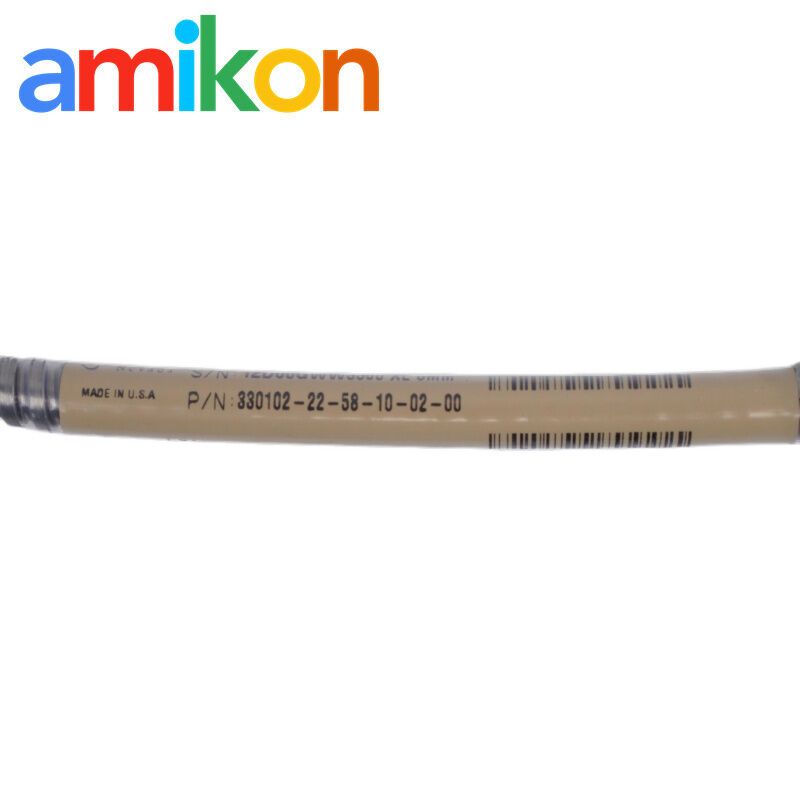

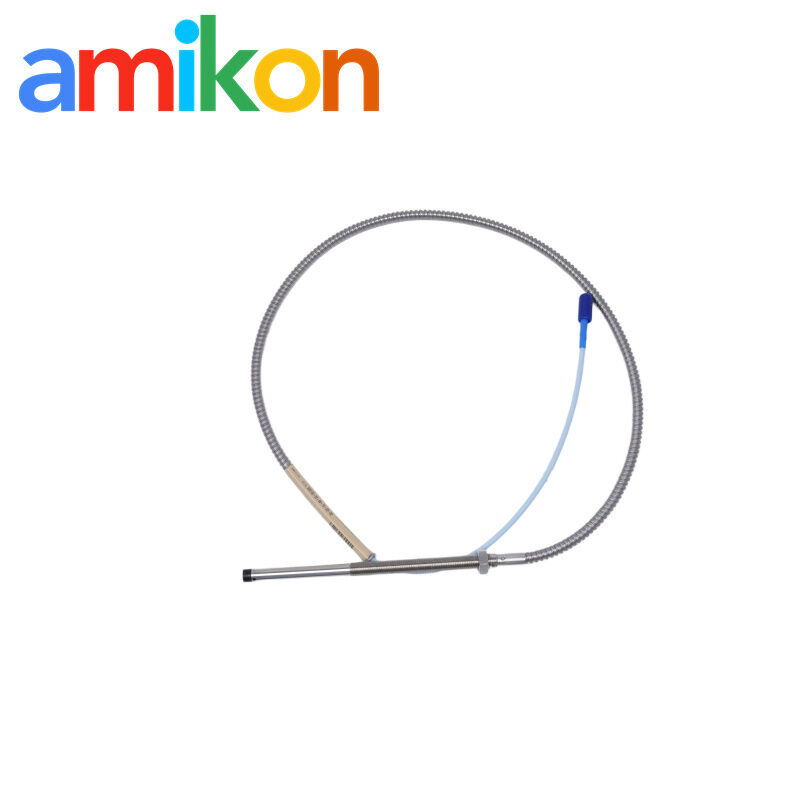

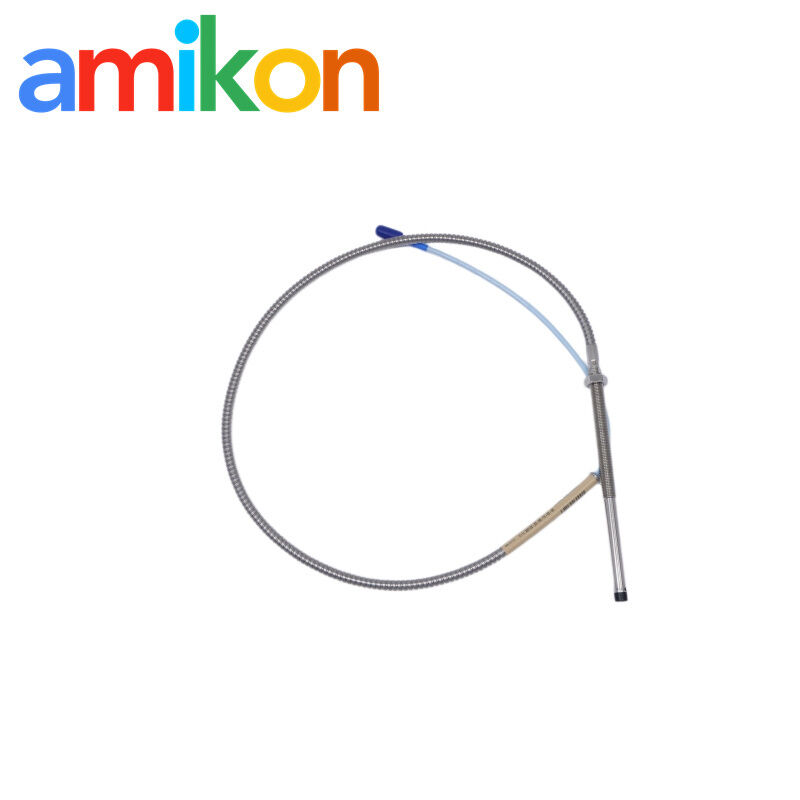

330102-22-58-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe

Bently Nevada 330102-22-58-10-02-00 Bently Nevada 3500 rack system

3300 XL 8mm Proximity Probe steam turbine vibration monitoring

330102 armor transducer probe non-contact radial vibration measurement

Place of Origin:

USA

Brand Name:

Bently Nevada

Model Number:

330102-22-58-10-02-00

Contact Us
Request A Quote
Product Details
Model:
330102-22-58-10-02-00
Packaging:
Original New Packaging
Expected Shipping Dimensions:
1.5x113x1.4cm
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
Weight:
0.14kg
Highlight:

Bently Nevada 330102-22-58-10-02-00 Bently Nevada 3500 rack system

,

3300 XL 8mm Proximity Probe steam turbine vibration monitoring

,

330102 armor transducer probe non-contact radial vibration measurement

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
330102-22-58-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Configuration Details
Bently Nevada 3300 XL 8mm Proximity Probe configuration diagram
330102 - Model 3300 XL 8mm Probe with 3/8-24 UNF Thread and Stainless Steel Armor
-22 - 2.2 Inches Unthreaded Length Body
-58 - 5.8 Inches Overall Case Length
-10 - 1.0 Meter (3.3 Feet) Probe Length
-02 - Miniature Coaxial ClickLoc Connector on FEP Standard Cable
-00 - Standard Industrial Option with No Hazardous Area Approvals
Technical Specifications
  • API 670 Compliant Machinery Protection -The Bently Nevada 330102-22-58-10-02-00 runs on a 7.87 V/mm (200 mV/mil) sensitivity with about 2.0 mm (80 mils) linear range. Used for non-contact shaft displacement and radial vibration monitoring, nothing overcomplicated, just stable measurement in rotating machinery.
  • Zero Extension Cable Required - It’s a 1.0 m integral probe design, so it connects straight into the matching Bently Nevada 3300 XL Proximitor sensor. No extra extension cable in between, wiring on site stays simpler, less points to troubleshoot.
  • Heavy-Duty Mechanical Build - The probe uses a solid PPS tip with TipLoc design, and CableLoc structure gives it around 330 N pull strength rating. In practice it feels more “overbuilt” than delicate, especially for turbine or compressor environments.
  • Vibration-Proof ClickLoc Connector - Gold-plated ClickLoc connector, just push and lock. It clicks when seated properly. No tools needed, and it helps avoid loosening in field vibration conditions.
  • Factory AISI 4140 Steel Calibration - Calibrated against AISI 4140 steel targets at factory level, so it stays interchangeable with other Bently Nevada 3300 XL system components. Usually no bench calibration needed during replacement.
Global Shipping & Delivery
World map showing global shipping coverage
Amikon maintains active export channels to more than 166 countries, ensuring critical parts reach plants across the Americas, Europe, Asia, and the MEA region.
  • Broad Reach: Full logistics clearance for key manufacturing hubs globally.
  • Courier Partners: Fast international air freight via DHL, FedEx, and UPS.
  • Facility Delivery: Direct-to-site shipment to prevent industrial downtime.
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Quality Assurance & Support
Quality inspection process for industrial probes Warranty and support services illustration
  • 12-Month Warranty: Comprehensive full-year functional guarantee on all supplied modules.
  • 100% Quality Inspected: Rigorous pre-shipment testing to ensure components arrive ready for installation.
  • 14-Day Return Window: Clear, upfront return policy for qualified product parts.
  • 24/7 Rapid Response: Dedicated, multilingual account managers providing around-the-clock sales and support.
Frequently Asked Questions
FAQ section illustration for technical support
Q1: Can 330101 probes be upgraded to 330102-22-58-10-02-00?
Yes, mostly direct swap if dimensions match. Bently Nevada 330102-22-58-10-02-00 just adds armor for protection, electrical side stays the same.
Q2: Biggest wiring mistake with 330102-22-58-10-02-00?

Adding extension cable. It should go straight to Bently Nevada 3300 XL Proximitor sensor. Extra cable shifts impedance and messes up calibration.

Q3: How to tell if 330102-22-58-10-02-00 is bad or just mis-gapped?
Check resistance first (around 7.09–8.09 Ω). If that’s fine, probe usually OK. Most issues are just gap setup, not failure.
Q4: Why no hazardous approval on 330102-22-58-10-02-00?

“-00” = standard version. No ATEX/IECEx paperwork. For hazardous areas, you need certified variant, not this code.
