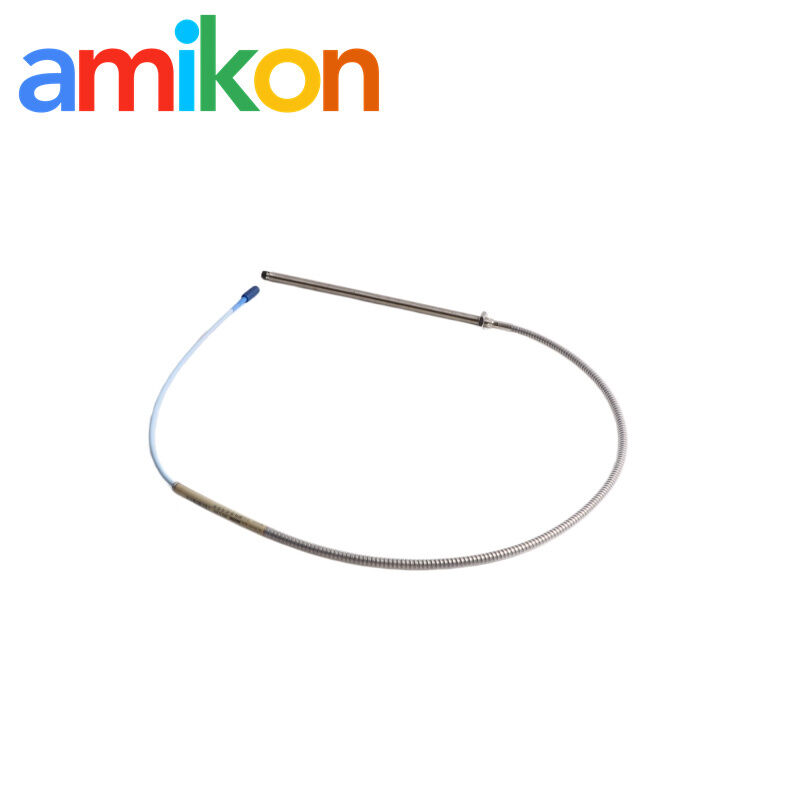

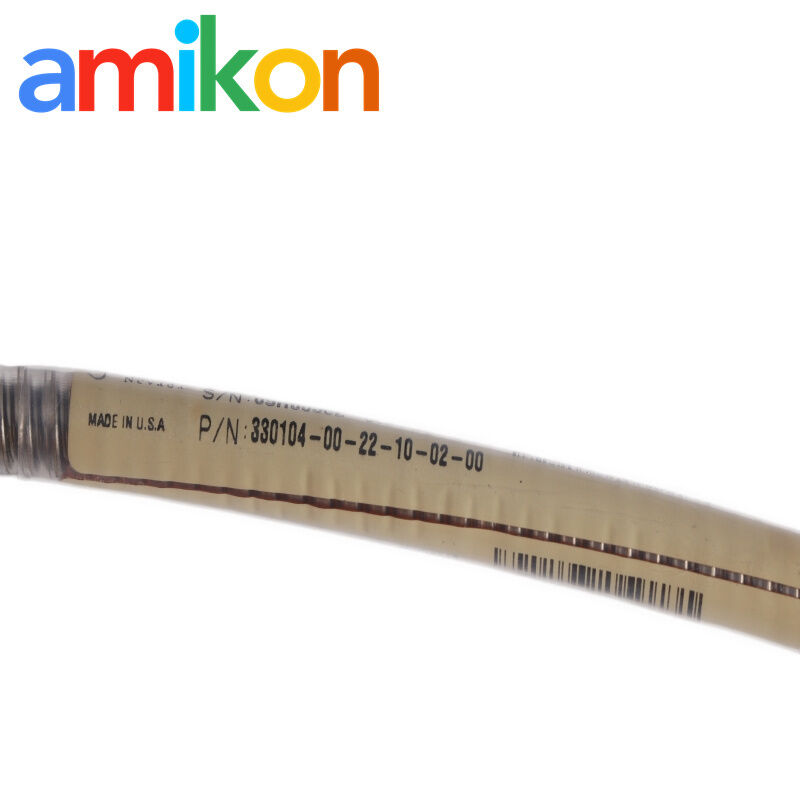

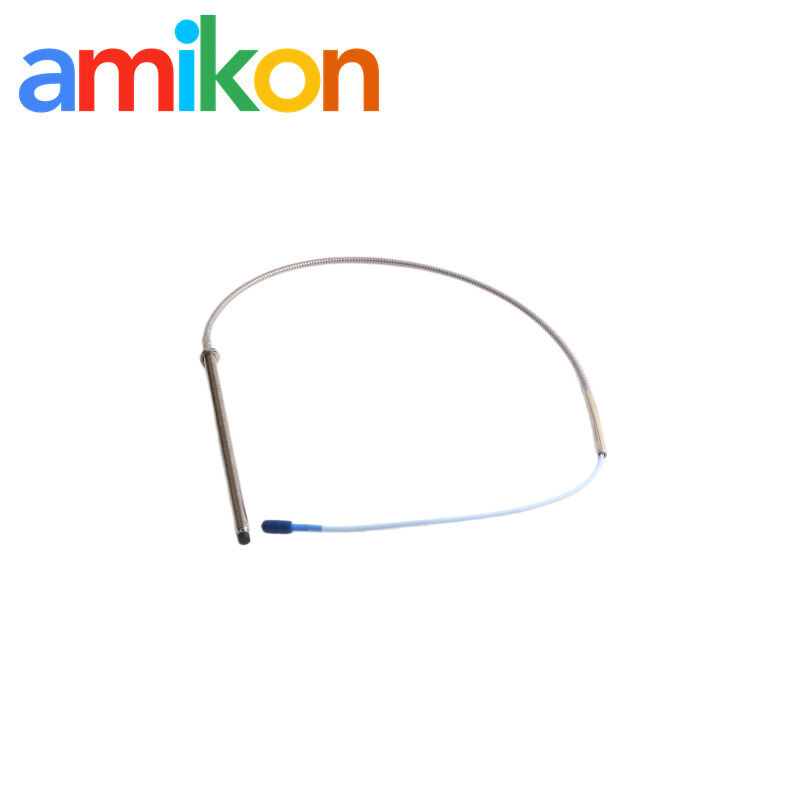

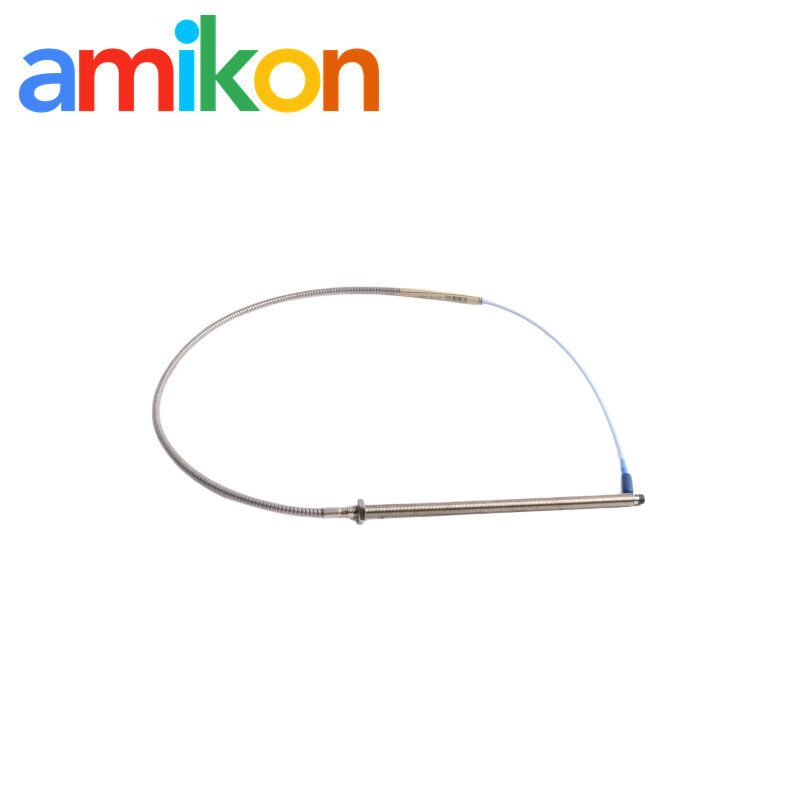

330104-00-22-10-02-00 Bently Nevada 3300 XL 8 mm Proximity Probe
The Bently Nevada 330104 is an eddy current probe designed for high-precision, non-contact measurement of shaft vibration, axial displacement, and speed in critical rotating machinery (e.g., turbines, compressors). It fully complies with the API 670 Standard, features an integrated flexible stainless steel armor, and offers 100% interchangeability without the need for bench calibration.
Part Number Breakdown
- 330104: 3300 XL 8 mm Metric Probe (M10 x 1 thread, with armor)
- -00: Unthreaded length of 0 mm (fully threaded case)
- -22: Overall case length of 220 mm
- -10: Total integrated cable length of 1.0 meter (3.3 feet)
- -02: Miniature coaxial ClickLoc self-locking connector, standard FEP cable
- -00: Standard industrial version (No agency approvals required)
Global Distribution
Amikon supplies automation components to over 166 countries, covering North America, Europe, Asia-Pacific, and the Middle East.
- Global Logistics: Fast shipping worldwide via DHL, FedEx, and UPS
- Direct Delivery: Safe transit to industrial facilities globally
Company Capabilities
Amikon is a trusted supplier with 50,000+ orders fulfilled and 200,000+ clients worldwide.
- Massive Stock: Rare, new, and discontinued modules ready to ship
- Quality Guarantee: 100% inspected parts with a 12-month warranty
- 24/7 Support: Quick multilingual response to minimize factory downtime
Frequently Asked Questions
Q1: Can the 330104-00-22-10-02-00 work with older non-XL systems?
A1: Yes, it’s basically backward compatible with legacy non-XL 3300 series 5 mm / 8 mm transducer system. The 330104-00-22-10-02-00 Bently Nevada 3300 XL 8mm Probe can be dropped into existing setups without much trouble. Just keep in mind, once mixed with old components, overall performance will sit closer to the non-XL level.
Q2: Any calibration or material limits for the 330104-00-22-10-02-00?
A2: This eddy current probe 330104-00-22-10-02-00 is calibrated for AISI 4140 steel at the standard 1.27 mm (50 mil) gap. That’s the reference point for its response. If the target is coated, non-metal, or heavily modified, readings can shift and usually need factory-level recalibration rather than field tuning.
Q3: What installation space or shaft size is required for the 330104-00-22-10-02-00 probe?
A3: For stable measurement, the 330104-00-22-10-02-00 sensor typically needs at least 50.8 mm shaft diameter, with 76.2 mm being more ideal in real machines. If spacing is too tight around the probe, cross-talk can appear, especially in radial vibration monitoring or thrust position measurement.
Q4: How does the 330104-00-22-10-02-00 probe handle harsh environments?
A4: The probe uses PPS tip encapsulation + Viton sealing, so normal industrial humidity is not a big issue. Long exposure to very aggressive fluids can still cause slow wear. In most steam turbine monitoring or gas turbine case expansion protection setups, it performs within expected stability range.
Q5: Wiring distance limits in a 3500 system for 330104-00-22-10-02-00?
A5: When used with a 3300 XL Proximitor Sensor in a Bently Nevada 3500 rack module, field wiring is typically limited to around 305 m (1000 ft). Beyond that, signal starts to weaken slightly, especially in high EMI industrial environments like centrifugal compressor monitoring systems.
