330103-00-08-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe with API 670 Standard Compliance and Miniature ClickLoc Connector
330103-00-08-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe with API 670 Standard Compliance and Miniature ClickLoc Connector
Bently Nevada 330103 3300 XL proximitor sensor
3300 XL 8mm Probe fluid-film bearing monitoring
Bently Nevada proximity probe non-contacting vibration measurement
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330103-00-08-05-02-CN
Contact Us
Request A Quote
Product Details
Model:
330103-00-08-05-02-CN
Packaging:
Original New Packaging
Expected Shipping Dimensions:
1.7x58x1.7cm
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
Weight:
0.06kg
Highlight:
Bently Nevada 330103 3300 XL proximitor sensor
,3300 XL 8mm Probe fluid-film bearing monitoring
,Bently Nevada proximity probe non-contacting vibration measurement
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
330103-00-08-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probes
- API 670 Standard Compliant: Gold standard for critical asset protection and radial shaft vibration monitoring.
- Eddy Current Proximity Sensor: High-precision non-contacting vibration probe measuring static position and dynamic displacement.
- 100% Loop Interchangeability: Swaps probes, extension cables, and Proximitor sensors without re-matching or bench calibration.
- Backward System Compatibility: Fully interchangeable with legacy non-XL 3300 series 5mm/8mm transducer components to lower spare parts costs.
- Patented TipLoc™ & CableLoc™: Heavy-duty molded probe tip providing 330 N (75 lbf) case-to-lead pull strength.
- Vibration-Proof ClickLoc™: Gold-plated triaxial coaxial connectors that snap lock securely to eliminate intermittent signal loss.
- SIL 2 / SIL 3 Certified: Functional safety certified for emergency shutdown systems (ESD) in hazardous areas.
AMIKON Global Logistics: Real-Time Deliveries to the Following Regions
The Americas: United States (USA) | Canada | Brazil | Mexico | Chile
Europe: Germany | United Kingdom (UK) | France | Italy | Netherlands | Poland
Middle East & Africa: United Arab Emirates (UAE) | Saudi Arabia | South Africa | Egypt
Asia-Pacific: Singapore | South Korea | Australia | Vietnam | Thailand | India
Request a Quote Now
- 100% Genuine Guarantee: Brand new, original, and certified industrial automation parts.
- Global Rapid Shipping: Partnerships with DHL, FedEx, and UPS to ensure fastest delivery to 150+ countries.
- Massive Inventory: Instant access to millions of rare, discontinued, and current PLC & DCS modules.
- 24/7 Fast Response: Dedicated multilingual sales managers delivering quick quotes within blocks of time.
Technical Specifications

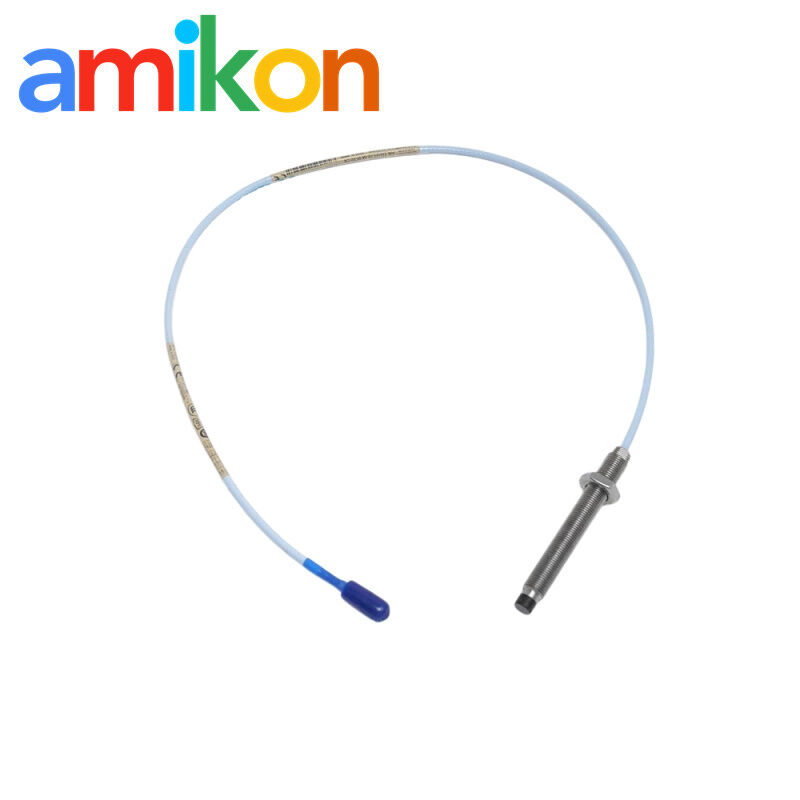

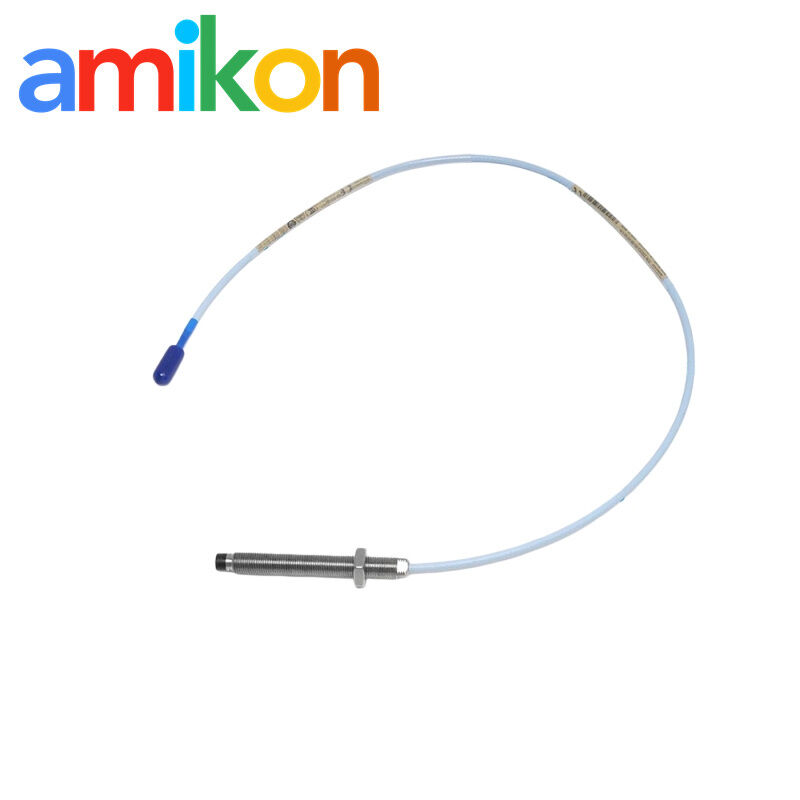

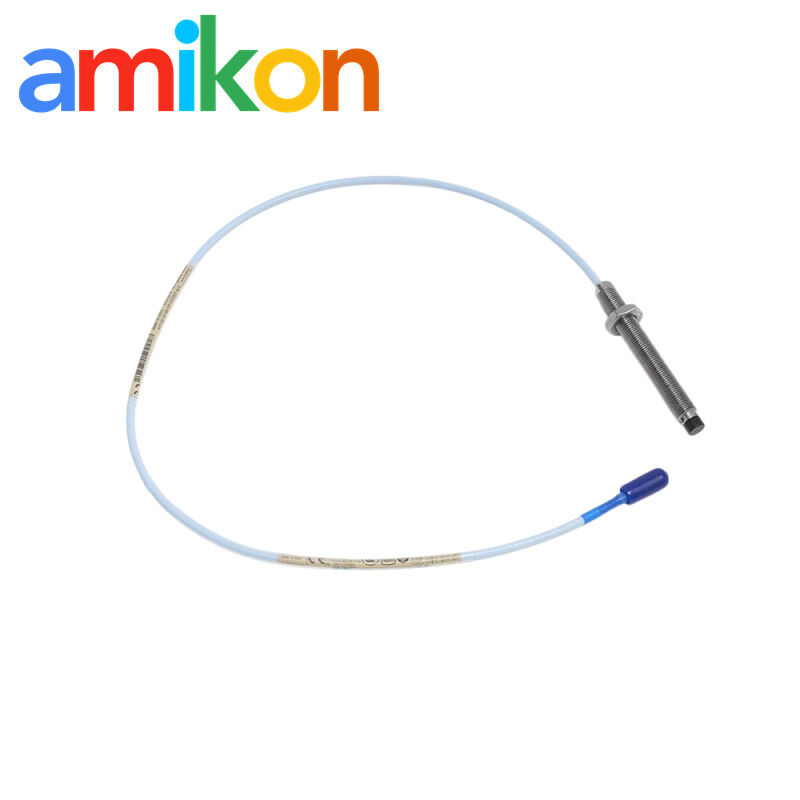

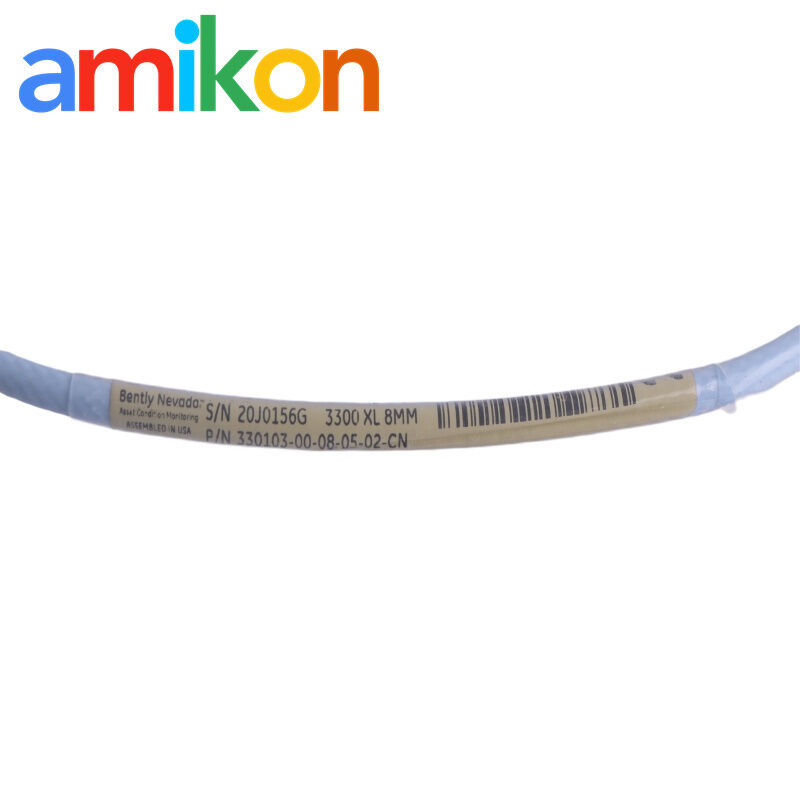

330103-00-08-05-02-CN is a Bently Nevada 3300 XL 8 mm Probe built for non-contacting vibration measurement and shaft displacement monitoring in rotating machinery. It comes with an M10 x 1 metric thread probe, 0.5 meter integral cable, and Miniature coaxial ClickLoc™ connector.
Key Specifications
- Case Length: 80 mm
- Unthreaded Length: 0 mm
- Material: AISI 303/304 stainless steel
- Cable: 0.5 meter triaxial FEP cable (unarmored)
- Linear Range: 2 mm (80 mils)
- ISF: 7.87 V/mm (200 mV/mil) ±5%
- Calibration Target: AISI 4140 steel
Usually found in fluid-film bearing monitoring, steam turbine vibration tracking, and centrifugal compressor monitoring, this 3300 XL eddy current probe works for both static position and dynamic vibration values measurement. In many setups, it is paired with a 3300 XL Proximitor sensor or Bently Nevada 3500 rack module for Keyphasor reference measurements and machinery protection.
Frequently Asked Questions
Q1: Can the 330103-00-08-05-02-CN work with older 3300 series parts?
A1: Yes, usually no problem. The 330103-00-08-05-02-CN is backward compatible with older non-XL 3300 series 5 mm and 8 mm components. Just keep in mind, once XL and non-XL parts are mixed, overall system performance will normally follow the lower legacy specifications.
Q2: Does the 330103-00-08-05-02-CN need metal housing for RFI protection?
A2: Not really. When matched with a 3300 XL Proximitor sensor, the system already has solid RFI immunity, so it can even be installed in fiberglass housings without extra metallic shielding in many cases.
Q3: How to keep the correct scale factor during replacement for the 330103-00-08-05-02-CN?
A3: The total transducer system length matters. Since this probe uses a 0.5 meter integral cable, it is usually paired with a 4.5 m extension cable for a 5 m system, or 8.5 m for a 9 m setup to keep the factory 7.87 V/mm ISF.
Q4: Does the 330103-00-08-05-02-CN stop oil or liquid leakage?
A4: The probe includes a Viton® O-ring pressure seal, which helps with sealing. That said, this version uses a standard FEP cable, so it is generally not the first choice for heavy oil-submerged areas.
Q5: What if the target material of the 330103-00-08-05-02-CN is not AISI 4140 steel?
A5: Accuracy may change. The probe is factory calibrated to AISI 4140 steel, and using other conductive materials can affect the incremental scale factor (ISF) and overall measurement results.
